BENQ MW632ST DLP Short Throw Multi Purpose Projector
Specifications
- WXGA 1280 x 800 16:10
- 3200 ANSI Lumens
- 13,000:1 Contrast
- 2.6kg Weight
- 32 / 28db(eco) Fan Noise
- 2 Year Warranty
- 12months/1000hrs Lamp Warranty
- Est. Lamp Life up to 10,000hrs
Key Features
- HDMI Connection
- Vertical Keystone Correction
- Powerful 10W Speaker
- 3D Capable(3D glasses required)
BenQ MW632ST Throw Distance Chart
Throw Ratio: 0.72-0.87:1| Image Size | Installation Distance | |
|---|---|---|
| 94" (16:10) 2025x1265mm | From 1.46m to 1.76m | |
| 110" (16:10) 2370x1480mm | From 1.71m to 2.06m | |
| 120" (16:10) 2585x1615mm | From 1.87m to 2.24m | |
| 130" (16:10) 2800x1750mm | From 2.02m to 2.43m | |
| 140" (16:10) 3015x1885mm | From 2.18m to 2.62m | |
| 150" (16:10) 3230x2020mm | From 2.33m to 2.81m | |
BenQ MW632ST Short Throw Projector
The BenQ MW632ST offers the highest display flexibility- giving you a 64" big picture in a mere projection distance of 1 meter! Featuring 3,200 ANSI Lumens high brightness and 13000:1 high contrast ratio and DLP® Link™ 3D technology, this WXGA projector is the perfect match for small-sized business and education settings!
key features
- SmartEco Power Saving technology
- Up to 10,000 hours long lamp life
- 2 HDMI Ports and 1 MHL
- <0.5W standby mode
- Short Throw Ratio
The Good Things that Come in Short Distances
Zero Space Constraints
Just imagine the freedom of having the same projection quality with half the required distance! You'll have better flexibility in choosing your projection locations! That's the magic of short-throw!
Zero Eye-Blinding Lights
The short-throw projection distance keeps the projector light from shinning directly into your eyes, allowing you to keep your focus on your audience.
Zero Disruptions
Say goodbye to the annoying shadows. With a projection distance this close, you can move freely without worrying about obstructions between the projector and the screen!
Brilliant Image Performance
High Contrast
A high contrast ratio ensures that every text, image, graph, chart and video is projected with optimal clarity and enhanced sharpness, especially for numerical data. This is for presenters to view their presentation files clearly and the audience to stay focused on the contents projected.
High Brightness
A high brightness business projector ensures every presentation is consistently projected with bright hues and high clarity – even in a relatively bright setting or with the lights kept on for note taking.
Rich Connectivity

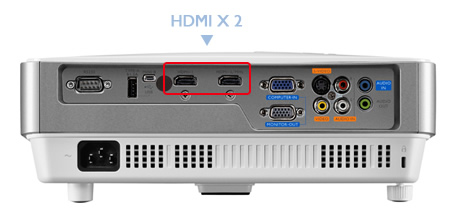

2 HDMI Ports!
Play from many devices with HDMI x 2 and multiple connectivity options.

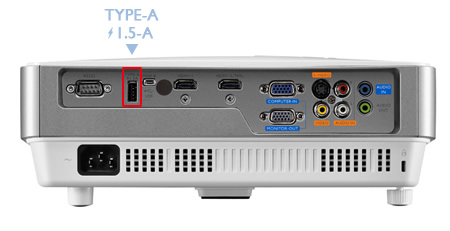

1.5A USB Type-A Power Supply
Users can charge their mobile devices through 1.5A USB Type-A power supply through USB Type-A. You don't need to worry about your mobile device running out of battery during meeting.
Plug 'N Play, Enjoy Big Screen Fun with Your Android Devices
Now you can share your loved content from your Android devices with your family and friends on big screen. it features MHL function and allows you to mirror the movie, games from your android devices to big screen, Also, your device is being charged while you’re using it, so the fun never stops.
Ease of Use
When the projector is placed off center, the automatic keystone correction feature gives you a wider projector installation flexibility by correcting the trapezoid effect using vertical adjustment automatically.

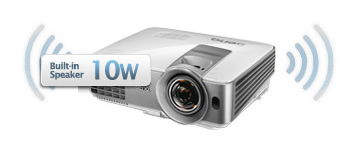

Built-in speakers
Built-in speakers are Plug-and-Play ready, only the power cord and video source connection are needed to prepare the viewing experience.
SmartEco Mode
The SmartEco Mode, which cleverly adjusts the lamp power to maximize power saving by delivering the best contrast and brightness performance using only as much light as needed.
No Source Detected Mode
The automatic switch to Eco Blank Mode after the projector is turned on for over three minutes without a display source, eliminating unnecessary energy waste and prolonging the life of the projector lamp.
Ultra-High Contrast Ratio
An ultra-high contrast ratio projects sharp images, even for high brightness projectors. Get better contrast and blacker blacks with a 13000:1 contrast ratio.
0.5W in Standby Mode
When inactive, the MW824ST complies with 2013 EU standards by keeping power consumption to a minimum using less than 0.5 W on standby, extending lamp life and reducing energy costs.
Blu-ray Full HD 3D Supported
BenQ MW824ST is built with latest DLP® technology to support 3D functionality, allowing schools to bring an immersive learning experience to their students with a simple preparation of 3D glasses and 3D content from your blu-ray player.
| Projection System | DLP |
| Native Resolution | WXGA (1280 x 800) |
| Brightness* (ANSI Lumens) | 3,200 ANSI Lumens |
| Contrast Ratio | 13000:1 |
| Display Color | 1.07 Billion Colors |
| Lens | F=2.6-2.78, f=10.2-12.24mm |
| Aspect Ratio | Native 16:10 (5 aspect ratio selectable) |
| Throw Ratio | 0.72~0.87 (87" ± 3% @ 1.36m) |
| Clear Image Size / Maximum Image Size | 60"~120"/ 300" |
| Image Size (Diagonal) | 1.2:1 |
| Lamp Mode (Normal/Economic/SmartEco/LampSave/LumenCare)* | 4,000/ 6,000/ 6,500/ 10,000 hours |
| Keystone Adjustment | 1D, Vertical +/- 30 degrees |
| Projection Offset | 105% ±5% |
| Resolution Support | VGA (640 x 480) to WUXGA_RB (1920 x 1200) * RB = Reduced Blanking |
| Horizontal Frequency | 15KHz~102KHz |
| Vertical Scan Rate | 24Hz~120Hz |
| 灯泡 | 196W |
| Interface | Computer In (D-sub 15pin) x 1 (Share with component) Monitor Out (D-sub 15pin) x 1 Composite Video In (RCA) x 1 S-Video In (Mini DIN 4pin) x 1 HDMI (1.4a) x 2 (One share with MHL2.0) Audio In (Mini Jack) x 1 Audio L/R In (RCA) x 1 Audio Out (Mini Jack) x 1 Speaker 10W x 1 USB (Type mini B) x 1 (Download & Page Up/ Down) USB (Type A) x1 (1.5A Power Supply) RS232 (DB-9pin) x 1 IR Receiver x 2 (Front + Top) |
| Dimensions (W x H x D mm) | 287.3 x 114.4 x 232.6mm |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility | NTSC, PAL, SECAM |
| 3D Support and Compatibility | PC: 120Hz Frame Sequential 3D for resolutions up to WXGA, PC: 60Hz Top-bottom 3D for resolutions up to SXGA+ Video: 60Hz Frame Sequential 3D for resolutions up to 480i |
| Audible Noise (Normal/Economic Mode) | 33/ 28 dBA (Normal/ Economic mode) |
| On-Screen Display Languages | Arabic/ Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/ Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages) |
| Picture Modes | ** Bright/ Presentation/ sRGB/ Cinema /(3D) / User 1/ User 2 |
| Accessories (Standard) | Remote Control w/ Battery Power Cord (by region) User Manual CD Quick Start Guide Warranty Card (by region) VGA (D-sub 15pin) Cable |
| Power Supply | AC100V to 240V, 50Hz to 60 Hz |
| Power Consumption | Normal 305W, Eco 220W, Standby < 0.5W |
| Power Management Function | Automatic power off after 20 minutes without a display source |
| Weight | 2.6kg |
