Epson EB-1970W LCD High Brightness Widescreen Multimedia Projector



EB-1970W










DISCONTINUED

FOR THE CURRENT RANGE OF EPSON PROJECTORS CLICK HERE


Quick Facts:
Epson EB-1970W Throw Distance Chart (Examples for common Sizes)
Image Size Installation Distance
(Approx. To Lens)
83" (16:10) 1790x1120mm From 2.5m to 4.1m
98" (16:10) 2110x1320mm From 2.9m to 4.8m
118" (16:10) 2540x1590mm From 3.5m to 5.8m
SPECIFICATIONS
Native Resolution: WXGA 1280 x 800 16:10
Brightness: 5000 ANSI Lumens
Maximum Contrast: 10,000:1
Weight: 4.5kg
Fan Noise: 39 / 31db (eco)
Warranty: 3 Years (+1 Year $129)
Lamp Warranty: 12 months / 750 hours
Lamp Life Up To: 4
,000hrs
FEATURES
- Vertical & Horizontal Keystone

- Powerful 16W Speaker

- 1.6x Zoom
- HDMI Connection
- MHL Compatible
- USB to laptop Connection
- Instant Off
- Presentation Wireless - Included

The Epson EB-1970W projector provides brilliant colour and amazing image quality with up to 5,000 lumens of colour brightness and up to 5,000 lumens of white brightness. This powerful product also features Faroudja DCDi® video processing to ensure your image always looks its best. The EB-1970W also features a newly developed lens with a greater sharpness and focus level. Wide-ranging connectivity including two HDMI inputs, MHL, and Control I/O. Rich functionality such as Auto Power ON, Focus Help, Split Screen, USB Display and Lamp Regulation allow for a quicker, smarter user experience. Whether they’re used in the boardroom, or your living room, the Epson EB-1970W delivers bright, vivid images that will captivate any audience.

KEY FEATURES & BENEFITS

  • 3 x Brighter Colours and reliable performance* – 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness
  • Crisp Clear Resolution – Featuring WXGA (1280 x 800)
  • Versatile Connectivity – Easily integrate with any system with HDMI and MHL
  • Wireless Functionality – Wi-Fi
  • Epson iProjection™ – Wirelessly display and control content from your iPhone®, iPad®, iPod touch® and Android™ devices
  • USB Display Function – Project via a simple USB cable connection without having to change the monitor output setting on the PC
  • Automatic Setup – The Automatic Screen Fit function adjusts focus, zoom, horizontal and vertical keystone all at the touch of a button

3x Brighter Colours with Epson
Brilliant image quality requires high colour brightness (colour light output), and Epson® 3LCD projectors have 3 x Brighter Colours than leading competitive projectors*. One brightness measurement (lumens) is not enough. A projector‘s specification needs to show both high colour brightness and high white brightness. If colour brightness is lower than white brightness, images may be dark, dull and lose detail. If not provided, be sure to ask for a projector’s colour brightness specification.

*Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.

EB-1970W Brightness
Faroudja Faroudja DCDi® Cinema for advanced video quality
The Faroudja DCDi Cinema chipset is a video enhancement technology that produces exceptional image quality without introducing artefacts. Faroudja DCDi (Directional Correlational Deinterlacing) was developed to eliminate jagging, using a unique algorithm. This technology, in combination with decoding, deinterlacing and enhancement technologies, won an Emmy Award from the National Academy of Television Arts and Sciences.

Split Screen
Split Screen allows you to display content from two inputs simultaneously, side by side, on a single screen. With three layout options you can display video and presentation materials, and run video on both screens.

EB-1970W Split Screen

MHL Logo

MHL — The latest in connectivity
Turn your projector into a smart display with instant access to movies, games and more:
• Works with MHL-enabled smartphones and tablets
• Use the projector remote to control MHL-enabled devices
• Supports Full HD 1080p video and audio
• Simultaneously charge your MHL-enabled device when it’s plugged into the projector
MHL Compatible

iProjection iProjection
Display and control content from your iPhone®, iPad® or iPod® touch with the Epson iProjection App and any nearby wireless or networked Epson projector. Whether projecting a PowerPoint presentation loaded to the iProjection App or a photo slideshow from your iPad, Epson’s iProjection gives you the wireless freedom you’ve come to expect from your mobile device. This App is easy to use and navigate with intuitive menu options that make it simple to bring your iOS content to the big screen.
Multi PC Projection Multi PC Projection
The Multi PC Projection feature allows a network of up to 50 devices to be connected to a single projector. A new addition to Multi PC Projection sees smart devices such as iOS and Android Devices being able to join the network. Another additional feature has been built into the EB-1900 Series allows a PC to act as a Moderator, who can then select up to 4 of the connected devices and project their screens from the projector. The addition of a Moderator helps to maintain control and prevents tampering with the projected screen.

USB Display Function and USB Memory Slide Show
The EB-1970W can display your presentation via a connection to a PC with a simple USB cable. You can also create and display images directly from a USB memory device*, making it possible to give presentations without the need for a PC.

Advanced Networking
With the EB-1900 Series, it’s possible to monitor and control up to 1,024 networked Epson projectors from a remote location. Schedule power on or off timings, check projector status and receive maintenance alerts. Users can even project presentations in up to four rooms from one networked location. This is possible both over a wired connection (via RJ45 connection) or via the 802.11b/g/n wireless module which is included in the box for the EB-1970W/1975W/1985WU.

Connectivity Panel

EB-1970W Connections






Specifications
PRODUCT NAME Epson EB-1970W
PRODUCT CODE V11H622053
WHAT'S IN THE BOX
  EB-1970W Projector, 1.8m Computer Cable, 1.8m power cable, Remote Control, Batteries, Projector Software, Manual
TECHNOLOGY
Projection System Epson 3LCD, 3-chip technology
LCD Panel 0.76-inch with MLA
OPTICAL
Zoom 1-1.6 (Optical Zoom)
Screen Size 30" to 300" [0.86m to 8.95 m] (Zoom: Wide)
30" to 300" [1.45m to 14.79 m] (Zoom: Tele)
Projection Distance 120" screen 3.56 - 5.89 m
Throw Ratio 1.38 (Zoom: Wide), 2.28 (Zoom: Tele)
Projection Lens F Number 1.5-2.0
Projection Lens Focal Length 23mm - 38.4mm
Focus Method Manual Focus
Offset 10:1
Colour Light Output 5,000 Lumens
White Light Output 5,000 Lumens
Resolution WXGA
Native Aspect Ratio 16:10
Contrast Ratio 10,000:1
Lamp Hours Normal/Eco: 3,000/4,000 Hours
Lamp Type 280 W UHE
Keystone Correction Vertical: -30 to +30 degrees
Horizontal: -30 to +30 degrees
CONNECTIVITY
Input: Video 1 x RCA (Yellow)
Input: Computer 2 x D-sub 15-Pin (RGB), 1 x USB 2.0 type B
Input: USB Memory Device 1 x USB Type A
Input: Three-In-One USB Display 1 x USB 2.0 type B
Input: Digital 2 x HDMI (1 x MHL)
Input: Audio 1 x RCA (Red/White), 2 x Stereo mini jack
Input: Control 1 x USB 2.0 type B, 1 x RS232C
Input: Epson USB Document Camera 1 x USB 2.0 type B
Network I/O: 1 x RJ45 (100Mbps)
Wireless Connectivity Included
WiDI/Miracast No
Output: Video 1 x D-sub 15 pin (black moulding)
Output: Audio 1 x Stereo mini jack
Speaker Output 16W
ADVANCED FEATURES
EasyMP Network & Control Yes
EasyMP Network Projection Yes
PC Free Presentations Yes
USB Plug 'n Play Yes
AV Mute Slide Yes
Instant Off Yes
Auto Power On Yes
Direct Power On/Off Yes
Security Padlock & Security Cable Hole
Kensington®-style lock provision
Wireless LAN Unit Lock
Password protect function
Colour Modes Dynamic, Presentation, Theatre, Photo, sRGB, Blackboard, Whiteboard, DICOM.SIM
GENERAL
Dimensions D x W x H 291 x 377 x 110 mm
Weight 4.5kg
Lamp Warranty 12 months or 750 hours*
Projector Warranty 3 Years
Power Consumption: Lamp on Normal/Eco: 411/316W
Power Consumption: Standby 0.34W (communication off)
Noise Level Normal/Eco: 39/31dB

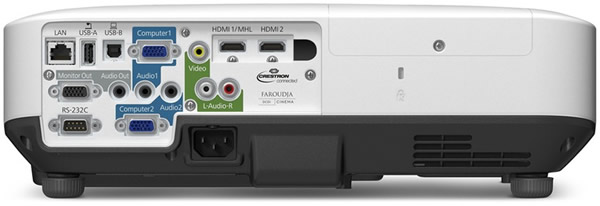

Rear Panel


EB-1970W Connections
Optional Accessories

Projector Warranty Upgrades

Extended Warranty For Projectors
All Programs come with:
- GM Multimedia Extended Warranty ID Number (must be retained)
- GM Multimedia claim instructions and terms & conditions
- Does not cover consumable items or accessories such as projector globes or remotes
[More Information]
1 Year Warranty

$129

Kensington 2.4Ghz Wireless Presentation Remote - With Brighter Green Laser Pointer
Your Price:
$99.95
Special
Normally $119.95


Flat Rate Freight!
$16 Insured Australia Wide.
Pick up Available

Presentation remote

FEATURES

  • Wireless range up to 50 meters
  • Green laser pointer is 10X brighter than standard red
  • Low battery indicator
  • Backlit buttons
  • Two modes—switch from presenter to cursor control mode
  • On/off switch
  • USB receiver stores inside
  • Carry pouch included
  • Controls Keynote and PowerPoint

- Windows Compatible
- Mac Compatible
[More Information]


Universal Flush Projector Ceiling Mount FB-1 *Recommended*
White - $149
Black - $149

Projector Mount

SPECIFICATIONS
Available in BLACK (FB-1B) and WHITE (FB-1W)
• Swivel: 360°, Adjustable roll, pitch and yaw.
• Rigid Steel construction.
• Durable powder-coated finish (Black or White).
• Supports up to 10kgs.
• Mounting hardware included.
• User manual included.
• All bracket models come standard with 4 x mounting arms.

FEATURES
- Direct to ceiling mount (150mm)
- Suits most projectors with 3 or 4 holes


HDMI Logo

HDMI Cable

Premium HDMI Digital AV Cable - For 4K, 1080P & 3D Projectors

1 Metres
$19.95
2 Metres
$29.95
3 Metres
$39.95
5 Metres
$49.95
10 Metres
$79.95
15 Metres
$99.95
20 Metres
$149.95

  • High Speed HDMI CAT2 cable
  • Type A to Type A Male-to-Male High Speed cable with Ethernet Channel
  • Designed to support the features of HDMI V2.0 and previous versions
  • Features include 4K (50/60Hz) Video, 3D, Deep Colour, Audio Return Channel
  • High Speed HDMI performance with a dedicated Ethernet channel.
  • Shieled cable construction for optimum RF & EMI Protection
  • Gold Plated terminals
  • 12 Month Warranty
    *We recommend keeping the length short for 4K under 10m - especially for 60hz
HDMI Features




VGA Cable

Premium VGA Monitor Cable

5 Metres
$29.95
10 Metres
$59.95
15 Metres
$69.95
20 Metres
$89.95
30 Metres
$110.95

Heavily shielded coaxial RGB cable giving you a crisper display at higher resolutions!

  • Features UL Approved Cabling
  • Filters included on both ends cutting down on noise
  • Maintains stronger signals using a shielded cabling run.
  • Comes in 15pin D-sub format with Male to Male conectors
