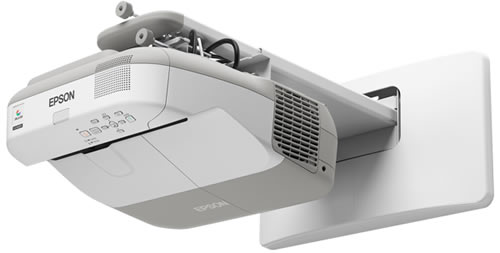

Epson EB-475W LCD Ultra Short Throw Multimedia Widescreen Projector (EB-475We)

EB-475W






DISCONTINUED

FOR THE CURRENT RANGE OF EPSON PROJECTORS CLICK HERE


Bonus 6 Months Warranty

Ultra bright. Ultra flexible. Ultra reliable. The best ultra-short throw projection technology just got a whole lot better, thanks to the latest innovations from Epson. Epson engineers have totally redefined the Ultra Short Throw market with a new shorter throw distance, higher brightness, and more flexible, user friendly mounting!

KEY FEATURES:

  • Ultra Short Throw – Minimal shadows and glare. Ideal for use with interactive whiteboards.
  • Ultra Bright Images – With a high brightness of 2,600 lumens White and Colour Light Output
  • Integrated Wall Mount Included – Stylish integrated design with extensive adjustability
  • Advanced Networking Capability – Enables users to monitor, control and present from a remote location
  • Broad Connectivity Including HDMI – HDMI, USB display, PC Free slideshows(jpeg only), network and optional wireless connectivity
  • Lowest Epson Lamp Price Ever Seen – Incredibly low price of only $79 inc GST (RRP. Aust)
  • 16W Built-in Speaker – Built in audio with the power to fill a classroom
 Range at a Glance
EB-470
EB-475W
EB-480
EB-485W
 White Light Output
2,600 lumens
2,600 lumens
3,000 lumens
3,100 lumens
 Colour Light Output
2,600 lumens
2,600 lumens
3,000 lumens
3,100 lumens
 Resolution
XGA
WXGA
XGA
WXGA
 HDMI Connectivity
Yes
Yes
Yes
Yes
 Integrated Mount Included
Yes
Yes
Yes
Yes
 Multi-user interactivity
N/A
N/A
N/A
N/A
 PC Free Annotation
N/A
N/A
N/A
N/A
 Network Functionality
Yes
Yes
Yes
Yes
 Wireless Functionality
Optional
Optional
Optional
Optional
 Low Cost Replacement Lamp
Yes
Yes
Yes
Yes
 Education Specific Model
N/A
N/A
N/A
N/A

FEATURES AND BENEFITS:

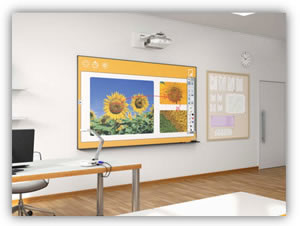

Upgrade to Ultra Short Throw
Capable of producing an interactive image size anywhere from 60” up to 102” diagonal (native WXGA) on nearly any wall, the Epson Ultra Short Range delivers an amazing work environment. Thanks to this Ultra Short Throw distance, presenters are able to deliver rich multimedia content without the distraction of glare in the eyes, or shadows on the board disrupting vision. With the added benefit of 3LCD Technology, presentations will feature rich, vibrant colours that bring content to life. Plus, 2,600 lumens Light and Colour Light Output, there is no need to dim the lights or draw the curtains, so meetings or lessons can start straight away without interruption.

Short Throw Projector

Total Ease of Installation

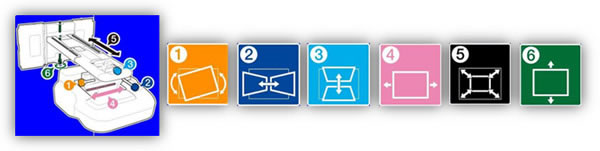

The EB-470, 475W, 480 and 485W come complete with an integrated wall mount, designed specifically for stylish appearance, and fast, simple installation. Adjustment dials are colour coded to match image-correction diagrams projected by the projector and selectable from the on screen display. Simply find the image that best represents the current shape of the projected image and adjust the corresponding coloured dial. The image will be square and the projector operational within moments. For those extra tricky installations where an uneven projection surface impedes progress, simply utilise the Quick Corner function to fine tune the image for perfectly square corners and edges.

Optional Wireless Connection Including iPads
With the addition of the optional ELPAP07 Wireless LAN Unit, the EB-470, 475W, 480 and 485W projectors can become a part of your 802.11 b/g/n wireless network. For incredibly easy peer-to-peer wireless connection on the fly without the need for additional software, add the ELPAP08 Easy MP quick wireless connection USB key.

Users can even project wirelessly from their iPad or iPhone thanks to Epson’s innovative iProjection app. This app is available now via the Apple® iTunes® store.

Advanced Networking
It’s possible to monitor and control networked Epson projectors from a remote location. Schedule power on or off timings, check projector status and receive maintenance alerts. Users can even project presentations in up to four rooms from one networked location.

Wireless Connectivity (Optional)
With the addition of the optional ELPAP07 Wireless LAN Unit, the EB-470, 475W, 480 and 485W projectors can become a part of your 802.11 b/g/n wireless network. For incredibly easy peer-to-peer wireless connection on the fly without the need for additional software, add the ELPAP08 Easy MP quick wireless connection USB key.

Low Cost of Ownership
The EB-400 Series projector features a lamp boasting an estimated life of up to 4,000 hours and a cost of only $79RRP. This series of projectors also benefit from a high efficiency electrostatic filter with an estimated maintenance cycle of up to 5,000 hours.
EB-430 Lamp
EB-430 Document Camera

Direct Connect to ELP-DC06
Further enhancing suitability to the modern education environment is the ability for the EB-470, 475W, 480 and 485W to connect directly to the Epson ELP-DC06 document camera / visualiser. These Epson products feature unique technology enabling them to connect via USB and provide full operation without the need for a PC.

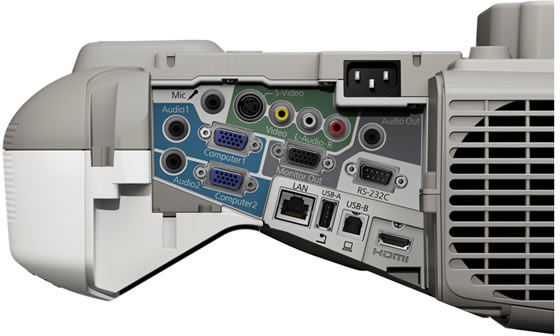

Connectivity Panel:

EB-470 Rear



iPad iPhone projection


Specifications
PRODUCT NAME Epson EB-475W
PRODUCT CODE V11H455053
WHAT'S IN THE BOX
  Projector including 5m Power Cable, Remote Control, Batteries x 2, Projector Software Ver. 1.03b (CD ROM), Password Protect Sticker, User Manual Set, Setting Plate (mount), Template Sheet.
TECHNOLOGY
Projection System Epson 3LCD, 3-chip technology
LCD Panel 0.59-inch with MLA
OPTICAL
Zoom 1 - 1.35 (Optical Zoom)
Screen Size 60" to 102"
Projection Distance 74.3" screen 0.438m
Throw Ratio 0.27 (Zoom: Wide), 0.37 (Zoom: Tele)
Projection Lens F Number 1.80
Projection Lens Focal Length 3.71mm
Focus Method Manual Focus
Offset 6.0:-1
Colour Light Output 2,600 Lumens
White Light Output 2,600 Lumens
Resolution WXGA
Native Aspect Ratio 16:10
Contrast Ratio 3,000:1
Lamp Hours Normal/Eco: 3,000/4,000 Hours
Lamp Type 190W UHE
Keystone Correction Vertical: -5 to +5 degrees
Horizontal: -5 to +5 degrees
CONNECTIVITY
Input: Video 1 x RCA (Yellow), 1 x S-Video, 2 x Component (via D-sub 15-pin)
Input: Computer 2 x D-sub 15-Pin (RGB), 1 x USB 2.0 type B
Input: USB Memory Device USB Type A Ver.2.0
Input: Three-In-One USB Display 1 x USB 2.0 type B
Input: Digital 1 x HDMI
Input: Audio 1 x RCA (Red/White), 2 x Stereo mini jack
Input: Control 1 x USB 2.0 type B, RS232C
Input: Epson USB Document Camera 1 x USB 2.0 type B
Network I/O: RJ45 x 1 (100Mbps)
Wireless Connectivity Optional
Output: Video D-sub 15 pin (monitor out black moulding)
Output: Audio Stereo mini jack x 1
Speaker Output 16W
ADVANCED FEATURES
EasyMP Network & Control Yes
EasyMP Network Projection Yes
PC Free Presentations No
USB Plug 'n Play Yes
AV Mute Slide No
Instant Off Yes
Direct Power On/Off Yes
Security

Kensington®-style lock provision
Padlock & Security cable hole
Wireless LAN unit lock
Password protect function

Colour Modes Dynamic, Theatre
GENERAL
Dimensions D x W x H 375 x 367 x 143mm
Weight 5.4kg
Lamp Warranty 12 months or 750 hours*
Projector Warranty 3 Years
Power Consumption: Lamp on Normal: 275W / Eco: 215W
Power Consumption: Standby 0.27W (communication off)
Noise Level Normal: 35dB / Eco: 28dB
Supplied Accessories
Remote
Rear Panel

EB-430 Rear Connections



Optional Accessories

Kensington 2.4Ghz Wireless Presentation Remote - With Red Laser Pointer
Your Price:
$74.95

Special
Normally $99.95

Projector Remote

FEATURES

  • Wireless range up 50 meters
  • Red Laser Pointer
  • Low battery indicator
  • Backlit buttons
  • Two modes—switch from presenter to cursor control mode
  • On/off switch
  • USB receiver stores inside
  • Carry pouch included
  • Controls Keynote and PowerPoint

- Windows Compatible
- Mac Compatible
[More Information]


Epson Wireless Adapter ELPAP07
Your Price:
$159



SPECIFICATIONS
• Deliver presentations wirelessly from your notebook or desktop PC or via a network
• With 802.11b/g/n Wireless Connectivity

Notebook/desktop PC requires an existing wireless connection.
Not suitable for full motion video


Epson Quick Wireless Adapter ELPAP08
Your Price:
$179



SPECIFICATIONS
• Upgrade the ELPAP07 to Plug & Play Quick Operation (ELPAP07 required)
• Deliver presentations wirelessly from your notebook or desktop PC
• With 802.11b/g/n Wireless Connectivity

Notebook/desktop PC requires an existing wireless connection.
Not suitable for full motion video


Epson ELP-DC06 Portable Document Camera
Your Price:
$399



SPECIFICATIONS
Camera CMOS Sensor: 1.92M Pixel
Video Frame Rate (max): 15fps
Illumination system: 2 White LED
Internal Memory: None
Weight: 2kg
Warranty: 1 Years
FEATURES
- Capture print outs and 3D objects
- 4x digital zoom
- Image freeze button
- Amazing clarity and colour
- Connect easily via USB
[More Information]

Premium VGA to Component Adapter Cable HD15RCA3
Your Price:
$39.95



SPECIFICATIONS
• High Definition YBbPr Component to VGA Adaptor
• 1.8 metre Length
• Features UL Approved Cabling
• Connect standard VGA to a HD Settop Box or DVD player



HDMI Cable

Premium HDMI Digital AV Cable

2 Metres
$29.95
5 Metres
$49.95
10 Metres
$79.95
15 Metres
$99.95
20 Metres
$149.95

Premium quality AV cable for use with HDMI enabled digital displays, projectors, LCD screens and Plasma TVs!

- HDMI 1.3 with an increased single-link bandwidth to 340 MHz (10.2 Gbps) to support the demands of future HD display devices
- Compatible with HDTV and HDCP (High-Bandwidth Digital Content Protection)
- Connectors: HDMI Male/Male, Type A
- 10 year warranty


VGA Cable

Premium VGA Monitor Cable

5 Metres
$29.95
10 Metres
$59.95
15 Metres
$69.95
20 Metres
$89.95
30 Metres
$110.95

Heavily shielded coaxial RGB cable giving you a crisper display at higher resolutions!

  • Features UL Approved Cabling
  • Filters included on both ends cutting down on noise
  • Maintains stronger signals using a shielded cabling run.
  • Comes in 15pin D-sub format with Male to Male conectors
