Epson EB-535W LCD Short Throw Multimedia Widescreen Projector

EB-535W






DISCONTINUED
REPLACED BY THE EB-L200SW CLICK HERE

Quick Facts:
Epson EB-535W Throw Distance Chart (Examples for common Sizes)
Image Size Installation Distance
(Approx. To Lens)
83" (16:10) 1790x1120mm From 0.9m to 1.1m
98" (16:10) 2110x1320mm From 1.1m to 1.4m
SPECIFICATIONS
Native Resolution: WXGA 1280 x 800 16:10
Brightness: 3400 ANSI Lumens
Maximum Contrast: 16,000:1
Weight: 3.7kg
Fan Noise: 37 / 29db (eco)
Warranty: 3 Years (+1 Year $119)
Lamp Warranty: 12 months / 750 hours
Lamp Life Up To: 10,000hrs
FEATURES
- MHL Compatible
- Powerful 16W Speaker
- Vertical Horizontal Keystone
- Instant Off
- Presentation Wireless - Optional
- Network Projection

Epson EB-535W Short throw HD projector

The Epson EB-535W offers a bright 3400 lumen HD picture perfect for classroom and boardroom installations. Together with a long lamp life of up to 10,000 hours and a lamp with an RRP of only $149 the EB-535W is cheap to run even in a heavy usage environment. With a powerful 16 watt inbuilt speaker the EB-535W doesn’t require extra accessories to present audio as well as video and with the optional wireless module it can also be upgraded to present via wifi.

KEY FEATURES & BENEFITS

3 x Brighter Colours and reliable performance* – 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness.
Crisp Clear Resolution – Featuring WXGA image resolution (16:10).
Large and engaging presentations, even in small spaces – Project large images from short distances with minimal shadows and glare.
Long Lasting lamp, low-cost lamp maintenance – Up to 10,000 hours in ECO mode.
Versatile Connectivity – Easily integrate with any system using HDMI and the optional Epson Control box (ELP-CB03).
Convenient collaboration for BYOD classrooms – Wirelessly share and compare students’ work from multiple devices, simultaneously, with EasyMP® software / Multi-PC Projection function.

3LCD Technology

All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCD’s 3-chip architecture dedicates an entire chip to process each primary colour – red, green and blue, continuously. Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant, realistic images and video all delivered with 3LCD’s true-to-life colour.

Large and Engaging presentations, even in small spaces

Enjoy flexible placement options with the EB-535W. These short throw projectors allow you to maximize your office or classroom space by delivering large images with a short throw distance.

Project a large 100” image from just 1.2m away. The EB-535W enables presenters to stand close to the board without glare in their eyes and shadows covering the screen.

Short Throw Projector

Choose Wall Mount, Ceiling Mount or Desktop

Versatile mounting options enable the EB-535W to be used in any environment. Mount your projector with the NEW short throw wall mount ELP-MB45, ceiling mount with the ELP-MB23, or simply place it on the table to comfortably accommodate a modern classroom environment or office presentation.

For the previous owners of EB-400 Series, the existing ELP-MB27 wall mount can be used with new line up of short throw projectors.

ELP-MB45
Epson Short Throw Wall Mount

Long Lasting lamp, low-cost maintenance

Enjoy up to 10,000 hours lamp life in ECO mode. The new lamps will offer lowered maintenance cost while delivering bright vivid images. The Lamp Regulator Function automatically adjusts image brightness according to ambient light levels and image content. This feature helps reduce the load on the lamp and conserves electricity.

Epson iProjection App

Display and control content from your iPhone, iPad or iPod touch and Android devices with the Epson iProjection App and any nearby wireless or networked Epson projector. This free application allows road warriors to travel light and present from their mobile devices. For teachers, it makes it easy to walk around the class and still be able to share engaging content — larger-than-life. The app is easy to use and navigate with intuitive menu options that make it simple to bring your content to the big screen (Optional ELPAP07 Wireless LAN Unit is required).

iPad iPhone projection

Conveniently collaborate with Multi PC Projection

The Multi-PC Projection feature allows a network of up to 50 PCs to be connected to a single projector. The newest version of this feature allows a host PC to act as a Moderator who can then select up to 4 of the connected devices to be projected on the screen. The Moderator function allows the user to control what image is projected on the screen and prevent tampering.

Advanced Networking

With the EB-525W, it’s possible to monitor and control networked Epson projectors from a remote location. Schedule power on or off timings, check projector status and receive maintenance alerts. Users can even project presentations in up to four rooms from one networked location. This is possible both over a wired connection (RJ45) and wirelessly (via optional wireless LAN unit ELPAP07).

Versatile Connectivity

Not only does the wide-ranging interface correspond with conventional analogue sources, it boasts a HDMI input which also acts as a MHL (Mobile High Definition Link) terminal when it is connected to control box (via optional Epson control box ELPCB03). MHL allows you to mirror high definition content from an Android mobile device.

Connectivity Panel

EB-535W Inputs




Specifications
PRODUCT NAME Epson EB-535W
PRODUCT CODE V11H671053
WHAT'S IN THE BOX
  Epson EB-535W1.8m Computer Cable, 4.5m power cable Remote Control, Batteries x 2, Projector Software Ver. 1.02b (CD ROM), Password Protect Sticker, Manual
TECHNOLOGY
Projection System Epson 3LCD, 3-chip technology
LCD Panel 0.55-inch with MLA (D8)
OPTICAL
Zoom 1 - 1.35 (Digital Zoom)
Screen Size 39" to 116"
Projection Distance 87" screen 0.91m
Throw Ratio 0.48 (Zoom: Wide), 0.65 (Zoom: Tele)
Projection Lens F Number 1.60
Projection Lens Focal Length 6.4mm
Focus Method Manual Focus
Offset 9.51:-1
Colour Light Output 3,400 Lumens
White Light Output 3,400 Lumens
Resolution WXGA
Native Aspect Ratio 16:10
Contrast Ratio 16,000:1
Lamp Hours Normal/Eco: 5,000/10,000 Hours
Lamp Type 215 W UHE
Keystone Correction Vertical: -15 to +15 degrees
Horizontal: -15 to +15 degrees
CONNECTIVITY
Input: Video 1 x RCA (Yellow), 1 x S-Video, 2 x Component (via D-sub 15-pin)
Input: Computer 2 x D-sub 15-Pin (RGB), 1 x USB 2.0 type B
Input: USB Memory Device USB Type A Ver.2.0
Input: Three-In-One USB Display 1 x USB 2.0 type B
Input: Digital 1 x HDMI
Input: Audio 1 x RCA (Red/White), 2 x Stereo mini jack
Input: Control 1 x USB 2.0 type B, RS232C
Input: Epson USB Document Camera 1 x USB 2.0 type B
Network I/O: RJ45 x 1 (100Mbps)
Wireless Connectivity Optional Accessory (ELP-AP07)
Output: Video D-sub 15 pin (black molding)
Output: Audio Stereo mini jack x 1
Speaker Output 16W
ADVANCED FEATURES
EasyMP Network & Control Yes
EasyMP Network Projection Yes
PC Free Presentations Photo / Motion JPEG
USB Plug 'n Play Yes
AV Mute Slide Yes
Instant Off Yes
Direct Power On/Off Yes
Security Kensington®-style lock provision
Padlock
Security cable hole
Password protect function
Colour Modes Dynamic, Theatre,
GENERAL
Dimensions D x W x H (excluding feet) 314.5 x 344 x 94 mm
Weight 3.7kg
Lamp Warranty 12 months or 750 hours*
Projector Warranty 3 Years
Power Consumption: Lamp on Normal: 298W / Eco: 221W
Power Consumption: Standby 0.28W (communication off)
Noise Level Normal/Eco 37/28dB
Supplied Accessories
Remote

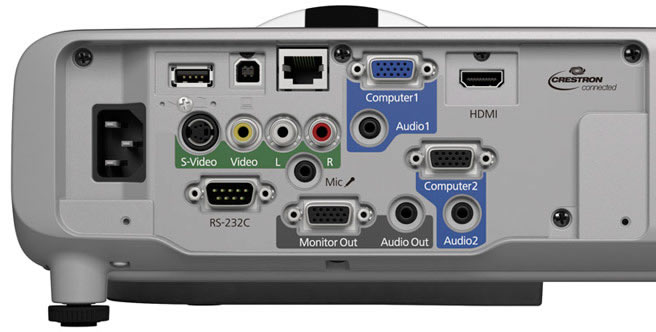

Rear Panel

EB-535W Rear Connections
