Epson EB-945H LCD High Brightness Multimedia Projector



EB-945H






DISCONTINUED
FOR CURRENT EPSON PROJECTORS CLICK HERE

Quick Facts:
Epson EB-945H Throw Distance Chart (Examples for common Sizes)
Image Size Installation Distance
(Approx. To Lens)
84" (4:3) 1650x1237mm From 2.4m to 3.8m
100" (4:3) 2030x1523mm From 2.9m to 4.6m
120" (4:3) 2360x1770mm From 3.4m to 5.5m
SPECIFICATIONS
Native Resolution: XGA 1024 x 768 4:3
Brightness: 3000 ANSI Lumens
Maximum Contrast: 10,000:1
Weight: 2.7kg
Fan Noise: 37 / 29db (eco)
Warranty: 3 Years (+1 Year $85)
Lamp Warranty: 12 months / 750 hours
Lamp Life Up To: 10
,000hrs
FEATURES
- Vertical Keystone
- Horizontal Keystone
- 1.6x Zoom
- Instant Off
- 2x HDMI Connection
- MHL Compatible
- USB to laptop Connection
- USB stick reader (jpeg only)
- Powerful 16W Speaker
- Optional Wireless
- iPad, iPhone Wireless(optional)

Bonus 6 Months Warranty

The EB-945 provides the premium choice for today’s classroom, with flexible installation features and advanced network connectivity. Offering 3x Brighter Colours than competitive models, Epson 3LCD projectors ensure vivid lessons. With XGA resolution and 3,000 lumens of colour brightness and 3,000 lumens of white brightness, the EB-945 always ensures engaging lessons. A 1.6x optical zoom allows for great image quality and easy installation nearly anywhere. Project and control content from multiple devices and easily collaborate with everyone in the BYOD classroom or boardroom. The EB-945 is also equipped with HDMI connectivity and premium audio features.

KEY FEATURES & BENEFITS

3 x Brighter Colours and reliable performance* – 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness
One measurement of brightness is not enough – look for both colour brightness and white brightness. The Epson EB-945 has:
Colour Brightness: 3,000 lumens
White Brightness: 3,000 lumens
Premium quality and installation flexibility – XGA resolution and a 1.6x optical zoom for great images, wherever you choose to install the projector
Manage your projector and present remotely – easy network connectivity; software included
Moderator software – wirelessly control which personal devices are displayed
Wide Ranging Connectivity – The EB-945 provides a broad range of connectivity allowing you to input a wide range of devices
Low Cost of Ownership & Maintenance – The EB-945 utilises a lamp priced at $99 for up to 6,000 hours, and makes use of a High Efficiency Filter; extending the life of your projector and allowing for hassle free maintenance

3x Brighter Colours with Epson*
Brilliant image quality requires high colour brightness (colour light output), and Epson® 3LCD projectors have 3 x Brighter Colours than leading competitive projectors*.

One brightness measurement (lumens) is not enough. A projector’s specification needs to show both high colour brightness and high white brightness. If colour brightness is lower than white brightness, images may be dark, dull and lose detail. If not provided, be sure to ask for a projector’s colour brightness specification.

* Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.

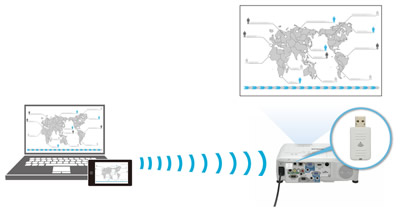

Optional Wireless connection to your laptop and mobile device
The EB-945 has convenient wireless features built-in to connect wirelessly to a computer or laptop via a direct peer-to-peer connection. Also connect wirelessly to a network and make a presentation or monitor / control your projector over the wireless network. (Wireless LAN not included)
For incredibly easy peer-to-peer wireless connection on the fly without the need for additional software, add the ELPAP09 Easy MP wireless connection USB Key.
Eb-945 Wifi

Epson iProjection App
Display and control content from your iPhone, iPad or iPod and Android devices with the Epson iProjection App on any nearby wireless or networked Epson projector. This free application allows road warriors to travel light and present from their mobile devices. For teachers, it makes it easy to walk around the class and still be able to share engaging content — larger-than-life. The app is easy to use and navigate with intuitive menu options that make it simple to bring your content to the big screen.

Multi PC Projection
The Multi PC Projection feature allows a network of up to 50 devices to be connected to a single projector. A new addition to Multi PC Projection sees smart devices such as iOS or Android Device being able to join the network. Another additional feature that has been built into the EB-900 Series allows a PC to act as a Moderator, who can then select up to 4 of the connected devices and project their screens from the projector. The addition of a Moderator helps to maintain control and prevents tampering with the projected screen.

Wide Ranging Connectivity
The EB-945 is very versatile in the classroom or office, and features a host of input options. The unit boasts HDMI, Video, S-Video, 2x VGA, USB A & B, 2 x Audio In, and RS232C inputs. Outputs include; Monitor Out and Audio Out.

Easy integration and advanced connectivity features allow you to evolve your classroom or office as you incorporate additional technology. These projectors can also be connected directly to the Epson Visualiser to help facilitate effective presentations and lessons without the need for a PC.

Low Cost of Ownership & Maintenance
The EB-945 utilises a lamp priced at $99 and makes use of a High Efficiency Filter; extending the life of your projector and allowing for hassle free maintenance.
Lamp life for the EB-945 has an impressive 5,000 hours in high brightness mode or an amazing 6,000 hours in ECO mode. We even back our lamps with a full 12 month, 750 hour* lamp warranty giving you peace of mind. By the time you need to change the lamp in these products, you may have changed up to 2.5 lamps if you had used a competitor’s product from this category.
Maintaining the EB-945 is easy even when ceiling mounted. Changing the filter or lamp is a simple in-situ, end-user changeable operation meaning you don’t require the additional expense of a visit from a service agent. Users can also update projector firmware on their own via Network, a USB thumb drive or USB-B input.

*Whichever comes first

EB-945 Lamp

Connectivity Panel

EB-945H

Projector Screen Bundle

Specifications
SKU V11H684041

Technology

Projection System 3LCD Technology, RGB liquid crystal shutter
LCD Panel 0.63 inch with MLA (D7)


Colour Light Output 3,000 Lumen-2,100 Lumen (economy)
White Light Output 3,000 Lumen - 2,100 Lumen (economy) In accordance with ISO 21118:2012
Resolution XGA, 1024 x 768, 4:3
Aspect Ratio 4:3
Contrast Ratio 10,000 : 1
Lamp 287 W, 215 W (economy mode), 5,000 h durability, 10,000 h durability (economy mode)
Keystone Correction Auto vertical: ± 30 °, Manual horizontal ± 30 °
Colour Processing 10 Bits
2D Vertical Refresh Rate 50 Hz - 85 Hz
Colour Reproduction Upto 1.07 billion colours

Optical

Projection Ratio 1.38 - 2.24:1
Zoom Manual, Factor: 1.6
Lens Optical
Projection Size 30 inches - 300 inches
Projection Distance Wide/Tele 1.69 m - 2.75 m (60 inch screen)
Projection Lens F Number 1.51 - 1.99
Focal Distance 18.2 mm - 29.2 mm
Focus Manual
Offset 8.6 : 1

Connectivity

USB Display Function 3 in 1: Image / Mouse / Sound
Interfaces Microphone input, MHL, Ethernet interface (100 Base-TX / 10 Base-T), Stereo mini jack audio in (2x), Stereo mini jack audio out, RGB in (2x), S-Video in, Component in (2x), Composite in, HDMI in (2x), VGA out, VGA in (2x), Wireless LAN IEEE 802.11b/g/n (optional), RS-232C, USB 2.0 Type B, USB 2.0 Type A
Epson iProjection App Ad-Hoc / Infrastructure

Advanced Features

Security Kensington lock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
Features AV Mute Slide, Automatic keystone correction, Built-in speaker, Digital zoom, Direct Power on/off, Document Camera Compatible, Easy OSD pre-setting, Horizontal and vertical keystone correction, MHL audio/video interface, Network projection, OSD copy function, PC Free, Quick Corner, Split-Screen-Function, Wireless LAN capable, iProjecton set-up by QR code
Video Colour Modes Blackboard, Dynamic, Presentation, sRGB, Theatre

General

Energy Use 287 Watt, 215 Watt (economy), 0.26 Watt (standby)
Supply Voltage AC 100 V - 240 V,50 Hz - 60 Hz
Product dimensions 297‎ x 269 x 87 mm (Width x Depth x Height)
Product weight 2.9 kg
Noise Level Normal: 37 dB (A) - Economy: 29 dB (A)
Temperature Operation 5° C - 35° C, Storage -10° C - 60° C
Humidity Operation 20% - 80%, Storage 10% - 90%
Included Software EasyMP Monitor, EasyMP Multi PC Projection, EasyMP Network Projection
Options Document camera, Quick wireless USB key, Wireless LAN unit
Loudspeaker 16 Watt

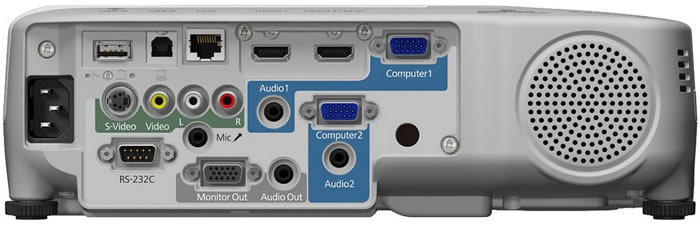

Rear Panel
