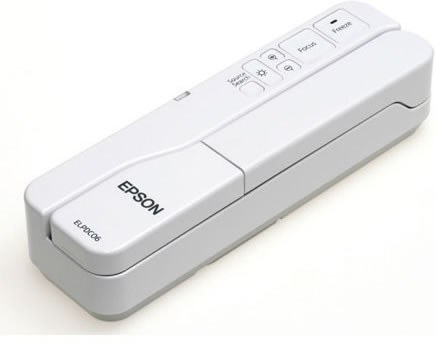

EPSON ELP-DC06/V12H321001 Document Camera



DISCONTINUED
FOR CURRENT Epson Cameras CLICK HERE

The Epson DC-06 document camera is designed to deliver flexibility, ease-of-use and affordability to today's K-12 classroom. Offering an easy USB connection, the DC-06 allows educators to connect to one of the new feature-rich Epson 85, 825 and 826W projectors or to a computer using included software for easy operation.

Featuring XGA resolution for detailed reproductions and a 10.7"x 14.3" capture area, the DC-06 makes it easy for educators to share information from text books, journals, models, or even 3D objects. In addition, the document camera offers a compact design, making it ideal for smaller classrooms with limited space. The DC-06 is also lightweight, allowing teachers to easily move it between classrooms and share the benefits of its enhanced presentation capabilities.

The new Epson DC-06 document camera provides teachers with the plug-and-play connectivity options they've been looking for. Through Epson's relationships with educators, they developed the DC-06 to meet the requirements they are looking for to make classroom learning more interactive, easy and fun at a price schools can afford.

The DC-06 offers several additional classroom-centric features, including a built-in LED light for displaying bright images in any setting, 4x digital zoom for incredible detail, a one-push auto focus button for ease of use, and 90 degree vertical and horizontal rotation capabilities of the lens and arm for capture flexibility. In addition, the DC-06 includes a 10 foot USB cable and soft carrying case for easy connectivity and mobility. The DC-06 also works with leading interactive whiteboards and their respective software applications in order to create videos and view, capture and edit images for later use.

Epson offers the Brighter Futures program, a unique sales and support initiative that is available specifically for schools. Designed to help educators select and implement the best products for their classrooms while making the most of their budgets, Brighter Futures offers special pricing, dedicated education account managers, and toll-free technical support.

The document camera includes a two-year limited warranty with two elite technical support services Epson PrivateLine� phone support to directly accessan expedited support telephone line by using a phone card that is included with the product, and a replacement program that includes product exchange in one business day for most cases.

Features

  • Document Camera DC-06, The flexible, compact, and portable document camera
  • Amazing clarity and color native XGA (1024 x 768) resolution
  • Large image capture area display items up to 10.7 x 14.3 inches
  • Flexible setup with USB connection connect to an Epson projector or PC with the included software
  • Capture whiteboards and 3D objects, or place items in landscape or portrait view 90-degree vertical and horizontal rotation
  • Easily focus on an object one-touch auto focus
  • True-to-life colors built-in LED light source for bright images in almost any setting
  • Zoom in for incredible detail 4x digital zoom
  • Conveniently pause and or resume the image freeze button
  • Simply choose the function you desire intuitive control panel
  • Quick & easy setup and storage portable, compact design
  • Added accessories, no added cost 10-foot USB cable and soft carrying case included


Specifications

PRODUCT TYPE Document Camera
PRODUCT NAME ELP-DC06 Document Camera
PRODUCT CODE V12H321001
SPECIFICATION OF MAIN PARTS
VIDEO Pick-up device 1/3" CMOS Sensor
  Effective pixels 1.92M pixels
  Frame rate w/PC MAX 15fps
  Output XGA w/PJ,UXGA/SXGA/XGA/SVGA/VGA/QVGA w/PC
  White balance Auto
  Exposure Auto
  Image freeze Available
OPTICAL SYSTEM Lens F=2.8 f=4.1
  Shooting Area 10.7"×14.3"
  Digital Zoom 4x
  Focus Auto (Need to press "AF Button")
  Iris Auto
ILLUMINATION SYSTEM Upper White LED×2
GENERAL
  Operating Temperature 5 °C to 35 °C <41 °F to 95 °F>
  Operating Humidity 20%-80%
  Dimension (Not including protruding parts) W 260 x D76 x H388mm (Open)
W 260 x D76 x H60mm (Folded)
  Weight Approx. 2.1lbs / 0.9kg
  Theft Proof Kensington Lock - Available
FUNCTION Zoom + (Tele —>Wide) 32steps
    - (Wide —>Tele) 32steps
  Freeze Available
  Auto focus Available
  LED Available
  Source change for PJ Available
POWER Power supply Method USB Bus power
  Power Supply Voltage 5V
  Power Consumption Less than 2.5W
  Current Consumption Less than 500mA
IMAGE ROTATION Horizontal ±90°
  Vertical ±90°
IMAGE EFFECT Freeze Available
DATA TRANSFER METHOD   USB Video Class/Isochronous
VISIBILITY Character size (w/o Zoom) Min.10 point
INTERFACE PORT I/F Port (USB) USB Slave-B type×1
SYSTEM REQUIREMENT (PC)
    Pentium IV 2.4GHZ(Vista) /Pentium IV 1.4GHZ(XP) GHz or above
    512 MB RAM or above
    300MB available hard disc space
    800*600 pixels,16-bit color monitor with DirectX 3D support
    USB2.0 IF
  PC Windows XP SP2 or later, Windows Vista,
LANGUAGE
  Manual - User Guide 6 Languages (Japanese / English / French / Germany / Italian / Spanish)
ACCESSORIES
  USB Cable 3m (USB-A/USB-B)
  Soft Carrying Case Included
  User's Manual Set Included
  Quick set-up guide Included
  Instruction sticker Included
PACKING
  Dimension W 330 x D180 x H115mm
  Weight Approx. 4.4lbs / 2kg
FOR WINDOWS
SYSTEM REQUIREMENTS (PC) Windows Pentium IV 2.4GHZ(Vista) /Pentium IV 1.4GHZ(XP) GHz or above
    512 MB RAM or above
    300MB available hard disc space
    800*600 pixels,16-bit color monitor with DirectX 3D support
    USB2.0 IF
COMPATIBILITY FOR OS PC Windows XP SP2 or later, Windows Vista
