Epson EB-1460Ui LCD Ultra Short Throw Interactive Projector (Wall Mount included)

EB-1460Ui






DISCONTINUED

FOR THE CURRENT RANGE OF EPSON PROJECTORS CLICK HERE


Epson EB-1460Ui Wall Mounted Ultra Short Throw Interactive Projector

Quick Facts:
Epson EB-1460Ui Throw Distance Chart (Examples for common Sizes)
T/R: 0.27-0.37:1
Image Size Installation Distance
(Approx. To Lens)
83" (16:10) 1790x1120mm From 0.48m to 0.66m
98" (16:10) 2110x1320mm From 0.57m to 0.78m
SPECIFICATIONS
Native Resolution: WUXGA 1920 x 1200 16:10
Brightness: 4400 ANSI Lumens
Maximum Contrast: 16,000:1
Weight: 8.4kg
Fan Noise: 38 / 30db (eco)
Warranty: 3 Years (+1 Year $139)
Lamp Warranty: 12 months / 750 hours
Lamp Life Up To: 10
,000hrs
FEATURES
- Powerful 16W Speaker

- 2x HDMI Connection
- MHL Compatible
- USB to laptop Connection
- Instant Off
- Wireless Included
- iPad, iPhone Wireless

- Included Wall Mount
- Pen Interactive
- Touch Interactive

The new Epson EB-1460Ui is an interactive projector with a lot of grunt. If you have a well lit area the EB-1460Ui is the perfect solution of an ultra short throw projector with an amazing 4400 lumens brightness for a punchy image. The EB-1460Ui is also equipped with a full HD WUXGA resolution so you get a clear sharp picture even when presenting fine lines or small text. It easily transform any surface or wall into a high tech interactive whiteboard that you can connect easily and share the presentation to the audiences devices.

  • 3 x Brighter Colours and reliable performance – 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness
  • Reinvent your whiteboard – turn any wall or existing dry-erase board into a 100" interactive display for more efficient meetings and collaboration, in the room or across the globe
  • Full HD WUXGA display up to 100" – for an optimal viewing experience and clear readability — 3x as big as a 60" flat panel
  • Touch-enabled interactivity – turn on the projector and start writing using your finger or the included pens
  • Easy to use – just walk in, turn it on and start writing - no computer, software or training is required
  • Capture, save and share – no need to transcribe meeting notes or snap a photo; easily save, print or email directly from your projector
  • Whiteboard sharing – both local and remote participants can simultaneously annotate content from mobile devices, computers and other MeetingMate projectors
  • Wireless device compatibility – wirelessly display documents, files and photos from your iPad®, and Android™ mobile devices with the Epson iProjection™ App
  • Convenient DVI-out connectivity – share whiteboard content to a larger display, videoconferencing system or recording device
  • Continuous Display Mode – install two interactive displays side by side to achieve an even larger interactive display area

Higher Brightness

With brightness up to 3,800 lumens the screen can be viewed easily from anywhere in the room, without dimming the lights.

EB-1460Ui

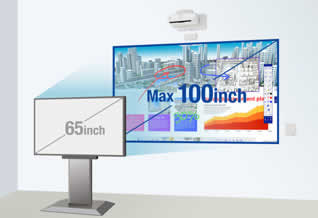

Big Screen
While conventional whiteboards and panels are limited to pre-determined height and width, the MeetingMate has no such constraints. Set the size of the interactive area to fit the available space in your meeting room (WUXGA from 60" to 100" diagonal screen size).

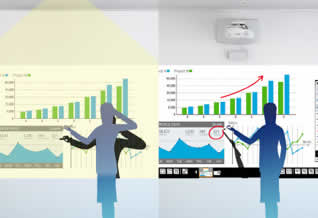

Ultra Short Throw
An ultra-short-throw design eliminates many of the common problems of interactive systems, such as shadowing and eye glare. With an incredibly efficient throw ratio, this model allows you to project extra-large interactive images up to 100" with the interactive display less than 25cm away from the image
EB-1460Ui Big Screen EB-1450UI Glare
Sharper Images
Enjoy high quality images and crisp, sharp text without any distortion. Easily read the fine print in applications such as Excel and Word. You can project more information at once for easy comparisons and quicker decision making.

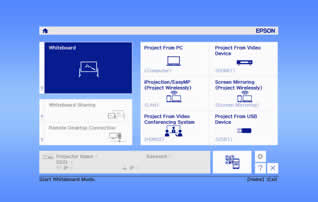

Home Screen
Get up and running in a snap with an intuitive, user-friendly home screen. Select the content source and easily access frequently-used functions such as keystone correction, volume control, Split Screen and more.
EB-1460Ui Sharpness EB-1460Ui Home Screen

Epson iProjection App

Wirelessly display content from your iOS or Android mobile device with the free Epson iProjection App and any nearby Epson interactive display with wireless or network capabilities2.

  • Send files from your email or cloud storage account to the app, then project
  • Advance through PowerPoint® or Keynote® presentations (iOS only)
  • View Microsoft® Word documents or Excel® spreadsheets (iOS only)
  • Zoom in and out of PDFs (iOS and Android)
  • Project webpages and view brilliant, high-quality images
  • Control interactive display features with just a touch of your device screen
  • Easily pair your device with the interactive display via a QR code (available on select models)

Find out how to set up the app and learn more about your interactive display and device compatibility at www.epson.com.au/iProjection

DVI-D out

Sharing content within a meeting room has been made easier with a wider range of connectivity. You have the option of sharing your whiteboard notes and annotations with a second display via the DVI-D output.

2. To use Epson iProjection, the projector must be configured on a network. Epson projectors can be networked either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Check your owner’s manual to determine if a wireless LAN module must be purchased separately to enable wireless connection on your Epson projector. Not all Epson projectors are able to be networked. Availability varies depending on model. Not all files and formats are supported. See ww.epson.com for details.

SMARTER MEETINGS

Digital made easy, without a PC or software

Transform traditional dry-erase whiteboards, plain walls and even tables into digital surfaces. Just pick up the pen and start writing. Or, use your finger - touch-enabled interactivity - to draw, share and interact with intuitive and familiar gestures. Add pages, or insert shapes and images. When you're done, share your notes via the email, print or save functions — all without a computer.

EB-1460Ui Digital Easy

Instant Information sharing

Whiteboard mode allows you to output the meeting results on-site in the user's preferred format. Time to perform tasks such as saving meeting data to PDF (on USB memory, Network), sending email, printing, and making meeting minutes has been shortened considerably. You can also reuse and edit data again from a previous whiteboard session that was saved to a USB memory or server.

EB-1460Ui Sharing

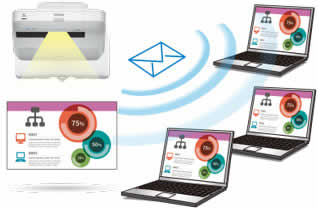

Share notes via email

Share meeting notes and content directly from your MeetingMate via email with up to 50 participants. Connect your projector to an active directory server and you can search names and email address.

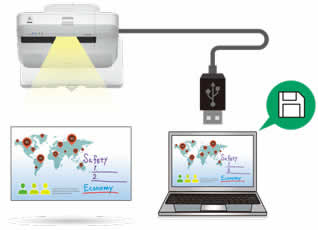

Easy to save notes to a PC

Simply connect to a PC via USB cable and you can save the meeting notes directly to your PC.

EB-1460Ui E-mail NOtes EB-1460Ui save Notes

Output images to video conferencing systems

You no longer need a flat-panel display for your videoconferencing needs. Connect your videoconferencing system to your MeetingMate projector and display an image as large as 100" (diagonal). Simultaneously display your videoconference on one side of the screen and additional content, such as a webpage or presentation, on the other side using the Split Screen feature 3.

3. Consult your user manual for input combinations.

EB-1460Ui output Images

Whiteboard sharing with up to 15 devices

You no longer need a flat-panel display for your videoconferencing needs. Connect your videoconferencing system to your MeetingMate projector and display an image as large as 100" (diagonal). Simultaneously display your videoconference on one side of the screen and additional content, such as a webpage or presentation, on the other side using the Split Screen feature 3.

EB-1460Ui 15 device sharing


Connect easily via email invitation

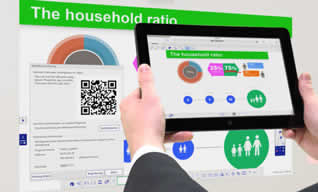

Connect with a QR Code
EB-1460Ui E-mail Invitation EB-1460Ui QR

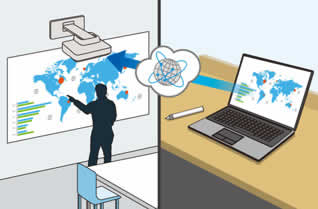

Remote desktop

Control your PC remotely via the MeetingMate projector. Annotate and display documents without a PC present!

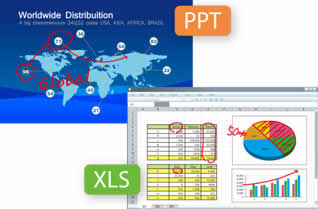

Compatible with Microsoft Office

When used with Microsoft Office (Windows Vista or later), users can handwrite comments and diagrams directly into the document then save it in the original file format.

EB-1460Ui Remote Desktop EB-1460Ui Office

Continuous Display Mode

Install two MeetingMate projectors side by side and enjoy the benefits of a huge wall-size area to use as an extended whiteboard. Or, use the included Epson Interactive Tools (EIT) software4 to achieve a giant display on which you can create content or annotate content from your PC or a browser.

4. For a list of supported operating systems, visit www.epson.co.nz/products/projectors/software/

EB-1460Ui Continuous Display

Multi-PC Projection

Epson's Multi-PC utility with Moderator device management software5 allows you to simultaneously display up to four devices on the screen over network (wired or wireless), with even more users connected to the same interactive display on Standby Mode. The moderator can drag and drop participants into or out of the four quadrants and control which device screens to display.

Connect up to 50 Windows® and Mac® devices, or iOS and Android devices running the Epson iProjection App2
Encourage and control collaboration; it's perfect for comparing ideas and content side by side

5. Moderator feature is part of EasyMP Multi-PC Projection software.
2. To use Epson iProjection, the projector must be configured on a network. Epson projectors can be networked either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Check your owner's manual to determine if a wireless LAN module must be purchased separately to enable wireless connection on your Epson projector. Not all Epson projectors are able to be networked. Availability varies depending on model. Not all files and formats are supported. See www.epson.co.nz for details.

EB-1460Ui Multi PC

INTERACTIVE FUNCTIONS

All on screen items can be rearranged and edited freely

Any image on the screen can be resized and moved as if it were an object. So even if there is no writing space on the screen, written contents can be shrunken down to make room for new annotations.

EB-1450UI Arrangement

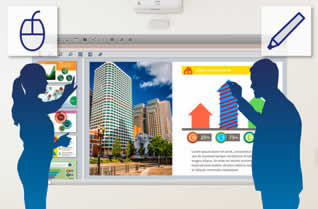

Real time drawing and PC operation

Connecting the projector to a PC via USB cable makes it possible to operate the PC mouse using the included interactive pen and even your finger.

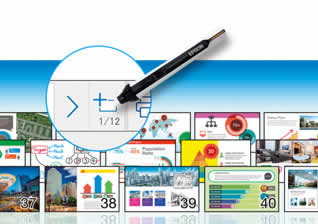

Generate up to 50 pages

There's no need to worry about running out of space when writing meeting notes or importing information on the Whiteboard.

EB-1450UI Drawing EB-1460Ui Pages

Specifications
PRODUCT NAME MeetingMate EB-1460Ui
PRODUCT CODE V11H726053
TECHNOLOGY
Projection Technology Epson 3LCD, 3-Chip Technology
Projection System RGB Liquid Crystal Shutter Projection System
LCD Panel 0.67-inch (D10)
OPTICAL
Zoom Ratio 1.0 - 1.35 (Digital Zoom)
Screen Size 70" to 100" [40.5 to 59.3m]
Projection Distance 90" screen 53cm
Throw Ratio 0.27 (Zoom: Wide),
0.37 (Zoom: Tele)
Projection Lens Type No Optical Zoom / Focus (Manual)
Focus (Manual)
Projection Lens F Number 1.6
Projection Lens Focal Length 4.2mm
Focus Method Manual
Offset 5.8:-1
White Light Output 4,400 Lumens
Colour Light Output 4,400 Lumens
Resolution WUXGA
Native Aspect Ratio 16:10
Contrast Ratio 16,000:1
Keystone Correction Vertical: -3 to +3 degrees (Zoom: Tele)
Horizontal: -3 to +3 degrees (Zoom: Tele)
Quick Corner Yes
Colour Reproduction Up to 1.07 billion colours
Colour Processing 10 bit
CONNECTIVITY
Analog RGB Input: 1x RGB D-sub 15pin
1x RCA Composite
Analog RGB Output: 1x RGB D-sub 15pin
Digital Input 2 x HDMI (1 supports MHL)
Digital Output 1x DVI-D (HDCP content not supported)
Audio - Input 2x Stereo mini
Audio - Output 1x Stereo mini
Control I/O 1x RS-232C D-sub 9pin
1x Stereo mini (for control pad)
Interactive sync stereo mini - 1x in, 1x out
Touch Unit Control - 1x Min DIN 8pin
USB 2x Type A (for USB Memory, Printer, USB Document Camera, Firmware update, Copy OSD Settings)
1x Type B (for USB Display, Mouse, K/B, Control, Interactive, Saving Data File to PC via Cable)
Network I/O: 1x RJ45 (100Mbps) Wired LAN
1x USB Type A (for ELPAP10 LAN unit)
Touch Interactive Min DIN 8pin
Wireless Connectivity Includes ELPAP10 Wireless LAN unit
Speaker Output Monaural: 16 W x 1
ADVANCED FEATURES
EasyMP Network Projector control and projector management via network Yes
AMX Device Discovery Yes
Crestron Integrated Partner Yes
Crestron RoomView Yes
Extron IP Link Yes
Control4 Yes
EasyMP Network Multi PC Projection Yes
Message Broadcasting Yes
Easy Interactive Function 70" to 100" [0.41 to 0.59m] 90" screen 0.533 m
Supports multiple screens (PC Interactive only, up to 2)
Throw ratio
0.27 (Zoom:Wide)
0.37 (Zoom:Tele)
(as the same as the projection lens spec)
Finger Interactive Unit Dimension: 210x95x51mm
Weight: 450g
Technology: Infrared laser (class 1)
Adjustment: Yes (manual)
Control I/O: 1x Min DIN 8pin
Security: Kensington® - lock provision
PC Interactive Tool Multiple pen/finger support: Yes (with Easy Interactive Tools Ver.4.20)
Easy Interactive Pen: Up to 2
Finger: Up to 6
PC Free Annotation Unit Multi Pen Support: Yes
Easy interactive Pen: Up to 2
Finger: Up to 2.
Whiteboard function
Projector function
Firmware Update Network via LAN cable, USB A via USB thumb drive, USB B via USB cable
Copy OSD Settings Network via LAN cable, USB A via USB thumb drive, USB B via USB cable
Quick Wireless Connection Yes
Wireless LAN Security WPA/WPA2-Personal
Instant Off Yes
Direct Power On Yes
Auto Power On Yes (PC, USB-B)
Security

* Kensington® Lock Provision
* Padlock & Security Cable hole
* Wireless LAN unit lock
* Password protect function (Power On, Network, Protection of User logo)

Colour Modes Dynamic, Presentation, Cinema, sRGB, DICOM SIM
Integrated Mount included Yes
EXTERNAL CONTROL PAD
Dimensions WxDxH 140 x 34.5 x 178mm
Weight 262g
Buttons Power ,Whiteboard, Source search
Control I/O Upstream Port: USB Type A x 1 (for USB Display, mouse, K/B, Interactive, flash storage, Printer, others)
Upstream Port(remote control output) : Stereo mini Jack
Downstream Port: USB Type B x 1 (for USB Display, mouse, K/B, Interactive)
Memory I/O Upstream Port - USB Type B x 1
Downstream Port - USB Type A x 3 (for USB Flash Storage, Printer, others)
GENERAL
Dimensions (excl feet) WxHxD 474 x 447 x 130mm
Weight 8.5kg
Lamp Warranty 1 Year (or 750 hours)*
Projector Warranty 3 Years
Lamp Hours 5,000 hours (Normal)
10,000 hours (ECO)
Lamp Type 300W UHE
Power Consumption: Lamp On 467W (Normal)
364W (ECO)
Fan Noise Level (eco) 38dB (Normal)
30dB (ECO)
* Whichever comes first. For more information visit Epson Projector Warranty
WHAT'S IN THE BOX
Main Unit EB-1460Ui Projector
Mount ELPMB53
Control Pad Yes
Power Cable 5m
USB Cable 5M, 1.8M
Remote Control Yes
Battery for Remote Control AA x 2
Setting Plate Yes
Easy Interactive Pen 2 pens
Battery for Easy Interactive Pen AA x 2
Pen Stand Yes
Pen tip (Soft) x4
Pen tip (Hard) x2
Pen tip Holder Yes
Light Curtain Finger Touch Unit Yes
Wireless LAN Unit Yes
Password Protect sticker Yes
Stereo Mini Cable Yes
Supplied Accessories
Remote
Rear Panel

EB-1460Ui Connections



Optional Accessories

Projector Warranty Upgrades

Extended Warranty For Projectors
All Programs come with:
- GM Multimedia Extended Warranty ID Number (must be retained)
- GM Multimedia claim instructions and terms & conditions
- Does not cover consumable items or accessories such as projector globes or remotes
[More Information]
1 Year Warranty

$135

Kensington 2.4Ghz Wireless Presentation Remote - With Brighter Green Laser Pointer
Your Price:
$99.95
Special
Normally $119.95


Flat Rate Freight!
$16 Insured Australia Wide.
Pick up Available

Presentation remote

FEATURES

  • Wireless range up to 50 meters
  • Green laser pointer is 10X brighter than standard red
  • Low battery indicator
  • Backlit buttons
  • Two modes—switch from presenter to cursor control mode
  • On/off switch
  • USB receiver stores inside
  • Carry pouch included
  • Controls Keynote and PowerPoint

- Windows Compatible
- Mac Compatible
[More Information]


Epson Wireless Adapter ELPAP10
Your Price:
$159



SPECIFICATIONS
• Deliver presentations wirelessly from your notebook or desktop PC or via a network
• With 802.11b/g/n Wireless Connectivity

Notebook/desktop PC requires an existing wireless connection.
Not suitable for full motion video


Epson ELPSP02 Projector Speakers
Your Price:
$219



Audio Cable
The Epson ELP-SP02 active speakers are a great addition to the modern classroom. Boasting 30W of crisp, clear sound, the ELP-SP02 active speakers enable every student to clearly hear the lesson, no matter where they are sitting in the room. Easily mounted to the wall, this powerful pair is the perfect partner the ELPCB03 Cable Management and Projector Control box.
[More Information]

Epson ELPCB03 Projector Control Box
Your Price:
$349



Audio Cable
The Epson ELP-CB03 Connection and Control Box, is a solution that offers extensive control of multimedia sources connected to Epson's wall-mounted short-throw and ultra-short-throw classroom projectors.
[More Information]

HDMI Logo

HDMI Cable

Premium HDMI Digital AV Cable - For 4K, 1080P & 3D Projectors

1 Metres
$19.95
2 Metres
$29.95
3 Metres
$39.95
5 Metres
$49.95
10 Metres
$79.95
15 Metres
$99.95
20 Metres
$149.95

  • High Speed HDMI CAT2 cable
  • Type A to Type A Male-to-Male High Speed cable with Ethernet Channel
  • Designed to support the features of HDMI V2.0 and previous versions
  • Features include 4K (50/60Hz) Video, 3D, Deep Colour, Audio Return Channel
  • High Speed HDMI performance with a dedicated Ethernet channel.
  • Shieled cable construction for optimum RF & EMI Protection
  • Gold Plated terminals
  • 12 Month Warranty
    *We recommend keeping the length short for 4K under 10m - especially for 60hz
HDMI Features




VGA Cable

Premium VGA Monitor Cable

5 Metres
$29.95
10 Metres
$59.95
15 Metres
$69.95
20 Metres
$89.95
30 Metres
$110.95

Heavily shielded coaxial RGB cable giving you a crisper display at higher resolutions!

  • Features UL Approved Cabling
  • Filters included on both ends cutting down on noise
  • Maintains stronger signals using a shielded cabling run.
  • Comes in 15pin D-sub format with Male to Male conectors
Bottom Banner
Find us on Facebook
Watch us on YouTube
© 2022 GM Multimedia Pty. Ltd. All rights reserved. ABN: 82 119 523 723. GM Multimedia does not operate a showroom. All product information can be accessed by contacting our sales department. All brands and names are trademarks of their respective companies. Prices in $AUD and are GST inclusive. Prices subject to change without notice. Product images used on website are for illustration purposes only and may vary from the product description. Legal Notice & Disclaimer
