LP Morgan Resi-lift Motorised Projector Lift Ceiling Mount By Herma

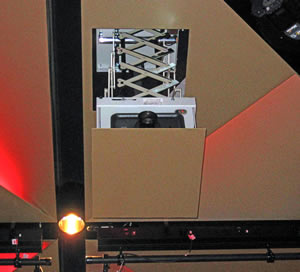

Dipper Motorised Projector Mount

LP Morgan Logo


DISCONTINUED

For Current Projector Lifts Click HERE


Resi Lift
If you’ve been reading through the Flipper and Dipper pages, you would have noticed they are both suited to standard ceiling heights and may require some degree of lens shift in the set up.

The Resi-Lift is the perfect alternative for high ceilings or where extra drop is required. This projector lift features a unique three scissor design for stability. Stability is a really key issue with projector lifts, particularly as the overall extension gets longer.

The three scissor design reduces the amount of movement in the lift as it travels up and down.

Its unit allows for a variable drop to be programmed, from a minimum closed scissor position of 127mm, through to the fully extended scissor position of 1346mm.

The projector ceiling mount, projector and the ceiling plate are all additional to this total drop. Refer to specification sheet for full details.

The unit is operated via wall switch and dry contacts are available for integration. So if you are thinking about a ceiling projector lift, consider the LP Morgan Resi-Lift. Built for stability, safety and unobtrusive design.

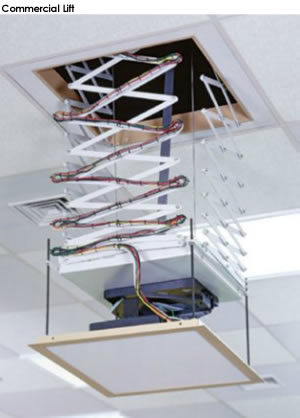

LP Morgan commercial Projector Lift

LP Morgan Resi-Lift 1200

The Resi-Lift 1200 is easy to install and operates reliably. Featuring a unique three scissor design to ensure stability and steadiness as it is raised and lowered, the Resi-Lift is also surprisingly low profile. Without skyhook and projector the unit is only 125mm high, so construction and projector dependant, this unit may be able to fit between floors.

Features:

  • Operation - supplied standard with wall switchand can be integrated with control systems via dry contacts/relays
  • IR Remote control optional (LPM45IRKIT)
  • Limit Settings are adjustable for both start and stop position.
  • Electrical Instalation - required Electrician
  • Skyhook projector bracket for projector attachment supplied
  • Supplied with ceiling face plate and plaster trim.
  • As an aditional safety feature there is a fall arrest override.

LP Morgan Commercial Lift

The LP Morgan Commercial Liftis built in the USA to Last, with focus on product strength and endurance apparent in the components used and engineering. With a 3000mm super steady three scissor design to accomodate situations with very high ceilings.

Features:

  • Motorised Projector lift, with 3000mm drop.
  • Three position operation - Store, Show and Service. 12V Toggle switch for regular operation (store and Show positions), and a Key Lock switch to access service position.
  • For IR Remote control operation order the LPM45IRKIT.
  • Skyhook projector mount with Heavy Duty kit supplied.
  • Super stable 3 scissor design left right and rear of unit with stabilising support in the rear scissor. Unique cable management system with fail-safe inertia safety stop.

LP Morgan Auditorium Lift

With a massive drop of close to 5 metres the Auditorium Lift is the answer to installations requiring a motorised projector mount with a very long drop length, perfect for auditoriums and environments with extremely high ceilings.

Features:

  • Motorised Projector lift, with 4900mm drop.
  • Three position operation - Store, Show and Service. 12V Toggle switch for regular operation (store and Show positions), and a Key Lock switch to access service position.
  • For IR Remote control operation order the LPM45IRKIT.
  • Skyhook projector mount with Heavy Duty kit supplied.
  • Super stable 3 scissor design left right and rear of unit with stabilising support in the rear scissor. Unique cable management system with fail-safe inertia safety stop.
Code Max Drop Operated By Max Projector Size Price (inc GST)
LPM7122S 1200mm Wall Switch 508 x 508 $3199
LMP7305S 3000mm Wall Switch 500 x 500 $7299
LMP7510S 4900mm Wall Switch 850 x 850 $10499

Remote control Upgrade for Dipper Or Flipper Or Resilift
Code Signal To Suite Electrician Required? Price (inc GST)
LPM45IRKIT Infra Red Resi, Commercial, Aditorium Lifts No $399

Dipper electric Projector mount


Specifications

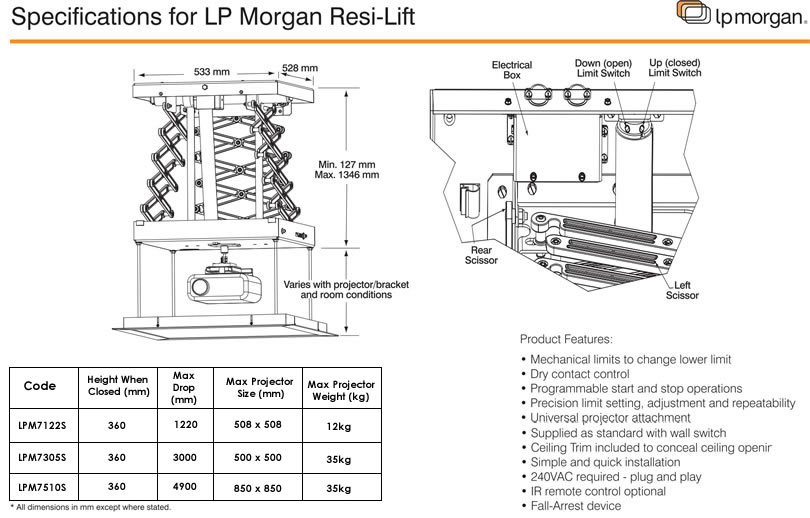

Herma Dipper Specifications

Content on this page requires a newer version of Adobe Flash Player.

Get Adobe Flash player
