High Definition produces sharper than life picture quality. The higher resolution produces clarity like you have never seen from a TV before. Films retain their original width, enhancing your home theatre experience.
High Definition (HD) provides up to twice the horizontal and up to almost three times the vertical resolution of Standard Definition (SD) on 16:9 Wide Screen display.
Features:
. Receive High Definition Digital Television Signal on selected programs
. Variable aspect ratio (Widescreen & Letterbox)
. Electronic Program Guides complete with program information at your finger tips
. Automatic channel scan
. Channel list editor
. RCA, S-VIDEO, RF, Component, VGA & DVI video outputs
. 576 / 720 / 1080i (PAL) + 480 / 720i (NTSC)
. Fully comply with DVB and MPEG-2 standards
. SPDIF Digital Audio Output for an external Dolby Digital television or Digital Amplifier or DAC
. Software upgrades through RS-232 port and Receiver to Receiver
. Automatic network search for newly added channels/programs
. Full function IR remote control
. Signal strength display
. Channel management and control
Specifications:
Tuner:
. Input: RF
. UHF : 520MHz to 820MHzVHF : 174MHz to 230MHz
. Input impedance 75 Ohms
. Signal Level - 85dBm to -20dBm
. Connector - IEC169-2, Female, Loop Through
. Channel Bandwidth - UHF / 7MHz, VHF / 7MHz
. Channel Assignment - Australia Channel and ± 166.666KHz offset
. Modulation Modes - QPSK, 16QAM, 64QA
Demodulation:
. Standard DVB-T
. OFDM Spectrum 2k and 8k -carrier non-hierarchical and hierarchical (DVBT-T and NorDig compliant)
. Modulation Modes QPSK, 16QAM, 64QAM
. Guard Interval Modes 1/32, 1/16, 1/8, 1/4 active symbol duration
. FEC Modes Rate 1/2, 2/3, 3/4, 5/6, 7/8
Memory:
. Serial Flash Memory - 1MB
. Nand Flash Memory - 128MB
. DDR SDRM - 64MB
Video decoder:
. Standard CD ISO/IEC 13818-2, MPEG-2 MP@HL
. Video aspect ratio 4:3, 16:9
. Video system ATSC
Audio decoder:
. Standard ISO/IEC 11172-3
. Audio decoder MPEG-1 Layer I and II
. Audio channel Digital Stereo (PCM)
. Volume control 10 Levels adjustment
Connector:
. RF output (optional) 1-65 CH
. Audio output 2 X RCA (Dual-channel), SPDIF

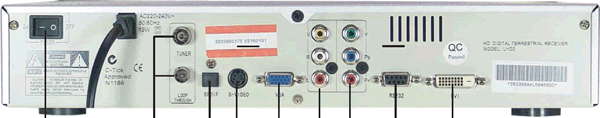

. Video output 1 X RCA (CVBS), 3 X RCA (YpbPr), VGA (RGB), DVI 1 X Min Din (S-video) |
