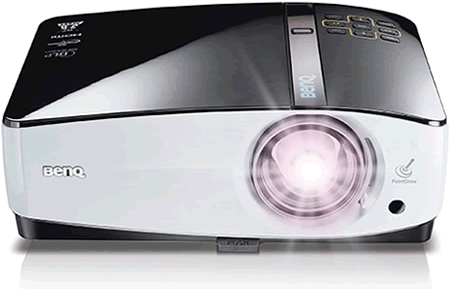

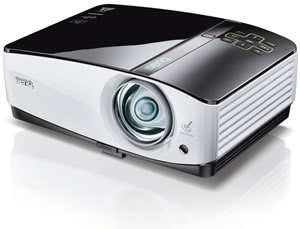

BENQ MP780ST+ DLP Short Throw Multi Purpose Projector - With Interactive PointDraw


DISCONTINUED

For the current BenQ Range Click here

Interactive Learning with BenQ's Leading Technology

The PointDraw™ projection System
The BenQ PointDraw™ projection system is unlike any existing projection systems. It offers interactive capabilities as an interactive whiteboard plus a projector system. Compatible with any computer operating system that supports a standard USB mouse, this innovative projection system requires no calibration between the projector and the projection screen. All you need is a USB cable,the MP780 ST, a computer and the PointDraw™ pen to get things up and running. That ought to save you quite a fortune on installation costs and time.

Interactive fun with Q Draw™ software
BenQ has thrown in a super-cool teaching toolkit for free to help teachers engage their students in every subject - the Q Draw™ Interactive Software! Compatible with Microsoft PowerPoint, Word, Excel and many other presentation software packages used in classroom teaching, the Q Draw™ Interactive Software comes with two sets of useful tools. The standard tool set includes everyday features such as save, zoom, undo, redo, and so on, as well as a media clip function that allows teachers to record their teaching every step of the way. The advanced tool set allows teachers to draw lines and shapes, screen what their students see in class, and more.

3D Technology to Maximize Students' Learning
The real world works in three dimensions – not one, not two, but three! With BenQ's support for 3D learning, teachers can finally break free of the limitations that come with traditional teaching methods and start building a whole new learning environment that best suits today's learners – without stretching that school budget, of course! Now, students get to experience the same amazing 3D effects they get in 3D movies while learning about the world around them. All they have to do is put on their 3D glasses and enjoy the magic ride!

(3D content, 3D glasses and appropriately equipped PC also required to display 3D images)

Ideas for Maximizing the Impact of Learning with 3D Instruction
"*Demonstrate complex or abstract concepts, such as molecular bond formation, using 3D graphics.
*Engage students in biology projects such as dissecting a frog.
*Illustrate geographical changes taking place around the world with real-time 3D simulations.
*Take virtual trips around the world using 3D educational media content."

WXGA Widescreen Projection Excellence
Engage your class with BenQ's WXGA (1280x800) short-throw picture performance! Comparing to 4:3 projections, WXGA widescreen projection boosts your total viewing area by 30% - making more effective use of the whiteboards and blackboards in class. What's more, with sharper, clearer images and less shadow distractions, you'll find your students much better focused in class.

Thoughtful Design for Teachers

20W Big Speaker and Microphone
Shouting at the top of your lungs can be quite uncomfortable – especially when you have to do it all day long! BenQ offers the perfect solution for your medium and large-sized classrooms: industry-leading 20W built-in speaker and microphone jack. Now, you can get your point across loud and clear effortlessly – without carrying a portable PA system and microphone around from class to class.

LAN Display and USB Display
Enjoy ultra-smooth, signal decay-free 2-1 digitally transmitted audiovisual projection with LAN display and USB display! All you have to do is plug 'n play! Thanks to BenQ, now there's a much affordable and cost-effective way to enrich classroom teaching as well as future-proof your school with simultaneous multi-projection in different classrooms.

PC-Less Presentation
PC-less teaching is another great way to make a teacher's job easier. The MP780 ST supports PC-less teaching in two ways – USB flash drive and remote desktop. Teachers can either teach from their presentation files by saving them onto their USB flash drives or remotely by accessing their computer using a wireless mouse and keyboard via LAN connection. Since there won't be the need to station a PC in every classroom, schools also get to save a fortune on PC maintenance and repair.

Campus-Wide Installation and Monitoring Support
BenQ helps you to keep a close eye on every projector on campus – allowing IT personnel in your school to administer facility-wide maintenance and control from the comfort of their workstation at no extra cost! The MP780 ST is designed to mesh seamlessly with your original LAN control settings – whether it's Crestron, PJ-Link or SNMP. If you are new to projector network control all together, BenQ offers a built-in projector network control system for free, so all you need is a LAN cable to set things up!

Multi-Function Connectors

Projector Screen Bundle



Specifications

Projection System DLP
Native Resolution WXGA (1280x800)
Brightness* 2500 ANSI lumens
Contrast Ratio 3000:1 (Full on/Full off)
Display Color 1.07 Billion Colors
Lens F=2.6, f=6.9mm
Aspect Ratio Native 4:3 (5 aspect ratio selectable)
Throw Ratio 0.49 (87”@0.91m)
Image Size (Diagonal) 47~300”
Zoom Ratio Fixed
Lamp(Normal/Economic Mode/SmartEco Mode)* 185W, 3000/4000 hours (Normal/Economic mode)
Keystone Adjustment 1D, Vertical ±40 degrees
Projection Offset 130% ±5%
Resolution Support VGA(640 x 480) to UXGA(1600 x 1200)
Horizontal Frequency 31K~90KHz
Vertical Scan Rate 50~85Hz
Interface Computer in (D-sub 15pin) x 2 (Shared with Component video in)
Monitor out (D-sub 15pin) x 1
HDMI (V1.3) x 1
Composite Video in (RCA) x 1
S-Video in (Mini DIN 4pin) x 1
Audio in (Mini Jack) x 1
Audio L/R in (RCA) x 1
Audio out (Mini Jack) x 1
Microphone in (Mini jack) x 1
Speaker 10W x 2
LAN (RJ45) x 1
USB TypeA x2
USB TypeB x1
USB mini TypeB x1(download)
RS232 (DB-9pin) x 1
IR Receiver x 2
Dimensions(W x H x D) 329.5mm x248.5 mm x 130mm
HDTV Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility NTSC, PAL, SECAM
Weight 3.69kg (8.14lbs)
Audible Noise 27/25 dBA (Normal/Economic mode)
Power Supply AC 100 to 240 V, 50/60 Hz
Power Consumption 260W (Typical), Standby<1W
On-Screen Display Languages Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Hungarian/ Italian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (24 Languages)
Picture Modes Dynamic/Presentation/sRGB/Cinema/User 1/User 2
Accessories (Standard) Remote Control w/ Battery
Power Cord (by region)
User Manual CD/Quick Start Guide
VGA(D-sub 15pin) Cable
PD Pen 2.0
Accessories (Optional) Wireless Dongle
Spare Lamp Kit
PD Pen 2.0
Carry Bag
Presentation Plus
Supplied Accessories
Remote

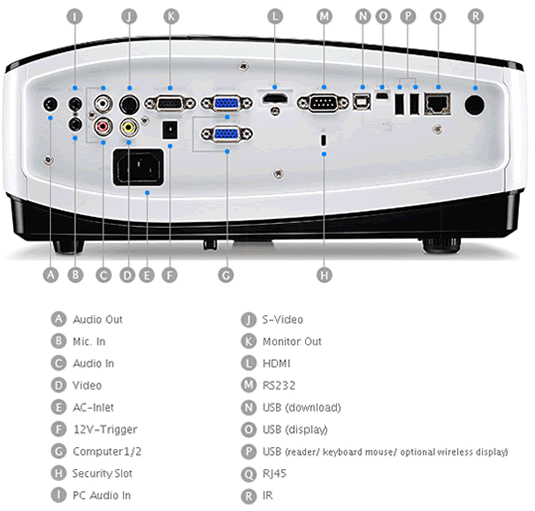

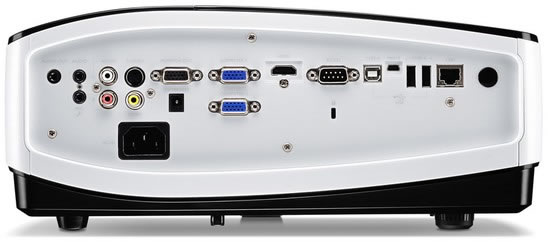

Rear Panel

Optional Accessories

BenQ Wireless Adapter 5J.J0614.J21
Your Price:
$99

SPECIFICATIONS
• Deliver presentations wirelessly from your notebook or desktop PC
• With 802.11b/g/n Wireless Connectivity

• Windows 2000, Windows Vista, Windows XP Compatible.
Notebook/desktop PC requires an existing wireless connection.
Not suitable for full motion video
Not Mac Compatible.


Universal Flush Projector Ceiling Mount FB-1 *Recommended*
White - $149
Black - $149


Projector Mount

SPECIFICATIONS
Available in BLACK (FB-1B) and WHITE (FB-1W)
• Swivel: 360°, Adjustable roll, pitch and yaw.
• Rigid Steel construction.
• Durable powder-coated finish (Black or White).
• Supports up to 10kgs.
• Mounting hardware included.
• User manual included.
• All bracket models come standard with 4 x mounting arms.

FEATURES
- Direct to ceiling mount (150mm)
- Suits most projectors with 3 or 4 holes


Premium VGA to Component Adapter Cable HD15RCA3
Your Price:
$39.95



SPECIFICATIONS
• High Definition YBbPr Component to VGA Adaptor
• 1.8 metre Length
• Features UL Approved Cabling
• Connect standard VGA to a HD Settop Box or DVD player



HDMI Cable

Premium HDMI Digital AV Cable

2 Metres
$29.95
5 Metres
$49.95
10 Metres
$79.95
15 Metres
$99.95
20 Metres
$149.95

Premium quality AV cable for use with HDMI enabled digital displays, projectors, LCD screens and Plasma TVs!

- HDMI 1.3 with an increased single-link bandwidth to 340 MHz (10.2 Gbps) to support the demands of future HD display devices
- Compatible with HDTV and HDCP (High-Bandwidth Digital Content Protection)
- Connectors: HDMI Male/Male, Type A
- 10 year warranty


VGA Cable

Premium VGA Monitor Cable

5 Metres
$29.95
10 Metres
$59.95
15 Metres
$69.95
20 Metres
$89.95
30 Metres
$110.95

Heavily shielded coaxial RGB cable giving you a crisper display at higher resolutions!

  • Features UL Approved Cabling
  • Filters included on both ends cutting down on noise
  • Maintains stronger signals using a shielded cabling run.
  • Comes in 15pin D-sub format with Male to Male conectors
