Long Lamp Life at up to 6000 hours
Enjoy a lamp life performance of up to 6000 hours* – twice the lamp life expectancy of average projector lamps on the market! This certainly lowers the number of lamp changes and keeps all maintenance to a minimum.
*when used in Economic mode.
Visual Excellence
WXGA Widescreen Projection Excellence
Engage your class with BenQ's WXGA (1280x800) High resolution picture performance! Comparing to 4:3 projections, WXGA widescreen projection boosts your total viewing detail by 30% - making more effective use of the whiteboards and blackboards in class. What's more, with sharper, clearer images and less shadow distractions, you'll find your students much better focused in class.
Sharpen up with high contrast ratios
The MW512 boasts high contrast ration with 4000:1. High contract ratios translate to razor-sharp detail definition and a broader range of subtle color differences, which makes text is sharper, cleaner, and easy to read.
2800 ANSI lumen brightness
A mainstream standard 2800 ANSI lumen projection lamp ensures great viewing for small-mudiem size rooms even in locations with ambient light, so your hard works can always be presented as good as can be.
Thoughtful Features
Comprehensive Connectivity with HDMI
MW512 features one HDMI port can be plugged with digital devices such as Blue-ray player, laptop...etc. HDMI is also the highest and completely future-proof connection standard, ensuring pure digital audio and video perfection.
Built-in Speakers
With built-in 2W speaker with the MW512, not only do you get the vivid visual performance, you get the same audio satisfaction, too!
Multi-Function Connectors
Specifications
Brightness
2800 ANSI lumens
Contrast Ratio
4000:1 (Full on/Full off)
Keystone
Manual Vertical ±40°
Aspect Ratio
16:10 Native (5 aspect ratio selectable)
Color
Full 1.07 billion color palette
Lens
F= 2.55 to 3.06, f= 21 ~ 25.6 mm
Zoom Ratio
Manual Zoom, 1.20:1
Image Size (Diagonal)
32” to 300”
Throw Ratio
1.41-1.69 (65.9" @ 2m)
Lamp
190W, 4500/6000 hours (Normal/Economic mode)
Computer Compatibility
VGA(640 x 480) to UXGA(1600 x 1200)
HDTV Compatibility
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility
NTSC, PAL, SECAM
Horizontal Frequency
31-90 kHz
Vertical Scan Rate
50-120 Hz
Input Terminals
PC:
Analog RGB: D-sub 15 pin x 2
A/V:
HDMI V1.3 x 1
Component Video: D-sub 15 pin x 2
(Shared with Analog RGB connector)
S-Video: Mini Din 4 pin x 1
Composite Video: RCA x 1
Audio:
Stereo Mini Jack x 1
Output Terminals
PC:
Monitor Out: D-sub 15 pin x 1
Audio:
Variable Audio Out : Stereo Mini Jack x 1
Speaker: 2W x 1
Control Terminal
Serial Connector : RS232 9 pin x 1
USB Connector : USB Type B x 1
Dynamic Mode
Presentation Mode
sRGB Mode
Cinema Mode
User 1 Mode
User 2 Mode
Functions
BrilliantColorTM
Quick Auto Search
Closed Captioning
Wall Color Correction
Teaching Template
3D Ready
3D Color Management
Blank
Digital Zoom (x2)
Auto Off
Freeze
Security Password
HDTV compatible
"Q?" Hot Key for FAQ
High Altitude Mode
Auto Adjustment Hot Key
Accessories (Standard)
Quick Start Guide
VGA Cable
Manual CD
Power Cord
Remote Control w/battery
Supplied Accessories
Carry Bag
Remote
NONE SUPPLIED

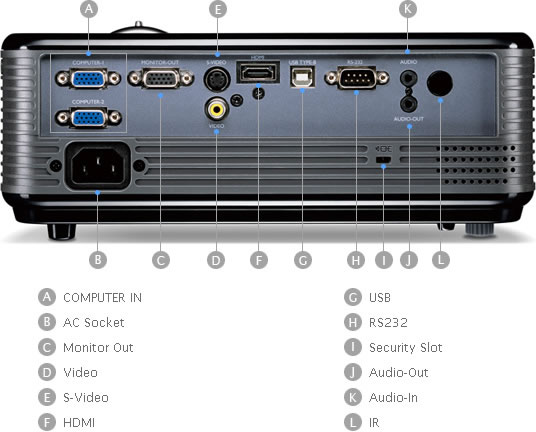

Rear Panel
