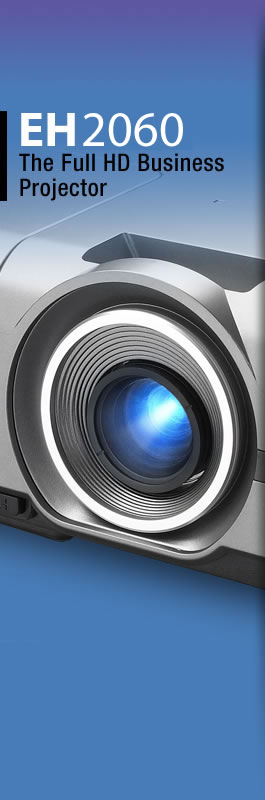

Optoma EH2060 DLP Full HD High Brightness Widescreen Projector




EH1060


Business
Home Theatre
Large Venue
3 Year Warranty


Full HD


DISCONTINUED

FOR CURRENT OPTOMA PROJECTORS CLICK HERE

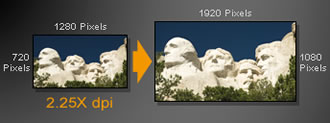

Full HD 1080P
With the latest Texas Instruments 0.65" Full HD 1080p DMD chipset makes home theater a reality. A native resolution of 1080p means over 2 million individual pixels at your command. That is more than twice as much detail as a 720p projector.


High Brightness 4000 Lumens and 2500:1 Contrast Ratio
Producing vivid and dazzling pictures even in environments with ambient lighting. Ideal for conference rooms/ multimedia classrooms with a capacity of more than 50 people.

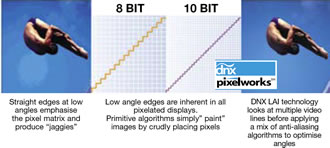

10-bit rich color processing
10-bit DNX Rich Color Processing technology increases the number of colors that can be displayed from 16 million to over 1 billion by offering 4 times the color information for each pixel.

New Generation BrilliantColor™ technology
New generations BrilliantColorTM provide better color TrueVivid™ Technology
Optoma proprietary TrueVivid™ color enhancement technology affords better balanced chrominance and luminance for life-like colors. giving the viewer the ultimate visual experience.

Signal Power & Direct Power On
The projector will power on when it receives a signal. This eliminates the need to use the ‘Power’ button on the remote control or the projector keypad.Start up time is significantly reduced as standby mode is bypassed, when the power cable is inserted into an active power outlet. This eliminates the need to use the ‘Power’ button on the remote control or the projector keypad.
RS232 with Projector ID Programmable
For more effective/efficient remote management/control

Unsurpassed Product Quality/ Reliability
- Long-life lamp (2000/3000 hrs)
- Lowest cost of owership
- Hassle free/ filter free/ minimum maintenance required

Complete input/output connector w/ HDMI





Specifications
Display Technology Single 0.65” 1080p DLP® Technology by Texas Instruments
Native Resolution 1080p 1920 x 1080
Brightness - BRIGHT mode1 4000 ANSI Lumens
Contrast 2500:1
Noise Level 28/30dB (ECO/BRIGHT mode)
Weight 3.5 kg
I/O Connectors
Inputs: PC/Video: 2 x HDMI, 15 Pin D-sub (RGB/YPbPr/SCART), Component Video, S-Video, Composite, 2 x Audio In - RCA/Mini Jack, USB (remote mouse)
Outputs: VGA Out, Audio Out - Mini Jack, +12v Trigger
Control: RS232, RJ45
Maximum Resolution Full HD 1920 x 1080
Computer Compatibility UXGA, SXGA, HD, WXGA, XGA, SVGA, VGA, Mac
Video Compatibility PAL (B, D, G, H, I, M, N, 576i/p), NTSC (M, 4.43/3.58 MHz, 480i/p), SECAM (B, D, G, K, K1, L) HD (1080i, 720p)
Displayable Colours 1.07 Billion
Projection Lens F/2.5~2.79; f=23.5~28.2mm, 1.2x Manual Zoom
Throw Ratio 1.59 - 1.91:1, Offset - 115%
Projection Screen Size 0.72 – 8.67m (28.41” - 341.28”) Diagonal 16:9
Projection Distance 1.2 - 12 metres
Horizontal Scan Rate 15 - 91kHz
Vertical Scan Rate 25 - 85Hz
Lamp Type/Lamp Life2 3000/2000 hours (ECO/BRIGHT mode)
Keystone Correction ± 15° Vertical
Audio 3W
Dimensions (W x D x H) 326 x 259 x 109mm
Remote Control Full function remote with laser pointer, mouse control and direct source selecting
Power Supply 100-240V, 50-60Hz
Power Consumption 380W BRIGHT mode < 1W Standby mode, 320W ECO mode < 1W Standby mode
Operating Conditions 5°C - 40°C, Max. Humidity 85%, Max. Altitude 3000m
Uniformity 85%
Security Kensington Lock, Password Protection
Standard Accessories Soft Carry Bag, Lens Cover, AC Power Cord, VGA Cable, Infra Red Remote Control with Batteries, Quick Start Card, CD User Manual, Warranty Card
Optional Accessories Ceiling Mount Kit
RoHS Compliant
