Optoma EX550 DLP Multipurpose Projector




EX550



Home Theatre
3 Year Warranty

Business


DISCONTINUED

FOR CURRENT OPTOMA PROJECTORS CLICK HERE


3D 3D Projection (3D Ready)
The DLP-based EX550 3D ready is compatible with stereoscopic 3D technologies using Texas Instruments' DLP Link and Nvidia 3D-Vision solution. These capabilities allow 3D pictures to be projected from a single beamer out-of-the-box without requiring any additional special polarizer, filter or screen.
(3D content, 3D glasses and appropriately equipped PC also required to display 3D images)
EW536 is 3D Ready with DLP 3D Link Only. nVidia 3D is not compatible
2800 ANSI Lumens & 5000:1 Native High Contrast
Brilliant optical design gives exceptiona performancel in providing high brightness & crystal-clear native high contrast, ideal for classrooms/ conference rooms with a capacity of 20–40 people.

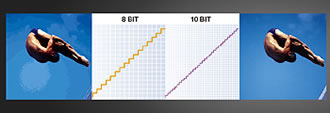

1.07 Billion Display Colors
Incorporated with Texas Instruments’ latest DDP2430 scaler to realize true 10-bit signal processing. The new 10 bit color processing technology increases the number colors that can be display from 134.2 million to 1.07 billion, presenting more natural and vibrant pictures.

TrueVivid™ Technology
Optoma proprietary TrueVivid™ color enhancement technology affords better balanced chrominance and luminance for life-like colors. giving the viewer the ultimate visual experience.
Environmentally Friendly
All new lamp and optical design provides longer lamp-life of 6000hrs.

6 Segments Color Wheel
Produces 3X Color Wheel Rotation Speed projectors support PAL video signals in movie mode, which operate at only 50 Hz frequency. Under this low frequency, projector increases the speed of the color wheel rotation from 2X (7200 rpm) to 3X (10800 rpm) resulting in consistent colors and seamless video playback.


Remote Management
Control plural projector by wire via directly or RS-232 hub with projector ID.

Environmentally Friendly
Enabling the <0.5W Standby mode will ensure the minimum energy consumption when the projector is not being used.

Complete I/O support





Specifications
Display Technology Texas Instruments DLP® technology/
0.55'' XGA DMD Chip
Resolution Native: XGA(1024 x 768)
Max: UXGA (1600 x 1200) 60Hz

Brightness (typical) 2800 ANSI Lumens
Contrast Ratio 5000:1
Displayable Colors 1.07 billion colors
Projection Lens f = 21.95~24.18 mm; 1.1x manual zoom / focus lens
Image Size 30 to 300 inches
Projection Distance 1.2 ~ 10m
Throw Ratio 1.97 ~ 2.17:1
Digital Keystone Correction ± 40° Vertical

Aspect Ratio 4:3 Native, 16:9 Compatible
Scan Rate Horizontal : 15.3 ~91.1 KHz /
Vertical : 24 ~85 Hz
Computer Compatibility UXGA, SXGA+, SXGA, XGA, SVGA, VGA Compression, VESA standards
PC & Macintosh compatible
Video Compatibility HDTV (720p, 1080i/p), SDTV (480i/p, 576i/p)
Full NTSC, PAL PAL-M, PAL-N, SECAM

Input / Output Terminals:
VGA in ×2
S-Video ×1
Composite Video ×1
Audio input ×1
Audio output ×1
VGA output ×1
RS232 ×1
Mini USB ×1

Uniformity 85 %
Noise 28dB(STD mode)
Lamp Type 180-watt user replaceable lamp
Lamp Life 6000 hours (STD mode) 5000 hours (Bright mode)
Power Supply AC 100 ~ 240 V, 50/60 Hz
Dimensions (W x D x H) 28 × 23 × 7.7cm
Weight 2.2kg
3D Support Video: 480i, Computer: 1280x720/1024x768/800x600@120Hz
Supplied Accessories
Carry Bag
Remote

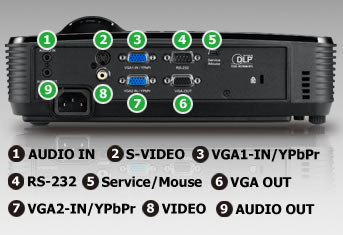

Rear Panel

EH1060 Rear



Optional Accessories

Logitech R400 Wireless Presentation Remote
Your Price:
$99.95

FEATURES
Great for Microsoft Power Point Presentations, featuring:
• Inbuilt Laser Pointer
• 15 Metre Range
• Forward/Back Slide control

- Windows Only not Mac Compatible
[More Information]

Special
Normally $129.95

[Order Now]


Universal Flush Projector Ceiling Mount FB-1 *Recommended*
Your Price:
$149


[Order Now]



Projector Mount

SPECIFICATIONS
Available in BLACK (FB-1B) and WHITE (FB-1W)
• Swivel: 360°, Adjustable roll, pitch and yaw.
• Rigid Steel construction.
• Durable powder-coated finish (Black or White).
• Supports up to 10kgs.
• Mounting hardware included.
• User manual included.
• All bracket models come standard with 4 x mounting arms.

FEATURES
- Direct to ceiling mount (150mm)
- Suits most projectors with 3 or 4 holes


Premium VGA to Component Adapter Cable HD15RCA3
Your Price:
$39.95

SPECIFICATIONS
• High Definition YBbPr Component to VGA Adaptor
• 1.8 metre Length
• Features UL Approved Cabling
• Connect standard VGA to a HD Settop Box or DVD player




[Order Now]


VGA Cable

Premium VGA Monitor Cable

5 Metres
$29.95
10 Metres
$59.95
15 Metres
$69.95
20 Metres
$89.95
30 Metres
$110.95

[Order Now]

Heavily shielded coaxial RGB cable giving you a crisper display at higher resolutions!

  • Features UL Approved Cabling
  • Filters included on both ends cutting down on noise
  • Maintains stronger signals using a shielded cabling run.
  • Comes in 15pin D-sub format with Male to Male conectors
