"The Optoma HD33 is a projector of firsts. It is Optoma's first 1080p 3D projector. Previously, the company has made a number of 720p DLP Link 3D projectors meant to be used with PCs, but this is their first foray into HDMI 1.4 compatible 3D. It is also the first 1080p 3D projector under $3000. Other 1080p 3D projectors start at $3499 and go up from there. Finally, it is the first 3D projector to our knowledge to use RF glasses technology, eliminating concerns about line of sight and screen bounce.
The HD33 shares a lot in common with the older HD20. Both significantly altered the market upon release. Before the HD20, no one had ever seen 1080p under $1000. Before the HD33, no one had ever seen 3D 1080p under $3000. Beyond that, though, the two projectors share the same smooth, natural picture that videophiles enjoy so much. Perhaps most importantly, both projectors offer performance disproportionate with the price. When you are looking for a high-quality 3D projector and want the absolute best value for your money, the HD33 is exactly what you've been looking for."
"2D performance we found to be very good. Colouring was vibrant and contrast levels respectable. the picture is bright and the projector can handle a lit room fairly well even though the brightness is not as high as some of the LCD rivals. 3D performance was quite good as well but we would look towards a dim room for the 3D use as the brightness does drop fairly considerably.
But for the price this is a great unit. "
Brightest 3D projector we've reviewed to date, and the first that has reasonable brightness on an average sized and surfaced screen
With about 1000 lumens in best mode, easily handles large screens for 2D
Good overall color
Skin tones are pretty good, skin tones in darker scenes do have a bit too much red
Respectable shadow detail
Edge Masking and Vertical digital image shift
HDMI 1.4a inputs (2) allows for support for Blu-ray 3D content
Optional 3D glasses use RF emitter for better reliability no line of sight requirement
Dynamic features including PURE Detail, PURE Motion (CFI) and PURE Color (think Brilliant Color)
Lamp Life is better than average, long term cost of ownership is very good
Physically attractive, sculpted lines
Very good menu layout
The greatest 3D home cinema experience!

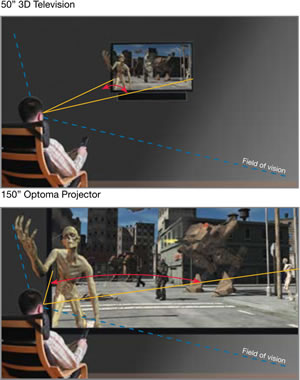

Why use a projector for 3D?
It is a widely accepted fact that the bigger the image, the greater
the 3D effect - for the best results it is essential to filly our field
of vision, without having to be too close to the screen . Even a huge 50” TV can only create a window on the 3D world, where as the
immersion & excitement created by a massive 150” projection screen
makes you feel like you are part of the action!
Due to the inherent drop in image brightness using any active
3D glasses, maximising light output is a top priority for 3D displays.
This is why we have developed “PureD” – an automated system
of advanced image processing and dynamic lamp modes that enhance
your viewing; providing a 3D experience akin to existing 2D projectors;
without you lifting a finger – Just sit back and enjoy the show!
Full HD 3D Technology
HD33 now supports HDMI 1.4a 3D playback, including 3D 1080P Blu-Ray, 3D gaming consoles like PS3, XBOX360 native 3D games, and 3D broadcasting signal, just connect Full HD 3D player directly to HD83 via HDMI, you can instantly become part of a fantastically immersive experience at home.
* For 3D Viewing you will need:
-
3D source (e.g. Bluray player)
- 3D content (e.g. 3D Bluray movie)
- Optoma 3D glasses & Emitter
- HDMI 1.4 Cable

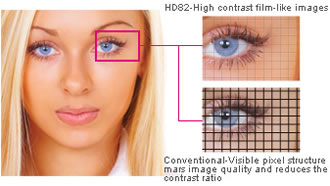

Latest DLP® technology
The latest DarkChip3 technology from Texas Instruments ensures an invisible pixel structure from normal viewing distances and provides the highest ANSI contrast ratios avaliable.
ISFccc Certified
Certified by ISF with ISFccc standard, for better adjustment of brightness, contrast ratio, color saturation, sharpness.
VESA 3D
Complied with VESA's 3D standard, the VESA 3D connector allows the projector to view 3D with all VESA 3D standard 3D glasses.

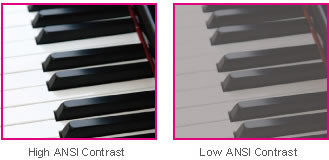

Industry leading ANSI contrast for incredible images
ANSI Contrast is a way of measuring the true "real world" contrast performance you can expect from a projector. With an ANSI ratio significantly higher than many LCD, LCOS, or SXRD based projectors, the HD33 is the only choice for Home Cinema purists that expect the ultimate image fedelity in their home.

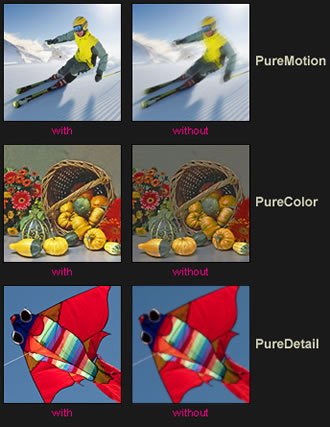

PureEngine™, the finest colloection of signal processing technology
Pure technologies included in the HD33: PureMotion, Pureshift, PureColor and PureDetail.
PureMotion II
ensures you see all the detail in fast moving sequences.
PureColor
provides vivid, perfectly balanced color with impeccable color uniformity for vibrant looking images.
PureDetail
ensures all information contained in an image is faithfully reporducted on the screen giving a stunning crystal clear, pin sharp picture.
High Brightness Full HD 3D Projector
HD33 is equipped with higher brightess than same class projectors. Which will bring better contrast ratio, and making 3D more vivid.
Five Year Color Guarantee For Home Cinema color accuracy is critical. We are so confident that the HD33 color will not change in use that we have guaranteed it will remain vibrant and vivid for at least 5 years.
Extensive connector options
Multiple input / output options allow a wide variety of source signals to be connected to HD33
Requirements for 3D Playback:
Specifications
Display Tech. 0.65 inch / 1080p DMD from Texas Instruments
Resolution 1920x1080 (Native support 1080i/p, and 1080p24)
Brightness (typical) 1,800 ANSI Lumens
Contrast Ratio 10,000:1(Max) (ANSI Contrast 500:1)
Projection Lens f=22.41~26.82 mm, F/2.55~2.87; 1.2 X manual zoom / focus lens.
Projection Image Size 37.6 ~ 301 inches
Projection Distance 1.5m ~ 10m
Throw Ratio 1.5 ~ 1.8 :1(Projection distance/width)
Keystone Correction Vertical ± 5 degrees
Aspect Ratio 16:9, 4 :3, LBX, Native
Video Compatibility HDTV(480p, 576p, 720p, 1080i/p), 480i, 576i, Full NTSC, NTSC4.43, PAL, PAL-M, PAL-N, SECAM, HDMI(480i/p, 576i/p, 720p, 1080i/p), Computer capability up to UXGA(1600x1200)
Input / Output Connections HDMI x2 (support HDMI 1.4a 3D format)
VGA x1
Component x1
Composite Video x1
RS-232 x1
Mini USB for Service x1
VESA 3D Port x1
+12V Trigger x1
Uniformity 90 %
Lamp Type 230-watt user replaceable lamp
Estimated lamp life 4000 hours (STD mode)
2500 hours (Britemodeä)
Noise Level 25 dB(Min)
Power Supply Universal AC 100~220 volts 50 / 60Hz
Weight 4.5kg
Dimensions (W x D x H) 38.9 x 31.9 x 12.9 cm
3D Support HDMI1.4a
1920x1080p @ 24Hz Frame packing
1920x1080p @ 24Hz Top-and-Bottom
1280x720p @ 50Hz / 60Hz Top-and-Bottom
1280x720p @ 50Hz /60hz Frame packing
1920x1080i @ 50Hz/60Hz Side-by-Side
HDMI 1.3
1920x1080i@50/60 Hz side by side / Top-and-bottom
Supplied Accessories
Remote

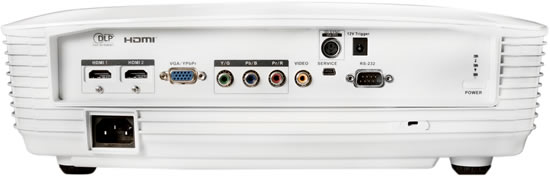

Rear Panel
Optional Accessories
Extended Warranty For Projectors
All Programs come with:
- United Product Care ID Card (must be retained)
- United Product disclosure statement
- Does not cover consumable items such as projector globes
Key Features High contrast ratio, high uniformity and fast response time for an optimal 3D experience
Appropriate for large venues – 150-foot operational range
Designed for Optoma projectors with 3D VESA inputs
50 Hz to 240 Hz capable for 3D compatible displays today and in the future
Robust rechargeable battery – Use up to 70 hours between charges and get full charge in 3.5 hours
Low-cost maintenance – Up to 1,000 charges on each battery
Auto power off after five minutes of disuse
Universal Flush Projector Ceiling Mount FB-1*Recommended*
SPECIFICATIONS
Available in BLACK (FB-1B) and WHITE (FB-1W)
• Swivel: 360°, Adjustable roll, pitch and yaw.
• Rigid Steel construction.
• Durable powder-coated finish (Black or White).
• Supports up to 10kgs.
• Mounting hardware included.
• User manual included.
• All bracket models come standard with 4 x mounting arms.
FEATURES
- Direct to ceiling mount (150mm)
-
Suits most projectors with 3 or 4 holes
Premium quality AV cable for home theatre interconnects!
High quality interconnect cable with 3 RCA colour coded plugs each end. Designed to connect any source with component level RGB outputs to projectors, TVs or other display devices.
- 3 x RCA Male to 3 x RCA Male
-
24K gold plated connectors
- 99.99% Oxygen Free Copper
-
Low loss "LPDE" dialectric
-
Aluminium screening foil
-
Cable colour: Blue
- 25 year warranty
Premium HDMI 1.4 Digital AV Cable - For 3D Projectors
The LINDY High Speed HDMI cable is ideal for use with your Foxtel IQ2, PS3, Blu-Ray, HDTV and home theatre installations. It‘s an affordable, quality cable which features 24K gold plated contacts for optimal conductive ability and resistance to tarnishing and corrosion.
High Speed HDMI 1.4 CAT2 cable
Bandwidth: 340MHz / 10.2Gbps
ATC (Authorised Test Centre) certified for high speed
Supports resolutions up to WQXGA (2560 x 1600p) and Quad Full-HD (3840 x 2160p)
Supports all 3D formats
Deep Colour, x.v.Color™ and xvYCC compatible
Shielded cable construction for optimum RF and EMI protection
