Panasonic PT-EZ770ZE Large Venue Full HD Widescreen Projector

panasonic pt-ez770ze projector
Delivery

DISCONTINUED

For current models Click Here:
Panasonic Projectors

3yr warranty
australian stock
insured delivery
1080p

Specifications

  • WUXGA 1920 x 1200 16:10
  • 6,500 ANSI Lumens
  • 5,000:1 Contrast
  • 10.6kg Weight
  • 35 / 29db(eco) Fan Noise
  • 3 Year Warranty
  • 12 Month / 1000hrs Lamp Warranty
  • 3 Year / 4000hr Optical Block Warranty
  • Est. Lamp Life up to 4,500hrs

Key Features

  • HDMI + DVI Connections
  • Horizontal & Vertical Keystone
  • Vertical Lens Shift
  • Horizontal Lens Shift
  • 360 Degree Installation (vertical axis)
  • Digital Link
  • Lens Included + Optionals

Panasonic PT-EZ770ZE Throw Distance Chart

Throw Ratio: 1.7-2.8:1 with included lens
Examples of installation distance for some popular screen sizes.
Image Size Installation Distance
94" (16:10) 2025x1265mm From 3.5m to 5.6m
110" (16:10) 2370x1480mm From 4.1m to 6.6m
120" (16:10) 2585x1615mm From 4.4m to 7.2m
130" (16:10) 2800x1750mm From 4.8m to 7.8m
140" (16:10) 3015x1885mm From 5.2 to 8.4m
150" (16:10) 3230x2020mm From 5.5m to 9m

Panasonic PT-EZ770ZE Large Venue Projector with optional lenses

Despite its sleek and compact dimensions, the PT-EZ770 Series produces a class-leading 6,500 lm to 7,500 lm* of brightness with a contrast ratio of 5,000:1. The iris automatically adjusts to suit ambient lighting conditions.
* The PT-EX800Z/EX800ZL has 7,500 lm, the PT-EW730Z/EW730ZL has 7,000 lm, and the PT-EZ770Z/EZ770ZL has 6,500 lm of brightness.


Lens Options & Throw Distances

Measurements provided may vary slightly between batches.
Expand Lens Throw Ratio Price

Min Image : 40"
Max Image : 400"

Throw Distance Guide
120" 16:10 : 2.07m
150" 16:10 : 2.58m
200" 16:10 : 3.45m
et-elw21 lens

Min Image : 40"
Max Image : 400"

Throw Distance Guide
120" 16:10 : 3.37-4.39m
150" 16:10 : 4.20-5.49m
200" 16:10 : 5.60-7.32m
et-elw20 lens

Included with projector
Min Image : 40"
Max Image : 400"

Throw Distance Guide
120" 16:10 : 4.40-7.23m
150" 16:10 : 5.50-9.04m
200" 16:10 : 7.33-12.06m
et-elw20 lens

Min Image : 40"
Max Image : 400"

Throw Distance Guide
120" 16:10 : 7.24-11.89m
150" 16:10 : 9.05-14.85m
200" 16:10 : 12.07-19.81m
et-elt20 lens

Min Image : 40"
Max Image : 400"

Throw Distance Guide
120" 16:10 : 11.90-18.61m
150" 16:10 : 14.86-23.25m
200" 16:10 : 19.82-31.01m
et-elt21 lens

High Picture Quality

Daylight View Basic Function for Bright Pictures in Well-Lit Environments

Panasonic's Daylight View Basic technology resolves hidden details in dark images that are normally difficult to see in bright conditions. Using an ambient light sensor, Daylight View Basic adjusts halftone color and brightness to suit the room. Resulting images are clear, bright, and easy to see.

panasonic daylight view

DICOM Simulation Mode *4 for Medical Training

The PT-EZ770ZE Series is compatible with DICOM standards for presentations relating to medicine. DICOM Simulation Mode reproduces complex images, such as X-rays, with exceptionally high levels of detail and contrast.

panasonic dicom
panasonic colour adjustment

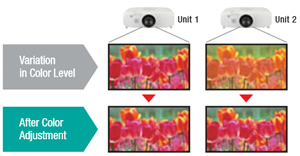

Color Adjustment Function

A color adjustment function allows you to easily correct for slight variations in the color reproduction range of individual units set up for multiple projection, particularly in side-by-side configuration. Correction can be performed on 3 colors or 7 colors.

Low Maintenance and Running Costs

A Dust Resistant Cabinet design & an Eco Filter that needs no replacement for 15,000hours

The cabinet is designed with a straight airflow path, from intake to exhaust. The shielding of the lens section, where dust is likely to enter, has been further improved to keep dust out. And the sealing performance of the air filter unit and air intake duct has been increased to prevent the entry of dust from the filter periphery, resulting in a highly dust-resistant structure.

The Eco Filter unit, which efficiently captures dust in the intake airflow path, requires no replacement for up to15,000 hours.* This large, pleated Micro Cut Filter (electrostatic filter) uses an ion effect to trap minute dust particles, further raising the overall dust-trapping capability.

These features minimize the entry of dust into the optical block and maintain brightness over a long period of time, while reducing the hassle of maintenance. Also, in addition to achieving a long replacement cycle, the Eco Filter can be washed with water** and reused as an environmental consideration.

* The usage environment affects the duration of the filter.
** When washing with water, please follow the procedures listed in the operating instructions. Also, we recommend replacing the filter with a new one after it has been washed and reused twice. If the filter is not sufficiently clean after washing, replace it with a new one.
panasonic pt-ez770ze filter

Lamp Replacement Cycle of up to 4,500 Hours*5

The PT-EZ770 Series projectors feature a lamp replacement cycle of up to 4,500 hours.* This helps to lower operating costs by providing longer usage between lamp replacements.
* This is the maximum value when the lamp power is set to Eco2. Increases in the lamp on cycle or extended use with the lamp continuously turned on will shorten the lamp replacement cycle. When the lamp power is set to Eco1, the lamp replacement cycle is 4,000 hours and 3,000 hours when setting to Normal. The usage environment affects the lamp replacement cycle.

Intelligent Lamp Control Reduces Power Consumption

When the lamp power is set to Auto, the Intelligent Lamp Control system automatically adjusts the lamp output in accordance with the brightness of the projected image and reduces it by up to 58 %*. It also combines with color shift correction, which corrects the shift in the color balance that occurs when the lamp output drops. As a result, power consumption is effectively reduced while excellent color reproduction is maintained.
* With the lamp power set to Auto.

Quiet 29dB* Design

The quiet design keeps noise levels down to 29 dB,* so the sound of the cooling fan is hardly noticeable. This helps the audience to keep their attention on the speech when someone is giving a presentation or on the screen images during quiet scenes.
* With the lamp power set to Eco2. 31 dB with lamp power set to Eco1. 37 dB with lamp power set to Normal.

System Flexibility

Simplified DIGITAL LINK Connections

Equipped with a DIGITAL LINK terminal, the PT-EZ770 Series allows transmission of HDMI, uncompressed HD digital video, audio and control signals (Ethernet, RS-232C) for up to 100 meters (328 feet) through a single CAT5e (STP) cable or higher. This simplifies cabling and system upgrades, making it ideal for ceiling-mounted and other permanent installations.

Optional ET-YFB100G Digital Interface Box for Easy Setup

By combining the optional ET-YFB100G Digital Interface Box, with its HDMI and other input terminals, uncompressed HD digital video, audio and control signals can be transmitted up to 100 m (328 feet) over a single CAT5e (STP) cable or higher. It allows projector connection with only one cable, making it ideal for ceiling-mounted and other permanent installations. Also, because control signals can be simultaneously transmitted, the ET-YFB100G input signal can easily be switched with the wireless remote control that is included with the projector. The projector can be controlled by either serial or LAN communication.

Panasonic pt-ez770ze digital link

Flexible Installation

The wide adjustment range of the powered horizontal/vertical lens shift function assures convenience and versatility during installation. It lets you easily make adjustments with the remote control. The unit can also be rotated 360 degrees vertically. This means you can install it at any angle you want, to accommodate different installation conditions.

Panasonic pt-ez770ze pt-ez770ze flexibility

Specifications
Model PT-EZ770Z / EZ770ZL* PT-EW730Z / EW730ZL* PT-EX800Z / EX800ZL*
Power supply 100-240 V AC, 50/60 Hz
Power consumption 590 W (0.3 W when
STANDBY MODE
set to ECO*1,
10 W when
STANDBY MODE
set to NORMAL
(37 W when STANDBY MODE
of AUDIO SETTING set to ON))
575 W (0.3 W when STANDBY MODE set to ECO*1,
10 W when STANDBY MODE set to NORMAL
(37 W when STANDBY MODE of AUDIO SETTING set to ON))
LCD panel Panel size 19.0 mm (0.76 in)
diagonal
(16:10 aspect ratio)
20.0 mm (0.79 in)
diagonal
(4:3 aspect ratio)
Display method Transparent LCD panel (x 3, R/G/B)
Drive method Active matrix
Pixels 2,304,000
(1,920 x 1,200) x 3,
total of 6,912,000 pixels
1,024,000
(1,280 x 800) x 3,
total of 3,072,000 pixels
786,432
(1,024 x 768) x 3,
total of 2,359,296 pixels
Lens PT-EZ770Z/
EW730Z/
EX800Z
Powered zoom (throw ratio 1.7-2.8:1), powered focus F 1.7-2.3, f 26.9-45.4 mm
PT-EZ770ZL/
EW730ZL/
EX800ZL
Optional powered zoom/focus lenses and fixed-focus lens
Lamp 400 W UHM lamp x 1,
lamp replacement cycle (lamp power: Normal/Eco1/Eco2): 3,000 hours/4,000 hours/4,500 hours*2
Screen size (diagonal) 1.02-10.16 m (40-400 in),
16:10 aspect ratio
1.02-10.16 m (40-400 in),
4:3 aspect ratio
Brightness*3 6,500 lm
(lamp power:
Auto/Normal,
Dynamic mode,
Standard lens)
7,000 lm
(lamp power:
Auto/Normal,
Dynamic mode,
Standard lens)
7,500 lm
(lamp power:
Auto/Normal,
Dynamic mode,
Standard lens)
Center-to-corner uniformity*3 90 %
Contrast*3 5,000:1 (full on/full off, lamp power: Auto, iris: On)
Resolution 1,920 x 1,200 pixels*4 1,280 x 800 pixels*4 1,024 x 768 pixels*4
Scanning frequency DVI-D/
HDMI/
DiplayPort/
DIGITAL LINK
Dot clock: 25-162 MHz
(VGA: 640 x 480 pixels to WUXGA: 1,920 x 1,200 pixels, VESA CVT-RB compliant)
RGB fH: 15-91 kHz, fV: 24-120 Hz, dot clock: 162 MHz or lower
(Signals exceeding the dot clock rate of 162 MHz are downsampled.)
YPBPR (YCBCR)
fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p]
fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF]
fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]
fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p]
fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p]
Video/YC fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
Optical axis shift*5 Vertical ±60 % from center of screen (powered) ±50 % from center
of screen (powered)
Horizontal ±10 % from center of screen (powered)
Keystone correction range*6 Vertical ±40°, horizontal ±30°
Installation Ceiling/floor, front/rear
Built-in speaker 3.7 cm round shape x 1, output power 10.0 W (monaural)
Terminals DVI-D IN DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP,
compatible with single link only)
HDMI IN HDMI 19-pin x 1 (Deep Color, compatible with HDCP),
audio signal: Linear PCM (Sampling frequency: 48 kHz/44.1 kHz/32 kHz)
DisplayPort IN DP-20P x 1 (DisplayPort 1.1, compatible with HDCP),
audio signal: Linear PCM (Sampling frequency: 48 kHz/44.1 kHz/32 kHz)
RGB 1 IN D-Sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1)
RGB 2 IN BNC x 5 (RGB or YPBPR/YCBCR/YC/VIDEO IN x 1)
shared with VIDEO IN (S-video/composite video)
VIDEO IN Pin jack x 1 (composite video)
MONITOR OUT D-sub HD 15-pin (female) x 1 (RGB x 1) (not compatible with all inputs)
AUDIO IN Pin jack x 2 (L/R x 1), M3 x 2 (L-R x 2)
AUDIO OUT M3 x 1 (L-R x 1) for output (variable)
SERIAL IN D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
REMOTE 1 IN M3 x 1 for wired remote control
REMOTE 2 IN D-sub 9-pin (female) x 1 for external control (parallel)
LAN /
DIGITAL LINK
RJ-45 x 1 (for network and DIGITAL LINK (video/audio/network/serial control) connection,
100Base-TX, compliant with PJLink™, HDCP compatible, Deep Color compatible)
Operation noise*2 37 dB (lamp power: NORMAL), 31 dB (lamp power: ECO 1), 29 dB (lamp power: ECO 2)
Filter x 1, recommended replacement cycle: 15,000 hours*7
Cabinet materials Molded plastic (PC + ABS)
Dimensions
(W x H x D)
PT-EZ770Z/
EW730Z/
EX800Z
530 x 177*8 x 445 mm (20-7/8 x 6-31/32*8 x 17-1/2 in) (with supplied lens)
PT-EZ770ZL/
EW730ZL/
EX800ZL
530 x 177*8 x 385 mm (20-7/8 x 6-31/32*8 x 15-5/32 in) (without lens)
Weight*9 PT-EZ770Z/
EW730Z/
EX800Z
Approximately 10.6 kg (23.4 lbs) (with supplied lens)
PT-EZ770ZL/
EW730ZL/
EX800ZL
Approximately 9.8 kg (21.6 lbs) (without lens)
Operating environment Operating temperature: 0-45 °C (32-113 °F)*10,
operating humidity: 10-80 % (no condensation)
Supplied accessories Power cord (including power cord holder) x 1*11, wireless/wired remote control unit x1,
batteries for remote control (AAA/R03/LR03 type) x 2, software CD-ROM (Logo Transfer Software,
Multi Projector Monitoring & Control Software) x 1

What's in the Box
remote control
Remote Control
power cord
Power Cord

Rear Panel

pt-ez770ze rear panel
