Panasonic PT-VZ570A LCD High Brightness Full HD Projector

PT-VZ570A






Discontinued
FOR CURRENT MODELS CLICK HERE

Quick Facts:
Panasonic PT-VZ570A Throw Distance Chart (Examples for common Sizes)
Image Size Installation Distance
(Approx. To Lens)
83" (16:10) 1790x1120mm From 2.0m to 3.2m
98" (16:10) 2110x1320mm From 2.3m to 3.8m
118" (16:10) 2540x1590mm From 2.8m to 4.6m
SPECIFICATIONS
Native Resolution: WUXGA 1920 x 1200 16:10
Brightness: 4800 ANSI Lumens
Maximum Contrast: 10,000:1
Weight: 4.8kg
Fan Noise: 37 / 29db (eco)
Warranty: 3 Years
Lamp Warranty: 12months/1000hrs
Optical Block Warranty: 3 Years/4000 Hours
Lamp Life Up To: 7
,000hrs
FEATURES
- 2x HDMI Connection
- Horizontal & Vertical Keystone
- Curved Screen Correction
- Vertical Lens Shift
- 1.6x Zoom

Superb Performance and High Picture Quality

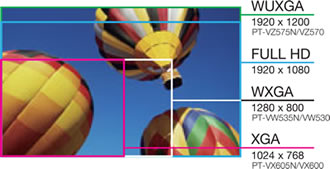

Introducing WUXGA Resolution to Portable Projection (PT-VZ575N/VZ570)

The PT-VZ575N/VZ570 portable LCD projectors feature WUXGA (1,920 x 1,200 pixel) resolution to bring native Full HD video to big screens in small spaces. Images are pin-sharp, liquid-smooth, and loaded with detail for an immersive viewing experience.

PT-VZ575NA Resolution

A Highly Bright Portable with a Maximum of 5,500 lm* (PT-VX605N/VX600)

The PT-VZ570 Series ranks high in the portable projector category with a high brightness ranging from 4,800 lm to 5,500 lm.*
Panasonic’s winning formula for imaging brilliance is completed by a high 10,000:1 contrast ratio.
Expect deep blacks, pure highlights, and crisp, easy to read text and graphics.

* Brightness by model: PT-VZ575N/VZ570: 4,800 lm, PT-VW535N/VW530: 5,000 lm, PT-VX605N/VX600: 5,500 lm

A Maximum 7,000-Hour*1 Lamp Replacement Cycle and 7,000-Hour*2 Air Filter Replacement Cycle

The PT-VZ570 Series has a maximum lamp replacement cycle of 7,000 hours.*1 The air filter also has a replacement cycle of 7,000 hours.*2 This reduces maintenance hassles for long periods of use, and helps to lower maintenance costs and reduce environmental impact.

*1 This is the maximum value when the lamp power is set to Eco.
The lamp replacement cycle is 5,000 hours when setting to Normal. The usage environment affects the lamp replacement cycle.

*2 The usage environment affects the duration of the filter.

Quiet 29 dB* Design Does Not Interrupt Meetings or Classes

The quiet design keeps noise levels down to 29 dB,* so the sound of the cooling fan is hardly noticeable. This helps the audience to keep their attention on the speech when someone is giving a presentation or on the screen images during quiet scenes.

* With the lamp power set to Eco. 37 dB with the lamp power set to Normal.

The Daylight View Basic Function Ensures Clear Images Even in Brightly Lit Rooms

Panasonic’s Daylight View Basic technology achieves sharp, easy-to-see images by clearly reproducing the details in dark image areas, which were previously difficult to see in brightly lit rooms. A built-in sensor measures the ambient light, and the Daylight View Basic function adjusts the halftone color and brightness level according to the surrounding illumination.

Daylight View

Excellent Functions and Flexible Installation

1.6x Zoom Lens Allows Flexible Installation

When projecting onto a 100-inch wide screen, the 1.6x zoom lens lets the PT-VW535N/VW530 support a wide range of projection distances, from 2.52 to 4.1 meters (8.3 to 13.5 feet).*

* The PT-VZ575NZ/VZ570 supports projection distance from 2.35 to 3.8 meters (7.7 to 12.5 feet) for a 100-inch screen (16:10 aspect ratio). The PT-VX605N/VX600 supports from 2.37 to 3.86 meter (7.8 to 12.7 feet) for a 100-inch screen (4:3 aspect ratio).

PT-VZ575NA Zoom

Lens Shift function that allows you to move the image up or down without distorting

Vertical Lens Shift function that allows you to move the image up or down without distorting the picture.
This is useful for quick image corrections in portable applications.


Horizontal, Vertical, and Corner Keystone Correction

Horizontal, vertical, and corner keystone correction adjusts the image shape for clear visibility when projecting off-axis or from an unusual angle. Should the vertical projection angle be altered during operation, Real-time Keystone Correction senses the change and makes any necessary corrections for optimal viewing.
Horizontal, Vertical, and Corner Keystone Correction Examples


* Linearity correction (horizontal/vertical) is only for the PT-VZ575N/VZ570.

Curved Screen Correction

Curved Screen Correction, meanwhile, allows you to project natural, distortion-free images onto curved or cylindrical surfaces (such as sculpted corporate reception walls, large pillars, etc.).

Curved screen
* Vertical Balance correction is only for the PT-VZ575N/VZ570.

Equipped with HDMI Input Terminals and Abundant Interfaces

Extensive interfaces include two HDMI input terminals, two computer (RGB) input terminals,
a wired LAN terminal, and a serial (RS-232C) terminal for external control.
These features support a wide range of system architectures for portable or ceiling-mounted use.

PT-VZ575N USB

Easy Remote Monitoring and Control over a LAN

Web browser on a computer connected through a wired LAN system lets you remotely operate projectors and check their status. An e-mail messaging function can also notify you when a lamp needs replacement, and indicate the overall projector status.

In addition, Multi Projector Monitoring and Control Software is available for monitoring and controlling multiple Panasonic projectors from a single PC.

The wired LAN terminal is compatible with PJLink™ (class1), an open protocol that is used by many manufacturers, to enable integrated control of systems that contain different brands of projectors.
Web Browser Control/Monitoring and E-mail Message Alert, PJLink™ Compatibility
Basic Concept of the Multi Projector Monitoring and Control Software

Crestron Connected™ and AMX Device Discovery

The LAN terminal allows a computer connected to the network to use Crestron Connected™ application software to manage and control system devices. Besides, the AMX Device Discovery technology is built in the PT-VZ570 Series.

Easy Lamp and Air Filter Replacement Simplifies Maintenance

For easier maintenance, you can replace the lamp from the top and the air filter from the side, even after the projector is installed on the ceiling. This eliminates the need to detach the projector from its mounting bracket in ceiling-mounted applications.

Other Features

• Direct Power Off function enables safe projector shutdown via breaker switch.
• Anti-theft measures include customizable startup logo, password protection,and security bar.
• Auto Input Signal Search selects the input channel based on incoming signals.
• Color-Board and Blackboard color-adjustment modes for projection in rooms without a screen.
• Projector identification system for remote control allocation of up to six projectors.
• Built-in closed caption decoder.
• Supporting Early Warning Software.



Specifications

PT-VZ575N / VZ570

Model PT-VZ575N PT-VZ570
Power supply AC120 V, 50/60 Hz (North America),
AC110 V, 60 Hz (Taiwan),
AC100-240 V, 50/60 Hz (other countries)
Power consumption 380 W (North America),
386 W (Taiwan),
386 W (other countries)
372 W (North America),
378 W (Taiwan),
378 W (other countries)
Standby
power
consumption
Standby Mode (Eco) *1 0.2 W (North America), 0.2 W (Taiwan), 0.4 W (other countries)
Standby Mode (Normal) 14 W 8 W
LCD panel Panel size 16.3 mm (0.64 in) (16:10 aspect ratio)
Display method Transparent LCD panel (x 3, R/G/B)
Pixels 2,304,000 (1,920 x 1,200) x 3, total of 6,912,000 pixels
Lens 1.6x manual zoom (throw ratio: 1.1-1.8:1),
manual focus, F 1.60-2.12, f 15.30-24.64 mm
Lamp 270 W x 1,
lamp replacement cycle (lamp power: Normal/Eco): 5,000 hours/7,000 hours*2
Screen size (diagonal) 0.76-7.62 m (30-300 in), 16:10 aspect ratio
Brightness*3 4,800 lm (ANSI)
(input signals: PC, lamp power: Normal, picture mode: Dynamic)
Center-to-corner uniformity*3 85 %
Contrast*3 10,000:1 (full on/off)
(input signals: PC, lamp power: Normal, picture mode: Dynamic, iris: On)
Resolution 1,920 x 1,200 pixels*4
Scanning frequency HDMI/
DIGITAL LINK
525i (480i)*3, 625i (576i)*5, 525p (480p), 625p (576p), 750 (720)/60p, 750 (720)/50p,
1125 (1080)/24p, 1125 (1080)/24sF, 1125 (1080)/25p, 1125 (1080)/30p, 1125 (1080)/60p,
1125 (1080)/50p, 1125 (1080)/60i, 1125 (1080)/50i,
Displayable resolution: VGA to WUXGA (non-interlace),
Dot clock frequency: 25 MHz to 162 MHz
(compatible with HDCP, DIGITAL LINK not included on PT-VZ570)
RGB (analog) fH: 15-91 kHz, fV: 24-100 Hz, dot clock: 162 MHz or lower
YPBPR (YCBCR)
fH: 15.73 kHz, fV: 59.94 Hz [480i (525i)],
fH: 31.47 kHz, fV: 59.94 Hz [480p (525p)],
fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p],
fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i],
fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p],
fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF],
fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p],
fH: 15.63 kHz, fV: 50 Hz [576i (625i)],
fH: 31.25 kHz, fV: 50 Hz [576p (625p)],
fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p],
fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i],
fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p],
fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p],
fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p]
Video/S-Video fH: 15.73 kHz, fV: 59.94 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
Optical axis shift Vertical: +44 %, U/D ratio on top end: 17:1
Keystone correction range Vertical: ±25° (auto/manual, input: WUXGA),
horizontal: ±30° (manual, input: WUXGA)
Installation Ceiling/floor, front/rear
Terminals HDMI IN HDMI 19-pin x 2 (compatible with HDCP),
audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
COMPUTER 1 IN D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR/YC x 1)
COMPUTER 2 IN /
MONITOR OUT
D-sub HD 15-pin (female) x 1 (RGB x 1), (input/output selectable using on-screen menu)
VIDEO IN Pin jack x 1 (Composite VIDEO)
AUDIO 1 IN M3 x 1 (L-R x 1)
AUDIO 2 IN
(MIC IN)
M3 x 1 (L-R x 1) for audio input or for microphone connection (variable)
AUDIO 3 IN Pin jack x 2 (L, R x 1)
AUDIO OUT M3 x 1 (L-R x 1) for output (variable)
SERIAL IN D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
USB A USB type-A
(for the Memory Viewer) x 1
-
USB B USB type-B
(for the USB Display) x 1
-
LAN/
DIGITAL LINK
RJ-45 x 1 (for network and DIGITAL LINK
(video/audio/network/serial control) connection,
100Base-TX, compliant with PJLink™,
HDCP compatible, Deep Color compatible)
RJ-45 x 1 (for network connection,
10Base-T, 100Base-TX,
compliant with PJLink™
Built-in speaker 4 cm round shape x 1, output power: 10 W (monaural)
Noise level*3 37 dB (lamp power: Normal), 29 dB (lamp power: Eco)
Cabinet materials Molded plastic
Dimensions (W x H x D) 389 x 125.0*6 x 332 mm (15-5/16 x 4-29/32*6 x 13-1/16 in)
Weight*7 Approx. 4.9 kg (10.8 lbs) Approx. 4.8 kg (10.6 lbs)
Operating temperature 0°C-40°C [32°F-104°F]
(less than 1,200 m [3,937 ft] above sea level),
0°C-30°C [32°F-86°F]
(between 1,200 m and 2,700 m [3,937 ft and 8,858 ft] above sea level)*8
Operating humidity 20-80 % (no condensation)
Wireless Standard IEEE 802.11a/b/g/n -
Modulation DBPSK, DQPSK, CCK, BPSK,
QPSK, 16QAM, 64QAM, MIMO
-
Transmission
speed*9
IEEE 802.11b: up to 11 Mbps,
IEEE 802.11g/a: up to 54 Mbps,
IEEE 802.11n: up to 300 Mbps
-
Operating range*10 Approx. 30 m (98 ft 5 in) -
Frequency range IEEE802.11a/n: 5.18-5.85 GHz,
IEEE802.11b/g/n: 2.4GHz
-
Security
(Infrastructure
mode)
WPA-PSK (TKIP/AES),
WPA2-PSK (TKIP/AES),
WEP (128 bit/64 bit),
WPA-EAP/WPA2-EAP
(PEAP [MS-CHAPv2/GTC],
EAP-FAST [MS-CHAPv2/GTC],
EAP-TTLS [MD5/MS-CHAPv2])
-
Supplied accessories Power cord with power cord holder x 1*11, wireless remote control unit x 1,
batteries (AAA/R03/LR03 type x 2), computer cable x 1,
Software CD-ROM
(Logo Transfer Software,
Multi Projector Monitoring & Control Software,
Wireless Manager ME 6.2)
Software CD-ROM
(Logo Transfer Software,
Multi Projector Monitoring & Control Software)
Supplied Accessories
Remote
PT-VW330EA Remote
Rear Panel
PT-VW330EA Rear



Optional Accessories

Projector Warranty Upgrades

Extended Warranty For Projectors
All Programs come with:
- GM Multimedia Extended Warranty ID Number (must be retained)
- GM Multimedia claim instructions and terms & conditions
- Does not cover consumable items or accessories such as projector globes or remotes
[More Information]
1 Year Warranty
2 Year Warranty
$129
$179

Kensington 2.4Ghz Wireless Presentation Remote - With Brighter Green Laser Pointer
Your Price:
$99.95
Special
Normally $119.95


Flat Rate Freight!
$16 Insured Australia Wide.
Pick up Available

Presentation remote

FEATURES

  • Wireless range up to 50 meters
  • Green laser pointer is 10X brighter than standard red
  • Low battery indicator
  • Backlit buttons
  • Two modes—switch from presenter to cursor control mode
  • On/off switch
  • USB receiver stores inside
  • Carry pouch included
  • Controls Keynote and PowerPoint

- Windows Compatible
- Mac Compatible
[More Information]


Universal Flush Projector Ceiling Mount FB-1 *Recommended*
White - $149
Black - $149

Projector Mount

SPECIFICATIONS
Available in BLACK (FB-1B) and WHITE (FB-1W)
• Swivel: 360°, Adjustable roll, pitch and yaw.
• Rigid Steel construction.
• Durable powder-coated finish (Black or White).
• Supports up to 10kgs.
• Mounting hardware included.
• User manual included.
• All bracket models come standard with 4 x mounting arms.

FEATURES
- Direct to ceiling mount (150mm)
- Suits most projectors with 3 or 4 holes


HDMI Logo

HDMI Cable

Premium HDMI Digital AV Cable - For 4K, 1080P & 3D Projectors

1 Metres
$19.95
2 Metres
$29.95
3 Metres
$39.95
5 Metres
$49.95
10 Metres
$79.95
15 Metres
$99.95
20 Metres
$149.95

  • High Speed HDMI CAT2 cable
  • Type A to Type A Male-to-Male High Speed cable with Ethernet Channel
  • Designed to support the features of HDMI V2.0 and previous versions
  • Features include 4K (50/60Hz) Video, 3D, Deep Colour, Audio Return Channel
  • High Speed HDMI performance with a dedicated Ethernet channel.
  • Shieled cable construction for optimum RF & EMI Protection
  • Gold Plated terminals
  • 12 Month Warranty
    *We recommend keeping the length short for 4K under 10m - especially for 60hz
HDMI Features




VGA Cable

Premium VGA Monitor Cable

5 Metres
$29.95
10 Metres
$59.95
15 Metres
$69.95
20 Metres
$89.95
30 Metres
$110.95

Heavily shielded coaxial RGB cable giving you a crisper display at higher resolutions!

  • Features UL Approved Cabling
  • Filters included on both ends cutting down on noise
  • Maintains stronger signals using a shielded cabling run.
  • Comes in 15pin D-sub format with Male to Male conectors
Bottom Banner
Find us on Facebook
Watch us on YouTube
© 2022 GM Multimedia Pty. Ltd. All rights reserved. ABN: 82 119 523 723. GM Multimedia does not operate a showroom. All product information can be accessed by contacting our sales department. All brands and names are trademarks of their respective companies. Prices in $AUD and are GST inclusive. Prices subject to change without notice. Product images used on website are for illustration purposes only and may vary from the product description. Legal Notice & Disclaimer
