Amazing Image Quality -
5500 ANSI Lumen Ultra High Brightness
Powered by a Unique Dual Lamp Design
A unique dual-lamp system is adopted for the SH960 to deliver impactful presentations with 5500 ANSI lumen ultra-high brightness. With two lamps at work, presentations can be carried on without interruption –If one lamp goes out, the other lamp will simply work harder to perform with optimum brightness.
Full HD 1080p Magnificence The SH960 offers the highest standard of viewing – a Full HD resolution at 1080p. It supports multiple video formats including 480p, 576p, 720p, 1080i and 1080p, delivering 5 times more detail than traditional 480p projectors. With Full HD, every viewing experience becomes more absorbing.
3000:1 Powerful Contrast Performance Boasting a high contrast ratio of 3000:1, the SH960 translates image with razor-sharp details defined by a broader range of subtle color differences. As a result, text is sharper, cleaner and easier to read.
Hollywood Quality Video (HQV™) Processing A sophisticated image-processing engine, HQV converts standard definition (SD) and regular HD video sources to Full HD-like image quality with 80% precisely scaled picture quality. HQV works with both analog and digital video sources.
Simple and Easy Projector Installation
Horizontal & Vertical Lens Shift for Precise Projector Placement
In case of any minor miscalculations to take place during the projector installation, the lens shift function can be used to adjust the position of the projected image to fit the projection screen. This adjustment can be made by using the switch next to the projector lens, the key pad on the projector or the remote control.
1.5x Big Zoom Ratio for Enhanced Installation Flexibility Enjoy the convenience and flexibility of a big 1.5x zoom ratio! This feature opens up the space with an impressively wide range of throw distances – allowing you to set up the projector without spending extra on re-constructing the room.
Highly Compatible with Multiple Connection
LAN Control Centralized Projector Management
LAN Control enables IT managers to perform day-to-day projector maintenance and repair tasks efficiently and effectively. With full access and control over every projector directly from their workstations, IT managers get to save energy, time and money.
Compatible with the Most Popolar LAN Control Settings
The BenQ SH960 offers seamless support for a variety of LAN Control settings – whether it's Crestron, PJ-Link or SNMP. And, all you need is a LAN cable to set things up.
ecoFACTS Label
ecoFACTS can tell you how eco-friendly BenQ products are!
Development of eco-friendly products, BenQ doesn't just want to comply with green regulations passively, but also to actively develop eco-friendly products!
ecoFACTS declares BenQ's greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design and other aspects of the products.
Specifications
Projection System
DLP
Native Resolution
1080P (1920 x 1080)
Brightness*
5500 ANSI lumens
Contrast Ratio
3000:1
Display Color
Full 1.07 billion color palette
Lens
F=2.48-2.81, f=24.1-36.15mm
Aspect Ratio
Native 16:9 (5 aspect ratio selectable)
Throw Ratio
1.62-2.43 (55.7”@6.56ft)
Image Size (Diagonal)
28”-500”
Zoom Ratio
Manual Zoom, 1.50:1
Lamp (Normal/Economic Mode)*
330W X 2 , 2000/3000 hours
Keystone Adjustment
2D, Manual Vertical& Horizontal ±30°
Projection Offset
V=±125%±5%, H=±40%±5%
Resolution Support
VGA(640 x 480) to WUXGA(1920 x 1200)
Horizontal Frequency
31-92 kHz
Vertical Scan Rate
23-85 Hz
Interface
HDMI V1.3 x1
Composite Video in x1
S-Video in (Mini DIN 4pin) x1
Component Video in (RCA) x1
Audio in (Mini Jack) x1
Audio out (Mini Jack) x1
Speaker 5Wx2
LAN (RJ45) x 1 (LAN Control)
USB (Type Mini B) x 1 (Download )
DC 12V Trigger (3.5mm Jack) x1
RS232 (DB-9pin) x1
Remote Control w/ Battery Power Cord (by region) User Manual CD Quick Start Guide VGA(D-sub 15pin) Cable
Supplied Accessories
Remote

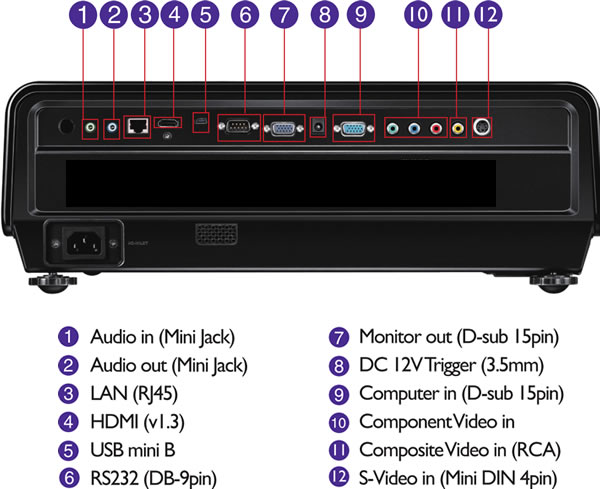

Rear Panel
Optional Accessories
Extended Warranty For Projectors
All Programs come with:
- GM Multimedia Extended Warranty ID Number (must be retained)
- GM Multimedia claim instructions and terms & conditions
- Does not cover consumable items or accessories such as projector globes or remotes
SPECIFICATIONS
• Deliver presentations wirelessly from your notebook or desktop PC
• With 802.11b/g/n Wireless Connectivity
•Windows 2000 / XP / Vista / 7, Windows Mobile 5/6, Mac OS X 10.5 and above
• Notebook/desktop PC requires an existing wireless connection.
• Not suitable for full motion video [More Information]
Premium VGA to Component Adapter Cable HD15RCA3
Your Price:
$39.95
SPECIFICATIONS
• High Definition YBbPr Component to VGA Adaptor
• 1.8 metre Length
• Features UL Approved Cabling
• Connect standard VGA to a HD Settop Box or DVD player
Premium HDMI Digital AV Cable
2 Metres
$29.95
5 Metres
$49.95
10 Metres
$79.95
15 Metres
$99.95
Premium quality AV cable for use with HDMI enabled digital displays, projectors, LCD screens and Plasma TVs!
- HDMI 1.3 with an increased single-link bandwidth to 340 MHz (10.2 Gbps) to support the demands of future HD display devices
- Compatible with HDTV and HDCP (High-Bandwidth Digital Content Protection)
-
Connectors: HDMI Male/Male, Type A
-
10 year warranty
Premium VGA Monitor Cable
5 Metres
$29.95
10 Metres
$59.95
15 Metres
$69.95
20 Metres
$89.95
30 Metres
$110.95
Heavily shielded coaxial RGB cable giving you a crisper display at higher resolutions!
Features UL Approved Cabling
Filters included on both ends cutting down on noise
Maintains stronger signals using a shielded cabling run.
Comes in 15pin D-sub format with Male to Male conectors
