Sony VPLFHZ60W High Brightness Full HD Laser Projector


VPLFHZ60W






Sony Logo


DISCONTINUED

For the current range click here


Quick Facts:
Sony VPLFHZ60W Throw Distance Chart (Examples for common Sizes)
Image Size Installation Distance
(Approx. To Lens)
83" (16:10) 1790x1120mm From 2.5m to 4.0m
98" (16:10) 2110x1320mm From 2.9m to 4.7m
118" (16:10) 2540x1590mm From 3.6m to 5.7m
SPECIFICATIONS
Native Resolution: WUXGA 1920 x 1200 16:10
Brightness: 5000 ANSI Lumens
Maximum Contrast: 10,000:1
Weight: 16kg
Fan Noise: 34 / 28db (eco)
Warranty: 3 Years
Lamp Warranty: 1500 hours
Laser Life Up To: 20,000hrs

FEATURES
- HDMI Input
- Vertical & Horizontal Keystone
- Vertical & Horizontal Lens Shift
- 1.6x Zoom
- 360 degree tilt Horizontal & Vert.
- Edge Blending

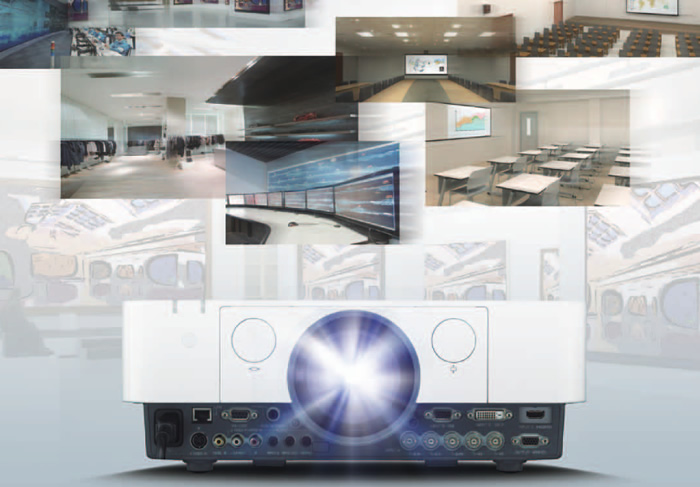

VPLFHZ55W enviro

VPL-FHZ60 and VPL-FHZ65 3LCD laser projectors

Up to 20,000 hours maintenance-free enduring quality the world’s brightest 3LCD laser projector

Our 3LCD four-projector-strong laser line-up features
the VPL-FHZ60 and VPL-FHZ65 in our marketing-leading range. Perfect for education, business and public sector settings, they combine powerful, laser light source with Sony’s advanced 3LCD BrightEra™ technology to deliver outstanding performance and durability.

5,000 and 6,000 lumens of white and colour brightness
Achieving a high 5,000 and 6,000 lumens of white and colour brightness, the VPL-FHZ60 and VPL-FHZ65 project crisp, clear, high contrast WUXGA images at more than Full HD resolution (1920 x 1200). Colours are rich and natural and picture stability is exceptional.

Up to 20,000 hours durability
Along with outstanding performance comes stamina and reliability. The VPL-FHZ60 and VPL-FHZ65 offer up to 20,000 hours* of maintenancefree operation, representing a substantially lower total cost of ownership than any conventional lamp projector.

VPLFHZ60W Laser

KEY FEATURES

  • 5,000 and 6,000 lumens of white and colour brightness and up to 20,000 hours* continuous operation
  • Reduced downtime and low TCO efficient, long-life LCD
    panels for increased durability
  • HDBaseT Simplified installations with a single cable
  • New bayonet lenses 3000 series, and upgrade compatible adaptor for 2000 and 1000 lens series
  • Advanced energy-saving features Auto Dimming mode and many more
  • Almost instant on/off with no warming up or cooling down time
  • 360˚ Flexible installation position anywhere with angle-free tilt adjustment
  • Edge Blending create supersized content with multiple projectors

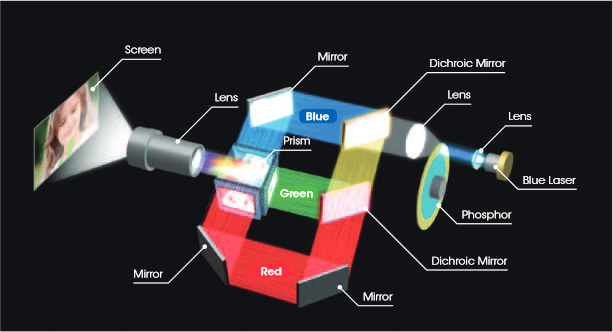

Laser light source and Sony 3LCD BrightEra™ technology
This unique and highly efficient combination delivers exceptionally bright pictures with excellent colour accuracy and stability.

5,000 and 6,000 lumens of white and colour brightness
High impact 5,000 and 6,000 lumens of white and colour brightness for a clear, detail packed WUXGA resolution image (1920 x 1200), higher than Full HD.

Up to 20,000** hours operation
Virtually zero maintenance and no filter cleaning for 20,000 hours. The advanced filter keeps the projectors in peak condition, significantly reducing running costs compared to traditional lamp projectors.

Up to 10,000:1 contrast ratio
A high contrast ratio of 10,000:1 ensures deep, black lowlights and bright, sparkling highlights for sharp definition that will take your presentations to the next level.

Hg (Mercury) Free
With no lamp, there’s no Mercury, so the laser light source is a more environmentally friendly solution.

Edge Blending for super-sized displays
This built in feature allows images from multiple projectors to be joined seamlessly, creating one, stunning supersized projection.

Project onto non-flat surfaces with Image Warping
Easily correct image geometry for natural-looking projections – even on convex or concave surfaces. Corner and edge correction can be adjusted easily with the supplied remote and on-screen menu.

Reality Creation and Contrast Enhancer
Image quality is upscaled for a crisper, sharper picture, while dark and light areas are automatically adjusted without diminishing colour.

VPLFHZ60W Contrast Enhancer

Side panel and panel cover
The input / output panel has been redesigned for these models to be located on the side of the projector. Cables are now neatly hidden within the panel cover to keep cables tidy.

Installation Features

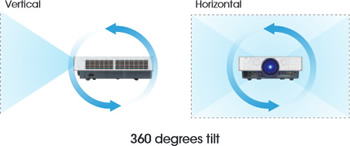

vplfhz55w 360 degree projection 360% angle-free tilt
Position the projectors freely, at any angle, on their side or even upside down. Install wherever you need them, close to ceilings, near a screen or even horizontally offset them.

Wide Lens Shift, Zoom and Throw Ratio
Generous shift, zoom and throw lens adjustments give more flexibility for positioning the projectors where you need them. (Actual horizontal and vertical shift depends on lens used - optional lenses available)

HDBaseT™– single cable system
HDBaseT™ multi-signal installation system via a single cable. This cuts cabling costs as well as the need for extra signal extenders and receiver boxes. One Cat5e/6 cable runs up to 100m.

Edge Blending / Color Matching

This built-in feature enable the installation of multiple projectors to create one large seamless and uniformed image. Create stunning super-size displays for retail, corporate and live event applications.

VPLFHZ55W Edge Blending





Specifications

Display system

Display system 3 LCD system

Display device

Size of effective display area 0.76” (19 mm) x 3 BrightEra LCD Panel, Aspect ratio: 16:10
Number of pixels 6,912,000 (1920 x 1200 x 3) pixels

Projection lens *1

Focus Powered
Zoom - Powered/Manual Powered
Zoom - Ratio Approx. x 1.6
Throw ratio 1.39:1 to 2.23:1
Lens shift - Powered/Manual Powered
Lens shift - Range Vertical -5%, +60%
Lens shift - Range Horizontal +/- 32%

Light source

Type Laser diode

Filter cleaning / replacement cycle (Max.)*2

Filter cleaning / replacement cycle (Max.) 20000 H (service maintenance)

Screen size

Screen size 40'' to 600'' (1.02 m to 15.24 m) (measured diagonally)

Light output

Mode: High 5000 lm
Mode: Standard 3500 lm

Color light output

Mode: High 5000 lm
Mode: Standard 3500 lm

Contrast ratio (full white / full black) *3

Contrast ratio (full white / full black) 10000:1

Displayable scanning frequency

Horizontal 15 kHz to 92 kHz
Vertical 48 Hz to 92 Hz

Display resolution

Computer signal input Maximum display resolution: 1920 x 1200 dots *4
Video signal input NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i
The following items are available for digital signal (HDMI input) only; 1080/60P, 1080/50p, 1080/24p

Color system

Color system NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60

Keystone correction (Max.)

Horizontal +/- 30 degrees
Vertical +/- 30 degrees

INPUT OUTPUT (Computer/Video/Control)

INPUT A RGB / Y PB PR input connector:Mini D-sub 15 pin (female)
Audio input connector: Stereo mini jack
INPUT B DVI input connector: DVI-D 24-pin (single link), HDCP support
Audio input connector: Shared with input A
INPUT C HDMI input connector: HDMI 19-pin, HDCP support
Audio input connector: HDMI audio support
INPUT D HDBaseT interface connector: RJ45, 4 play (Video, Audio, LAN, Control)
VIDEO IN Video input connector: BNC
Audio input connector: Shared with input A
OUTPUT A Monitor output for Input A Connector: Mini D-sub 15-pin (female)
Audio output connector: Stereo mini jack
OUTPUT B Monitor output for Input B Connector: DVI-D 24-pin (single link), HDCP support
Audio output, Monitor out connector: Stereo mini jack
REMOTE D-sub 9-pin (male) / RS232C
LAN RJ-45, 10BASE-T/100BASE-TX
IR (Control S) Stereo mini jack, Plug in power DC5V

Acoustic Noise

Lamp mode: Standard 28 dB

Operating temperature / Operating humidity

Operating temperature / Operating humidity 0°C to 40°C (32°F to 104°F) / 20% to 80% (no condensation)

Storage temperature / Storage humidity

Storage temperature / Storage humidity -10°C to +60°C (14°F to +140°F) / 10% to 90% (no condensation)

Power requirements

Power requirements AC 100 V to 240 V, 4.5 A to 1.9 A, 50 Hz / 60 Hz

Power consumption

AC 100 V to 120 V Mode: High: 420 W
AC 220 V to 240 V Mode: High: 408 W

Power Consumption (Standby Mode)

AC 100 V to 120 V 0.5W (when “Standby mode” is set to “Low”)
AC 220 V to 240 V 0.5W (when “Standby mode” is set to “Low”)

Dimensions (W x H x D)

Dimensions (W x H x D) (without protrusions) 460 x 169 x 515 mm

Mass

Mass 16 kg

Supplied accessories

Remote commander RM-PJ27

Optional accessories

Projector Suspension Support PSS-610
Projection Lens VPLL-3007 / Z3009 / Z3024 / Z3032

Notes

*1 With supplied standard lens
*2 This figure is expected maintenance time, not guaranteed time. The actual value depends on the environment and how the projector is used.
*3 The value is average.
*4 Available for VESA Reduced Blanking signal.
