Sony VPL-CW255 High Brightness Multimedia Widescreen Projector

VPL-CW255






Sony Logo


Your Price: $1799

Flat Rate Freight!
$22 Insured Australia Wide.
Pick up Available


Feature-rich widescreen projector for budget conscious users

The VPL-CW255 offers superior WXGA 16:10 widescreen resolution and environmentally-friendly features for a low total cost of ownership. The VPL-CW255 incorporates Sony’s BrightEra™ 3LCD inorganic panel technology that delivers higher picture quality, substantially brighter images, higher efficiency, better contrast, consistent colour stability and longer durability and usability.

MAXIMUM 4,500 LUMENS BRIGHTNESS

The VPL-CW255 features three brightness modes to suit individual user’s needs – 4,500, 3,400 and 2,500 lumens. The low brightness mode generates lower operating costs by reducing power consumption and extending the lamp lifetime to approximately 5,000 hours. The projector also has a contrast ratio of 3700:1, a range of video inputs, including HDMI, and RJ45 or RS-232C connectors for control.

1.32 - 1.91:1 throw ratio
The VPL-CW255 offers a 1.32 ~ 1.91:1 throw ratio that can accommodate most large classrooms or large meeting rooms.

3 LCDBrightEra™ technology
Sony's 0.75-inch BrightEra™ inorganic TFT 3 LCD panels deliver improved panel light resistance, higher resolution, high brightness and increased panel reliability.
Brightera

WXGA 16:10 widescreen resolution
The VPL-CW255 has a native WXGA (1280 x 800) 16:10 screen resolution panel that is perfect for presentations direct from video, laptop or PC.

5,000 hours lamp life
Extended lamp life is possible with a new driving scheme that reduces gap expansion and brightness gradation, plus a new cooling system that allows uniformity in the temperature of the glass bulb and prevents it from clouding.

Environmentally-friendly Eco Mode
Users can easily select power-saving Eco Modes. The most energy-efficient mode is accessible though a single button-push, and further adjustments are available through an easily understood menu system.

Environmentally-friendly Lamp Dimming
With Lamp Dimming, the projector can reduce power consumption and brightness by 10-15% without user detection. After a pre-set time assigned by the user, the brightness and power consumption will reduce to 30% power usage. Instant 100% brightness returns with a new signal input to the projector.

Environmentally-friendly Picture Mute
Picture Mute reduces power consumption down to 30% power usage, saving cost and lamp hours. This feature can be used in the education market as an instant off / on between class changes, or in the corporate market as a tool to redirect attention away from the screen and reduce power.

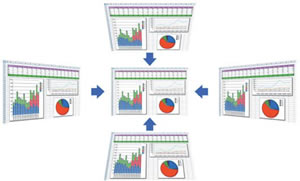

Vertical and horizontal keystone adjustment
The projector can correct keystone distortion by V: +/- 30% H: +/- 20% for perfect installation adjustment.(Note: Since this is an electronic correction, it will reduce the picture quality slightly).

Smart APA (Auto Pixel Alignment)
When a computer is used as a picture source, APA automatically optimises Phase, Pitch and Shift values. These can also be adjusted manually.

Keystone

Auto Input Search
Auto Input Search detects which input has an incoming signal and automatically switches to it. This makes it easier for users to set up the projector prior to making a presentation.

Audio switcher facility
To avoid the need for a separate audio switcher, the projector can be used to select between two audio sources, routing them via a variable audio output to the room amplification system.

Picture Freeze function
Picture Freeze is useful during presentations if you need to look at other material on your PC’s screen without the viewing audience being aware. Freeze the current image, and you can use your PC independently of the display from the projector.

Digital Zoom
With Digital Zoom, if you are displaying a computer-sourced image, you can enlarge a selected area of the screen image.

Off and Go
At the end of a presentation, you can turn off the power supply to the projector immediately, instead of going through a ‘power down’ cycle.

Direct Power On/Off
With this function, there is no need to go through Standby mode when powering up the projector. The projector can be set to activate as soon as power is applied.

Filter cleaning at the same time as lamp replacement
The filter only needs to be cleaned when a new lamp is fitted, potentially halving disruption due to maintenance.

Multiple Picture modes
The VPL-CW255 has six picture modes (Dynamic, Standard, Game, Living, Cinema and Presentation) that can be selected to suite the nature of the source material.

Built-in security measures
The VPL-CW255 has a package of security measures, including password protection, and physical anti-theft anchor points.

Projector Screen Bundle



Sony VPLCW255 Throw Distance Chart (Examples for common Sizes)
Image Size Installation Distance (Approx. To Lens)
98" (16:10) 2110x1320mm From 2.8m to 4.0m
118" (16:10) 2540x1590mm From 3.4m to 4.9m
130" (16:10) 2800x1750mm From 3.7m to 5.3m




Specifications
Projection System 3 LCD system
Color Light Output 4500 lm / 3400 lm / 2500 lm
Light Output 4500 lm / 3400 lm / 2500 lm
Contrast Ratio 3700:1
Lamp Life 3000 H / 4000 H / 5000 H (Lamp mode: High / Standard / Low)
Throw Ratio 1.32 - 1.91:1
Screen Coverage 40” to 300”

Input/Output Specifications Detail:
S-Video In Mini DIN 4-pin, Audio : RCA (x2) (shared with VIDEO IN)
Composite Video In RCA, Audio : RCA (x2) (shared with S VIDEO IN)
Analog RGB/Component In Mini D-sub 15-pin (RGB/Y Pb Pr) x1, Mini D-sub 15-pin (RGB) x1, Audio: Stereo mini jack x2
Digital In HDMI (HDCP support)
Network RJ-45, 10BASE-T/100BASE-TX
Monitor Out Mini D-sub 15-pin (from RGB input)
Variable Audio Out Stereo mini jack
Remote Control RS-232C: D-sub 9 pin (female)

General Specifications Detail:
Dimensions (W x H x D) W 15 31/32 x H 4 13/16 x D 13 in
Weight 12lb 2oz
Power Requirements AC 100 V to 240 V, 1.4A to 3.6 A 50 Hz /60 Hz
Power Consumption AC 100 V to 120 V - 340 W / 280W / 240W (Lamp mode: High / Standard / Low)
AC 220 V to 240 V - 320 W / 265W / 225W (Lamp mode: High / Standard / Low)
Speaker 10 W x 1 (monaural)
Operating Temperature 32°F to 104°F
Operating Humidity 35% to 85% (no condensation)
Heat Dissipation AC 100 V to 120 V - 1,195 BTU AC 220 V to 240 V - 1,126 BTU
Storage Temperature -4°F to 140°F
Storage Humidity (10% to 90%)

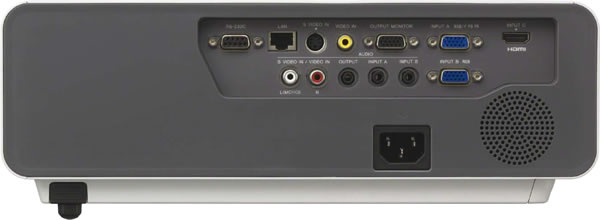

Rear Panel
VPL-SX125 Rear



Optional Accessories

Projector Warranty Upgrades

Extended Warranty For Projectors
All Programs come with:
- GM Multimedia Extended Warranty ID Number (must be retained)
- GM Multimedia claim instructions and terms & conditions
- Does not cover consumable items or accessories such as projector globes or remotes
[More Information]
1 Year Warranty
2 Year Warranty
$129
$179

Logitech R400 Wireless Presentation Remote
Your Price:
$99.95

Special
Normally $129.95

FEATURES
Great for Microsoft Power Point Presentations, featuring:
• Inbuilt Laser Pointer
• 15 Metre Range
• Forward/Back Slide control

- Windows Only not Mac Compatible
[More Information]


Wireless Projection Adapter WPS-Dongle 2
Your Price:
$199



WPS-Dongle2

SPECIFICATIONS
• Deliver presentations wirelessly from your notebook or desktop PC
• With 802.11b/g/n Wireless Connectivity

•Windows 2000 / XP / Vista / 7, Windows Mobile 5/6, Mac OS X 10.5 and above
Notebook/desktop PC requires an existing wireless connection.
Not suitable for full motion video
[More Information]


Universal Flush Projector Ceiling Mount FB-1 *Recommended*
White - $149
Black - $149


Projector Mount

SPECIFICATIONS
Available in BLACK (FB-1B) and WHITE (FB-1W)
• Swivel: 360°, Adjustable roll, pitch and yaw.
• Rigid Steel construction.
• Durable powder-coated finish (Black or White).
• Supports up to 10kgs.
• Mounting hardware included.
• User manual included.
• All bracket models come standard with 4 x mounting arms.

FEATURES
- Direct to ceiling mount (150mm)
- Suits most projectors with 3 or 4 holes


Premium VGA to Component Adapter Cable HD15RCA3
Your Price:
$39.95



SPECIFICATIONS
• High Definition YBbPr Component to VGA Adaptor
• 1.8 metre Length
• Features UL Approved Cabling
• Connect standard VGA to a HD Settop Box or DVD player



HDMI Cable

Premium HDMI Digital AV Cable

2 Metres
$29.95
5 Metres
$49.95
10 Metres
$79.95
15 Metres
$99.95
20 Metres
$149.95

Premium quality AV cable for use with HDMI enabled digital displays, projectors, LCD screens and Plasma TVs!

- HDMI 1.3 with an increased single-link bandwidth to 340 MHz (10.2 Gbps) to support the demands of future HD display devices
- Compatible with HDTV and HDCP (High-Bandwidth Digital Content Protection)
- Connectors: HDMI Male/Male, Type A
- 10 year warranty


VGA Cable

Premium VGA Monitor Cable

5 Metres
$29.95
10 Metres
$59.95
15 Metres
$69.95
20 Metres
$89.95
30 Metres
$110.95

Heavily shielded coaxial RGB cable giving you a crisper display at higher resolutions!

  • Features UL Approved Cabling
  • Filters included on both ends cutting down on noise
  • Maintains stronger signals using a shielded cabling run.
  • Comes in 15pin D-sub format with Male to Male conectors
