Mitsubishi FD630U DLP High Brightness FULL HD Multimedia PROJECTOR


Your Price: $3999
Insured Delivery: $22
Pick Up Available




Combining the visual experience of full high-definition images with a lightweight, compact design, the FD630U portable projector makes it easy for educators and sales people alike to deliver high-impact presentations no matter where they are. With outstanding picture quality, as well as a range of performance enhancing features, the FD630U portable projector is the ideal full HD multimedia projector for use in businesses or schools.

Full HD Resolution - With a display screen area 2.3x larger than standard XGA projectors, the FD630U portable projector is capable of delivering data and video presentations with far greater detail.

Excellent Brightness and Contrast - With a high 4000 lumens brightness and 2000:1 contrast ratio, the FD6300U portable projector is able to deliver clear, vibrant images even in well lit rooms.

Superb Colour Reproduction - A combination of BrilliantColor™ technology, Color Enhancer™ and a five-segment colour wheel means image colour is reproduced with the utmost accuracy.

Long Lamp Life up to 5,000 hours - The FD630U is capable of running for up to 5,000 hours (in low mode), greatly lowering the cost of ownership.

Quiet 29dB(A)* Operating Volume - For presentations free of distraction from the projector.

High Powered Zoom Lens - With its specially calibrated zoom lens, the FD630U is capable of projecting large images even when space is limited.

Network Connectivity - The built-in RJ-45 Ethernet connection provides users with remote control and management of the projector over a dedicated LAN system. The supplied ProjectorView Global+ software allows for the simultaneous control of multiple Mitsubishi projectors on the same network.

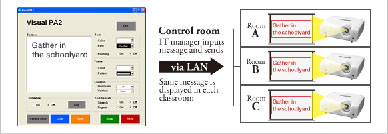

Visual PA2 system - Using the supplied projector control software, network administrators can send messages in real-time to multiple Mitsubishi projectors connected to the LAN. The software is also capable of recognising text, then converting it to a verbal announcement for increased impact.

How the Mitsubishi Electric Visual PA2 system works

Built-in 10W speaker with "Audio Mix" feature - A high-volume 10W speaker is built in to the projector, eliminating the need for an external speaker in a classroom environment. The "Audio Mix" allows the user to adjust the volume of two separate audio inputs (e.g a wireless microphone and DVD player) independently, for greater audio control during presentations.

Low Standby Power use - In keeping with Mitsubishi Electric global green policies the FD630U portable projector uses less than 1W in standby mode (3W when connected to a network), for better energy efficiency that saves you money.

Wide range of video and data inputs, including HDMI - Connect multiple devices to the projector at the same time - perfect for fixed installation units.

Filter free design - No filter to clean means less projector downtime for maintenance.

Top Loading Lamp - For easy lamp replacement when the projector is suspended from the ceiling, as the projector does not need to be removed from its mount.

Instant Shutdown - For quick pack up time when moving the projector between locations.


Specifications
Model FD630U
Display technology 0.65" 1-chip DMD, 12 deg. LVDS, DDP3021
Resolution 1920 x 1080 (Total 2,073,600 pixels)
Colour Wheel 5seg. Color Wheel (R/G/B/W/Y)
Brightness (Maximum) 4000 ANSI lumens
Contrast 2000:1
Zoom/Focus Manual Focus & Zoom Lens(Zoom Ratio 1.5:1) ,with Zoom Triger
Projection Lens f=20.6 ~30.1 mm, F=2.4-2.8,  (3.1-4.6m@100")
Off set axis 4.0:-1 , Hd=0.42m up @100"
Picture Size 40" ~ 300" (100"=3.3m)
Source lamp* 280W / 3,000 hours (Normal mode)
230W / 5,000 hours (Low mode)
Computer compatibility 640 x480(Expand)  - 1920 x 1080(Real) - 1600 x 1200 (Compressed), Sync on green available
Video compatibility NTSC/ NTSC 4.43/ PAL (including PAL-M, N) / SECAM/ PAL-60, Component Video: 480i/p (525i/p), 576i/p (625i/p), 720p (750p), 1080i (1125i 60Hz), 1080i(1125i 50Hz), 1080P, (1080i(1250, 50Hz) is not available)
PC input terminals RGB:mini D-sub 15 pin x 2, HDMI x 1; Audio: Stereo mini jack x 2 (3.5mm)
Video input terminals Composite RCA x 1, S-Video x 1; Audio: Stereo RCA x 1
Output terminals RGB: mini D-sub 15 x 1; Audio: Stereo mini jack x 1 (3.5mm)
Communication terminals RS-232C: 8pin x 1, LAN (RJ-45) x 1
Audio Speaker 10W Mono
Power consumption 390W, less than 1W in Power Standby mode (3W with network connection)
Power Supply AC100 ~ 240 V ±10%, 50/60 Hz
Fan noise 29 dB(A) (Lamp low mode)
Dimensions (W x H x D) 345 x 129 x 270mm (excluding all protrusions)
Weight 3.8 kg
Optional lamp VLT-XD600LP
Included accessories AC Power Cable, VGA (D-sub) Cable, Remote Control (with battery), Quick Start Card, User Manual, Safety Manual, Lens Cap, Lamp Replacement Tool, Soft Carry Case

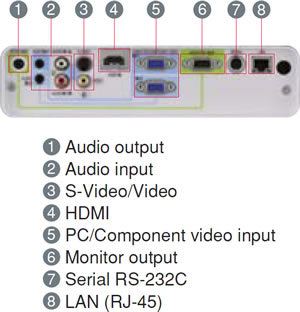

Rear Panel

Remote



Optional Accessories

Extended Warranty
All Programs come with:
- United ID Sticker (must be attached to product)
- United Certificate with Terms & Conditions

Program Coverage:
- LCD & DMD pixels are covered only as per original manufacturer's pixel terms & conditions
- Does not cover Cords, Power Adapter
- Does not cover consumable items such as projector globes
+ 3 Year On-Site Extended Warranty (up to 5 years total) $449
+ 2 Year On-Site Extended Warranty $339
+ 1 Year On-Site Extended Warranty $250
