Casio XJ-M241 Multipurpose Widescreen LED Projector

XJ-M241







Casio Logo


Your Price: $799
WAREHOUSE CLEAROUT
Special
Was $1299 $500 OFF
WHILE STOCKS LAST

Flat Rate Freight!
$22 Insured Australia Wide.
Pick up Available



Casio Projector WarrantyMade In Japan


CASIO has applied its unique new Laser & LED Hybrid Light Source to achieve breakthrough development of a mercury-free high-brightness projector. Adopting a new semiconductor-based light source system combining a blue laser, phosphor and a red LED, we have achieved both high-brightness performance enabling projection in well-lit rooms and environmental friendliness with mercury eliminated from the light source.
Revolutionary new light source technology
CASIO developed a new semiconductor light source technology combining a red LED, phosphor and a blue laser. This source achieves high luminance safely by employing a phosphor device to modify the wavelengths and phases of blue laser light.


New illumination technology

The new and innovative semiconductor light-source technology developed by CASIO combines LEDs and laser light to create a completely new, mercury-free light source. The new generation of projectors with laserand LED-hybrid light sources has an illuminative performance of up to 2,500 ANSI lumens, creating brilliant, natural colours for impressive presentations – even in daylight.
This revolutionary light source has a 20,000-hour life expectancy, and can be switched on and off without any significant delays – full power is available after only eight seconds!
Compared with conventional high-brightness projectors employing mercury lamps, this cuts the cost as well as the time and effort involved in exchanging lamps dramatically, while at the same time maintaining clear, high-quality images over an extended period by reducing the tendency toward degradation of the brightness.

The new generation of projectors has arrived, thanks to the new CASIO models with an operational life of up to 20,000 hours without changing lamps. This means a ten-fold improvement in performance against the conventional lamps used in CASIO projectors (approx. life of 2,000 hours). 20,000 hours means: 10,000 two-hour business presentations, or over 13,000 live football matches viewed in large format at home with friends. A new projector from CASIO is a profitable investment for the future, above all when you think of the considerable follow-up costs for replacing conventional projector lamps: assuming a service life of around 20,000 hours, you would need to buy up to nine new lamps with total costs amounting to about $3,600.


The projector reaches its maximum brightness as quickly as 8 seconds after it's turned on, significantly shortening the time before you start your presentation. Since it doesn't need time to cool down afterwards, either, you can conduct your presentations cleanly and efficiently, from setting up to packing up.


The dramatically enhanced colour purity achieved by our Laser & LED Hybrid Light Source technology results in superior colour reproducibility and brighter, more beautiful colouration. High-purity colour visual effects also generate brighter images, enabling you to present clear, powerful visuals that conventional projectors can't match.

The product lineup includes both 1,280 x 800 dot (16:10) WXGA Real and 1,024 x 768 dot (4:3) XGA Real models that realize high-density images benefiting fully from high resolution. They also support 1,600 x 1,200 dot UXGA compressed presentation.

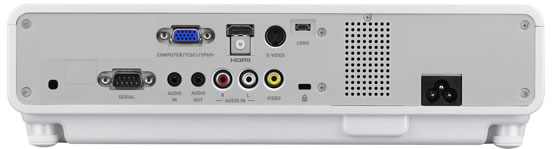

XJ-M241 Rear

AV terminal
Connect a VCR, video camera or other audio-visual equipment to the AV terminal and use it as a VIDEO input terminal for projecting images. You can also use it as an AUDIO input (output) terminal to play back audio recordings from a PC on the built-in speaker.
*Audio playback with the speaker or connection to external speaker for presentations made from a USB memory device is also possible.

Computer terminal
Images can be projected on a PC screen by simply connecting the PC to the RGB input terminal.

HDMI terminal
AV equipment such as HD televisions and DVD recorders can be connected to the HDMI terminal with a single cable. This enables you to project high-definition images on a large screen while maintaining high image quality.

Ceiling Mounting

The new Casio projector range can aso be ceiling mounted. Allowing for permanent instalations.

Projector Screen Bundle






Specifications
XJ-M241

Native Resolution   WXGA (1200 x 800) 1,024,000 pixels
Native Aspect Ratio   16:10
Brightness   2500 Lumens
Display Device   0.65-inch DLP® chip
Contrast Ratio   1800 : 1
Lens Type   1.5X Manual Zoom & Focus
Lens Offset   33%
Light Source   Casio Laser & LED Hybrid
Estimated Light Source Life   Up to 20,000 Hours
Projection Screen Size
(Min-Max)
  35 to 300-inch diagonal
Projection Range 60-inch screen 5.6 ~ 8.2 ft
  100-inch screen 9.6 ~ 13.8 ft
  Minimum 3.3 ft
  Throw Ratio 1.32-1.93:1
Keystone Correction   Vertical +30° (Auto)    Vertical + or - 30° (Manual)
Color Reproduction   Full color (16.77 million colors)
Power Source   AC100~240V, 50/60Hz
Power Consumption Operating 165 watts- Eco Mode "off" Bright selected
135 watts Eco Mode "Eco 1" Selected

  Standby 0.12 w (LAN OFF), 2.3 w (LAN ON)
Terminal Connectivity

Video Signal Compatability Video Systems NTSC/ PAL/ PAL-N/ PAL-M/ PAL60/ SECAM
  DTV/HDTV 480i/480P/576i/576P/720P/1080i/1080p
  Maximum Computer Input UXGA (1600 x 1200)
Inputs
  RGB/Component Video Input mini D-Sub 15 pin x 1
Also use as YCbCr/YPbPr input- commercially available adapter required
  HDMI HDMI  Type A x 1 (480p~1080p)
  Composite Video Composite Video (RCA) x 1, S-Video x 1
  Audio RCA (R/L) x1,  Stereo mini x 1

Outputs
  Audio Stereo Mini x 1
Audio and Control Systems
Audio system   5W Monaural Speaker
Control Terminal RS-232 RS-232C (Mini D sub 9 pin) x 1
Cross Cable (Null Modem) required)
OTHER INFORMATION
Usage Environment Operating Temperature 41~95°F
  Operating Humidity 20~80% (non condensation)
  High Altitude Mode Yes (for operation 5,000~10,000 ft)
Extended operation (24 x 7)   Yes
Note: Projector must be turned off once every 24 hours
Rotation Projection   90 degrees Left/Right (Portrait)/ 90 degrees (Up/Down)
Remote Control Range   16.4 ft Maximum

Security Compatibility Kensington Compatible Yes
  Power On Password Yes
Ceiling Mountable    Yes, available and sold separately by 3rd party vendors
Ceiling Mount Screws
(Type x Qty)
  M3 x 3 (not included), (Insert depth 4-6mm)
Limited Warranty   3 years Parts and Labor plus 3 years or 6,000 hours light source,  see Warranty Statement included with product for complete details.
Included Accessories
Wireless remote control(YT-130), 6’ RGB cable, 6’ AV cable, 6’ AC Power Cord, Carry Bag,
Setup Manual (Printed)
Cabinet Color   White with Light Gray Trim
Dimension (W x D x H) Including Projections 12.24 x 9.61 x 3.31 inches
  Excluding Projections 12.24 x 9.61 x 3.23 inches
Weight   8.6 lbs
Packing Information Carton Dimensions 16.2"L x 14.4"W x 6.7"H
  Carton Weight 14.1lbs
  UPC Code
`079767466909

Manufactured in   Japan
Supplied Accessories
Carry Bag
Remote
Casio Carry Case
Casio Remote
Rear Panel
XJ-M241 Connections
Optional Accessories

Kensington 2.4Ghz Wireless Presentation Remote - With Red Laser Pointer
Your Price:
$74.95

Special
Normally $99.95

Projector Remote

FEATURES

  • Wireless range up 50 meters
  • Red Laser Pointer
  • Low battery indicator
  • Backlit buttons
  • Two modes—switch from presenter to cursor control mode
  • On/off switch
  • USB receiver stores inside
  • Carry pouch included
  • Controls Keynote and PowerPoint

- Windows Compatible
- Mac Compatible
[More Information]


Universal Flush Projector Ceiling Mount FB-1 *Recommended*
White - $149
Black - $149


Projector Mount

SPECIFICATIONS
Available in BLACK (FB-1B) and WHITE (FB-1W)
• Swivel: 360°, Adjustable roll, pitch and yaw.
• Rigid Steel construction.
• Durable powder-coated finish (Black or White).
• Supports up to 10kgs.
• Mounting hardware included.
• User manual included.
• All bracket models come standard with 4 x mounting arms.

FEATURES
- Direct to ceiling mount (150mm)
- Suits most projectors with 3 or 4 holes


Premium VGA to Component Adapter Cable HD15RCA3
Your Price:
$39.95



SPECIFICATIONS
• High Definition YBbPr Component to VGA Adaptor
• 1.8 metre Length
• Features UL Approved Cabling
• Connect standard VGA to a HD Settop Box or DVD player



HDMI Cable

Premium HDMI Digital AV Cable

2 Metres
$29.95
5 Metres
$49.95
10 Metres
$79.95
15 Metres
$99.95
20 Metres
$149.95

Premium quality AV cable for use with HDMI enabled digital displays, projectors, LCD screens and Plasma TVs!

- HDMI 1.3 with an increased single-link bandwidth to 340 MHz (10.2 Gbps) to support the demands of future HD display devices
- Compatible with HDTV and HDCP (High-Bandwidth Digital Content Protection)
- Connectors: HDMI Male/Male, Type A
- 10 year warranty


VGA Cable

Premium VGA Monitor Cable

5 Metres
$29.95
10 Metres
$59.95
15 Metres
$69.95
20 Metres
$89.95
30 Metres
$110.95

Heavily shielded coaxial RGB cable giving you a crisper display at higher resolutions!

  • Features UL Approved Cabling
  • Filters included on both ends cutting down on noise
  • Maintains stronger signals using a shielded cabling run.
  • Comes in 15pin D-sub format with Male to Male conectors
