Casio XJ-UT310WN LED Short Throw Projector - With Wireless & PC-Free
XJ-UT310WN








Casio Logo


DISCONTINUED

For Current Casio Projectors Click Here


Casio Projector WarrantyMade In Japan
Casio XJ-UT310WN Reviews:

XJ-UT310WN Review
Performance
Features
Ease Of Use
Value

"Built around Casio's hybrid LED-laser light source, the XJ-UT310WN is the company's first model with an ultra short throw. The price may seem high for a 1280x800 model rated at 3100 lumens, but don't let that stop you from considering it. The price is at least potentially justified by a low running cost.

Near-excellent data image quality. Colors in data images were eye catching and well saturated in all combinations of predefined modes and brightness levels in my tests.

Bright image with wide brightness range. With one predefined mode for its two non-Eco settings and five for each of the five Eco levels, the XJ-UT310WN gives you 27 combinations of settings that can affect brightness. That translates to both a large range of brightness and more levels within the range than most projectors offer. "


High Level Features

- 3100 Lumens
- WXGA (1280 x 800) Native Resolution
- Ultra Short Throw 0.28:1 ratio
- Fixed Lens - Mirror System
- Hybrid Light Source
- Dust Resistant Design
- Made in Japan

FEATURES

Ultra Short Throw Lens
With its Ultra-Short Throw lens the XJ-UT310WN can project brilliant, shadow-free images up to 110” diagonal. The built-in short throw lens and advanced mirror system provides an extremely close throw ratio (0.28:1) and enables you to project an 80” image from just 1.5 feet away.
XJ-UT310WM Lens
XJ-UT310WN Brightness Resolution Brightness and Resolution
The XJ-UT310WN’s advanced LampFree® light source combined with the Ultra-Short throw lens system produces 3100 lumens of brightness and boast WXGA (1280 x 800) resolution which is ideal for displaying HD content from video and computer sources. The 16:10 widescreen aspect ratio ensures your content is viewed without distortion.
Connectivity
The XJ-UT310WN boasts a full suite of inputs including, Video, Computer and HDMI terminals with audio. It is equipped with a powerful 16 watt speaker and a dedicated dynamic microphone input ensures everyone can hear. Network (RJ-45) and local RS-232 connections provide control and remote status monitoring capabilities while close captioning used in conjunction with Crestron RoomView® allow direct email alerts and much more. There is even 2GB of built-in memory storage for direct playback and viewing with the need for additional equipment. A CASIO App is also available and enables wireless connection and interaction with mobile devices.
XJ-UT310WN Connectivity
XJ-UT310WN Casio App Casio App
Using Casio’s free mobile application - compatible with both Apple and Android - educators can easily integrate technology into the classroom. The mobile application allows educators to display and annotate presentations from a mobile device, as well as capture and save their work. In addition, educators can open an Internet browser and display content in real-time.


CASIO has applied its unique new Laser & LED Hybrid Light Source to achieve breakthrough development of a mercury-free high-brightness projector. Adopting a new semiconductor-based light source system combining a blue laser, phosphor and a red LED, we have achieved both high-brightness performance enabling projection in well-lit rooms and environmental friendliness with mercury eliminated from the light source.
Revolutionary new light source technology
CASIO developed a new semiconductor light source technology combining a red LED, phosphor and a blue laser. This source achieves high luminance safely by employing a phosphor device to modify the wavelengths and phases of blue laser light.


New illumination technology

The new and innovative semiconductor light-source technology developed by CASIO combines LEDs and laser light to create a completely new, mercury-free light source. The new generation of projectors with laserand LED-hybrid light sources has an illuminative performance of up to 4,000 ANSI lumens, creating brilliant, natural colours for impressive presentations – even in daylight.
This revolutionary light source has a 20,000-hour life expectancy, and can be switched on and off without any significant delays – full power is available after only eight seconds!
Compared with conventional high-brightness projectors employing mercury lamps, this cuts the cost as well as the time and effort involved in exchanging lamps dramatically, while at the same time maintaining clear, high-quality images over an extended period by reducing the tendency toward degradation of the brightness.

The new generation of projectors has arrived, thanks to the new CASIO models with an operational life of up to 20,000 hours without changing lamps. This means a ten-fold improvement in performance against the conventional lamps used in CASIO projectors (approx. life of 2,000 hours). 20,000 hours means: 10,000 two-hour business presentations, or over 13,000 live football matches viewed in large format at home with friends. A new projector from CASIO is a profitable investment for the future, above all when you think of the considerable follow-up costs for replacing conventional projector lamps: assuming a service life of around 20,000 hours, you would need to buy up to nine new lamps with total costs amounting to about $3,600.



Wireless communication is possible with up to four Windows® PCs (IEEE 802.11b/g): The meeting with operating up to four PCs, presentation away from projector are possible at ease.






Specifications
Model   XJ-UT310WN
Brightness2   3,100 lumens
Light Source   Laser & LED Hybrid

Estimated Life of Light Source

  20,000 hours
Display System   DLP ® chip × 1, DLP® system
Display Chip Chip Size WXGA 0.65 inches (Aspect ratio: 16:10)
Number of Pixels 1,024,000 (1280 × 800)
Contrast Ratio   1800:1
Vertical Keystone Correction   ±5° (manual)
Projection Lens   Fixed zoom, manual focus
  F2.3 / f4.2
Projected Image Size   50 to 110 inches

Projection Distance

60-inch Screen 0.13 m (0.4 ft)
100-inch Screen 0.40 m (1.3 ft)
Minimum Distance 0.06 m (0.2 ft)
Throw Ratio   0.28:1 (60-inch Screen)
Color Reproduction   Full color (16.77 million colors)
Scanning Frequencies Horizontal 15 to 102 kHz
Vertical 50 to 120 Hz
Display Resolution RGB Signal Native: 1280 × 800
Component Signal Maximum: 1920 × 1080 (HDTV 1080P)
HDMI-Signal Maximum: 1920 × 1080 (HDTV 1080P)
Videosignal NTSC, PAL, PAL-N, PAL-M, PAL60, SECAM
Terminals RGB Input Component Input Computer terminal: RGB 15-pin mini D-Sub × 2
Component output Used for both RGB input and component (YCbCr/YPbPr) input
RGB output Monitor out terminal: RGB 15-pin mini D-Sub × 1
Digital
Video Input
HDMI input terminal: HDMI type A terminal × 1
HDCP support, audio signal support
Analog Video Input Composite (RCA) terminal × 1, S-Video terminal × 1
Audio Input RCA R/L terminals, 3.5 mm stereo mini jack × 2
Audio Output 3.5 mm stereo mini jack × 1
Mic Input3 3.5 mm monaural mini jack × 1
USB Host USB Typ A 1 ×
USB Device Micro-USB type B × 1:
For user to store start-up logo data
Control Terminal RS-232C (D-sub 9 pin) × 1
LAN Terminal RJ-45 × 1, 100BASE-TX/10BASE-T
Internal Memory   Approx. 2GB
Speaker   16 W × 1, monaural
Wireless Support   IEEE 802.11b/g/n compatible
Connection by Network Smart Devices Supports Android devices running original Casio software 4
Supports iOS devices running original Casio software4
Windows® PC Supports Windows® PCs with network connection5
Apple Mac Supports Mac with network connection5
Projection with File Viewer Compatible File Formats PDF, JPEG, BMP, PNG, GIF, AVI (MJPEG Video, ADPCM Audio),
MOV (H.264 Video, ADPCM Audio oder AAC Audio), MP4 (H.264 Video, AAC Audio)
Other File Formats ECA, PtG5 6
USB Display   Yes
Intelligent Brightness Control   Yes
Eco Mode   Yes
Direct Power-On   Yes
DLP ® 3D Projection Ready   Yes
Security Compatibility   Kensington-compatible, power-on password
Other Functions   Digital zoom, rear-projection, freeze, color mode, blank screen, wall mount7
Power Source   AC100~240V, 50/60Hz
Power Consumption Bright Mode 230 W
Normal Mode 205 W
Eco Mode Level 1 110 W
Eco Mode Level 5 185 W
Standby8
100-120 V
220-240 V

0,12 W
0,23 W
Dimensions (WxDxH)   338 x 333 x 153 mm
413 x 333 x 153 mm (incl. cable cover)
Weight   Approx. 5.5 kg
Included Accessories   Wireless remote control (YT-140), test batteries (AAA-size × 2),
AC power cord, RGB cable, setup guide, warranty, wireless adapter
Supplied Accessories
Remote
Casio Remote

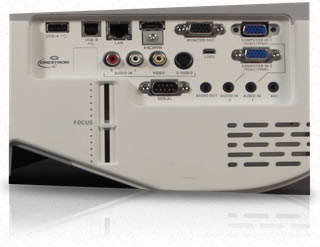

Rear Panel
