Acer Z650 DLP Full HD Short Throw Gaming Projector Projector

Z650





DISCONTINUED

FOR THE CURRENT RANGE OF ACER PROJECTORS CLICK HERE


Quick Facts:
Acer Z650 Throw Distance Chart (Examples for common Sizes)
Image Size Installation Distance
(Approx. To Lens)
92" (16:9) 2030x1140mm From 1.4m to 1.5m
100" (16:9) 2130x1200mm From 1.5m to 1.7m
110" (16:9) 2435x1370mm From 1.7m to 1.9m
120" (16:9) 2580x1450mm From 1.8m to 2.0m
SPECIFICATIONS
Native Resolution: WUXGA 1920 x 1080
Brightness: 2200 ANSI Lumens
Maximum Contrast: 20,000:1
Weight: 3.4kg
Fan Noise: 33 / 30db (eco)
Warranty: 2 Years (+1 Year $125)
Lamp Warranty: 12months/1000hrs
Lamp Life Up To: 6,000hrs
FEATURES
- Short throw
- Vertical Keystone
- Horizontal Keystone

- 2x HDMI Connection
- 3D Capable(3D glasses required)
- MHL Compatible
- 2x 10W Speakers Inbuilt
- Bluetooth Audio

Z650 Projector Gaming Projector

  • Fast Response times with gaming preset modes.
  • Bluetooth Audio for easy connection
  • Wireless projection (optional) capability frees your from cable.
  • Short throw ratio for a massive 100" screen from just 1.5metres distance.
  • 6,000 hours lamp life of ExtremeEco technology.



3D Colour Boost

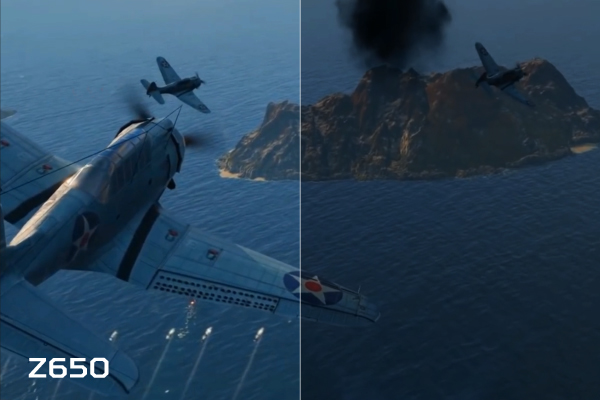

Glorious Gaming

Game Automode improves visibility, contrast and color using real-time analysis.

Game Settings

Gamers demand superb visuals, so we delivered. Dark and Bright FPS modes enhance visibility in different in-game lighting environments. Game Auto mode analyzes content in real-time to improve visibility, contrast and color.


Colour Safe II

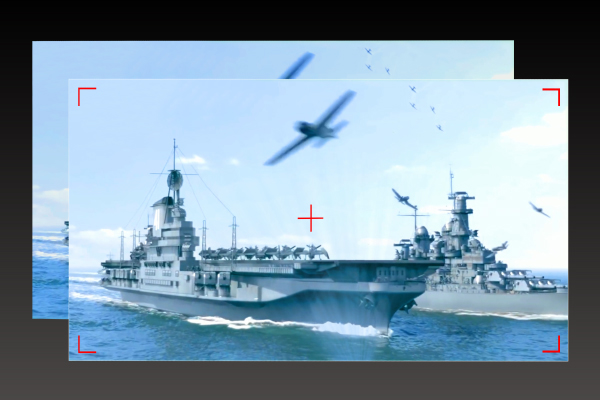

Custom Splash Screen

With the Z650, you can be greeted by a favorite gaming moment every time you boot up the device. With a few simple button presses, the Predator Z650 can do a screen capture and save it as a custom splash screen.


3D Projector

Play Anywhere

Game wherever you want with short-throw projection and wireless streaming at lossless 1080p. (Via Optional Dongle)

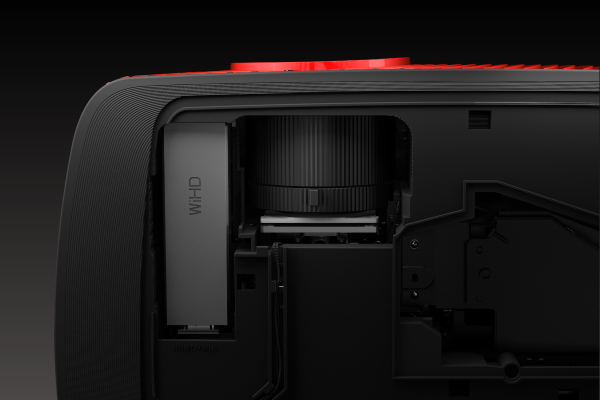

Hidden Dongle

Our Hidden Dongle design both protects feature add-ons in an internal compartment and eliminates external clutter. (Via Optional Dongle)


Eco Projection

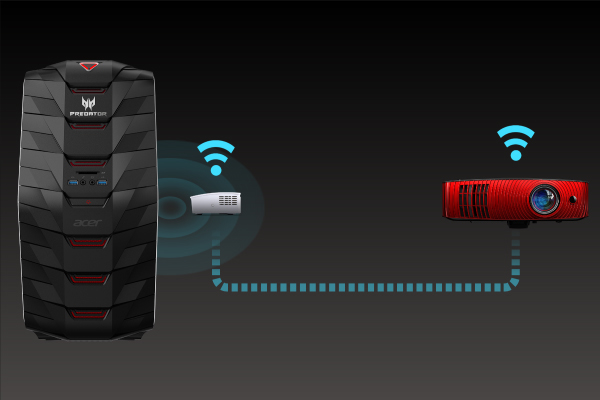

WirelessHD

Pair the Predator Z650 with a WirelessHD-Kit1 to stream lossless 1080p content wirelessly. Enjoy some freedom from the cable chaos.

Acer Z650 Scale

Z650 Bluetooth

Portable Audio

Entertain your crowd with built-in dual DTS® Sound speakers that make some serious noise.

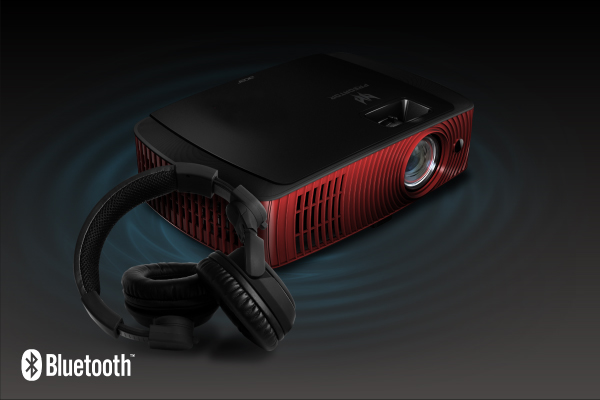

Bluetooth Audio

Stream audio to a Bluetooth headset or speaker system for a wireless audio experience.

Z650 DTS

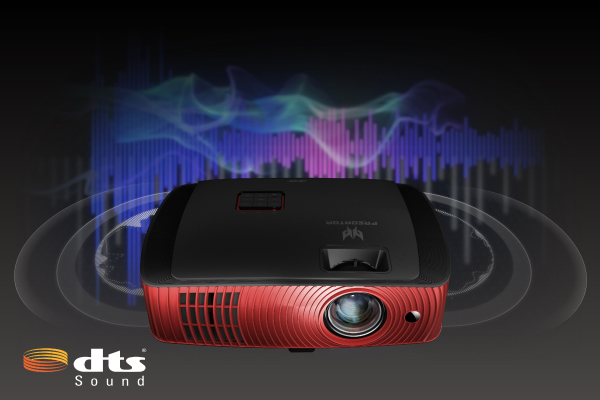

DTS® Sound

With DTS® Sound and two 10W stereo speakers built in, you’re free to take the Z650 anywhere without bringing a sound system. Enjoy explosions, screeching tires and more without hassles.



Specifications
Native Resolution 1920 x 1080
Maximum Resolution 1920 x 1200
Standard Mode Brightness 2200 lm
Native Aspect Ratio 16:9
Compatible Aspect Ratio 4:3
Contrast Ratio 20,000:1
Throw Ratio 0.69 to 0.76@ (100"@59.06")
Digital Zoom 2x
Vertical Keystone Correction -30°/+30°
Horizontal Keystone Correction -30°/+30°
Maximum Vertical Sync 120 Hz
Maximum Horizontal Sync 100 kHz
Minimum Vertical Sync 24 Hz
Minimum Horizontal Sync 15 kHz
Color Supported 1.07 Billion Colors (30-bit)

Projection Lens

Lens Type Manual Focus
Manual Zoom
Minimum Lens Aperture F/2.6
Maximum Lens Aperture F/2.78
Minimum Focal Length 10.20 mm
Maximum Focal Length 11.22 mm
Minimum Diagonal Image Size 54"
Maximum Diagonal Image Size 25 ft
Minimum Projection Distance 35.43"
Maximum Projection Distance 15.09 ft
Optical Zoom 1.1x

Lamp

Lamp Type UHP
Number of Lamps 1
Lamp Power 240 W
Normal Mode Lamp Life 3000 Hour
Economy Mode Lamp Life 4000 Hour
ExtremeEco Mode Lamp Life 6000 Hour

Interfaces/Ports

HDMI Yes
Number of USB Ports 1
USB Yes
USB Connector Type Mini-B
Number of Composite Video Ports 1
Composite Video Yes
Number of Component Video Ports 1
Component Video Yes
Number of S-Video Ports 1
S-Video Yes
Number of VGA Inputs 1
VGA In Yes
Number of VGA Outputs 1
VGA Out Yes
Number Of Audio Inputs 1
Number Of Audio Outputs 1
Audio Line In Yes
Audio Line Out Yes

Technical Information

Projection System DLP
Projection Method Ceiling
Front
Rear
Video Compatibility EDTV
HDTV
NTSC
PAL
SDTV
SECAM
Computer Compatibility Mac PC
Windows PC

Audio

Number of Speakers 2
Speaker Output Power 10 W
Speaker Output Mode Stereo

Power Description

Power Supply 100 V AC~240 V AC
Input Voltage 120 V AC
230 V AC
Operating Power Consumption 424 W
Operating Power Consumption (Eco Mode) 360 W

Physical Characteristics

Fan Noise 30 dB Approximate Economy Mode
33 dB Approximate Standard Mode
Temperature 32°F (0°C) to 104°F (40°C)
Humidity 80% Maximum Relative Humidity
Weight (Approximate) 7.50 lb
Form Factor Ceiling Mountable

Miscellaneous

Package Contents
  • Z650 DLP Projector
  • Battery for Remote Control
  • Security Card
  • User's Guide (CD-ROM)
  • Quick Start Guide
  • Remote Control
  • VGA Cable
  • AC Power Cord
  • Carrying Case

  • Supplied Accessories
    Remote
    H6517ST Projector Remote
    Rear Panel
    Z650 Rear
