BENQ LH890UST DLP Ultra Short Throw Full HD Laser Projector
- Wall Mount Included!

benq lh890ust projector
Delivery

DISCONTINUED

For current models Click Here:
BenQ

3yr warranty
australian stock
insured delivery
1080p resolution

Specifications

  • 1080p 1920 x 1080 16:9
  • 4000 ANSI Lumens
  • 100,000:1 Contrast
  • 9.0kg Weight
  • 33 / 32db(eco) Fan Noise
  • 3 Year Warranty
  • 3 Years/10,000hrs Laser Warranty
  • Est. Laser Life up to 20,000hrs

Key Features

  • HDMI Connection
  • Horizontal & Vertical Keystone
  • Powerful 10W Speaker
  • 3D Capable(3D glasses required)
  • Optional Pen Interactivity
  • Optional Wireless

BenQ LH890UST Throw Distance Chart

Throw Ratio: 0.23:1
Examples of installation distance for some popular screen sizes.
Image Size Installation Distance
(from screen to projector chassis)
92" (16:9) 2030x1140mm 0.14m
100" (16:9) 2214x1245mm 0.19m
110" (16:9) 2435x1370mm 0.23m
120" (16:9) 2657x1494mm 0.28m

BenQ LH890UST Laser Full Hd High Brightness Ultra short Throw Projector!

Utilizing the newest laser light technology the LH890UST provides you with a long lasting projection solution perfect for a heavy use environment. With no lamps to replace the LH890UST avoids the down time and maintenance usually associated with projectors. The long lasting laser technology provides you with an instant on and off picture without the need for warming up and cooling down and with a guaranteed 20,000 hour maintenance free operation. The LH890UST is also Full HD, bright and ultra short throw making it an excellent candidate for a bright meeting room or classroom.

Uninterrupted Learning Through Long-Lasting Projection

The World’s No.1 DLP brand BenQ leads the way with futureproof interactive projectors, featuring innovative BlueCore laser technology and superior dustproofing design for superb picture quality and maintenance-free operation. Maximizing education investment and collaborative learning with ultra-short throw projection, the BenQ LH890UST utilizes the unparalleled qualities of a laser light source to achieve optimized performance, long-lasting reliability, and energy efficiency for the leading schools.

lh890ust laser

lh890ust bluecore

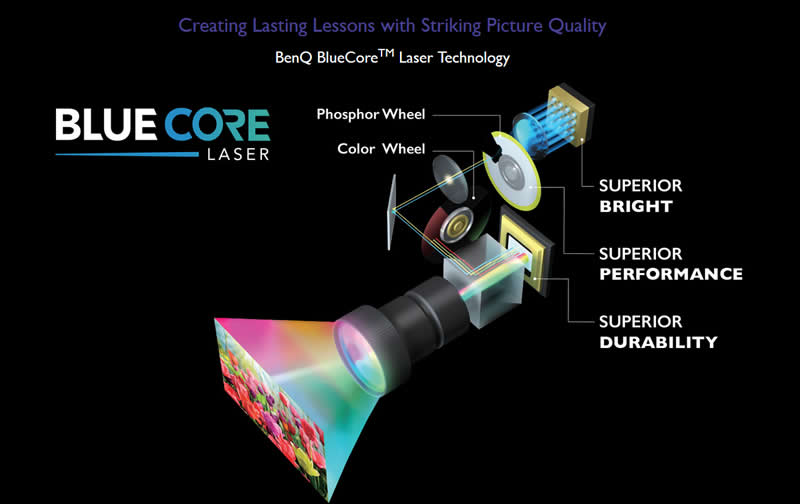

Superior Brightness

Precision-Aligned High-Output Laser Source

Zero-deviation alignment of BlueCore laser diodes boosts luminous flux into the light tunnel, improving light efficacy to 4,000 lumens.

lh890ust phosphoer

Superior Performance

Secondary Yellow-Infused Color Wheel

Dual synchronized BlueCore color wheels utilize an additive yellow segment, stimulating precise RGBY spectra for optimal chromatic performance.

lh890ust dmd

Superior Durability

Hermetically Sealed DLP Chip

Comprising over two million micromirrors that reflect pure light through the color wheel, the DLP chip is hermetically sealed to resist heat for over 100,000 hours without degradation.

lh890ust dust

Superior Dustproofing Design to Prolong Projector Lifespan

BenQ LH890UST is designed with DustGuardTM technology including sealed laser modules to protect the laser bank. This lock-and-key design hermetically seals the laser engine from dust* to prolong projector lifespan.

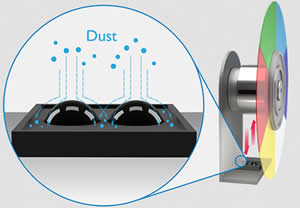

Anti-Dust Accumulation Sensor Resists Dust Buildup

Incorporating color wheel sensors with an ingenious anti-dust accumulation feature, LH890UST prolongs optimal performance by rejecting dust which can accumulate on traditional sensors to block the IR signal and cause flickering, abnormal colors, or even shutdown.

Brilliant Display of Lecture Content

LH890UST’s powerful BlueCoreTM laser projection utilizes a dual color wheel system to produce outstanding color performance by increasing color ratios and purity of RGBY colors, greatly enhancing color saturation and brilliancy at the same lumen output of lamp-based projectors to deliver superior viewing experiences.

lh890ust laser colour

Laser-Enabled Ultra-High Contrast

LH890UST laser projectors create strikingly clear images with stratospherically high native contrast ratio of 100,000:1 for true deep blacks, vividly rich colors, and fine subtle details.

LH890UST also features spontaneous response, requiring no wait to turn on or resume from blanking in true black for flexible performance capability.

lh890ust dust

Long Lasting High Brightness

LH890UST produces 4,000 ANSI lumens and superior brightness efficiency, at the same level as IFPs for clear, sharp images and text even in large, bright classrooms. High brightness allows lights to be kept on during lessons, and sealed laser banks prevent dust entry to minimize brightness decay for long-lasting high brightness.

lh890ust high brightness

Instant Power-On

BenQ BlueCoreTM education projectors can be turned on and off instantly to significantly reduce setup time compared to other lamp-based projectors.

20,000 Hour Long-Lasting Performance

With a fully sealed laser light source and an innovative sealed laser engine design, BenQ BlueCoreTM laser education projectors guarantee 20,000 hours of maintenance-free operation, preventing extra expenses on lamp replacement and maintenance. The laser light source resists color and brightness decay over time, offering significantly more reliable performance after a period of operation.

lh890ust laser life

Expanding Classroom Possibilities

Ultra-Short Throw

Ultra-short throw projectors can be mounted inches the wall directly above the screen, eliminating distracting shadows and glare for students and teachers to engage and collaborate freely in front of the board.

Bigger Images

BenQ education projectors offer a range of resolutions and projected image sizes to meet diverse classroom needs. Featuring crisp image quality up to 100 inches, our ultra-short throw education projectors deliver increased classroom versatility at reduced costs.

lh890ust ultra short throw

Create Interaction on Any Surface

PointWrite™ technology works on any flat surface, so no expensive digital whiteboard or additional equipment is necessary. With the PointWrite™ module, images can be projected onto a wall for multiple students to easily share and write on the same screen, creating vast new opportunities for classroom interactivity and enabling possibilities for modern digital classrooms.

Multi-Touch with Pens and Multi-Screen Drawing

PointWrite™ projectors offer multi-user capability, and two PointWrite™ projectors can be used to double the projection surface. With QWrite* Whiteboard Mode, teachers can run different applications or display, view, and annotate across two monitors.
*QWrite™ is BenQ exclusive annotation software is compatible with BenQ PointWrite™ module.

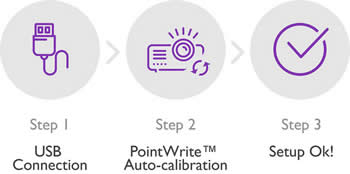

Intuitive Setup

PointWrite™ automatically calibrates and saves its settings the moment it is plugged into a computer’s USB port. PointWrite™ then remains ready with no manual configuration or complicated training for teachers needed. Additionally, LH890UST’s interactive sensor guarantees reliable auto-calibration in any ambient lighting.

lh890ust intuitive

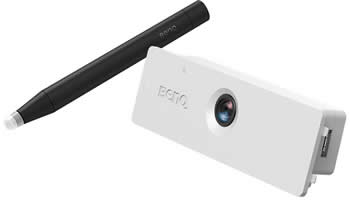

Advanced Interactive Module Compatible

A modular design allowing schools the flexibility of adding interactivity to classrooms with future investment, the new BenQ PointWrite™ interactive module PW40U provides truly collaborative learning environments where students and teachers work together using intuitive templates along with QWrite™ software, all with one-time calibration and set-up driver installation conveniences.
* PW40U is an optional interactive module for LX890UST/ LW890UST/ LH890UST

lh890ust interactive

Facilitating Smart, Efficient Projector Maintenance

Control System Compatibility

LH890UST is widely compatible with leading projector control systems including Crestron, AMX, PJ Link, and Extron* IP Link for network control via LAN, making it simple to integrate into educational network infrastructures. LH890UST also supports RS-232 for reliable long-distance Installation up to 15 meters when there is no LAN infrastructure.
*Developed by Extron, IP Link driver allows device monitoring, control, and support over LAN when MediaLink controller, IP Link Ethernet control interface, or other IP Link-enabled device is installed. For more information, please visit www.extron.com/driverdownloads

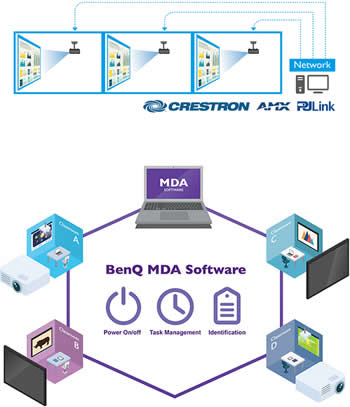

Centralized Control with BenQ MDA Software

BenQ Multiple Display Administrator (MDA) software enables powerful centralized monitoring, control, and power scheduling across the school’s projector network from a single computer, offering full access and control over every projector directly.

lh890ust control

Centralized Upgrade Tool for Multiple Projector Maintenance

Administrators can centrally upgrade firmware on multiple networked BenQ education projectors on the same local network via LAN (up to 253 projectors), deploying the latest updates to all devices at once. This new tool can upgrade firmware types including TI IC, MCU IC, LAN IC, and Ballast IC, with a friendlier user interface.

lh890ust upgrade

Expanding Classroom Possibilities

Streamlined Wall Mount Alignment

For efficient professional installation, our ultra-short throw projector wall mount features an installation chart and ruler for perfect screen alignment and image position in the classroom. Even simpler, using an existing wall mount without uninstallation, a three-way adjustment knob is located in front of the projector for cleanly installed, absolutely square screens.

lh890ust mounting

Clear Images without Distortion

Digital Shrink

Digital Shrink is used for fine tuning the screen size via OSD menu when the image is not precisely aligned on the desired frame.

lh890ust digital shrink

Corner Fit Correction

Corner Fit provides individual adjustment of each corner for perfect fit and alignment onto restricted or uneven spaces. Enduring Picture Perfection from the World’s No.1 DLP Brand BenQ

lh890ust keystone

Unmatched Readability

With industry-leading high contrast, BenQ education projectors utilize advanced DLP-optimized optical lens systems to provide precise readability and crisp resolution for every single sub-pixel.

lh890ust readability


Specifications
Projection System‎ DLP Single 0.65" Full HD
DMD Type DC3 DMD Chip
Resolution‎ 1920 x 1080 pixels, 16:9
Brightness 4,000 ANSI Lumens
Contrast Ratio‎ 100,000:1 ‎
Display Color‎ 1.07 Billion Colors ‎
Aspect Ratio Native 16:9 (5 aspect ratio selectable) ‎
Light Source Laser Light Source‎
Light Source Life‎* min 20,000hrs
tdrow Ratio 0.23
Zoom Ratio Fixed
Lens Control Manual Focus
Keystone Correction 2D keystone, Vertical ± 20 & Horizontal ± 20 degrees,
Projection Offset** 118.8±3%( (Full-Height)
Projection Size (diagonal) 81"~121"
Built-in Speaker 10Wx1
I/O Port HDMI-1 X1
HDMI-2/MHL X1
PC (D-sub 15pin) X1
Monitor out (D-sub 15pin,Female) X1
Composite Video in (RCA) X1
S-Video in X1
Audio in(mini jack) X1
Audio L/R in (RCA) X1
Audio out (mini jack) X1
LAN Port(RJ45 for Network ) X1
RS232 In (D-sub 9pin, male) X1
USB TypeA (5V,1.5A) X1
USB Type mini B (For service) X1
USB Type mini B (For PointWrite module) X1
IR Receiver(Front) X1
Security Kensington Lock
Feature 2D Keystone, Corner Fit, Digital zoom(2x), Digital Shrink(0.75x), LAN Control, AMX/ PJ Link/Crestron/MDA Compatibility Optional Wireless Display, Optional Interactive module (PW40U) compatibility.Optional Dust Filter
Resolution Support VGA (640 x 480) to WUXGA (1920 x 1200) ‎
Horizontal Frequency 15KHz ~102KHz ‎
Vertical Scan Rate 23 - 120Hz
HDTV Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p ‎
Video Compatibility NTSC, PAL, SECAM
Power Consumption (Max/Normal/Eco) Max 380W. Normal 358 W. Eco 274 W.
Standby Power Consumption Normal < 0.5Watts. Network < 2W.
Power Supply 100 ~ 240V AC
Product Weight 9.06 Kg+/- 100g
Product Dimensions (WxHxD) 502.1x 164.5 x 399.3 mm
Noise Level (Normal/Eco) 35/32 dBA (witdout dust filter)
37/34 dBA (witd dust filter)
Operating Temperature 0o ~ 40o C
Accessories (Standard) Power Cord (by region)
Remote Control (RCA022)
AAA Batteryx2
VGA cable
Warranty Card (by region)
QSG (4J.JJC01.001)
User Manual CD (5B.JJC01.001)
Wall mount (WM03G6)
Accessories (Optional) 3D Glasses (5J.J9H25.002)
PointWrite Kit: PW40U (5A.JJR26.10E)
Wireless Dongle: QCast Mirror (5A.JH328.10X)
Wireless Dongle: QCast (5J.JCK28.X01)
Wireless Kit - Instashow WDC10 (9H.JF878.N4X)
On Screen Display Language Arabic/ Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/ Spanish/ Swedish/ Turkish/ tdai/ Traditional Chinese (28 languages)
*Contrast is measure by Full On Full Off standard.
*LightSource life results will vary depending on environmental conditions and usage. Actual product's features and specifications are subject to change witdout notice.
*Storage: Temperature: -20~60°C; Humidity: 10~90%RH (witdout condensation)

What's in the Box
remote control
Remote Control
wall mount
Wall Mount
power cord
Power Cord

Rear Panel

lh890ust rear panel
