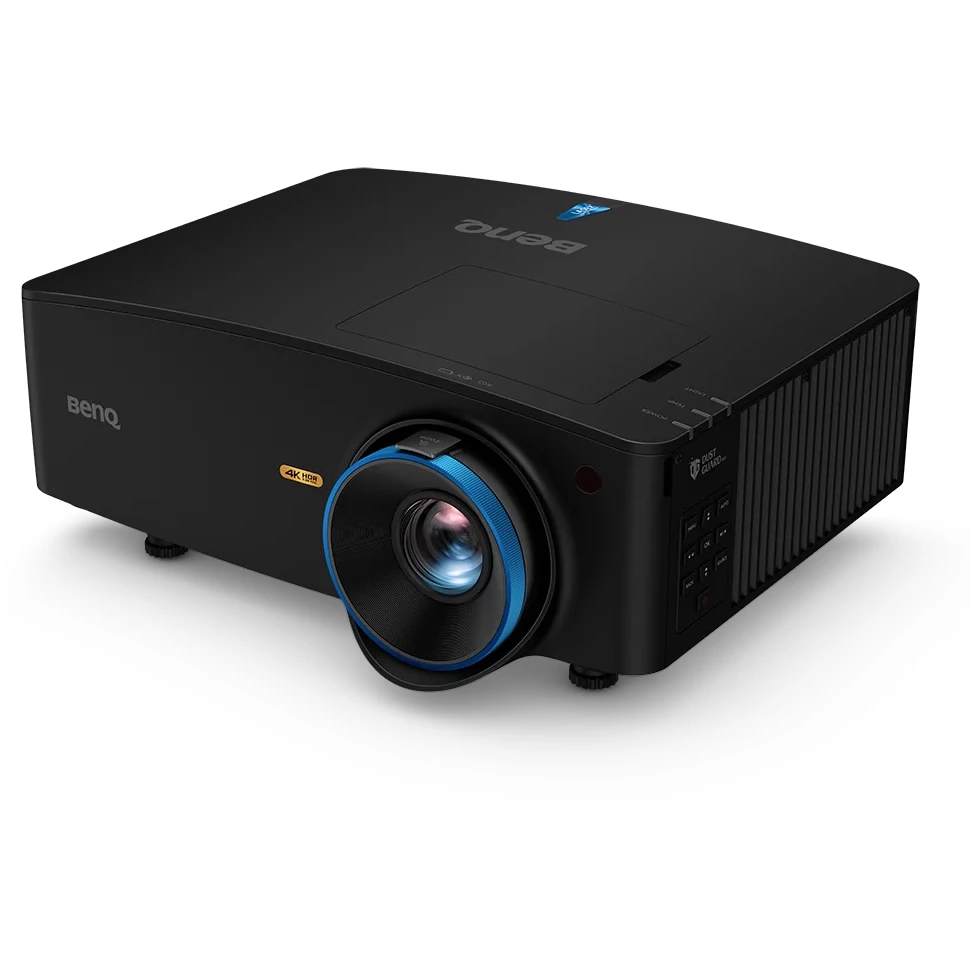

BENQ LK936ST DLP High Brightness UHD Laser Projector
$8,399
rrp $8,899
Specifications
- UHD 3840 x 2160 16:9
- 5100 ANSI Lumens
- 3,000,000:1 Contrast
- 7kg Weight
- 40 / 33db(eco) Fan Noise
- 3 Year Warranty
- 3 Year / 10,000hrs Laser Warranty
- Est. Laser Life up to 20,000hrs
Key Features
- 2x HDMI Connection
- DisplayPort Connection
- Horizontal & Vertical Keystone
- Vertical Lens Shift (-/+60%)
- Horizontal Lens Shift (+/- 23%)
- 360 degree tilt Horizontal & Vert.
- HDBaseT Compatible
- Powerful 10W Speaker
- 360° Installation
BenQ LK936ST Throw Distance Chart
Throw Ratio: 0.81-0.89:1| Image Size | Installation Distance | |
|---|---|---|
| 92" (16:9) 2030x1140mm | From 1.65m to 1.80m | |
| 100" (16:9) 2214x1245mm | From1.80m to 1.97 | |
| 110" (16:9) 2435x1370mm | From 2.00m to 2.15m | |
| 120" (16:9) 2657x1494mm | From 2.10m to 2.25m | |
| 135" (16:9) 2990x1681mm | From 2.45m to 2.65m | |
| 150" (16:9) 3320x1867mm | From 2.70m to 2.95m | |
BenQ LK936ST Laser UHD High Brightness Short Throw Projector!
The LK936ST offers a high brightness long life laser coupled with a short throw distance and a razor sharp 4K resolution. With a unique set of features the LK936ST is a great fit for many setups. A bright 5100 lumen image is perfect for bright spaces or large scale projection and with a long life laser light source it removes the cost of lamps and downtime from older lamp based projectors. The true 4K UHD resolution offers the top level of detail for an incredibly detailed picture. The 0.81-0.89 short throw ratio means you can project a huge 150” image from just 2.7metres distance.
LK936ST 4K Short-Throw BlueCore Laser Projector
- TRUE 4K UHD RESOLUTION - 8.3 million pixels enable you to see every subtle detail on any image
- AMAZING COLOR ACCURACY: 92% color accuracy to Rec 709 for home theater level color accuracy on movies and games
- 5100 ANSI LASER LUMENS: For large images in rooms with ambient light
- SHORT-THROW LENS: Fill a 14-foot wide screen from less than 12 feet away
- MAINTENANCE-FREE LASER: Dustproof sealed laser engine with 20,000 hours of life at full power
The Awarded Laser Projector for Realistic, Sophisticated and Immersive Golf Experiences
Fixed Short Throw Ratio with Zoom to Prevent Glare and Shadows
With an innovative 0.8 short throw ratio and 1.1x zoom capability, BenQ LK936ST are able to produce larger-than-life images in tight spaces. When installed 14 to 15 feet from the screen, it can project images nearly 10 feet tall. This allows the projector to be placed above and behind the hitting area without creating unsightly shadows and glare. No visual distractions means your practice will be more productive than ever.
Large H/V Lens Shift for Convenient Installation
Sometimes, due to obstruction or obstacles, a projector needs to be mounted off-center. In cases like these the LK936ST lens shift feature can be used to properly align the image, shifting it up to 60% vertically and 23% horizontally relative to the size of the screen. After shifting, 3D keystone correction can be applied to achieve a flawless projected image.
* For actual lens shift measurements, please refer to spec chart.
3D Keystone and Corner Fit for Ideal Projection Alignment
To counteract the trapezoid effect that can occur when a projector is installed off-center, BenQ LK936ST offers a three-dimensional keystone correction range up to ±40° on both the horizontal and vertical axes, and that can rotate the projected image clockwise or counterclockwise. Corner Fit control can adjust each corner respectively, for perfectly aligned image geometry.
360° and Portrait Projection Accommodate Different Spaces
BenQ laser technology guarantees reliable projection from any angle. Dynamic installation options such as 360° rotation and portrait applications, allows projection onto ceiling, walls, floors or angled signage.
Digital Shrink and Shift without Distortion
LK936ST’s digital image shrinking and shift lets installers shrink the image to 75% of the original size in 0.5% increments via OSD menu. The image can also be shifted, so installers do not have to reinstall or adjust the projector physically in case the image is not precisely aligned on the desired frame and space.
S/PDIF for 5.1 audio channel surround sound output
LK936ST is equipped with a S/PDIF port that is able to support 5.1 channel surround sound output. The High-definition audio upgrade transforms your projector into a home theater system that offers immersive entertainment experience of home golf, movies, music, gaming, and more.
Integration with Home Automation Control System
LK936ST can be connected to the home automation control system, allowing you to manage and control your projector through your smartphone, tablet or personal computer.
HDBaseT for Uncompressed Transmission Up to 100m and Control
LK936ST is equipped with groundbreaking HDBaseT connectivity combines video, audio, RS-232 and LAN signal control signals from multiple sources including: PCs, laptops, document cameras, Blu-ray and DVDs onto a single RJ-45 cable. This ensures seamless transmissions up to 100 meters.
Superb Image Quality
Revolutionary Laser Technology
BenQ, the world’s #1 DLP brand, introduces a full line of innovative projectors featuring proprietary DLP high brightness laser technology for large venue applications. Combining high brightness, excellent image quality, installation flexibility and a maintenance-free laser light source, BenQ Laser Projectors enable immersive public displays and innovative visual communication in ways never before possible.
Superior Brightness
Zero-deviation alignment of laser diodes boosts luminous flux into the light tunnel, improving light efficacy.
Superior Performance
Dual synchronized color wheels utilize an additive yellow segment, stimulating precise RGBY spectra for optimal chromatic performance.
Superior Durability
Comprising over two million micromirrors that reflect pure light through the color wheel, the DLP chip is hermetically sealed to resist heat for over 20,000 hours without degradation.
4K UHD Image Quality for Flawless Presentation with Subtle Details
LK936ST produces 4K UHD 3840 x 2160 resolution with 8.3 million distinct pixels for each frame to achieve CTA’s standard, and it utilizes the revolutionary 0.47” single-DMD DLP technology to maximize the projector’s sleek, compact profile for immersive environment. With four times the resolution of Full HD 1080p, 4K UHD delivers awe-inspiring clarity and crisply defined details.
Optimize Image Quality with 4K Image Upscaling Technology
To ensure the best image quality, LK936ST adopts the cutting-edge 4K Image Upscaling Technology to further enhance the quality of projected images. LK936ST automatically upgrades the resolution of all projected images to 4K, guaranteeing superb image details.
Cinematic Grade 92% Rec.709 Color Coverage for Optimal Color Performance
LK936ST’s powerful laser projection utilizes a dual color wheel system that covers an unparalleled 92% of Rec.709, the industry-wide standard for color reproduction in HD video and movies. Enjoy golf, movies, and games in perfect color, knowing that what you’re seeing on screen is exactly what the director intended. In Addition, the increased color ratios and pure laser-generated RGBY hues dramatically enhance color saturation and guarantee superior projected image quality compared to lamp projectors.
Exclusive Golf Mode for Vivid Greens and Blues
Up to 5,100 lumens of brightness, LK936ST perfectly reproduce the lush greens and vivid blues of the golf course at home. In some laser projections, color aberration can cause excess blues and purples where they are not intended. To eradicate this issue, BenQ teamed up with color experts to develop and exclusive Golf Mode. A quick setting option, Golf Mode corrects purple fringing using the blue and green colors from popular golf software and allows golfers to immerse themselves in pleasantly natural reproductions of blue sky and green grass.
HDMI 2.0 for Supreme Image Quality
LK936ST comes with HDMI 2.0 ports that users can now effortlessly project content with much less friction and enjoy greater brightness and contrast range than SDR.
DisplayPort for High Resolution and Accurate Color Transmission
LK936ST is equipped with a certified DisplayPort 1.2a to transmit audio and video signals simultaneously. The high bandwidth of DisplayPort 1.2a allows increased resolutions, higher refresh rates, and greater color depth. In addition, the two little barb structures on the connector provide a friction lock and an optional mechanical latch.
Guaranteed Performance for 20,000 Hours
The laser light source of BenQ LK936ST laser projectors is guaranteed for 20,000 hours of maintenance-free operation, saving on lamp replacement and maintenance costs. Based on the average brightness cut off of typical long-life lamps, the value of laser exceeds that of 10 lamp replacements over the life of the projector
DLP Technology for Vibrant Color Endurance
BenQ LK936ST laser projectors are based on the absolute reliability of 1chip DLP design. The highly durable DLP chip is rated to last over 100,000 hours without degradation, ensuring true-to-life colors and pristinely legible text for countless uses.
Filter-Free IP5X Class Dust Proofing for Long-Lasting Color
BenQ LK936ST laser projectors are designed with sealed laser modules and enclosed light engines that protect your projector from dust. Sealed components reduce service costs and downtime by preventing color decay and color wheel sensor failure, and by warding against visible spots appearing on the projected images.
* Dust chamber test standard: JIS Class
Easy Maintenance and Management
24/7 Operation
BenQ laser light source supports continuous 24/7 operation and is suitable for public display applications. Users can choose from different light source modes and optimize energy consumption and delivers up to 20,000 hours.
Centralized Control over Multiple Displays
DMS Local is a Device Info and Management software based on windows OS. For users who would like to control your displays remotely via LAN, you can download DMS Local software for your operation. DMS Local also supports Agent Mode. As Agent Mode can be connected to the Internet, local devices are also connected to the Cloud, thus integrating the features of DMS Cloud. As consequences, you can easily manage BenQ non-smart devices via DMS Cloud.
Comprehensive Control System Compatibility
BenQ laser projectors are widely compatible with leading projector control systems including Extron, Crestron, AMX, and PJ-Link for network control via LAN, making it simple to integrate into corporate network infrastructures. When there is no LAN infrastructure, BenQ laser projectors also support RS-232 for reliable long-distance installations up to 15 meters.
| Projection System | |
| Projection System | DLP |
| DMD size | 0.47" ECD |
| Display | |
| Brightness (ANSI lumens) | 5100 |
| Native Resolution | 4K UHD (3840×2160) |
| Native Aspect Ratio | 16:9 |
| Contrast Ratio (FOFO) | 3,000,000:1 |
| Display Color | 30-bit (1.07 billion colors) |
| Light Source | Laser |
| Light Source Life | a. Normal 20000 hrs |
| Optical | |
| Throw Ratio | 0.81 ~0.89 |
| Zoom Ratio | 1.1x |
| Lens | F/# =1.83 ~ 1.86 f= 8.6 ~ 9.4 |
| Projection Offset (Full-Height) | 0% |
| Keystone Adjustment | 3D, Vertical ± 40 degrees; Horizontal ± 40 degrees; Rotation ± 40 degrees |
| Lens Shift Vertical | -60%~ +60% |
| Lens Shift Horizontal | -23%~ +23% |
| Compatibility | |
| Input Lag | 34 ms (1080p@60Hz) |
| Resolution Support | VGA (640 x 480) to 4K UHD (3840 x 2160) |
| Horizontal Frequency | 15K~135KHz |
| Vertical Scan Rate | 23~240Hz |
| I/O Interface | |
| HDMI in | (x2),HDMI-1 (2.0b/HDCP2.2),HDMI-2 (2.0b/HDCP2.2) |
| Display Port | (x1) |
| LAN (RJ45) | (x1) |
| HDBaseT (RJ45) | (x1),Control/Video/Audio |
| 3D Sync in | (x1),VESA |
| 3D Sync out | (x1),VESA |
| USB Type A | (x1),USB Type A-1 (2.0/Power Supply2.0A) |
| RS232 in (DB-9pin) | (x1) |
| Wired Remote in (3.5mm Mini Jack) | (x1) |
| Wired Remote out (3.5mm Mini Jack) | (x1) |
| DC 12V Trigger (3.5mm Jack) | (x1) |
| Audio | |
| Speaker | (x1),10W |
| Audio out (3.5mm Mini Jack) | (x1) |
| HDMI Audio Return | Yes, ARC, 5.1 channel |
| Audio out (S/PDIF) | Multi-Channel, RAW |
| Environment | |
| Power Supply | AC 100 to 240 V, 50/60 Hz |
| Typical Power Consumption (110V) | 440W |
| Stand-by Power Consumption | <0.5W |
| Network Stand-by Power Consumption | <2W |
| Acoustic Noise (Typ./Eco.)(dB) | 40/33 |
| Operating Temperature | 0~40℃ |
| Dimension & Weight | |
| Dimensions (WxHxD) (mm) | 416x166x351 |
| Net Weight (kg) | 7 |
Remote Control
Power Cord
Rear Panel
Optional Accessories
