BENQ LU951ST DLP High Brightness Full HD Short throw Laser Projector

LU951ST


BenQ Logo


LAser

Your Price: $5999

Flat Rate Freight!
$22 Insured Australia Wide.
Pick up Available




Quick Facts:
BenQ LU951ST Throw Distance Chart (Examples for common Sizes) T/R 0.81-0.88:1
Image Size Installation Distance
(Approx. To Lens)
83" (16:10) 1790x1120mm From 1.45m to 1.57m
98" (16:10) 2110x1320mm From 1.71m to 1.85m
118" (16:10) 2540x1590mm From 2.05m to 2.23m
SPECIFICATIONS
Native Resolution: WUXGA 1920 x 1200 16:10
Brightness: 5000 ANSI Lumens
Maximum Contrast: 3,000,000:1
Weight: 9.4kg
Fan Noise: 37 / 35db (eco)
Warranty: 3 Years (+1 Year $275)
Lamp Warranty: 12months/1000hrs
Lamp Life Up To: 20,000hrs

FEATURES
- 3x HDMI Connection
- HDMI Out

- Horizontal & Vertical Lens Shift
- Vertical Keystone Correction
- Horizontal Keystone Correction

- HDBaseT Compatible
- Powerful 10W Speaker
- 360° Projection



BenQ LU951ST Laser Full Hd High Brightness Short throw Projector!

The BenQ LU951STST Short throw WUXGA Full HD 5000 lumens projector is built for large venue use where reliability is critical. With the long life 20,000 hour laser light source you avoid the stress of replacing lamps, maintenance and down time. The short throw lens means you can get a large image from a close distance avoiding shadows from the person presenting. While the 1920x1200 resolution makes it perfect for large image sizes and high detail presentations. Coupled with a massive 5000 lumen brightness and 3,000,000:1 Contrast the LU951ST is perfect for large venues or well lit rooms able to produce a vibrant image in challenging conditions.

WUXGA Short Throw Installation Laser Projector with 5000 Lumens | LU951ST

Long-Lasting BlueCore Laser Performance for Flexible Short Throw Installations
BenQ LU951ST delivers breathtaking WUXGA images with pristine DLP picture quality, with 20,000 hours of guaranteed maintenance-free high brightness output from its BlueCore laser light source. Featuring just-right installation flexibility of highly adjustable horizontal and vertical lens shift, big zoom, 360o projection, and digital image resizing with memory, LU951ST transforms compact venues into immersive exhibitions with short throw projection. And with HDMI out, LU951ST is perfect for multiple screen displays and unique applications.

LU951ST Laser

Superior Bright

Precision-Aligned High-Output Laser Source

Zero-deviation alignment of BlueCore laser diodes boosts luminous flux into the light tunnel, improving light efficacy to 3,600 lumens.

Superior Performance

Secondary Yellow-Infused Color Wheel

Dual synchronized BlueCore color wheels utilize an additive yellow segment, stimulating precise RGBY spectra for optimal chromatic performance.

Superior Durability

Hermetically Sealed DLP Chip

Comprising over two million micromirrors that reflect pure light through the color wheel, the DLP chip is hermetically sealed to resist heat for over 100,000 hours without degradation.

WUXGA Resolution for Enhanced Detail and Expanded Content

With impressive WUXGA (1920 x 1200) native resolution that far exceeds Full HD 1080p, BenQ LU951ST BlueCore laser projector offers greater details and stunning image clarity when projecting high resolution images.

LU951ST resolution



DLP Technology for Lasting Vibrant Color

BenQ BlueCore laser projectors are based on the absolute reliability of the 1-chip DLP design. The highly durable DLP chip can last over 100,000 hours without degradation, ensuring true-to-life colors and pristinely legible text over countless uses.

LU951ST DLP vs LCD Longevity

Vivid Clarity in Bright Ambient Environments

LU951ST’s 5000lm high brightness allows presenters and participants to deliver presentations in comfortably lit medium-sized conference rooms, supporting uncompromised debate, collaboration, note-taking and interaction to facilitate the most productive meetings. The high luminance provides professional picture quality for installers to satisfy stringent corporate standards.

LU951ST vivid

Laser-Powered Ultra-High Contrast

LU951ST laser projector creates strikingly clear images with stratospherically high 3,000,000:1 contrast ratio for true deep blacks, vivid rich colors and fine subtle details. LU951ST also features spontaneous response, requiring no wait to turn on or resume from blanking in true black for flexible performance capability.

LU951ST Contrast

Digital HDMI Output for Multi-Screen Projection

For large meeting rooms accommodating 50-80 participants, multiple projected screens can offer improved viewing experiences for the audience. Conventional projectors provide an analog-signal VGA output, which can decay due to transmission distance. BenQ LU951ST delivers a perfect digital signal via HDMI output directly from projector to projector or other HDMI display devices with no signal degradation.
*Supports resolution up to 4K 30p

LU951ST HDMI Out

DICOM X-ray Imaging

DICOM (Digital Imaging and Communication in Medicine) is a standard for handling, storing, printing and transmitting medical imaging information. DICOM Simulation Mode is ideal for viewing grayscale medical images, such as X-rays, with an advanced grayscale level for training and educational purposes.

LU951ST Dicom Mode

Wireless Presentation Solution Scalability

One Button to Start Full HD Wireless Presentations

BenQ InstaShowTM WDC10 is a unique zero software solution that allows up to 16 presenters to lead from any device. The plug and play device requires no driver installation and is compatible with any OS or hardware platform, making it easy for presenters to wirelessly take turns delivering seamless presentations for improved meeting efficiency.
*Compatibility requirements: USB/HDMI ports on source laptop and HDMI input on display device.

LU951ST Wireless

Excellent Installation Flexibility

360o Rotation Projection

BenQ's LU951ST can be tilted vertically at any angle, allowing projection onto ceilings, walls, floors, or angled signage to fulfill any projection demand.

LU951ST 360 rotation

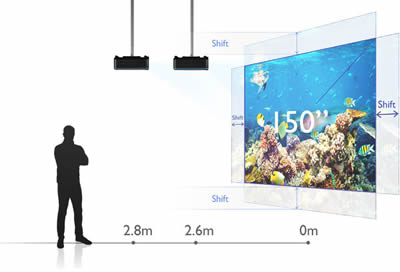

Big Zoom and Lens Shift for Flexible Installation

LU952ST’s wide zoom range and horizontal/vertical lens shift systems can perfectly align images in any challenging venue such as when lights or vents are located at the ceiling mount site. Lens shift can move projected images up and down by 60% of screen height or left and right by 23% of screen width. The 1.6X big zoom feature offers a wide range of throw distances to significantly increase installation flexibility for diverse mounting options in various public display scenarios.

LK953ST Zoom Lens Shift

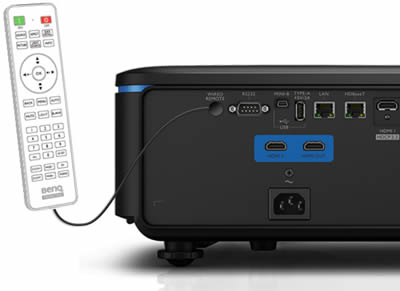

Wired Remote Control

Wired Remote Control offers projector installers and IT managers extra set-up convenience and ease of operation. The added wired control functionality makes the device a dependable choice for projector installation adjustment.

LK953ST wired remote

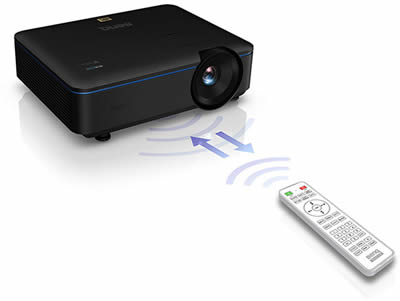

Designate Remote Control ID to Projector for Independent Control

Installers and IT managers can assign a specific remote control ID to each projector, avoiding signal interference and unintentional changes when installing multiple projectors in a venue.

LK953ST designated remote

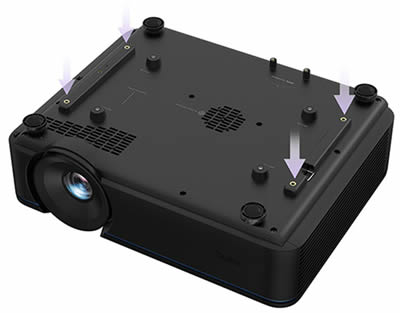

Bottom Surface Grip Design

LK953ST is designed with grips on its bottom surface to easily and safely transport the projector during installation or moving from one venue to another.

LK953ST surface grip

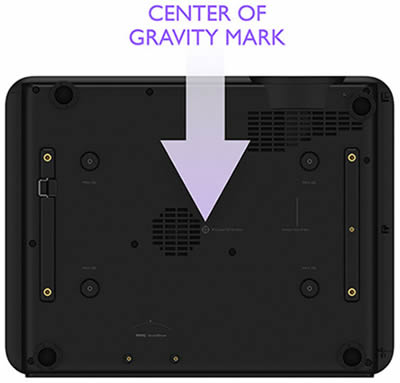

Center of Gravity Mark on Case Bottom

Embedded with a small but helpful detail, the bottom of the projector is marked with the center of gravity to make installation even easier.

LK953ST centre of Gravity

Enduring Reliability

IP5X Dust Guard™ Pro for Superior Dustproofing

LK953ST 360 rotation

Sealed Engine

BenQ's LU951ST laser projector is designed with sealed laser modules and enclosed light engines to protect the DMD chip, color wheel sensor, laser light source, and other optical components. It effectively eliminates color wheel sensor failure, visible spots on the image and color decay to significantly reduce service costs and downtime. The design has passed the dust chamber test standard for the international dustproof rating of IP5X.

Anti-Dust Accumulation Sensor to Resist Dust Buildup

By incorporating an ingenious anti-dust buildup feature in the color wheel sensor, BenQ LU951ST prolongs optimal performance by repelling dust that can accumulate on traditional sensors to block the IR signal and cause flickering, abnormal colors, or even shutdown.

LJ952 Laser light source life LU951ST Altitude mode

Long-Lasting 20,000 Hour Performance

BenQ BlueCore laser projectors deliver 20,000 hours of superior image quality and performance. The laser light source resists color decay over time, making BenQ laser projectors ideal for multiple blending projections without concern for adjacent projectors generating different levels of brightness after a period of operation.

High Altitude Mode for Elevated Environments

Equipped with an integrated air pressure sensor, LU951ST’s intelligent High Altitude Mode automatically alerts users to enable efficient cooling and properly maintain operating temperatures in high altitude environments with thinner atmospheres.

Low Maintenance Cost

Laser Light Creates Value Over Time

BenQ BlueCore projectors feature laser light sources that are guaranteed for 20,000 hours of maintenance-free operation, saving costs for lamp replacement and maintenance. Based on the average brightness cut-off of typical long-life lamps, BlueCore’s value exceeds that of 10 lamp replacements over the life of the projector.

LU951ST Laserlight cost of ownership

Highly Integrated Network Control and Management System Compatibility

Comprehensive Control System Compatibility

LU951ST is widely compatible with leading projector control systems including Extron, Crestron, AMX and PJ-Link for network control via LAN, making it simple to integrate into corporate network infrastructures. When there is no LAN infrastructure, LU951ST also supports RS-232 for reliable long-distance installations up to 15 meters.

LU951ST LAN control

Centralized Control with BenQ MDA Software

BenQ's Multiple Display Administrator (MDA) software provides powerful centralized multi-projector management, including automated opening and closing procedures for public spaces, remotely controlled power on and off, and scheduling for institutions and corporations.

LU951ST MDA Software

HDBaseT Compatibility

The leading-edge HDBaseT connectivity combines video, audio and device control signals from multiple sources including PCs, laptops, document cameras, and Blu-rays onto a single CAT5 cable, ensuring seamless transmissions up to 100 meters.

LU951ST HDBaseT





Specifications

Display
Projection System DLP Single 0.47" WUXGA
DMD type DC3 DMD Chip
Resolution 1920x1200 pixels
Brightness 5000 ANSI Lumens
Contrast Ratio 3,000,000:1
Display Color 30 Bits (1.07 billion colors)
Aspect Ratio Native 16:10 (5 aspect ratio selectable)
Light Source Laser
Light Source Life‎* 20,000 hrs

Optical
Throw Ratio 0.81-0.88
Zoom Ratio 1.6x
Lens Control Manual Zoom and Focus
Lens Shift Manual lens shfit,V: ±60 %; H: ±23 %
Keystone Correction 2D keystone, V: ±30 degree; H: ±30 degree
Projection Size 30" ~ 300"

Audio
Built-in Speaker 10W

Special Feature
Security(anti-theft) Security Bar
Feature Digital Shrink and Shift, Image Memory, Projector/ Remote Control ID Setting, Auto High Altitude Mode, HDBaseT, LAN Control, 360∘Projection, Dust-Proof Filter

Compatibility
Resolution Support VGA(640 x 480) to WUXGA_RB(1920 x 1200)
*RB-Reduced Blanking"
Horizontal Frequency 15~102KHz
Vertical Scan Rate 24 ~ 120 Hz
HDTV Compatibility 480i, 480p, 576i, 567p, 720p, 1080i, 1080p
Video Compatibility NTSC, PAL, SECAM‎

Power
Power Consumption (Max/Normal/Eco) Max 530W/ Normal 475W/ Eco 365W
Standby Power Consumption Normal < 0.5W, Network <2W
Power Supply 100 ~ 240V AC

Dimension and Weight
Product Dimensions (WxHxD) 490 mm x 159 mm x 380 mm
Product Weight 9.4 kg

Operation Condition
Noise Level (Normal/Eco) 37 /35 dBA
Operating Temperature 0 ~ 40o C

Accessories
Accessories (Standard) Power Cord
Remote control (RCA011)
Lens cover
AAA Batteryx2
Installation Guide/Regulatory Statement(Combined)
Warranty card(by sku)
Anti-dust Filter
Accessories (Optional) Ceiling mount
3D glasses
Connectivity
I/O Port Wired Remote In x1
RS232 In (D-sub 9pin, male) x1
USB Mini-B(Service) x1
USB TypeA(5V/2A power) x1
LAN Port(RJ45 for Network control) x1
HDBaseT x1
HDMI In x3
HDMI Out x1
S-Video in x1
Composite Video(RCA) x1
RCA Audio in- L/R x1
PC In x1
Monitor out (D-sub 15pin,Female) x1
Audio in(mini jack) x1
Audio out (mini jack) x1
12V Trigger x1
IR Receiver(Front) x1
IR Receiver(Rear) x1

OSD
On Screen Display Language Arabic/ Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian /Persian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/ Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese/ Vietnam (30 languages)
Supplied Accessories
Remote
LU951ST Remote
Rear Panel
LU951ST Rear Connections
