BENQ MW864UST DLP Ultra Short throw Widescreen Projector

BenQ MW864UST Ultra Short throw HD Projector

The MW864UST is designed to provide you with a large bright vibrant image even in a lit room. With a HD resolution and a powerful 3300 Lumen brightness the MW864UST is perfect in lit rooms and can easily project a massive 2 metre wide picture. The ultra short throw lens means you can project an 87” picture from just 8cm distance. This means you don’t have to worry about projector glare hitting the presenter in the eyes or casting a shadow on the presentation.

key features

• High Brightness of 3,300 ANSI Lumens
• WXGA HD Resolution
• Optional Wireless Use and Interactivity

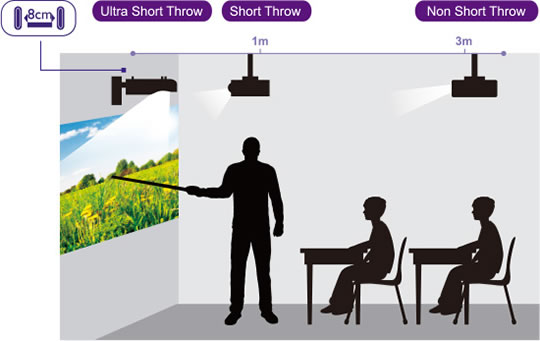

Unobstructed Instruction Without Space Constraints Requiring as little as 8cm projection distance for an 87” screen, MW864UST ultra-short throw projector can be mounted inches from the wall directly above the screen, eliminating distracting shadows and glare for students and teachers to engage and collaborate freely in front of the board.

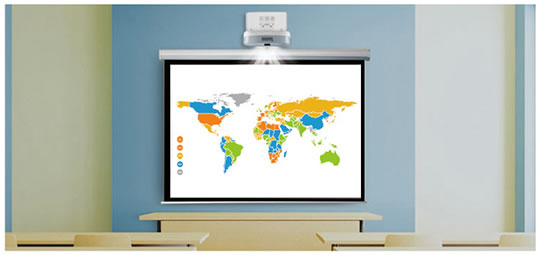

Creating Lasting Lessons with Striking Picture Quality Uncompromised High Brightness For perfect projection performance, MW864UST produces 3,300 ANSI lumens and WXGA 1280x800 high resolution for clear, sharp images and text even in large, bright classrooms. High brightness allows lights to be kept on during lessons, and the wide-aspect high resolution increases readability for expanded content.

Bigger Images BenQ education projectors offer a range of resolutions and projected image sizes to meet diverse classroom needs. Featuring crisp image quality up to 100 inches, our ultra-short throw education projectors deliver increased classroom versatility at reduced costs.

Optical Technology Designed for Learning

Image Uniformity Enhancement

MW864UST’s Total Internal Reflection (TIR) optical architecture eliminates the uneven brightness distribution of conventional projection. This next-generation optical engine precisely focuses the center and corners of the image, enhances corner uniformity by 30%, and evens out brightness uniformity for a smooth, comfortable viewing experience.

Enduring Picture Perfection from DLP Technology

Unmatched Readability

With industry-leading high contrast, BenQ education projectors utilize advanced DLP-optimized optical lens systems to provide precise readability and crisp resolution for every single sub-pixel.

Long-Lasting Picture Quality

With industrial-grade durability from DLP technology, BenQ education projectors maintain the long-lasting picture perfection by eliminating color decay. Unlike non-DLP projectors, BenQ DLP education projectors look brand-new after lamp replacement. And with over two million micromirrors and minimal heat buildup, the DLP chip endures over 100,000 hours without degradation.

Multi-Touch with Pens or Fingers

Multi-Screen Drawing

PointWrite™ projectors offer multi-user capability, and two PointWrite™ projectors can be used to double the projection surface. With QWrite Whiteboard Mode, teachers can run different applications or display, view, and annotate across two monitors.

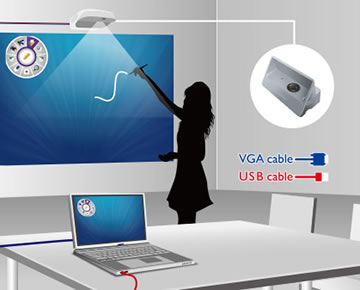

Intuitive Setup User-Friendly and 100% Effective Auto Calibration PointWrite™ auto calibrates and saves its settings the instant it is plugged into a computer’s USB port. PointWrite™ then remains ready with no manual configuration or complicated training for teachers. And MW864UST’s interactive sensor guarantees reliable auto-calibration in any ambient lighting.

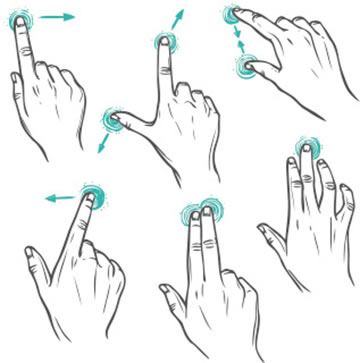

Windows Gesture Support PointWrite™ projectors support intuitive Windows gestures such as zooming in and out or scrolling while browsing webpages, pictures or Google Maps. All multi-touch commands and gestures are supported for Windows 8 or above and future applications.

Making Collaboration Easier with BYOD

Simple and Convenient Wireless Dongle

For engaging and intuitive lessons, QCast wireless dongle fits into a concealed compartment and streams documents, images, and even Full HD videos from smart devices and computers to MW864UST without cables.

MHL Support With MHL, teachers and students can share content from Android devices on the big screen, conducting the entire lesson from the smart device without draining its battery.

Optimizing Educational Investment
Future-Proof Modular Upgradability

MW864UST offers a variety of interactive and wireless upgrade modules for schools to deploy technology in multiple phases. Future-proof modular design simplifies purchasing decisions by allowing separate modules to be added as needed.

Advanced Dust-Proof Engine

Severe dusty environments can damage sensitive electronics. To minimize service costs and downtime, MW864UST features sealed engine designed to protect the DLP Chip and key components of the light path.

BenQ Eco Cycle System: Optimized Energy Savings

The Eco Cycle System eliminates electricity waste, reduces power-up wait time before and after class, and minimizes maintenance for lower total cost of ownership.

Facilitating Smart, Efficient Projector Maintenance

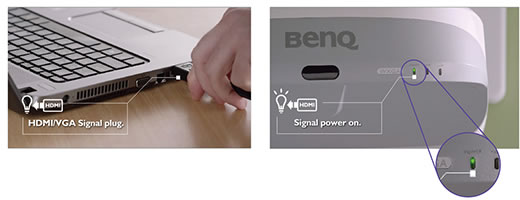

Instant Power-On BenQ education projectors turn on as soon as an HDMI or VGA is plugged in, significantly reducing setup time.

LAN Control Compatibility

To help IT managers perform day-to-day projector maintenance effectively, MW864UST is widely compatible with leading projector control systems including Crestron, AMX, PJ-Link, and BenQ MDA for network control via LAN. BenQ Multiple Display Administrator (MDA) software enables powerful centralized monitoring, control, and power scheduling across school’s projector network from a single computer, offering full access and control over every projector directly.

Simplifying Image Alignment and Perfect Installation

Streamlined Wall Mount Alignment

For efficient professional installation, our ultra-short throw projector wall mount features an installation chart and ruler for perfect screen alignment and image position in the classroom. Even simpler, a three-way adjustment knob is located in front of the projector for cleanly installed, absolutely square screens.

Clear Images without Distortion

Corner Fit Correction

Corner Fit provides individual adjustment of each corner for perfect fit and alignment onto restricted or uneven spaces.

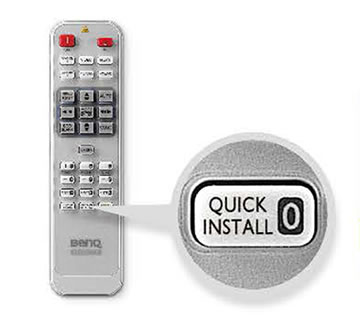

Remote Control Hotkey Press the “Quick Install” hotkey on the remote control to setup the projector. This is a great time saver for managers performing initial projector installation work.

Specifications

Projection System‎ DLP Single 0.65" WXGA‎ Native Resolution‎ 1280x800 pixels‎ Brightness (ANSI Lumens)‎ 3300 ANSI lumens‎ Contrast Ratio‎ 13,000:1*‎ Display Color‎ 1.07 Billion‎ Lens‎ F=2.4, f=3.35mm ‎ Aspect Ratio‎ Native 16:10 (5 aspect ratio selectable)‎ Throw Ratio‎ 0.23‎ Image Size (Diagonal)‎ 87” ~ 120”‎ Zoom Ratio‎ Fixed‎ Keystone Adjustment‎ 2D; Vertical ± 30 degrees, Horizontal ± 25 degrees‎ Projection Offset**‎ 115%‎ Resolution Support‎ VGA (640 x 480) to WUXGA (1920 x 1200)‎ Horizontal Frequency‎ 15K~102KHz‎ Vertical Scan Rate‎ 23-120Hz‎ HDTV Compatibility‎ 480i, 480p, 576i, 576p, 720p, 1080i, 1080p‎ Video Compatibility‎ NTSC, PAL, SECAM‎ Weight‎ 6.2 kg (w/o wall mount plate)‎‎ Dimensions (W x H x D mm)‎ 382(W)*145(H)*435(D) mm‎‎ Interface‎ HDMI (1.4a) x 2 (HDMI-2 share with MHL) PC In (D-sub 15pin) x 2 (shared with component video) Monitor Out (D-sub 15pin) x 1 Composite Video In (RCA) x 1 S-Video In x 1 Audio In (mini jack) x 2 Audio L/R In (RCA) x 1 Audio Out (mini jack) x 1 LAN RJ45 x 1 (LAN control) RS232 (DB-9pin) x 1‎ USB (Type A) x 1 (5V/1.5A power supply) USB (Type mini B) x 2 (FW download / optional interactive camera) IR Receiver x1 (front)‎‎ Power Consumption‎ Max 410W. Normal 353W. Eco 252W Network Standby <2W, Standby <0.5W‎‎ Audible Noise (Normal/Economic Mode)‎ 35/29 dB‎A ‎ DMD type‎ DC3 DMD Chip‎ Light Source‎ Lamp (240W)‎ Light Source Life‎ 3000/4000/6000 hours (Normal/Eco/SmartEco mode)‎ Build in Speaker‎ 20W (10Wx2)‎‎ Operating Temperature‎ 0° ~ 40°C‎‎ Security‎ Kensington Lock ,Security Bar ,Hidden Space for Wireless Dongle‎ On-Screen Display Languages‎ Arabic/ Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages)‎ Accessories (Standard)‎ Remote Control w/ Battery RCS011 x 1 Power Cord (by region) x 1 Quick Start Guide x 1 Warranty Card (by region) x 1 VGA(D-sub 15pin) Cable x 1 Wall Mount Kit (with installation guide) x 1‎ Accessories (Optional)‎ Spare Lamp Kit 5J.JDM05.001 3D Glasses DGD5 5J.J9H25.001 Document Camera S30 9H.J9L78.T3E PointWrite Kit PW21U 5J.JDN26.11E PointWrite Touch Module PT12 5J.J8L26.13E‎ Power Supply‎ AC100V to 240V, 50Hz to 60Hz‎‎

Supplied Accessories

Remote

Rear Panel
