BENQ SU922+ DLP Full HD High Brightness Projector

SU922+



BenQ Logo



DISCONTINUED

For the current BenQ Range Click here

Quick Facts:
BenQ SU922+ Throw Distance Chart (Examples for common Sizes) T/R: 1.07 - 1.71:1
Image Size Installation Distance
(Approx. To Lens)
83" (16:10) 1790x1120mm From 2.0m to 3.0m
98" (16:10) 2110x1320mm From 2.3m to 3.6m
118" (16:10) 2540x1590mm From 2.8m to 4.3m
SPECIFICATIONS
Native Resolution: WUXGA 1920 x 1200 16:10
Brightness: 5200 ANSI Lumens
Maximum Contrast: 3,000:1
Weight: 4.9kg
Fan Noise: 36 / 33db (eco)
Warranty: 2 Years (+1 Year $135)
Lamp Warranty: 6months/750hrs
Lamp Life Up To: 2,500hrs

FEATURES
- 2x HDMI Connection
- 1.6x Zoom
- MHL Compatible

- Vertical Keystone Correction
- Horizontal Keystone Correction
- 2.5% Vertical Lens Shift
- Powerful 20W Speaker
- 3D Capable(3D glasses required)
- Optional Wireless

BenQ SU922+ WUXGA 5200lumen projector

The BenQ SU922+ offers a huge Full HD WUXGA resolution coupled with a 5200 lumen brightness for a brilliant bright picture. Unique to the SU922+ is a quite short installation distance. Which means you can get a 2 metres wide picture from just 2.2 metres distance. It also allows for a good degree of installation flexibility with a 1.6x optical zoom so for the same 2 metre wide image you could pull it back to 3.4 metres away. With both horizontal and vertical keystone the SU922+ can be off centre to the left or right and up and down. The SU922+ has good selection of wired input ports as well as the option to upgrade to wireless.

Installation Projector with 5200lm, WUXGA | SU922+

Proficient Corporate Integration and Installation Flexibility
To integrate seamlessly into the IT infrastructure of enterprise-class corporations, BenQ’s SU922+ is purpose-built to deliver crisp, high-brightness projection and maximum system flexibility to minimize renovation costs. Equipped with comprehensive features to assist installation, the SU922+ is designed for efficient projector mounting and optimization with minimal labor time and resources.

Superb Image Quality

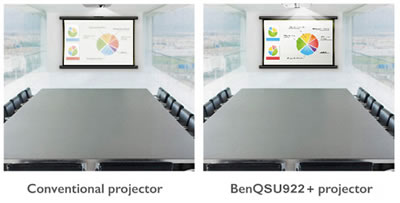

Vivid Clarity in Ambient Environments

The SU922+’s 5,200 lm high brightness allows presenters and participants to conduct presentations in comfortably lit medium-sized conference rooms, with uncompromised debate, collaboration, note taking and interaction to achieve the most productive meetings. The high luminance provides professional picture quality for installers to satisfy stringent corporate standards.

SU922+ Ambient light performance

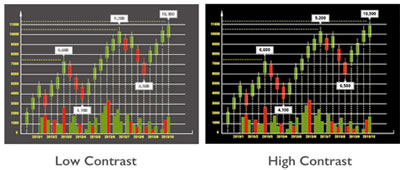

High Contrast for Clear Text

The SU922+ delivers industry-leading levels of contrast and pixel fill factor, producing the truest blacks and exemplary image sharpness for unmatched readability in presentations and documents. High fill factor sharpens images for increased clarity on black and white documents and colorful images alike while reducing eye strain.

SU922+ Contrast

WUXGA Resolution for Crisp Clarity and Increased Content Density

With WUXGA (1920 x 1200) native resolution in expanded 16:10 aspect ratio, BenQ corporate projectors deliver subtle details, ultra-sharp readability and increased display capacity for professional presentations.

SU922+ Resolution

Powerful Flexibility for Efficient Installation

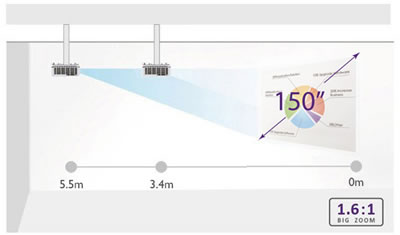

1.6x Optical Zoom for Efficient Upgrades

Big Zoom facilitates corporate adoption of new projection technology by making use of existing ceiling mounts and restricted spaces to deliver large-scale projected images. The 1.6x optical zoom feature allows SU922+ to project images between 30” to 300” within an ideal range of distance from the screen, avoiding costly renovation or lengthy installation downtime.

SU922+ Zoom

Digital Image Shrink

Digital image shrink allows installers to shrink the image to 75% of the original size in 0.5% increments via OSD menu, offering presenters an effortless way to precisely align projected images of any size fit well within the desired frame.

SU922+ Digital Shrink

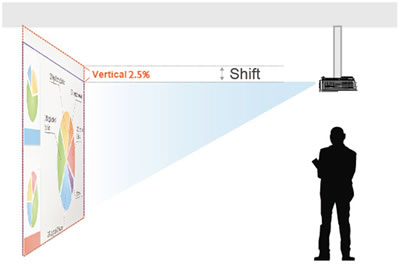

Vertical Lens Shift for Precise Installations

Lens shift compensates for minor miscalculations and misalignment during projector installation. Conveniently placed adjacent to the lens, this control enables vertical lens movement by 102.5%-105% within the projector chassis for perfectly aligned pictures without distortion.

SU922+ Lens Shift

Advanced Image Calibration for Ideal Projection Alignment

The SU922+ is equipped with a two-dimensional keystone correction range of ±30o on both horizontal and vertical axes to counteract the trapezoid effect when the projector must be installed off-center. Installers can use Corner Fit control to adjust each corner independently for perfectly aligned image geometry.

SU922+ Keystone

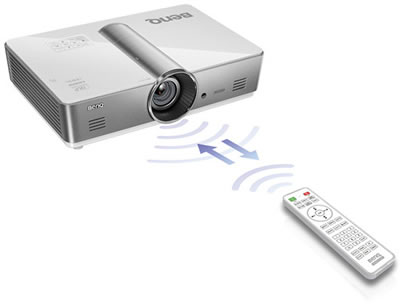

Remote Control and Projector ID Designation for Smooth Control

Installers and IT managers can assign a specific remote control ID to each projector, avoiding signal interference and unintentional changes when multiple projectors are installed in a venue.

SU922+ Remote ID

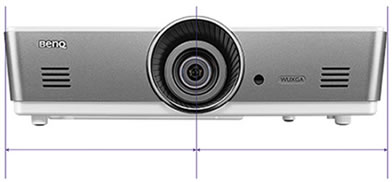

Central Lens Design for Precise Installation Alignment

BenQ's symmetrically centered lens design allows easy installation without special calculations or adjustments.

SU922+  Centre Lens

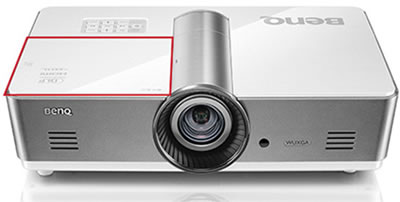

Upper Lamp Door for Simplified Lamp Maintenance

A quick-release lamp door provides IT managers convenient access for efficient lamp maintenance without removing the projector from ceiling-mounted installations.

SU922+ Upper Lamp Door

Network Control and Management Protocol Compatibility

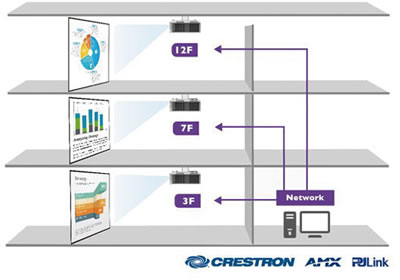

Comprehensive LAN Control Compatibility

The SU922+ is widely compatible with leading projector control systems including Crestron, AMX and PJ-Link for network control via LAN, making it simple to integrate into corporate network infrastructures. The SU922+ also supports RS-232 for reliable long-distance Installations, up to 15 meters, for situations without LAN infrastructure.

SU922+ Network

Wireless Presentation

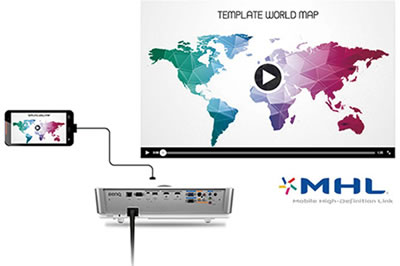

MHL Connectivity to Present from Mobile Devices

MHL connectivity allows presenters to instantly share presentations and business documents directly from mobile devices via MHL cable or dongle. Also, the onboard USB port supplies 5V 1.5A power to HDMI dongles while making uninterrupted presentations.

SU922+ MHL

Enduring Efficiency and Corporate Maintenance

Long-Lasting DLP Prevents Color Decay and Conserves Energy

Equipped with the durability of the digital micro-mirror device combined with a nearly-sealed projection engine design to prevent dust image, the DLP-powered SU922+ resists color decay and image degradation. This preserves picture quality even after thousands of hours of commercial use.

SU922+ Longevity

Modern Industrial Design

The sleek and minimalist silver-white industrial design perfectly complements modern office décor.

SU922+ Design




Specifications

Display
Projection System DLP Single 0.67" WUXGA
DMD type DC3 DMD Chip
Resolution 1920 x 1200 pixels
Brightness 5200 ANSI Lumens
Contrast Ratio 3,000:1
Display Color‎ 30 Bits (1.07 billion colors)
Aspect Ratio Native 16:10 (5 aspect ratio selectable)
Light Source Lamp, 370W‎
Light Source Life‎* 2000/2500 hours (Normal/Eco mode)

Optical
Throw Ratio 1.07~1.71‎
Zoom Ratio 1.6X
Lens Control Manual Zoom and Focus
Lens Shift Manual lens shfit, V: +2.5%
Keystone Correction 2D keystone, V: ±30 degree; H: ±30 degree
Projection Offset** 102.5%
Projection Size 30’’~300’’

Audio
Built-in Speaker 20W (10Wx2)

Special Feature
Security(anti-theft) Security Bar / Kensington anti-theft lock slot
Feature Digital Shrink, Projector/ Remote Control ID Setting, LAN Control

Connectivity
I/O Port Computer In x1
Monitor out (D-sub 15pin,Female) x1
Composite Video(RCA) x1
S-Video in x1
HDMI In (one with MHL) x2
Audio in(mini jack) x1
Audio out (mini jack) x1
LAN Port(RJ45 for Network control) x1
USB TypeA(5V/1.5A power) x1
USB Type Mini B x1
RCA Audio in- L/R x1
12V Trigger x1
RS232 x1
IR Receiver(Front) x1
IR Receiver(Top) x1
Microphone jack x1

Compatibility
Resolution Support VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB-Reduced Blanking
Horizontal Frequency 15~102KHz
Vertical Scan Rate 23 - 120Hz
HDTV Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility NTSC, PAL, SECAM

Power
Power Consumption (Max/Normal/Eco) Max 594W. Normal 500W. Eco 400W
Standby Power Consumption Normal < 0.5W. Network < 3W.
Power Supply 100 ~ 240V AC

Dimension and Weight
Product Dimensions (WxHxD) 411.4 x 118.4 x 267.5mm‎
Product Weight 4.9kg

Operation Condition
Noise Level (Normal/Eco) 36/33 dBA
Operating Temperature 0o ~ 40o C

Accessories
Accessories (Standard) Power Cord
Remote control (RCA011)
Lens cover
AAA Batteryx2
User Manual CD
Quick Start Guide
Warranty card(by sku)
VGA (D-sub 15pin) Cable
Accessories (Optional) Spare Lamp Kit P/N: 5J.JDP05.001
3D Glasses P/N: 5J.J9H25.001‎
Ceiling mount
OSD
On Screen Display Language Arabic/ Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/ Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages)‎
Supplied Accessories
Remote
SU922+ Remote
Rear Panel
SU922+ Rear
