Casio XJ-L8300HN Laser 4K UHD Large Venue Projector

XJ-L8300HN











Casio Logo


Your Price: $10,399

Flat Rate Freight!
$22 Insured Australia Wide.
Pick up Available


Quick Facts:
Casio XJ-L8300HN Throw Distance Chart (Examples for common Sizes)
TR: 1.38-2.02:1
Image Size Installation Distance
(Approx. To Lens)
92" (16:9) 2030x1140mm From 2.8m to 4.1m
100" (16:9) 2130x1200mm From 3.0m to 4.4m
110" (16:9) 2435x1370mm From 3.4m to 5.0m
120" (16:9) 2580x1450mm From 3.6m to 5.3m
SPECIFICATIONS
Native Resolution: UHD 3840 x 2160 16:9
Brightness: 5000 ANSI Lumens
Maximum Contrast: 200,000:1
Weight: 19.8kg
Fan Noise: 39 / 36db (eco)
Warranty: 5 years / 10,000 hours
Lamp Warranty: 5 years / 10,000 hours
Lamp Life Up To: 2
0,000hrs

FEATURES
- Vertical Lens Shift ±60%,
- Horizontal Lens Shift ±25%
- 2x HDMI connections
- HDBaseT Compatible
- 360° Projection
- Portrait Projection


Casio Projector WarrantyMade In Japan

Casio XJ-L8300HN Laser 4K Projector
The new Casio XJ-F8300HN combines a super sharp 4K resolution for an incredibly detailed image with a long life laser light source for maintenance free operation. The new 4K resolution is incredible. Like layering four Full HD 1080p projectors together producing 8.3 million pixels for an incredibly clear sharp picture. At 5000 lumens brightness the XJ-L8300HN can present this incredible detail in a well lit environment making it the perfect unit for a large conference room or bright meeting room.

Bringing Large-Screen High Definition Presentations to Large Audiences
Casio has further strengthened its No. 1 position in the solid-state illumination (SSI) projector market with the release of a new lamp-free 4K Ultra HD model featuring 5000 lumens brightness. Installation of a DLP chip enables it to deploy advanced image-processing technologies with high-speed switching of more than 4 million DMD (digital micromirror devices) to project some 8.3 M pixels and achieve 4K Ultra HD resolution. This new 4K projector’s simultaneous realization of affordable pricing makes it suitable for widespread use in fields ranging from business to education and entertainment.

Casio 4K Projector

What is 4K Ultra HD?

A pixel count approximately four times that of Full HD equips the 4K Ultra HD projector to display a significantly larger volume of information in greater detail. This makes it an ideal tool for presentations making the most of 4K-compatible PC specifications.

4 X Resolution

— An increase from 2.1 million to 8.3 million pixels

4K Resolution Comparison

ADVANTAGES OF 4K Ultra HD

The advance of the projection screen presentation into the 4K era will enhance the quality of visual communications remarkably across a broad range of fields.

Unprecedented At-a-Glance Information Sharing

Because 4K Ultra HD projection has 4 times as many pixels as the former 1080p Full HD standard, it enables users to share high-volume information with large audiences on a 4 times larger screen.

Vivid Detail

Small letters and numbers as well as drawings and design images are displayed in the finest detail. Ultra HD image quality facilitates accurate, high-precision projection that enhances the persuasiveness of any presentation.

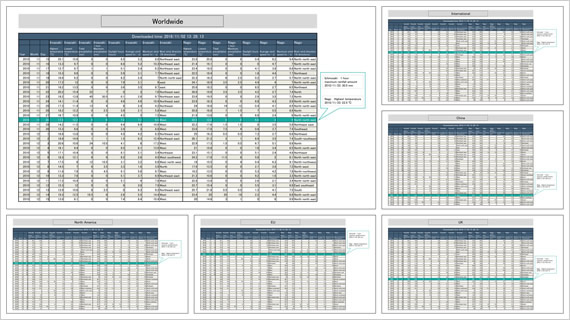

4K Resolution Demonstration

Large Screen

Projection Images projected on a 100- to 150-inch screen are clearly visible, even when viewed from close up or far away. Large-screen projection results in high-impact presentations.

Functions to Satisfy Wide-ranging Projection Needs

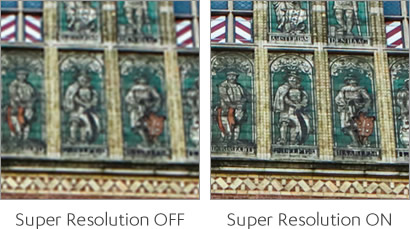

Super Resolution

The projector uses super resolution processing of images/movies such as 1080p video to throw high-quality images/movies perfectly suited to 4K Ultra HD panels.

Projected image input resolution : Full HD :

Lens Shift Function

An optical correction function maintains clear resolution during adjustment of the projection position (± 60% up or down, ± 25% left or right).

High Brightness & Long Life

Solid state illumination achieves 5000 lumens high-brightness projection. Its long life of approximately 20,000 hours contributes significantly to reducing operating costs over time.
HDBaseT Compatibility

Long-distance transmission of HDMI signals by LAN cable is enabled.


Specifications

SPECIFICATIONS

Model XJ-L8300HN
Brightness *1 5000 lumens
Display system DLP® chip x1, DLP® system

Display chip

Chip size 0.66 inches (aspect ratio 16:9)
Display resolution 8,294,400 pixels



Contrast ratio 20000 : 1
Lens shift V: ±60% / H: ±25%
Projection thow ratio : 1.38–2.02:1
Focus type Manual focus
Projection lens 1.5X manual zoom
Light source (estimated life) *2 All laser(up to 20,000 hours)
Color reproduction Full color (up to 1.07 billion colors)

Scanning frequencies

Horizontal 15-102kHz
Vertical 24-120Hz

Input signal resolution

RGB signal  Maximum: 1920 × 1200 (WUXGA)
Component signal:  480i-1080p
HDMI signal Maximum: 4K UHD (3840 x 2160)
HDBaseT signa Maximum: 4K UHD (3840 x 2160)

Terminals

Computer (RGB) Input  mini D-Sub 15 pin x1
Monitor out terminal mini D-Sub 15 pin x1
USB power supply 5V/2A    USB Type-A x1 (dedicated power supply terminal)
USB function USB 1.1 mini-B x1 *3
Digital input terminal (HDMI) HDMI Type A x2 (HDCP2.2, HDCP1.3)
Digital input terminal (HDBaseT) RJ-45 x1 (HDBaseT terminal)
Component Video Input Shared with Computer (RGB) input terminal
Audio output 3.5 mm stereo mini jack × 1 (variable audio output)
Control (serial) RS-232C (D-Sub 9 pin) x1
LAN RJ-45 x1
Wired remote 3.5mm stereo mini jack x1
DC 12V trigger output 3.5mm stereo mini jack x1

Eco/Normal/360°: 36/39/38 dB
Power requirements AC 100V to 240V, 50/60Hz
Approximate dimensions (W x H x D) *including projections 471 x 206 x 565 mm
Approximate weight Max. 19.8kg
Security compatibility Power on Lock
Included accessories *4 Remote Control, Power Cord (3.0m), Warranty Card, Safety Precautions

Supplied Accessories
Remote
XJ-L8300HN Remote
Rear Panel
XJ-L8300HN Connections
