Casio XJ-S400U LED Laser Multimedia Full HD Projector

XJ-S400U





Powered By LED






Casio Logo


DISCONTINUED

FOR MORE CASIO PROJECTORS CLICK HERE


Quick Facts:
Casio XJ-S400U Throw Distance Chart (Examples for common Sizes)
T/R: 1.35-2.23:1
Image Size Installation Distance
(Approx. To Lens)
83" (16:10) 1790x1120mm From 2.5m to 3.9m
98" (16:10) 2110x1320mm From 2.9m to 4.7m
118" (16:10) 2540x1590mm From 3.5m to 5.6m
SPECIFICATIONS
Native Resolution: WUXGA 1920 x 1200 16:10
Brightness: 4000 ANSI Lumens
Maximum Contrast: 20,000:1
Weight: 5.9kg
Fan Noise: 35 / 29db (eco)
Warranty: 5 years / 10,000 hours
LED Warranty: 5 years / 10,000 hours
LED Life Up To: 20,000hrs
FEATURES
- 2x HDMI Connection
- 5V USB Power
- 1.7x Zoom
- Instant Off
- Auto Vertical Keystone
- Powerful 16W Speaker

Casio Projector WarrantyMade In Japan

Casio XJ-S400U Laser LED Hybrid Full HD Projector

The Casio XJ-S400U is the perfect upgrade machine. It offers a high brightness for brightly lit rooms and a very detailed Full HD resolution. It features the new Casio Laser LED hybrid light source which lasts for 20,000 hours, many years even under very heavy use. They back this up with an industry leading 5 year/10,000 hour warranty giving you the peace of mind of a solid guarantee.
The Casio XJ-S400U also is equipped with a wide zoom lens featuring a 1.7x optical zoom. This translates into extra flexibility on the installation distance which would make the XJ-S400U the perfect candidate to replace an older projector without the costs of having to move the mounting point.

Educational Solutions Features

Classes can be conducted smoothly and freely, with students deepening their understanding through active interaction among all the class members.

Auto Projection OFF

Disconnecting the connection cable when the class ends removes the projected image from the screen. Connecting the cable by the next teacher can start the next class immediately. Because there is no need to turn the power ON/OFF before and after every class, preparation and tidying up are trouble free.

A new projection session can be started using the same signal within 20 minutes of Auto Projection OFF.

XJ-S400U Auto Power Off
XJ-S400U Auto Projector Off

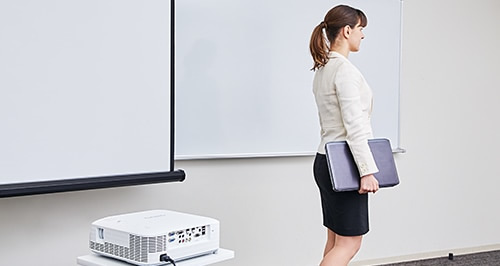

Auto Power OFF

After 20 minutes in the Auto Projection OFF mode, the projector’s main power supply is turned off automatically. This prevents it from being left on accidentally, and reduces the pressure on IT managers to confirm the projector status after school.

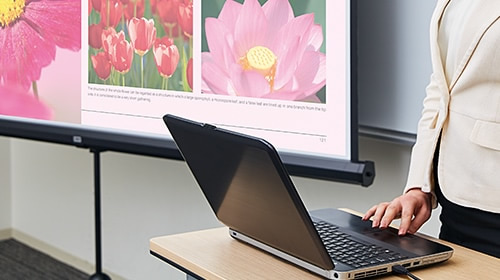

Auto Input Search

When the power is turned ON after the cable is connected, the projector searches for the input signal and initiates projection automatically.

XJ-S400U Input search

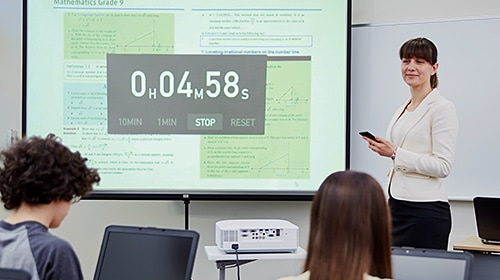

Countdown Timer

The ability to display a large timer in the center of the screen comes in handy for various classroom activities, such as informing students of assignment and examination time limits.

XJ-S400U Auto Power Off

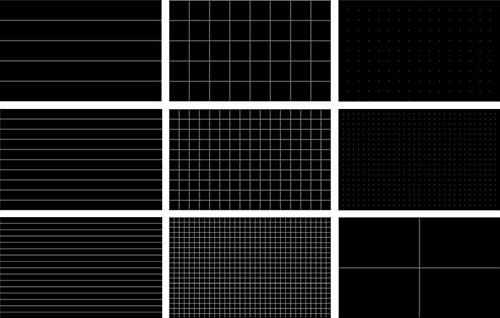

Template

Built-in 9 Templates

Nine built-in templates comprising frequently used borders and grids are available for use in class. Original images can also be registered.

XJ-S400U Template

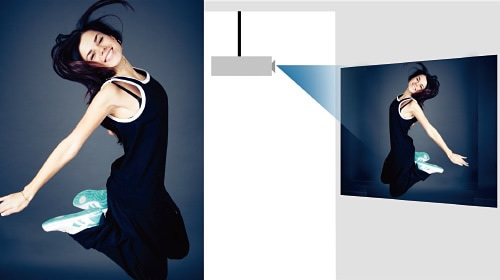

Mirror Mode

Images can be rotated horizontally, a useful capability for studying movement and form.

XJ-S400U Mirror mode

Hardware Features

R-Hybrid Light Source

CASIO’s unique optical engine combines a laser with an LED. It achieves high luminance by using light from a blue laser converted by the phosphor and the color wheel to complement the red light conventionally projected by red LEDs. The resulting light source realizes high brightness of 4000 lumens.

XJ-S400U hybrid light source led laser

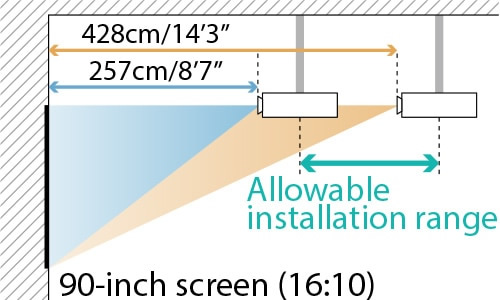

1.7x Optical Zoom

A 1.7x optical zoom makes projector installation easy by eliminating the need to change the positions of existing metal fittings.

The operating range may vary with the projector.

XJ-S400U Optical Zoom

Advanced Cooling Structure

CASIO’s unique technologies, we are able to achieve 4,000 lumens high brightness, noise-reduction, compact design, and dust-resistant structure at the same time.

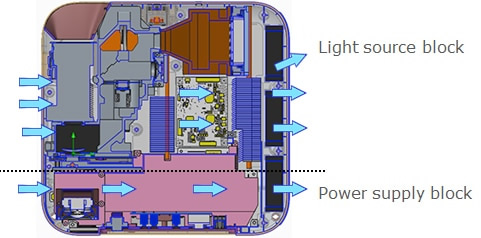

2-Block Structure

CASIO designed 2-block structure, one is light source block which produces much heat, and the other is power supply block which produces less heat, and designed the most appropriate cooling structure in each block.
With this, we could minimized the number of cooling fans and achieved noise-reduction.

XJ-S400U 2 Block structure

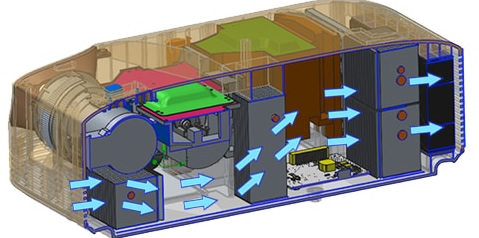

3D Cooling air Passage

CASIO designed parts of the light source and cooling air passage 3-dimentionally to enable the most appropriate control of intake and exhaust air.
We achieved the most compact size for this class.

XJ-S400U cooling system

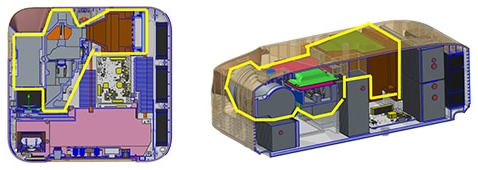

Shielded Optical Unit

Strengthening shield of optical unit including lens, we achieved the highest dust-resistant level in our line-up. No need for filter replacement.

XJ-S400U sheilded optical block

DICOM Simulation

The newly developed color mode is ideal for displaying medical documents, such as CT and MRI scans. It employs gradated settings resembling the DICOM standard to present sharp, clear images in fine detail.

These projectors are not medical devices and should not be used to interpret CT or MRI scans or to conduct diagnoses.

XJ-S400U Dicom Simulation

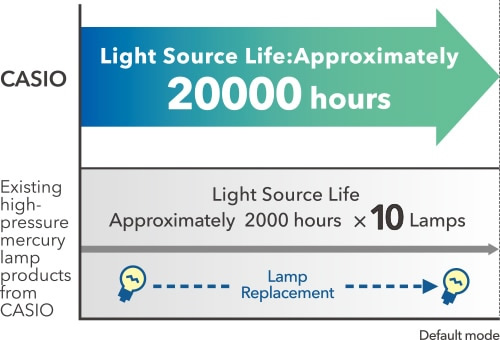

20000h Long Life Light Source

No replacement of high-pressure mercury lamps reduces costs

XJ-S400U Long Lamp life

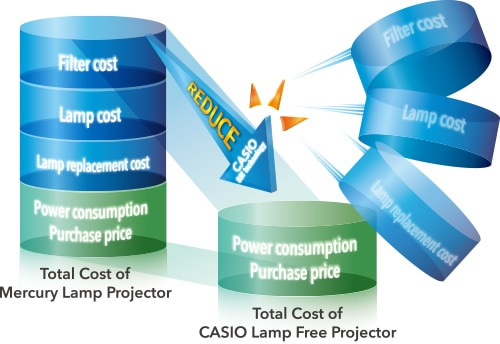

Low TCO (Total Cost of Ownership)

Dramatically lower, TCO by eliminating lamp costs, lamp replacement labor costs, and filter costs

XJ-S400U low cost of ownership

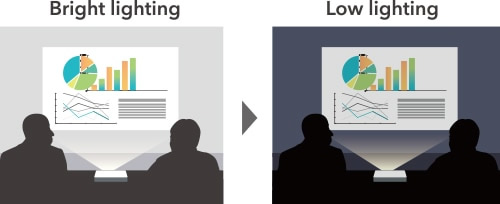

Intelligent / Instant Light Control

Seven-level adjustment for optimal brightness. It also contributes to power saving.

* Auto adjustment: Intelligent Light Control , Manual adjustment: Instant Light Control

XJ-S400U light control

Mercury Free

CASIO projectors are equipped with an SSI* light source employing the most advanced light source technology. Although the use of mercury is widely prohibited worldwide today, this hazardous substance continues to be employed as a light source for conventional projector lamps. CASIO has eliminated the use of mercury from its products in consideration of the enviroment. Adoption of an SSI light source, combined with CASIO’s original energy-saving design,also contributes to reducing CO2 emissions.

SSI (solid state illumination) light sources employ LEDs,lasers or other such lighting technologies.

XJ-S400U Mercury Free

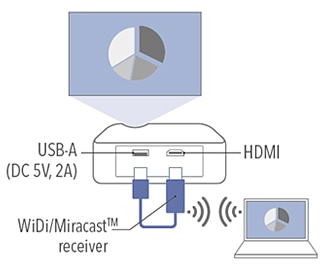

USB Power Supply
Support for smart presentations

Supplying power through a USB Port allows easy connection of any screen mirroring device using the HDMI Terminal. The USB port has a DC 5V which provides power to the screen mirroring device such as Intel WiDi/Miracast™ using this port.

Intel is a trademark or registered trademark of Intel Corporation in the U.S. and other countries.
Miracast is a registered trademark of Wi-Fi Alliance.

XJ-S400U USB Power



Specifications
Brightness *1
4000 lumens
Display system
DLP® chip x 1, DLP® system
Display chip
WUXGA 0.67 inches (Aspect ratio: 16:10)
2,304,000 (1920 dots × 1200 dots)
Contrast ratio *1
20,000 : 1
Vertical keystone correction
+30° (automatic), ±30° (manual)
Projection lens
1.7X manual zoom, manual focus, F=2.33-3.03 / f=19.5-32.3
Projected image size
30-300 inches
Projection distance 60-inch
1.64-2.78 meters (5.4-9.1 feet)
Projection distance 100-inch
2.80-4.70 meters (9.2-15.4 feet)
Projection distance Minimum projection distance
0.77 meters (2.5 feet)
Light source (estimated life *2)
Laser & LED (up to 20,000 hours)
Color reproduction
Full color (up to 1.07 billion colors)
Scanning frequencies
Horizontal: 15-91 kHz, Vertical: 50-85 Hz
Computer input Digital input terminal
HDMI type A × 2
Computer input Analog input terminal
mini D-Sub 15 pin × 1
Video input: Analog signal
Component: 480i to 1080p
Composite: NTSC, PAL, PAL-N, PAL-M, PAL60, SECAM
Video input: Analog input terminal
Component: YCbCr/YPbPr (used for both analog computer input and component input), Analog video: Composite (RCA) × 1
Video input: Digital signal (HDMI)
480p to 1080p (Shared with HDMI Type A terminal)
Audio Input
3.5 mm stereo mini jack × 1, RCA × 1 [R/L]
Audio Output
3.5 mm stereo mini jack × 1 (variable audio)
Audio Speaker
16W × 1, monaural
Other terminals USB power supply
DC 5V USB Type-A x 1 (Dedicated power supply terminal)
Other terminals USB function
USB 1.1 Micro-B × 1 *3
Other terminals Control (Serial)
RS-232C (D-Sub 9pin) × 1
Power requirements
AC 100-240V, 50/60Hz
Power consumption
Operating (default setting) (Light Output 7): 210W
Operating (minimum setting) (Light Output 1): 120W
Operating (Bright): 250W *1
Standby AC 100-120V Remote OFF/ON: 0.09W
Standby AC 220-240V Remote OFF/ON: 0.17W
Approximate dimensions (W × H × D)
357 × 124 × 337 mm (not including projections)
Weight
5.9 kg
Security compatibility
Kensington Compatible, Security Bar, Power On Password
Included accessories *4
Remote control, Power cord, Warranty card

Supplied Accessories
Remote
Casio Remote
Rear Panel
XJ-S400U Connections
