Casio XJ-S400W LED Laser Multimedia HD Projector



Powered By LED

Casio Logo



Quick Facts:
Casio XJ-S400W Throw Distance Chart (Examples for common Sizes)
T/R: 1.42-2.34:1
Image Size Installation Distance
(Approx. To Lens)
83" (16:10) 1790x1120mm From 2.6m to 4.1m
98" (16:10) 2110x1320mm From 3.0m to 4.9m
118" (16:10) 2540x1590mm From 3.6m to 5.9m
Native Resolution: WXGA 1280 x 800 16:10
Brightness: 4000 ANSI Lumens
Maximum Contrast: 20,000:1
Weight: 5.9kg
Fan Noise: 35 / 29db (eco)
Warranty: 5 years / 10,000 hours
LED Warranty: 5 years / 10,000 hours
LED Life Up To: 20,000hrs
- 2x HDMI Connection
- 5V USB Power
- 1.7x Zoom
- Instant Off
- Auto Vertical Keystone
- Powerful 16W Speaker

Casio Projector WarrantyMade In Japan

Casio XJ-S400W HD Laser LED Hybrid Projector

The Casio XJ-S400W has been built with upgrading your aging lamp projector in mind. It offers a massive brightness of 4000 lumens and a detailed HD resolution but crucially a 1.7x optical zoom lens which means you could replace an older lamp projector without having to move the installation point. The XJ-S400W is equipped with the Casio Laser LED Hybrid light source that delivers an amazing 20,000 hour life for many years of projection even under heavy use. Casio also back it up with an industry leading 5 year/10,000 hour warranty so they stand by their technology. No maintenance costs, no lamps, no down time.

Educational Solutions Features

Classes can be conducted smoothly and freely, with students deepening their understanding through active interaction among all the class members.

Auto Projection OFF

Disconnecting the connection cable when the class ends removes the projected image from the screen. Connecting the cable by the next teacher can start the next class immediately. Because there is no need to turn the power ON/OFF before and after every class, preparation and tidying up are trouble free.

A new projection session can be started using the same signal within 20 minutes of Auto Projection OFF.

XJ-S400W Auto Power Off
XJ-S400W Auto Projector Off

Auto Power OFF

After 20 minutes in the Auto Projection OFF mode, the projector’s main power supply is turned off automatically. This prevents it from being left on accidentally, and reduces the pressure on IT managers to confirm the projector status after school.

Auto Input Search

When the power is turned ON after the cable is connected, the projector searches for the input signal and initiates projection automatically.

XJ-S400W Input search

Countdown Timer

The ability to display a large timer in the center of the screen comes in handy for various classroom activities, such as informing students of assignment and examination time limits.

XJ-S400W Auto Power Off

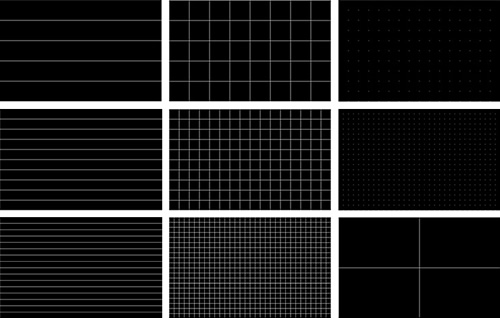

Built-in 9 Templates

Nine built-in templates comprising frequently used borders and grids are available for use in class. Original images can also be registered.

XJ-S400W Template

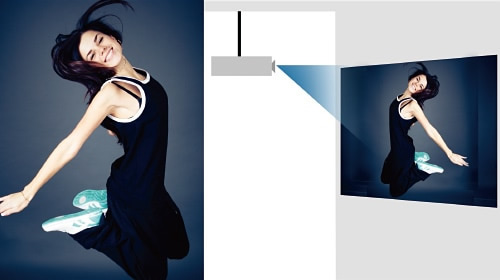

Mirror Mode

Images can be rotated horizontally, a useful capability for studying movement and form.

XJ-S400W Mirror mode

Hardware Features

R-Hybrid Light Source

CASIO’s unique optical engine combines a laser with an LED. It achieves high luminance by using light from a blue laser converted by the phosphor and the color wheel to complement the red light conventionally projected by red LEDs. The resulting light source realizes high brightness of 4000 lumens.

XJ-S400W hybrid light source led laser

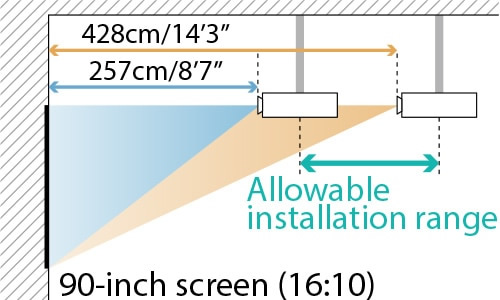

1.7x Optical Zoom

A 1.7x optical zoom makes projector installation easy by eliminating the need to change the positions of existing metal fittings.

The operating range may vary with the projector.

XJ-S400W Optical Zoom

Advanced Cooling Structure

CASIO’s unique technologies, we are able to achieve 4,000 lumens high brightness, noise-reduction, compact design, and dust-resistant structure at the same time.

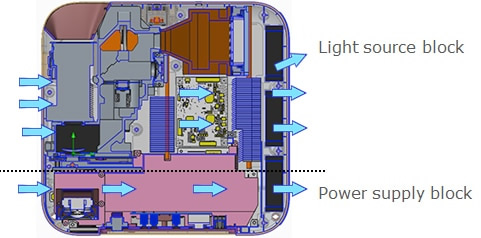

2-Block Structure

CASIO designed 2-block structure, one is light source block which produces much heat, and the other is power supply block which produces less heat, and designed the most appropriate cooling structure in each block.
With this, we could minimized the number of cooling fans and achieved noise-reduction.

XJ-S400W 2 Block structure

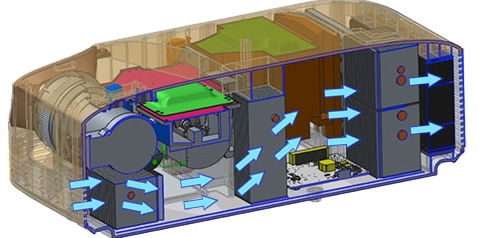

3D Cooling air Passage

CASIO designed parts of the light source and cooling air passage 3-dimentionally to enable the most appropriate control of intake and exhaust air.
We achieved the most compact size for this class.

XJ-S400W cooling system

Shielded Optical Unit

Strengthening shield of optical unit including lens, we achieved the highest dust-resistant level in our line-up. No need for filter replacement.

XJ-S400W sheilded optical block

DICOM Simulation

The newly developed color mode is ideal for displaying medical documents, such as CT and MRI scans. It employs gradated settings resembling the DICOM standard to present sharp, clear images in fine detail.

These projectors are not medical devices and should not be used to interpret CT or MRI scans or to conduct diagnoses.

XJ-S400W Dicom Simulation

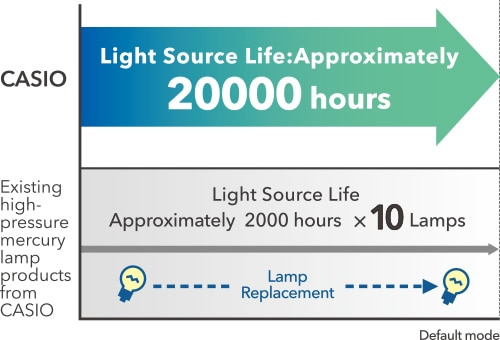

20000h Long Life Light Source

No replacement of high-pressure mercury lamps reduces costs

XJ-S400W Long Lamp life

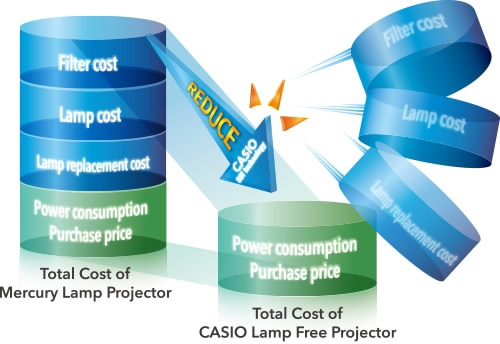

Low TCO (Total Cost of Ownership)

Dramatically lower, TCO by eliminating lamp costs, lamp replacement labor costs, and filter costs

XJ-S400W low cost of ownership

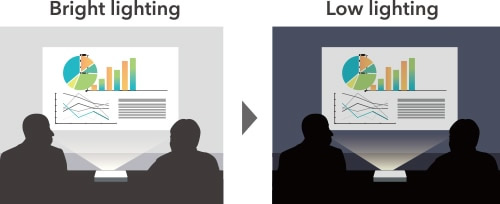

Intelligent / Instant Light Control

Seven-level adjustment for optimal brightness. It also contributes to power saving.

* Auto adjustment: Intelligent Light Control , Manual adjustment: Instant Light Control

XJ-S400W light control

Mercury Free

CASIO projectors are equipped with an SSI* light source employing the most advanced light source technology. Although the use of mercury is widely prohibited worldwide today, this hazardous substance continues to be employed as a light source for conventional projector lamps. CASIO has eliminated the use of mercury from its products in consideration of the enviroment. Adoption of an SSI light source, combined with CASIO’s original energy-saving design,also contributes to reducing CO2 emissions.

SSI (solid state illumination) light sources employ LEDs,lasers or other such lighting technologies.

XJ-S400W Mercury Free

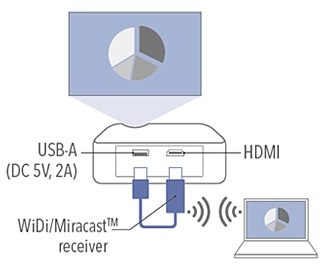

USB Power Supply
Support for smart presentations

Supplying power through a USB Port allows easy connection of any screen mirroring device using the HDMI Terminal. The USB port has a DC 5V which provides power to the screen mirroring device such as Intel WiDi/Miracast™ using this port.

Intel is a trademark or registered trademark of Intel Corporation in the U.S. and other countries.
Miracast is a registered trademark of Wi-Fi Alliance.

XJ-S400W USB Power

Brightness *1
4000 lumens
Display system
DLP® chip x 1, DLP® system
Display chip
WXGA 0.65 inches (Aspect ratio: 16:10)
1,024,000 (1280 dots x 800 dots)
Contrast ratio *1
20,000 : 1
Vertical keystone correction
+30° (automatic), ±30° (manual)
Projection lens
1.7X manual zoom, manual focus, F=2.33-3.03 / f=19.5-32.3
Projected image size
30-300 inches
Projection distance 60-inch
1.70-2.92 meters (5.6-9.6 feet)
Projection distance 100-inch
2.90-4.94 meters (9.5-16.2 feet)
Projection distance Minimum projection distance
0.80 meters (2.6 feet)
Light source (estimated life *2)
Laser & LED (up to 20,000 hours)
Color reproduction
Full color (up to 1.07 billion colors)
Scanning frequencies
Horizontal: 15-91 kHz, Vertical: 50-85 Hz
Computer input Digital input terminal
HDMI type A × 2
Computer input Analog input terminal
mini D-Sub 15 pin × 1
Video input: Analog signal
Component: 480i to 1080p
Composite: NTSC, PAL, PAL-N, PAL-M, PAL60, SECAM
Video input: Analog input terminal
Component: YCbCr/YPbPr (used for both analog computer input and component input), Analog video: Composite (RCA) × 1
Video input: Digital signal (HDMI)
480p to 1080p (Shared with HDMI Type A terminal)
Audio Input
3.5 mm stereo mini jack × 1, RCA × 1 [R/L]
Audio Output
3.5 mm stereo mini jack × 1 (variable audio)
Audio Speaker
16W × 1, monaural
Other terminals USB power supply
DC 5V USB Type-A x 1 (Dedicated power supply terminal)
Other terminals USB function
USB 1.1 Micro-B × 1 *3
Other terminals Control (Serial)
RS-232C (D-Sub 9pin) × 1
Power requirements
AC 100-240V, 50/60Hz
Power consumption
Operating (default setting) (Light Output 7): 210W
Operating (minimum setting) (Light Output 1): 120W
Operating (Bright): 250W *1
Standby AC 100-120V Remote OFF/ON: 0.09W
Standby AC 220-240V Remote OFF/ON: 0.17W
Approximate dimensions (W × H × D)
357 × 124 × 337 mm (not including projections)
5.9 kg
Security compatibility
Kensington Compatible, Security Bar, Power On Password
Included accessories *4
Remote control, Power cord, Warranty card

Supplied Accessories
Casio Remote
Rear Panel
XJ-S400W Connections
