Casio XJ-UT311WN LED Short Throw Projector - With Wifi & PC-Free

XJ-UT311WN

Powered By LED






Casio Logo


DISCONTINUED

For Current Casio Projectors Click Here


Quick Facts:
Casio XJ-UT311WN Throw Distance Chart (Examples for common Sizes)
TR: 0.32:1
Image Size Installation Distance
(Approx. To Lens)
83" (16:10) 1790x1120mm From 0.3m to 0.3m
98" (16:10) 2110x1320mm

From 0.4m to 0.4m

SPECIFICATIONS
Native Resolution: WXGA 1280 x 800 16:10
Brightness: 3100 ANSI Lumens
Maximum Contrast: 20,000:1
Weight: 5.7kg
Fan Noise: 35 / 29db (eco)
Warranty: 5 years / 10,000 hours
LED Warranty: 5 years / 10,000 hours
LED Life Up To: 20,000hrs
FEATURES
- 2x HDMI Connection
- Instant Off
- Powerful 16W Speaker
- PC Free
- Optional Wireless
- Optional iPhone/Android Wireless

- Wall Mount Included
Casio Projector WarrantyMade In Japan

Casio XJ-UT-311WN Short Throw Projector

A Casio XJ-UT311WN is an investment in a reliable no maintenance projector that will pay you back year after year in low servicing costs and no lamp replacement costs. Once installed it provides a HD picture without all the messing about and down time associated with traditional lamp based projectors.

Large-screen projection from wall mount to screen

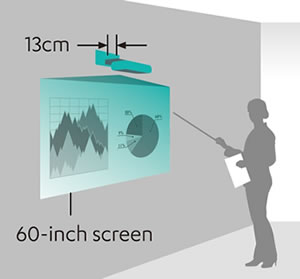

  • This short-throw projector’s short-focus lens is capable of projecting a 60-inch screen image from a distance of just 13 cm.
  • Its brightness of 3100 lumens enables it to project clear images in fully lighted rooms.
  • The short projection distance eliminates the possibility of either shadows or dazzlingly bright images.
XJ-UT311WN Large Screen

Long service life, minimal maintenance and greater energy efficiency for significantly reduced TCO (total cost of ownership)

NO LAMP REPLACEMENT

The long-life light source provides approximately 20,000 hours of illumination.

*Comparison with a high-pressure mercury lamp model (earlier CASIO product). As of December 2016, CASIO investigation.

Casio XJ-UT351WN Lamp Life

Dust-resistant design suited for installation

CASIO’s unique three-block shielded structure makes filter replacement unnecessary* for approximately 20,000 hours, moreover, thus reducing maintenance requirements even further.

Evaluations of dust-resistance performance are based on data calculated from proprietary CASIO acceleration testing conducted with reference to the JIS D 0207 dust assessment test (in an environment with a dust concentration of 0.03mg/m3 according to the powder test established under JIS 8901). Evaluation values are the closest possible approximations, but they vary with the environment (temperature, humidity, dust concentration, etc.) and conditions (ceiling-hung or other facility installation, cleaning frequency, etc.) employed for the tests.

Casio XJ-UT351WN Dust Resistant

REDUCED ENERGY REQUIREMENTS

Adoption of an LED-based light source has decreased power consumption dramatically compared to high-pressure mercury lamps.

Casio XJ-UT351WN Energy Requirement

Laser & LED Light Source Technology

It began with CASIO’s original development of an optical engine combining a high-luminance blue laser with a red LED. The high projection efficiency realized through outstanding energy-saving technologies and optical block optimization led to achievement of high brightness projection and lower energy consumption as compared with mercury lamp systems and other solid-state light sources. Product downsizing was achieved, moreover, with the help of freer design layouts and original high-density mounting technologies. The unique evolution of projectors that promise to establish new standards for the next generation continues.

Casio XJ-UT351WN LED Laser

HORIZONTAL KEYSTONE CORRECTION

On top of conventional vertical keystone, new horizontal keystone correction has been added to simplify projector setup. ±5°

Casio XJ-UT351WN Horizontal Keystone

USB power supply compatibility

Operation with a 5V/2 A power supply and wireless presentations using Miracast-compatible receivers are supported.

Casio XJ-UT351WN USB Power

Two HDMI Port

Two HDMI ports are equipped, so it can be connected to two devices, such as a computer and a set-top box, at the same time.

Networking for enhanced classroom teaching convenience (C-Assist)

When a wireless network is constructed with dedicated software C-Assist, image projection can be controlled by smartphone or tablet from anywhere in the classroom. Teachers enjoy a wider choice of teaching styles.

  • Wireless presentation
  • Wireless camera
  • Browser projection
  • Simple PC remote control
Check OS versions compatible with the app on Google Play or the App Store.
App functions and operating environments may be altered without prior notice.
The app may not function on some smart device.
C-Assist App

Specifications
Display
  • Technology: 0.65" DLP® chip (WXGA)
  • Resolution: 1,280 x 800 pixels (WXGA)
  • Brightness: 3,100 L
Illumination technology
  • Type: Laser and LED Hybrid Technology
  • Service life: up to 20,000 hours
  • Contrast: 20,000:1
  • Colour depth: up to 1.07 Mrd. (full colour)
Projection lens
  • Technology: Fixed zoom/mirror system
  • Projection ratio (viewing distance: width): 0.28:1
  • Offset: 70 %
  • Focus: Manual
Projection
  • Size of the projection screen: 50" (1.27 m) bis 110" (2.79 m)
Keystone correction
  • Manual: horizontal/vertical: ± 5°
Interfaces
  • Computer: 2x RGB port (RGB 15 pin mini D-sub (VGA))
  • Digital input: 1x HDMI type A (480p–1080p)
  • Component video: RCA (composite), S-Video
  • Audio
  • Input: 1x RCA (R/L), 2x 3.5 mm stereo mini jack
    Output: 1x 3.5 mm stereo mini jack
  • Microphone: 3.5 mm monaural mini jack
  • USB: USB type A (USB 2.0), USB type B
  • Logo port: via Micro USB
  • Wireless connections: CASIO Wireless LAN Adapter, (YW-40) is included
Extended functions
  • Direct power on, direct power off, rear projection, freeze, blank screen, ceiling mounting
Outputs
  • Audio: 3.5 mm variable audio mini stereo
  • RGB output: RGB Mini 15 pin D-Sub
Audio system: 16 W monaural speaker
Control system
  • Control inputs: RS-232 (Mini D-sub 9 pin)
  • LAN: RJ-45
  • Compatible control systems: Crestron, AMX, Extron, SP Controls
Operating noise
  • Eco 1/Normal: 28–37 dB
Energy consumption
  • Light Control On (Light Output 1–7): 90–160 W
  • Light Control Off (Normal/Bright): 170–195 W
  • Standby: 0.23 W
Computer compatibility
  • Max. resolution (compressed): 1,920 x 1,200 Pixel (WUXGA)
Video compatibility
  • Norms: PAL-N/-M, PAL60, SECAM, NTSC
  • Signals: YCbCr/YPbPr
Included with accessories
  • IR remote control: YT-131*
  • Other: Batteries (2x AAA), mains cable, RGB cable, warranty card, quick guide
Optional accessories
  • Ceiling mounting: YM-80 (4x M4/10 mm)
General
  • Dimensions (W x H x D): Cover included: 413 x 153 x 333 mm / Cover not included: 338 x 153 x 333 mm
  • Weight: 5.7 kg
Supplied Accessories
Remote
Casio Remote
Rear Panel
XJ-UT351wn Rear Connections
Optional Accessories
