Epson EB-1480Fi Ultra Short Throw Interactive Projector (Wall Mount optional)

EB-1480Fi



LAser



Your Price: $4299

Flat Rate Freight!
$22 Insured Australia Wide.
Pick up Available


Quick Facts:
Epson EB-1480Fi Throw Distance Chart (Examples for common Sizes)
T/R: 0.27-0.37:1
Image Size Installation Distance
(Approx. To Lens)
92" (16:9) 2030x1140mm From 0.55m to 0.75m
100" (16:9) 2130x1200mm From 0.57m to 0.78m
SPECIFICATIONS
Native Resolution: WUXGA 1920 x 1080 16:9
Brightness: 5000 ANSI Lumens
Maximum Contrast: 2,500,000:1
Weight: 9.7kg
Fan Noise: 36 / 27db (eco)
Warranty: 3 Years / 20,000 hours
Laser Warranty: 3 Years / 20,000 hours
Laser Life Up To: 20,000hrs
FEATURES
- Powerful 2x8W Speakers

- 3x HDMI Connection
- 1x HDMI Output
- Instant Off
- Miracast Compatible
- Presentation Wireless - Optional

- Wall Mount
- Optional
- Touch Interactive - Optional

- Pen Interactive - Included

Epson EB-1480Fi Wall Mounted Ultra Short Throw Interactive Laser Projector

The EB-1480Fi is a part of a new generation of laser projectors designed to last an incredible 20,000 hours. Even with heavy use of 4 hours a day 5 days a week 52 weeks a year would work out to roughly 19 years of use. This ensures no down time, no replacement lamps, and minimal servicing with some occasional filter cleaning. It also boasts a massive image up to 100inches diagonal eclipsing even the largest interactive panels. With an incredibly powerful 5000 lumens brightness it ensures a vibrant image even with light on and the Full HD picture offers a very detailed image.

Transform your workplace with this large, scalable display that enriches collaboration and engagement, and promotes greater knowledge sharing with colleagues, clients or delegates using the latest and most versatile connectivity options. The EB-1480Fi has been designed to be easy to use, enriching collaborative and agile working environments.

KEY FEATURES

  • 3 x Brighter Colours and Reliable Performance1 – 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness
  • Reinvent Your Whiteboard – turn any wall or existing dry-erase board into a 100" interactive display for more efficient meetings and collaboration, in the room or across the globe
  • Break Through Laser Technology – provides up to 20,000 hours of virtually maintenance free operation, with the added benefits of higher image contrast and instant ON/OFF
  • Full HD* display up to 100" – for an optimal viewing experience and clear readability – over 2x as big as a 70" flat panel.
  • Optional Touch–Enabled Interactivity – turn on the projector and start writing using your finger or the included pens.
  • Easy to Use – just walk in, turn it on and start writing - no computer, software or training is required.
  • Capture, Save and Share – no need to transcribe meeting notes or snap a photo; easily save, print or email directly from your projector
  • Wireless Device Compatibility – wirelessly display documents, files and photos from your iPad®, iPhone®, and Android™ Mobile devices with the Epson iProjection™ App.
  • Convenient HDMII–out connectivity – share whiteboard content to a larger display, videoconferencing system or recording device.
    *Pixel shifting technology achieves Full HD resolution on screen

3LCD Technology

All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCD's 3-chip architecture dedicates an entire chip to process each primary colour – red, green and blue, continuously. Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant, realistic images and video all delivered with 3LCD’s true-to-life colour.

Up to 3x Brighter Colours with Epson Projectors*

Epson projectors use 3LCD Engines that have no colour wheel with a white segment and therefore don't force a trade-off between white and colour brightness.

In fact, Epson projectors have up to 3x Brighter Colours than their leading competitive 1-chip DLP projectors*. If you are looking for business and education projectors or 720p home entertainment projectors, know that choosing Epson projectors means up to 3x brighter colours. If you are looking for 1080p home entertainment projectors, you consistently get 2x and up to 3x Brighter Colours than competitor 1-chip DLP projectors*.

All Epson projectors list both White Brightness and Colour Brightness specifications, and all have high Colour Brightness.

* Colour Brightness (Colour Light Output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. Colour Brightness will vary depending on usage conditions. Top-selling 3LCD projectors versus top-selling 1-chip DLP projectors based on PMA Research sales data for Dec. 2015 through Nov. 2016.

Laser Light Source
Experience astonishing quality and reliability with Epson’s laser light source technology. The newly designed laser light source and advanced electrostatic filter offers fit and forget reliability to keep maintenance to a minimum. Additionally, the laser light source is highly reliable, eliminating worry of the light burning out during important presentations.

EB-1480Fi Laser Projector

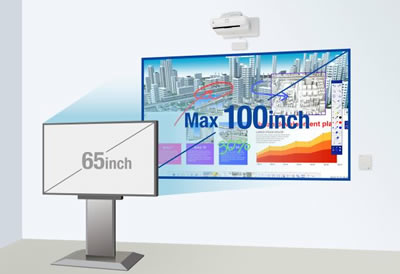

Big Screen
While conventional whiteboards and panels are limited to pre-determined height and width, the MeetingMate has no such constraints. Set the size of the interactive area to fit the available space in your meeting room.

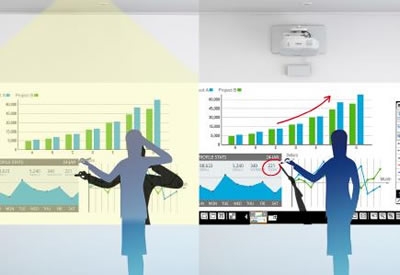

Ultra Short Throw
An ultra-short-throw design eliminates many of the common problems of interactive systems, such as shadowing and eye glare. With an incredibly efficient throw ratio, this model allows you to project extra-large interactive images up to 100" in 16:9.
EB-1480fi big screen EB-1480fi ultra shrot throw

Full HD Resolution*

Enjoy images in Full HD resolution* and crisp, sharp text without any distortion. Easily read the fine print in applications such as Excel and Word. With the addition of super resolution and detail enhancement processing, images are near cinema quality.

*Pixel shifting technology achieves Full HD resolution on screen

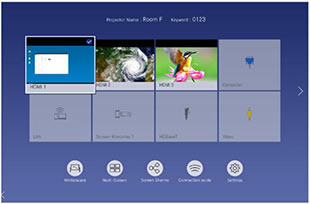

Home Screen
Get up and running in a snap with an intuitive, user-friendly home screen. Select the content source and easily access frequently-used functions such as the whiteboard tool, screen sharing and more.
EB-1480fi Full HD EB-1480fi home screen

Epson iProjection App

Wirelessly display content from your iOS or Android mobile device with the free Epson iProjection App and any nearby Epson interactive display with wireless or network capabilities1

  • Send files from your email or cloud storage account to the app, then project
  • Advance through PowerPoint® or Keynote® presentations (iOS only)
  • View Microsoft® Word documents or Excel® spreadsheets (iOS only)
  • Zoom in and out of PDFs (iOS and Android)
  • Project webpages and view brilliant, high-quality images
  • Control interactive display features with just a touch of your device screen
  • Easily pair your device with the interactive display via a QR code (available on select models)

Find out how to set up the app and learn more about your interactive display and device compatibility at epson.com.au/iprojection/

Miracast and HDMI out

Sharing content within a meeting room has been made easier with a wider range of connectivity. Users can project their smartphone or tablet screens without a cable connection using Miracast. You also have the option of sharing your content with a second display via the HDMI output.

1To use Epson iProjection, the projector must be configured on a network. Epson projectors can be networked either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Check your owner’s manual to determine if a wireless LAN module must be purchased separately to enable wireless connection on your Epson projector. Not all Epson projectors are able to be networked. Availability varies depending on model. Not all files and formats are supported. See www.epson.com.au for details.

SMARTER MEETINGS

Digital Made Easy, Without a PC or Software

Transform traditional dry-erase whiteboards, plain walls and even tables into digital surfaces. Just pick up the pen and start writing. Or, use your finger — touch-enabled interactivity — to draw, share and interact with intuitive and familiar gestures. Add pages, or insert shapes and images. When you’re done, share your notes via the email, print or save functions — all without a computer.

EB-1480Fi No Software

Instant Information Sharing

Whiteboard mode allows you to output the meeting results on-site in the user’s preferred format. Time to perform tasks such as saving meeting data to PDF (on USB memory, Network), sending email, printing, and making meeting minutes has been shortened considerably. You can also reuse and edit data again from a previous whiteboard session that was saved to a USB memory or server.

EB-1480Fi Laser Projector

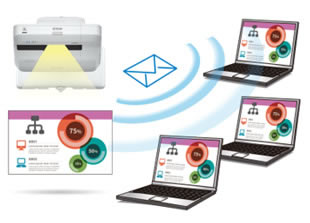

Share Notes Via Email

Share meeting notes and content directly from your MeetingMate via email with up to 50 participants. Connect your projector to an active directory server and you can search names and email address.

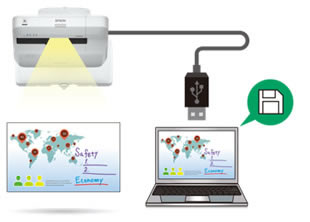

Easy to Save Notes to a PC
Simply connect to a PC via USB cable and you can save the meeting notes directly to your PC.
EB-1480Fi EB-1480Fi

Output Images to Video Conferencing Systems

You no longer need a flat-panel display for your videoconferencing needs. Connect your videoconferencing system to your MeetingMate projector and display an image as large as 100" (diagonal). Simultaneously display your videoconference on one side of the screen and additional content, such as a webpage or presentation, on the other side using the Split Screen feature (consult your user manual for input combinations).

EB-1480Fi Confrencing systems compatible

Multi-PC Projection

Epson’s Multi-PC utility with Moderator device management software allows you to simultaneously display up to four devices on the screen over network (wired or wireless), with even more users connected to the same interactive display on Standby Mode. The moderator can drag and drop participants into or out of the four quadrants and control which device screens to display. Encourage and control collaboration; it’s perfect for comparing ideas and content side by side

EB-1480Fi multi pc projection

INTERACTIVE FUNCTIONS

All on screen items can be rearranged and edited freely

Any image on the screen can be resized and moved as if it were an object. So even if there is no writing space on the screen, written contents can be shrunken down to make room for new annotations (optional finger touch for the EB-1480Fi).

EB-1480Fi finger touch

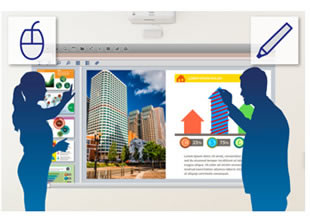

Real-Time Drawing and PC Operation
Connecting the projector to a PC via USB cable makes it possible to operate the PC mouse using the included interactive pen and even your finger.
Generate up to 20 Pages
There’s no need to worry about running out of space when writing meeting notes or importing information on the Whiteboard.
eb-1480fi Real Time drawing eb-1480fi generate 20 pages





Specifications
PRODUCT NAME MeetingMate EB-1480Fi
PRODUCT CODE V11H921553
TECHNOLOGY
Projection Technology Epson 3LCD, 3-chip technology
Light Source Laser Diode
Projection System RGB liquid crystal shutter projection system
LCD Panel 0.62-inch (C2fine)
OPTICAL
Zoom Ratio 1.0 - 1.35 (Digital Zoom)
Screen Size 65" to 100" [39.2cm to 61.3cm] @16:9
Projection Distance Standard size: 80" screen 48.7cm
Throw Ratio 0.27 (Zoom:Wide)
0.37 (Zoom:Tele)
Projection Lens Type No Optical Zoom / Focus (Manual)
Projection Lens F Number 1.5
Projection Lens Focal Length 3.9 mm
Focus Method Manual
Offset 8.68:-1
White Light Output 5,000 lumens
Colour Light Output 5,000 lumens
Resolution FHD*
Native Aspect Ratio 16:9
Contrast Ratio Over 2,500,000:1
Keystone Correction Vertical: -3 to +3 degrees
Horizontal: -3 to +3 degrees
Quick Corner Yes
Auto Set Up Yes
Split Screen Yes
Edge Blending Yes
Colour Reproduction Up to 1.07 billion colours
Colour Processing 10 bit
  *Pixel shifting technology achieves Full HD resolution on screen
CONNECTIVITY
Video I/O - Input 2x RGB D-sub 15pin
1x RCA Composite
Video I/O - Output 1x RGB D-sub 15pin (shared)
Digital Input 3x HDMI
Digital Output 1x HDMI
Audio I/O - Input 3x Stereo mini
1x Mic-In Stereo Mini
Audio I/O - Output 1x Stereo mini
Control I/O 1x RS232C (D-sub 9 pin)
Interactive sync Stereo Mini - 1x In, 1x Out
Touch Unit Control - Mini DIN 8pin
USB I/O 2x Type A (for USB Memory, USB Document Camera, Firmware update, Copy OSD Settings)
1x TypeA DC Out (2.0A)
2x Type B (for USB Display, Mouse, K/B, Control, Firmware Update, Interactive, copy OSD settings)
Network I/O: 1x RJ45 (100Mbps) Wired LAN
Touch Interactive Min DIN 8pin
Wireless Connectivity Built-in Miracast
Optional Wireless LAN unit (ELPAP11)
Speaker Output 2 x 8 W Stereo
ADVANCED FEATURES
Epson Projection Management Software Yes
Partner Standards Crestron Integrated Partner, Crestron RoomView, Extron IP Link
AMX Device Discovery, Control4 Simple Device Discovery Protocol
Message Broadcasting Yes
Easy Interactive Tools Ver 5.00 (Windows/Mac OS)
Finger Interactive Unit Dimension: 422 x 40 x 65mm (WxHxD)
Weight: 600g
Technology: Infrared Laser (Class 1)
Adjustment: Auto
Control I/O: 1 x Mini DIN 8pin
Security: Kensington® - lock provision
PC Interactive Tool Multiple pen: Yes (up to 2) with Easy Interactive Tools
Finger touch support: Optional (up to 6 fingers)
PC Free Annotation Tool Multi-pen support: Yes (up to 2)
Finger touch support: Up to 6
Whiteboard function: (Pen up to 2, optional: up to 6)
Projector operation
Firmware Update Network via LAN cable, USB A via USB thumb drive, USB B via USB cable
Copy OSD settings Network via LAN cable, USB A via USB thumb drive, USB B via USB cable
Wireless LAN Security WPA2/WPA3-PSK, WPA2/WPA3-EAP
Instant Off Yes
Direct Power On Yes
Auto Power On Yes (HDMI1, Computer 1, USB Display)
Security Padlock & Security Cable Hole
Kensington® lock provision
Wireless LAN Unit Lock
Password protection
Colour Modes Dynamic, Presentation, Cinema, sRGB, BlackBoard, DICOM SIM, Multi-Projection
Wall Mount Optional (ELPMB62)
EXTERNAL CONTROL PAD
Dimensions WxDxH 174 x 36.5 x 201.8mm
Weight 0.6 kg
Buttons Power, HDMI 1, HDMI 2
Input 1 x USB Type A (Pass through for USB Document Camera, PC Free, Memory)
2 x USB Type B (for interactive)
2 x HDMI
Output 1 x USB Type B
1 x HDBaseT (RJ-45)
GENERAL
Dimensions (excl feet) WxHxD 458 x 209.5 x 375 mm
Weight Approx. 9.7 Kg
Projector Warranty 3 Years
Power Consumption 366 W (Normal)
262 W (Quiet)
Fan Noise Level 36 dB (Normal)
27 dB (Quiet)
WHAT'S IN THE BOX
Main Unit EB-1480Fi Projector
Power Cable 1.8 m
USB Cable Cable 1.8 m
Remote Control Yes
Battery for Remote Control 2 x AA
Easy Interactive Pen 2 Pens
Battery for Easy Interactive Pen 2 x AA
Pen Stand Yes
Pen Tip (Soft) x 4
Pen Tip (Hard) x 2
Pen Tip Holder Yes
Corner markers for auto setup Yes
Supplied Accessories
Remote
Rear Panel

EB-1480Fi Connections



Optional Accessories

Kensington 2.4Ghz Wireless Presentation Remote - With Red Laser Pointer
Your Price:
$74.95

Special
Normally $99.95

Projector Remote

FEATURES

  • Wireless range up 50 meters
  • Red Laser Pointer
  • Low battery indicator
  • Backlit buttons
  • Two modes—switch from presenter to cursor control mode
  • On/off switch
  • USB receiver stores inside
  • Carry pouch included
  • Controls Keynote and PowerPoint

- Windows Compatible
- Mac Compatible
[More Information]


Epson Wireless Adapter ELPAP10
Your Price:
$159



SPECIFICATIONS
• Deliver presentations wirelessly from your notebook or desktop PC or via a network
• With 802.11b/g/n Wireless Connectivity

Notebook/desktop PC requires an existing wireless connection.
Not suitable for full motion video


Epson ELPSP02 Projector Speakers
Your Price:
$199



Audio Cable
The Epson ELP-SP02 active speakers are a great addition to the modern classroom. Boasting 30W of crisp, clear sound, the ELP-SP02 active speakers enable every student to clearly hear the lesson, no matter where they are sitting in the room. Easily mounted to the wall, this powerful pair is the perfect partner the ELPCB03 Cable Management and Projector Control box.
[More Information]

Epson ELPCB03 Projector Control Box
Your Price:
$349



Audio Cable
The Epson ELP-CB03 Connection and Control Box, is a solution that offers extensive control of multimedia sources connected to Epson's wall-mounted short-throw and ultra-short-throw classroom projectors.
[More Information]

HDMI Logo

HDMI Cable

Premium HDMI Digital AV Cable - For 4K, 1080P & 3D Projectors

1 Metres
$19.95
2 Metres
$29.95
3 Metres
$39.95
5 Metres
$49.95
10 Metres
$79.95
15 Metres
$99.95
20 Metres
$149.95

  • High Speed HDMI CAT2 cable
  • Type A to Type A Male-to-Male High Speed cable with Ethernet Channel
  • Designed to support the features of HDMI V2.0 and previous versions
  • Features include 4K (50/60Hz) Video, 3D, Deep Colour, Audio Return Channel
  • High Speed HDMI performance with a dedicated Ethernet channel.
  • Shieled cable construction for optimum RF & EMI Protection
  • Gold Plated terminals
  • 12 Month Warranty
    *We recommend keeping the length short for 4K under 10m - especially for 60hz
HDMI Features




VGA Cable

Premium VGA Monitor Cable

5 Metres
$29.95
10 Metres
$59.95
15 Metres
$69.95
20 Metres
$89.95
30 Metres
$110.95

Heavily shielded coaxial RGB cable giving you a crisper display at higher resolutions!

  • Features UL Approved Cabling
  • Filters included on both ends cutting down on noise
  • Maintains stronger signals using a shielded cabling run.
  • Comes in 15pin D-sub format with Male to Male conectors
Bottom Banner
Find us on Facebook
Watch us on YouTube
© 2021 GM Multimedia Pty. Ltd. All rights reserved. ABN: 82 119 523 723. GM Multimedia does not operate a showroom. All product information can be accessed by contacting our sales department. All brands and names are trademarks of their respective companies. Prices in $AUD and are GST inclusive. Prices subject to change without notice. Product images used on website are for illustration purposes only and may vary from the product description. Legal Notice & Disclaimer
