Epson EB-2055 LCD High Brightness Projector



EB-2055









DISCONTINUED

FOR THE CURRENT RANGE CLICK HERE



Quick Facts:
Epson EB-2055 Throw Distance Chart (Examples for common Sizes) T/R 1.38-2.24:1
Image Size Installation Distance
(Approx. To Lens)
84" (4:3) 1650x1237mm From 2.4m to 3.8m
100" (4:3) 2030x1523mm From 2.9m to 4.6m
120" (4:3) 2360x1770mm From 3.4m to 5.5m
SPECIFICATIONS
Native Resolution: XGA 1024 x 768 4:3
Brightness: 5000 ANSI Lumens
Maximum Contrast: 15,000:1
Weight: 4.5kg
Fan Noise: 37 / 29db (eco)
Warranty: 3 Years (+1 Year $119)
Lamp Warranty: 12 months / 750 hours
Lamp Life Up To: 10
,000hrs
FEATURES
- Vertical & Horizontal Keystone

- Powerful 16W Speaker

- 1.6x Zoom
- 2x HDMI Connection
- MHL Compatible
- USB to laptop Connection
- USB reader (JPEG, GIF, BMP, AVI)
- Instant Off
- Presentation Wireless - Included

Epson EB-2055 Corporate Multimedia Projector

The EB-2055 offers a 5000 lumen brightness level perfect for well lit areas and with the 4:3 aspect ratio is an amazing unit for replacement installations. With a 4:3 aspect ratio it can match up to older screens and with the wide 1.6x zoom lens can match many installation points saving time and money replacing older screens and rewiring.
It not only offers older VGA and composite connections but also newer HDMI connectors and Wifi inbuilt improving image quality from older analogue cables and improving connectivity for newer devices. Rounded off with a long lamp life of up to 10,000 hours and a cheap replacement cost of $149 the EB-2055 features cheap running costs.

KEY FEATURES & BENEFITS

  • 3 x Brighter Colours and reliable performance* – 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness
  • Crisp Clear Resolution – Featuring XGA (1024 x 768)
  • Versatile Connectivity – Easily integrate with any system with HDMI and MHL
  • Wireless Functionality – Wi-Fi(**Not for full motion video)
  • Gesture Presenter – Simply move your hand in front of the presentation
  • Split Screen – simultaneously project two images, video or still, side by side, from two different sources
  • Epson iProjection™ – Wirelessly display and control content from your iPhone®, iPad®, iPod touch® and Android™ devices
  • USB Display Function – Project via a simple USB cable connection without having to change the monitor output setting on the PC
  • Automatic Setup – The Automatic Screen Fit function adjusts focus, zoom, horizontal and vertical keystone all at the touch of a button

High brightness

The EB-2055 is a massively powerful projector with an impressive 5,000 lumens brightness perfect for a well lit area like halls and houses of worship. This combines with a strong contrast ratio of 15:000:1 to give you punchy colours and shading perfect for multimedia presentations in a lit environment.

Epson iProjection App

Display and control content from your iPhone, iPad or iPod touch, Android and Chrome devices with the Epson iProjection App. This free application allows road warriors to travel light and present from their mobile devices. The app is easy to use and intuitive menu options bring your content to the bigger screen.

iProjection

Auto V/H keystone and screen fit

The EB-2055 features both horizontal and vertical keystone correction making it a flexible unit to install even on a steep angle. On top of that if it is used as a portable projector you can use the automatic setup feature “Screenfit” with one push of a button it can adjust the image to the screen.

H + V Keystone

Auto power on feature

The projector starts automatically upon connecting a VGA*, HDMI**, or USB cable to the device itself. This feature means you no longer have to use the power on button because startup is activated with cable insertion.
*VGA auto power on is available with Computer 1 only
**HDMI auto power on is available with HDMI1 only

Auto Power On

Gesture presentation

Present smarter with newly added ‘gesture presentation’ function. Simply move your hand in front of the arrows, and make your presentation more engaging and realistic with the audience.

Gesture Presentation

Split Screen

Split Screen allows you to display content from two inputs simultaneously, side by side, on a single screen. With three layout options you can display video and presentation materials, and run video on both screens.

EB-2265U Split Screen

New home screen

New home screen offers quick and easy access to a variety of useful functions. Also, all source information, no matter what the source input is, can be seen at a glance. Wireless connections can be made easily because all the information you need is right there on the screen.

EB-2265U Home Screen
Multi PC Projection

EasyMP Multi-PC projection

The EasyMP Multi PC Projection application makes it possible to connect with up to 50 computers and partition the screen for split screen projection.

The moderator can select up to 4 of the connected devices and project their screens from the projector, maintaining control and preventing interference with the projected screen.

EasyMP Monitor

With EasyMP Monitor, Epson's network monitoring and control software, a single PC can see which projectors are available and if they are running efficiently, even across the biggest of networks. This series can be configured remotely, with instant email alerts for pre-defined critical indicators such as non-functioning devices or overheating lamps. Each projector's serial number can also be accessed remotely via LAN/serial connection.

Wireless LAN Enterprise security

The EB-2000 series projectors now include ‘WPA-Enterprise security' mode to connect in robust integrated network environment; compatible with WPA, WPA2-PSK and WPA2-EAP security protocols.

PC Free Presentations With USB Meadia Reader

Easily present basic files from a memory stick without the need for a media player or computer. Image files and even video can be presented directly from a memory stick for extra versatility and portabilty. For best results format the stick file format to Fat16/32. File format and size limits apply see manual for more details.

PC Free Presentations USB reader

Longer lamp life

Very economical to run the EB-2055 features a super long lamp life of 10,000 hours. And an inexpensive lamp at only $149 making one of the lowest total cost of ownership projector sin its class.

ELPLP95

Connectivity Panel

EB-2055 Rear



Projector Screen Bundle



Specifications
PRODUCT NAME Epson EB-2055
PRODUCT CODE V11H821053
EAN 9314020623790
TECHNOLOGY
Projection System Epson 3LCD, 3-chip technology
LCD Panel 0.63-inch panel
OPTICAL
Zoom 1-1.6 (Optical Zoom)
Screen Size 30" to 300" [0.83m to 8.54 m] (Zoom: Wide)
30" to 300" [1.36m to 13.86 m] (Zoom: Tele)
Projection Distance 60" screen 1.69m - 2.75m
Throw Ratio 1.38 (Zoom: Wide), 2.24 (Zoom: Tele)
Projection Lens F Number 1.51 - 1.99
Projection Lens Focal Length 18.2mm - 29.2mm
Focus Method Manual Focus
Offset 8.6:1
Colour Light Output 5,000 Lumens
White Light Output 5,000 Lumens
Resolution XGA
Native Aspect Ratio 4:3
Contrast Ratio 15,000:1
Lamp Hours Normal/Eco: 5,000/10,000 Hours
Lamp Type 300W UHE
Keystone Correction Vertical: -30 to +30 degrees
Horizontal: -30 to +30 degrees
CONNECTIVITY
Input: Video 1 x RCA (Yellow)
Input: Computer 2 x D-sub 15-Pin (RGB), 1 x USB 2.0 type B
Input: USB Memory Device 1 x USB Type A
Input: Three-In-One USB Display 1 x USB 2.0 type B
Input: Digital 2 x HDMI (1 x MHL)
Input: Audio 1 x RCA (Red/White), 2 x Stereo mini jack
Input: Control 1 x USB 2.0 type B, 1 x RS232C
Input : HDBaseT NA
Input: Epson USB Document Camera 1 x USB 2.0 type A
Network I/O: 1 x RJ45 (100Mbps)
Wireless Connectivity Included
WiDI/Miracast NA
Output: Video 1 x D-sub 15 pin (black moulding)
Output: Audio 1 x Stereo mini jack
Speaker Output 16W
ADVANCED FEATURES
EasyMP Network & Control Yes
EasyMP Network Projection Yes
PC Free Presentations Yes
USB Plug 'n Play Yes
AV Mute Slide Yes
Instant Off Yes
Auto Power On Yes
Direct Power On/Off Yes
Security Padlock & Security Cable Hole
Kensington®-style lock provision
Wireless LAN Unit Lock
Password protect function
Colour Modes Dynamic, Presentation, Cinema, sRGB, Blackboard, DICOM SIM
GENERAL
Dimensions D x W x H (excluding feet) 291 x 377 x 101 mm
Weight 4.5kg (approximate)
Compatible lamp model ELPLP95 (New)
Lamp Warranty 12 months or 750 hours*
Projector Warranty 3 Years
Power Consumption: Lamp on Normal/Eco: 410/350W
Power Consumption: Standby 0.5W (communication off)
Noise Level Normal/Eco: 39/29dB

Manual Download Epson EB-2055 User Manual

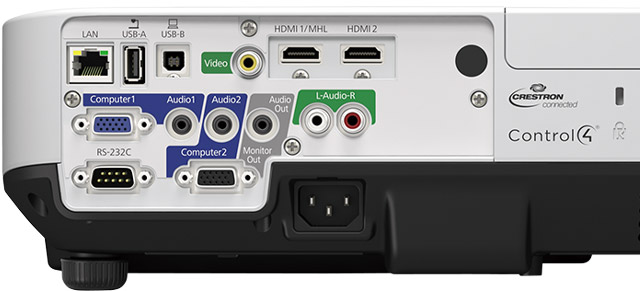

Rear Panel
