Epson EB-710Ui LCD Ultra Short Throw Laser Interactive Projector

EB-710Ui



LAser



Your Price: $3799

Flat Rate Freight!
$22 Insured Australia Wide.
Pick up Available



Quick Facts:
Epson EB-710Ui Throw Distance Chart (Examples for common Sizes)
T/R: 0.27-0.37:1
Image Size Installation Distance
(Approx. To Lens)
83" (16:10) 1790x1120mm From 0.49m to 0.66m
98" (16:10) 2110x1320mm From 0.57m to 0.78m
SPECIFICATIONS
Native Resolution: WUXGA 1920 x 1200 16:10
Brightness: 4000 ANSI Lumens
Maximum Contrast: 2,500,000:1
Weight: 11.2kg
Fan Noise: 38 / 27db (eco)
Warranty: 3 Years
Lamp Warranty: 3 Years
Lamp Life Up To: 20
,000hrs
FEATURES
- Powerful 16W Speaker

- 3x HDMI Connection
- MHL Compatible
- USB to laptop Connection
- Instant Off
- Wireless - Optional
- iPad, iPhone Wireless(optional)

- Included Wall Mount
- Pen Interactive
- Touch Interactive

Epson EB-710Ui Wall Mounted Ultra Short Throw Laser Projector

The EB-710Ui is a powerful Full HD Short throw interactive laser projector perfect for the boardroom or classroom. The brightness is the first stand out feature of the EB-710Ui; at 4000 lumens it can handle a brightly lit room without the need to dim the lights. Being short throw it can be mounted on the wall you are projecting onto or above a whiteboard making it easy to install without having to make sure you have ceiling space at the right distance. With the short projection it also means the presenter isn’t blocking the projection by casting a shadow or being blinded by the projector.
The laser light source is the big innovation which bring long life and dependability to the projector. You save on lamp replacements, down time and technician costs. With a 20,000 hour laser life you no longer have to worry about the possibility of a blown lamp and the warranty covers the light source for the 3 year warranty. On top of all this the interactive function makes any surface both pen and touch interactive turning a huge space into a massive touch screen.

Take classroom collaboration to another level with the Epson EB-710Ui laser ultra–short throw projector. Designed for today’s BYOD classroom, this projector displays 100" images at native WUXGA Full HD resolution. Offering 3x Higher Colour Brightness1 than competitive models, Epson® 3LCD projectors ensure bright, vivid images. It also features wireless functionality (module sold separately) and advanced connectivity, so teachers can share content from multiple devices, including Chromebooks – up to four at once with Moderator software. Featuring breakthrough laser technology, the EB-710Ui provides up to 20,000 hours of virtually maintenance-free operation.

KEY FEATURES

  • 3 x Brighter Colours and Reliable Performance1 – 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness
  • Break Through Laser Technology – provides up to 20,000 hours of virtually maintenance free operation, with the added benefits of higher image contrast and instant ON/OFF
  • Bright Images – 4,000 lumens colour/white brightness
  • Amazing Images – WUXGA resolution (1920 x 1200) and 16:10 format
  • Simultaneously Display and Control Multiple Device Screens – wirelessly share content from up to four devices2, including Chromebooks, with Moderator software
  • Manage Your Display and Send Announcements Remotely – easy network connectivity; software included
  • Versatile Connectivity – 3x HDMI® supports multiple high-definition A/V devices, with MHL® support
  • Powerful Sound to Engage Every Student – built-in 16 W speaker and microphone input; or, use external speakers, even in Standby Mode

Laser Light Source

Experience astonishing quality and reliability with Epson's laser light source. The newly designed laser light source and advanced electrostatic filter can operate up to 20,000 hours* virtually maintenance-free. Enjoy total peace of mind during important presentations with reliable and consistent performance.

* 20,000 hours is the estimated projector life when used in Normal Mode. Actual hours may vary depending on mode and usage environment. The projector has a standard warranty of 5 years.

EB-710Ui Laser

Inorganic Components

The newly developed phosphor wheel is made of inorganic material with superior light and heat-resistance to deliver excellent reliability. Epson has also developed inorganic LCD panels, key components of imaging devices. Combining an inorganic phosphor wheel with inorganic LCD panels in a laser projector results in bright, vibrant images for extremely long periods.

EB-710Ui Inorganic Panel

Readability from Anywhere in the Room

Ensure every student in the classroom can easily read and understand the information you're sharing. Offering clear, easy-to-see images up to 100", Epson displays help students learn and retain information, regardless of where they sit.

EB-710Ui large image readable presentation

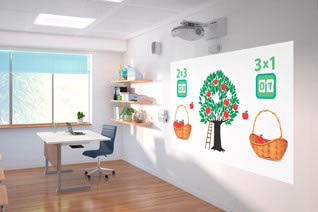

Wide Viewing Angle

Clear images can be seen from any angle with no limitations of reflective glare. Projected images also allow you to get closer to the image without straining your eyes.

High Resolution

Featuring native resolution of WUXGA (1920 x 1200), the Epson EB-710U delivers high quality images and crisp, sharp text without any distortion.

EB-710Ui Viewing Angle EB-710Ui Viewing Angle

INTERACTIVE LESSONS

Finger-Touch3 and Dual Pen

Use your fingers to annotate directly onto the screen. Epson's interactive pens are now even more responsive and easy to use. With the new dual pens, teacher and student or two students can work simultaneously using different attributes.
3Finger-touch only available on the EB-595Wi, EB-595Wie, EB-696Ui and EB-710Ui

EB-710Ui Finger touch and pen interactive

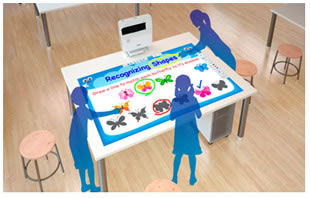

Make any Flat Surface Interactive

Transform existing whiteboards, plain walls, and tables into interactive workspaces. Make the most of your environment with this flexible solution.

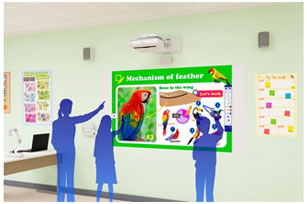

Quick Start Up

Simply plug in and turn on – the PC-free annotation mode means that teachers don't even need to power up their computers.

EB-710Ui Table Interative projector EB-710Ui quick startup projector

Document Camera Control
Connect the Epson ELPDC21 document camera to an EB-710Ui projector to easily capture and displays books, 3D objects and experiments. You can also add annotations directly to a projected live image without the need of a PC. To simplify the process you can operate the document camera from the toolbar on the projection screen.

EB-710Ui Document camera

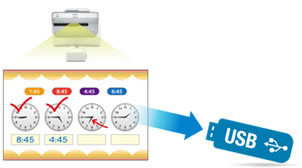

Save Lesson Notes

You can save projected images to USB as jpeg files. Any annotations written over an image using PC Free Annotation can be saved as well.

Timer Function

A timer can be easily accessed from the toolbar and displayed on the screen. Whether it's answering problems or holding a group discussion, you can easily manage the time with the whole class.

EB-710Ui Save Lesson notes EB-710Ui Timer

Interactive Multi Projection

Install two EB-710Ui projectors side by side and enjoy the benefits of a huge wall-size area to use as an extended whiteboard. Or, use the included Easy Interactive Tools (EIT) software to achieve a giant display on which you can create or annotate content.

EB-710Ui interactive

WIRELESS CLASSROOMS

Epson iProjection™ via Optional Wireless Dongle

Epson iProjection is the wireless display solution for today's BYOD classrooms. With true multi-platform support, students can wirelessly display content from Chromebooks, PCs and Mac® computers, as well as iOS and Android devices.

When used in conjunction with Epson Multi-PC projection plus Moderator device management software4, up to 50 users can connect to the projector simultaneously, displaying content from as many as four at a time. It's the perfect tool for displaying a variety of content — or for comparing students' work side by side.

EB-710Ui iprojection wireless

Networking features that take teaching to the next level

  • Manage up to 1,024 Epson networked displays using the included EasyMP® Monitor software or Crestron RoomView® — saves time and money
  • Update display firmware in-house via the network, a USB cable, or a USB flash drive — eliminates the need for external service centre repairs; saves time and money
  • Send updates or announcements remotely to up to 1,024 Epson networked displays using the Message Broadcasting plug-in for EasyMP Monitor
  • Connect your display to an access point to share it with the entire class, without running more cables

EB-710Ui networking

EASY INSTALLATION AND MAINTENANCE

Easy Setup Options

Epson displays offer a suite of innovative features that ensure flexible placement and fast, easy setup:

3x HDMI — supports multiple high-definition A/V devices. Compatible with the latest laptops, Blu-Ray Disc® and media players

MHL — the latest in connectivity

  • Display content from your MHL-enabled smartphones, tablets and streaming devices
  • Use the display remote to control MHL-enabled devices
  • Charge your MHL-enabled device when it's plugged into the display5
  • Offers instant access to movies, games and more

Quick Corner® — this innovative feature allows you to move any of the four corners of an image independently, to adjust each corner for a perfectly rectangular picture

Advanced 3-in-1 USB Plug'n Play Instant Setup — instantly project audio and video from a PC or Mac via a USB connection

Quick, Convenient Control — Instant Off® means no cool-down time required; it's ready to shut down when you are

Copy Menu Settings for Multiple Display Installations — save on installation time; copy settings via a USB flash drive, USB cable or LAN

Easily Conserve Power

Epson delivers a number of features aimed towards conserving power and delivering top performance:

ECO Mode — operates the display in a lower brightness setting

Light Optimizer Mode — adjusts the lamp brightness, based on the projected image

Auto Mode® — sensor automatically adjusts the lamp brightness, based on the room environment

Sleep Mode (A/V Mute) — control your presentation; it's right at your fingertips

Direct Power Off/On — Instant Off® power the display on/off with the flip of a wall switch

Standby Audio — use the display's internal speakers or continue to pass audio out to an external speaker, even when the display is "off" (in Standby Mode)

Connectivity Panel

EB-710Ui rear


Specifications
PRODUCT NAME Epson EB-710Ui
PRODUCT CODE V11H877053
TECHNOLOGY
Projection Technology Epson 3LCD, 3-chip technology
Light Source Laser Diode
Projection System RGB liquid crystal shutter projection system
LCD Panel 0.67-inch (D10)
OPTICAL
Zoom Ratio 1.0 - 1.35 (Digital Zoom)
Screen Size (Projection Distance) 70.0" to 100.0" [40.5 to 59.3cm]
90" screen 53cm
Throw Ratio 0.27 (Zoom:Wide)
0.37 (Zoom:Tele)
Projection Lens Type No Optical Zoom / Focus (Manual)
Projection Lens F Number 1.6
Projection Lens Focal Length 4.2 mm
Focus Method Manual
Offset 5.8:-1
White Light Output 4,000 lumens
Colour Light Output 4,000 lumens
Resolution WUXGA
Native Aspect Ratio 16:10
Contrast Ratio 2,500,000:1
Keystone Correction Vertical: -3 to +3 degrees
Horizontal: -3 to +3 degrees
Colour Reproduction Up to 1.07 billion colours
Colour Processing 10 bit
CONNECTIVITY
Video I/O - Input 1x RGB D-sub 15pin
1x RCA Composite
Video I/O - Output 1x RGB D-sub 15pin
Digital Input 3x HDMI (1 supports MHL)
Audio I/O - Input 2x Stereo mini
Audio I/O - Output 1x Stereo mini
Control I/O 1x RS-232C D-sub 9pin
USB I/O 2x USB Type A (for USB Memory, USB Document Camera, Firmware update, Copy OSD settings)
1x USB Type B (for USB display, mouse, K/B, Control, Firmware update, Copy OSD settings)
Network I/O: 1x RJ45 (100Mbps) Wired LAN
1x USB Type A (for Optional ELPAP10 LAN unit)
Wireless Connectivity Optional ELPAP10 Wireless LAN unit
Speaker Output Monaural: 16 W x 1
ADVANCED FEATURES
EasyMP Network Projector control and projector management via network Yes
AMX Device Discovery Yes
Crestron Integrated Partner Yes
Crestron RoomView Yes
Extron IP Link Yes
Control4 Yes
EasyMP Network Multi PC Projection Yes
Message Broadcasting Yes
Easy Interactive Function Supported screen size - 70" to 100"
Supports multiple screens
Technology - Infrared
Input devices:Digital Pen (Easy Interactive Pen 1,2), Finger (1-6 fingers)
Calibration:Pen: Auto / Manual (25points), Finger: Manual (16 points)
Finger Interactive Unit Dimension: 210x95x51mm
Weight: 450g
Technology: Infrared laser (class 1)
Adjustment: Yes (manual)
Control I/O: 1x Min DIN 8pin
Security: Kensington® - lock provision
PC Interactive Tool Multiple pen/finger support:Yes (with Easy Interactive Tools Ver.4.20)
Easy Interactive Pen: Up to 2.
Finger: Up to 6.
PC Free Annotation Tool Multi-pen support: Yes
Easy Interactive Pen: Up to 2
Finger: Up to 2
Whiteboard function
Projector operation
Firmware update Network via LAN cable, USB A via USB thumb drive, USB B via USB cable
Copy OSD settings Network via LAN cable, USB A via USB thumb drive, USB B via USB cable
Quick Wireless Connection Yes
Wireless LAN Security WPA/WPA2-Personal (with optional Wireless LAN Unit)
Instant Off Yes
Direct Power On Yes
Auto Power On Yes (PC, USB-B, HDMI1)
Security * Kensington® - lock provision
* Wireless LAN unit lock
* Password protect function (Power On, Network, Protection of User logo)
Colour Modes Dynamic, Presentation, Cinema, sRGB, BlackBoard
Integrated Mount Yes
GENERAL
Dimensions (excl feet) WxDxH 494 x 437 x 172mm
Weight 11.2kg
Projector Warranty 3 Years
For more information visit Epson Projector Warranty
Power Consumption 423W (Normal)
332W (ECO)
Power Consumption: Networked Standby 2.0W
Power Consumption: Energy Saving 0.3W
Air Filter maintenance cycle up to 20,000 hours
Fan Noise Level 38dB (Normal)
27dB (ECO)
WHAT'S IN THE BOX
Main Unit EB-710Ui Projector
Power Cable 5.0M
USB Cable Cable 5.0M
Remote Control Yes
Battery for Remote Control AA x 2
Setting Plate Yes
Easy Interactive Pen 2 Pens
Battery for Easy Interactive Pen AA x 2
Pen Tray Yes
Pen tip (Soft) x 4
Pen tip (Hard) x 4
Pen tip holder Yes
Light Curtain Finger Touch Unit Yes
Password Protect sticker Yes
Mount ELPMB53
Supplied Accessories
Remote
Rear Panel

EB-710Ui Connections



Optional Accessories

Kensington 2.4Ghz Wireless Presentation Remote - With Red Laser Pointer
Your Price:
$74.95

Special
Normally $99.95

Projector Remote

FEATURES

  • Wireless range up 50 meters
  • Red Laser Pointer
  • Low battery indicator
  • Backlit buttons
  • Two modes—switch from presenter to cursor control mode
  • On/off switch
  • USB receiver stores inside
  • Carry pouch included
  • Controls Keynote and PowerPoint

- Windows Compatible
- Mac Compatible
[More Information]


Epson Projector Wall Mount ELPMB53 For Ultra short throw Projectors
Your Price:
$149







ELPMB53 Projector Mount

Designed exclusively for use with Epson ultra-short throw projectors, this wall mount offers an easy, affordable solution for integration with a variety of interactive or standard dry erase whiteboards.

Compatible Projectors:

ULTRA SHORT THROW WALL MOUNT FOR EB-600 SERIES, EB-700 SERIES AND EB-1400 SERIES

[More Information]


Epson Wireless Adapter ELPAP10
Your Price:
$159



SPECIFICATIONS
• Deliver presentations wirelessly from your notebook or desktop PC or via a network
• With 802.11b/g/n Wireless Connectivity

Notebook/desktop PC requires an existing wireless connection.
Not suitable for full motion video


Epson ELPSP02 Projector Speakers
Your Price:
$199



Audio Cable
The Epson ELP-SP02 active speakers are a great addition to the modern classroom. Boasting 30W of crisp, clear sound, the ELP-SP02 active speakers enable every student to clearly hear the lesson, no matter where they are sitting in the room. Easily mounted to the wall, this powerful pair is the perfect partner the ELPCB03 Cable Management and Projector Control box.
[More Information]

Epson ELPCB03 Projector Control Box
Your Price:
$349



Audio Cable
The Epson ELP-CB03 Connection and Control Box, is a solution that offers extensive control of multimedia sources connected to Epson's wall-mounted short-throw and ultra-short-throw classroom projectors.
[More Information]

HDMI Logo

HDMI Cable

Premium HDMI Digital AV Cable - For 4K, 1080P & 3D Projectors

1 Metres
$19.95
2 Metres
$29.95
3 Metres
$39.95
5 Metres
$49.95
10 Metres
$79.95
15 Metres
$99.95
20 Metres
$149.95

  • High Speed HDMI CAT2 cable
  • Type A to Type A Male-to-Male High Speed cable with Ethernet Channel
  • Designed to support the features of HDMI V2.0 and previous versions
  • Features include 4K (50/60Hz) Video, 3D, Deep Colour, Audio Return Channel
  • High Speed HDMI performance with a dedicated Ethernet channel.
  • Shieled cable construction for optimum RF & EMI Protection
  • Gold Plated terminals
  • 12 Month Warranty
HDMI Features



Bottom Banner
Find us on Facebook
Watch us on YouTube
© 2019 GM Multimedia Pty. Ltd. All rights reserved. ABN: 82 119 523 723. GM Multimedia does not operate a showroom. All product information can be accessed by contacting our sales department. All brands and names are trademarks of their respective companies. Prices in $AUD and are GST inclusive. Prices subject to change without notice. Product images used on website are for illustration purposes only and may vary from the product description. Legal Notice & Disclaimer
