Epson EB-980W LCD High Brightness HD Widescreen Projector

EB-980W







DISCONTINUED




NEW MODEL:
EB-982W



Quick Facts:
Epson EB-980W Throw Distance Chart (Examples for common Sizes)
Throw Ratio: 1.38-2.24:1
Image Size Installation Distance
(Approx. To Lens)
83" (16:10) 1790x1120mm From 2.5m to 3.9m
98" (16:10) 2110x1320mm From 3.0m to 4.7m
118" (16:10) 2540x1590mm From 3.6m to 5.6m
SPECIFICATIONS
Native Resolution: WXGA 1280 x 800 16:10
Brightness: 3800 ANSI Lumens
Maximum Contrast: 15,000:1
Weight: 3.1kg
Fan Noise: 37 / 28db (eco)
Warranty: 3 Years (+1 Year $100)
Lamp Warranty: 12 months / 750 hours
Lamp Life Up To: 12
,000hrs
FEATURES
- Vertical & Horizontal Keystone

- Powerful 16W Speaker

- 1.6x Zoom
- 2x HDMI Connection
- MHL Compatible
- USB to laptop Connection
- Instant Off
- Presentation Wireless - Optional

Epson EB-980W Corporate Multimedia Projector

The Epson EB-980W offers a fantastic combination of high brightness at 3800 lumens and a WXGA HD picture perfect for high detail presentations. Combined with a wide zoom lens it is also great as a replacement projector for a current installation and with a long lamp life economical to run.

KEY FEATURES & BENEFITS

  • 3 x Brighter Colours and Reliable Performance* – 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness.
  • Amazing Colour Brightness – 3,800 lumens colour and 3,800 lumens white brightness.
  • Crisp, Clear Resolution – Featuring WXGA resolution for sharp, widescreen images.
  • Epson iProjection – Wirelessly display and control from your iPhone®, iPad® or iPod Touch®, Android™, and Chromebook devices (wireless LAN needs to purchased separately).
  • Wireless LAN Enterprise Security – Connect projectors in a secure wireless network environment.
  • Low Cost of Ownership – Long life, cost efficient lamp and a high efficiency filter extends the life of your projector and allows for hassle free maintenance.
  • Auto Power on – Simply plug-in HDMI, USB or VGA cable to turn the projector on.
  • Built in Speaker – Presenting is easy with a built in speaker.
  • 3 Year Projector Warranty – Enjoy peace of mind.

High Brightness
If you have a lit room to contend with the Epson EB-980W is the perfect choice. Featuring a powerful 3800 lumen brightness and 15,000:1 contrast the EB-980W can operate in a lights on environment while giving good shading and defined colours. This allows the audience to take notes and concentrate on the presentation.

3LCD technology

All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCD's 3-chip architecture dedicates an entire chip to process each primary colour – red, green and blue, continuously. Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant, realistic images and video all delivered with 3LCD's true-to-life colour.

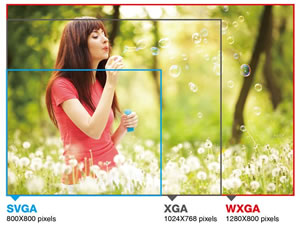

EB-980W resolution

Brilliant high definition image up to 300"

The EB-980W features a WXGA HD resolution of 1280x800 making it easier to connect to newer laptops and tablets which have been widescreen for a while now. This HD resolution is also perfect for HD or high detail presentations.

Collaborative Presenting

Multiple users can connect simultaneously to one projector using EPSON iProjection software which allows you to display four individual PC screens simultaneously over the network (wired or wireless), with up to 50 users connected to the same projector. You can drag and drop participants into or out of one of the four quadrants. This feature is a great tool for meetings or classroom projects where multiple users want to present and compare their screens. You can also connect up to four remote projectors at the same time and show the same multi-screen image; another great tool for remote meeting setups.

With the EPSON iProjection App, you can even display and control content from your iPhone®, iPad®, Android™, and Chrome devices. Just turn on the projector, use the Epson iProjection App to scan the on-screen QR code, and share content on the big screen. (An optional ELPAP10 Wireless LAN unit is required for the EB-980W).

iProjection

V/H keystone

The EB-980W is equipped with both vertical and horizonal keystone making it perfect for off centre installation. Whether you have to get around a ceiling fan or just need it off to the side using horizontal keystone you can have it off to the left or right. With the vertical you can install it up high or down low and still be able to square up the picture.

H + V Keystone

Auto power on feature

The projector starts automatically upon connecting a VGA*, HDMI**, or USB cable to the device itself. This feature means you no longer have to use the power on button because startup is activated with cable insertion.
*VGA auto power on is available with Computer 1 only
**HDMI auto power on is available with HDMI1 only

Auto Power On

New home screen

The EB-980W comes with the new Epson home screen which quickly and easily shows up information about connections both wires or if you have the optional wireless it also displays the wireless setup information without having to dig through the menu or settings.

EB-2265U Home Screen

Split Screen

The EB-980W Split Screen allows you to display content from two inputs simultaneously, side by side, on a single screen. With three layout options you can display video and presentation materials, and run video on both screens.

EB-980W Split Screen

Longer lamp life

The EB-980W is equipped with a revolutionary new lamp design that cuts replacement costs to just $79rrp. On top of that the lamp life is up to 12,000 hours so you experience less down time and less maintenance costs.

ELPLP96

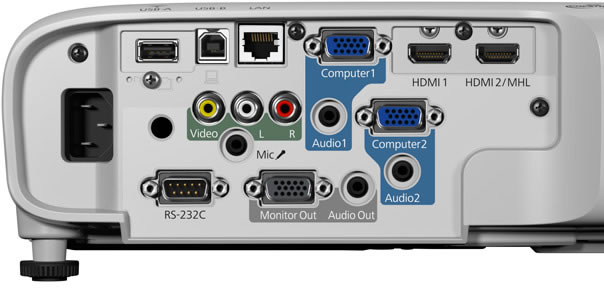

Connectivity Panel

EB-980W Rear





Specifications
PRODUCT NAME EB-980W
PRODUCT CODE V11H866053
WHAT'S IN THE BOX
  Projector, 1.8m power cable, 1.8m computer cable, remote control, 2 x AA batteries, cover for optional wireless LAN unit
TECHNOLOGY
Projection System Epson 3LCD, 3-chip technology
LCD Panel 0.59-inch (D9)
OPTICAL
Zoom 1 - 1.6 Optical
Screen Size 29" to 280" [0.85 to 8.45 m] (Zoom:Wide)
29" to 280" [1.40 to 13.71 m] (Zoom:Tele)
Projection Distance 60" screen 1.79 - 2.92 m
Throw Ratio 1.38 (Zoom: Wide), 2.24 (Zoom: Tele)
Projection Lens F Number 1.51 - 1.99
Projection Lens Focal Length 18.2 mm - 29.2 mm
Focus Method Manual Focus
Offset 10.0:1
Colour Light Output 3,800 Lumens
White Light Output 3,800 Lumens
Resolution WXGA
Native Aspect Ratio 16:10
Contrast Ratio 15,000:1
Lamp Hours Normal/Eco: 6,000 Hours/12,000 Hours
Lamp Type 210W UHE
Keystone Correction Vertical: -30 to +30 degrees
Horizontal: -30 to +30 degrees
CONNECTIVITY
Input: Video 1 x RCA (Yellow), 2 x Component (via D-sub 15-pin)
Input: Computer 1 x D-sub 15-Pin (RGB), 1 x USB 2.0 type B
Input: USB Memory Device USB Type A
Input: Three-In-One USB Display 1 x USB 2.0 type B
Input: Digital 2 x HDMI (1 x MHL)
Input: Audio 2 x RCA (Red/White), 2 x Stereo mini jack
Input: Control 1 x USB 2.0 type B, RS232C
Input: Epson USB Document Camera 1 x USB 2.0 type A
Wireless LAN Optional
WiDI/Miracast N/A
Speaker Output 16W
ADVANCED FEATURES
Epson Projector Management Yes
Epson iProjection Yes
PC Free Presentations Yes
USB Plug 'n Play Yes
AV Mute Slide Yes
Split Screen Yes
Instant Off Yes
Auto Power On Yes
Direct Power On/Off Yes
Security Kensington®-style lock provision
Padlock
Security cable hole
Optional Wireless LAN Unit Lock
Password protect function
Colour Modes Dynamic
Presentation
Cinema
sRGB
Blackboard
GENERAL
Dimensions D x W x H (excluding feet) 282 x 309 x 90 mm
Weight 3.1kg (approximate)
Compatible Lamp Model ELPLP96
Lamp Warranty 12 months or 750 hours*
Projector Warranty 3 Years
Power Consumption: Lamp on Normal/Eco: 315W/225W
Noise Level Normal/Eco: 37/28dB



Rear Panel


EB-980W Rear
