Epson EB-L1060UNL LCD High Brightness Full HD Laser Projector

Epson EB-L1060UNL Large Venue Laser Projector

The Epson EB-L1060UNL is perfect for large venue installations requiring the dependability of a laser projector with a powerful punch that 6000 lumens provides and incredible flexibility. The L1060UNL comes without a lens fitted to save you on buying a lens that may not suite and has 10 different lens options. Perfect for tricky installation where a long or short throw lens might be required. The EB-L1060UNL also features powered zoom focus and lens shift so any adjustments can be performed with a click of the remote.

Lens type	Short Throw Lens 1	Short Throw Lens 2	Wide Throw Lens 1	Wide Throw Lens 2	Middle Throw Lens 1	Middle Throw Lens 2	Middle Throw Lens 3	Middle Throw Lens 4	Long-Throw Zoom Lens
Reference	ELPLU03S	ELPLU04	ELPLW05	ELPLW06	ELPLM08	ELPLM15	ELPLM10	ELPLM11	ELPLL08
	$3499	$3299	$1999	$3899	$649	$1999	$1999	$1999	$3899
Option lens
Screen size range	80-300 inch	50-300 inch	50-300 inch	50-300 inch	50-300 inch	50-300 inch	50-300 inch	50-300 inch	50-300 inch
Epson EB-L1060UNL Distance Chart (Examples for common Sizes)
Throw Ratio	0.65-0.78:1	0.87-1.05:1	1.04-1.46:1	1.62-2.22:1	1.42-2.28:1	2.16-3.48:1	3.32-5.06:1	4.85-7.38:1	7.21-10.11:1
110" (16:10) 2370x1480mm	1.54m to 1.86m	2.08m to 2.51m	2.48m to 3.47m	3.86m to 5.27m	3.43m to 5.51m	5.12m to 8.27m	7.9m to 12.00m	11.53m to 17.52m	17.13m to 24.01m
130" (16:10) 2800x1750mm	1.83m to 2.20m	2.46m to 2.97m	2.95m to 4.11m	4.58m to 6.24m	4.06m to 6.52m	6.07m to 9.79m	9.36m to 14.21m	13.67m to 20.75m	20.31m to 28.43m
180" (16:10) 3880x2420mm	2.55m to 3.06m	3.43m to 4.14m	4.11m to 5.71m	6.36m to 8.68m	5.64m to 9.04m	8.43m to 13.58m	13.01m to 19.72m	19.02m to 28.82m	28.24m to 39.49m

Ultra Short throw Lens (No Lens Shift or Zoom)	ELPLX01	Screen size range	Epson EB-G7905UNL Distance Chart (Examples for common Sizes) Throw Ratio 0.35:1 110" (16:10) 2370x1480mm 0.82m 130" (16:10) 2800x1750mm 0.97m 180" (16:10) 3880x2420mm 1.37m
	$9099	101-400 inch

• Laser Light Source – Experience astonishing quality and reliability

• Up to 3x Brighter Colours, and reliable performance1 – 3LCD, 3-chip technology

• 4K Enhancement – Go beyond High Definition with 4K enhancement and native WUXGA (1920 x 1200) resolution for presentations, videos, digital signage and more

• Up to 6,000 Lumens – Deliver captivating images in virtually any venue

• Colour Uniformity – Keep images consistent and maintenance to a minimum with manual colour correction

• Edge Blending – Combine multiple individual images to create one seamless giant image

• Professional Tool – Efficiently setup multiple projectors straight out of the box with new large venue application software

• Wireless LAN Enterprise Security – Connect projectors in a secure wireless network environment

• 3x Digital connections – Digital quality and distance flexibility

• HDBaseT – Transmit Full HD video and audio, Ethernet and Serial communication through a single CAT 5/6 cable that can be extended up to 100m

• 360° Installation – Install on any plane, from horizontal to vertical and everything in-between

• Powered Lens Shift, Zoom and Focus – Project perfectly uniform images with a new stepping motor and store up to 10 lens settings

• Eleven Optional Lenses2 – Choose the ideal powered lens for your venue from a wide range including ultra-short throw and long throw

• Content Playback – Save videos and photos to USB flash memory and project them instantly without the need of a PC

1 Colour brightness(colour light output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions. Top-selling Epson 3LCD projectors versus top-selling 1-chip DLP projectors based on NPD sales data for May 2017 – April 2018.

2Please refer to lens compatibility chart

3LCD Technology All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCD’s 3-chip architecture dedicates an entire chip to process each primary colour – red, green and blue, continuously. Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant, realistic images and video all delivered with 3LCD’s true-to-life colour.

Up to 3x Brighter Colours with Epson Projectors*
Epson projectors use 3LCD Engines that have no colour wheel with a white segment and therefore don't force a tradeoff between white and colour brightness.

In fact, Epson projectors have up to 3x Brighter Colours than their leading competitive 1-chip DLP projectors*. All Epson projectors list both White Brightness and Colour Brightness specifications, and all have high Colour Brightness.

*Colour brightness(colour light output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions. Top-selling Epson 3LCD projectors versus top-selling 1-chip DLP projectors based on NPD sales data for May 2017 – April 2018.

Laser Light Source Experience astonishing quality and reliability with Epson’s new laser light source. The newly designed laser light source and advanced electrostatic filter deliver 20,000 hours of maintenance-free use and consistent performance for total peace of mind during important presentations.

4K Enhancement Take presenting into the future with support for 4K and the ability to upscale Full HD (1080p and WUXGA) content with Epson’s 4K Enhancement Technology – which shifts pixels diagonally – delivering crisp images beyond high definition.

Up to 6,000 lumens
Powered by 3LCD technology and Epson’s laser optical engine, the EB-L1060UNL is capable of producing White Light and Colour Light Output of up to 6,000 lumens in WUXGA resolution, delivering captivating images in virtually any venue. The laser light source also lets you take control of brightness with precise adjustment in increments of 1% and a constant brightness mode that maintains brightness at a specified level.

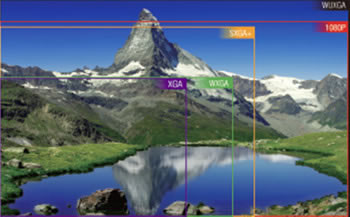

High Resolution Epson EB-L1060UNL features native resolution up to WUXGA (1920 x 1200), delivering high quality images and crisp, sharp text without any distortion. WUXGA resolution is ideal for any application requiring Full HD, including BluRay content, graphic intensive programs, film slides, and any application requiring exceptional detail.

Powered Lens Shift, Zoom and Focus The motorised lens shift covers a wide range, giving you a great deal of flexibility when installing the projector. A newly adopted stepping motor lets you make highly precise adjustments when employing edge blending, stacking and other techniques. Adjustments can be made via remote control or over a network, enhancing usability even for ceiling-mounted projectors.

Colour Uniformity
Keep images consistent and maintain images that have become uneven over time between multiple projectors with manual colour correction.

Lens Position Memory
Up to 10 settings can be stored in the projector memory, including shift positions, focus and projection sizes.

Incredible HDBaseT and diverse connectivity Connect with virtually any system including HDBaseT, DVI-D, HDMI, VGA, BNC and LAN connectivity. Cutting-edge HDBaseT technology means just one single CAT-5/6 cable carries Full HD video, audio, network and control commands up to 100 metres to accommodate large venues. No need for additional cables, signal repeaters or added labour.

360 Degree Projection The Epson EB-L1060UNL can be rotated 360° in any direction for off-axis positioning flexibility. As a result, they can be used for a wide range of applications, such as projecting on the ceiling or floor, or as part of a rear-projection system. Epson technology keeps the projector running without compromising performance or causing overheating.

Edge Blending
Enhance the experience with seamless panoramic, multi-screen images that blend edges by matching colour and brightness perfectly, even in areas that overlap.

Point Correction
Make smooth adjustments of distorted projection image by shifting each of the points laid out on the grid pattern.

Arc Correction
Using arc correction, you can adjust each side of a projected image in an arch or barrel-shaped way, making it easier than ever to get a perfectly rectangular image.

Corner Wall and Curved Surface Projection
Quickly and precisely correct any vertical or horizontal distortion of an image with Epson’s curved surface and corner wall projection. These features allow for greater flexibility when choosing a projection surface. Enhance your viewers experience by projecting your content in a unique environment with ease.

Professional Tool
Setup multiple projectors straight out of the box with new large venue application software. Epson Professional tool allows you to adjust and control images projected on a network with high-end projector setup features such as geometry correction, image layout adjustment, lens control and edge blending. Exclusively bundled to Epson L-Series projectors, large scale presenting has become much easier and flexible.

Content Playback
Save videos and photos to USB flash memory with our dedicated application, and project them instantly without the need for a PC.

Content Management
Epson Projector Content Manager Software enables users to quickly and easily sort and distribute content without any additional costs. Key features of the software include:

• Creating playlists

• Adding visual effects

• Setting up remote shortcuts

• Applying custom filters

• Scheduling playlsits


DICOM Simulation Mode
DICOM (Digital Imaging and Communication in Medicine) is a standard for handling, storing, printing and transmitting medical imaging information. The projector’s DICOM Simulation Mode enables users to reproduce images with an advanced grayscale level that simulates DICOM Part 14. This mode is ideal for viewing grayscale medical images, such as X-rays, for training and educational purposes.

Collaborative presenting Multiple users can connect simultaneously to one projector using Epson iProjection software which allows you to display four individual PC screens simultaneously over the network (wired or wireless), with up to 50 users connected to the same projector. This feature is a great tool for meetings or classroom projects where multiple users want to present and compare their screens.

Simple control
Use features such as Epson Projector Management software to monitor and control projectors, with fleet control across a network or on a web browser to keep track of up to 2,000 projectors. The latest models feature a newly designed OSD Control Pad function that shows a representation of lens conditions on a smart device.

Ultra Short Throw Lens
The ELPLX01 is a UST lens to accommodate high brightness EPSON laser projector models ranging from 5klm to 8klm. This produces images from 100 inches to a massive 400 inches at a throw distance of 0.74m – 3.1m respectively and has lens shift of +17 vertical and +/- 10% horizontally for added flexibility. The UST lens is also available in white (ELPLX01W).

Eleven optional lenses For added flexibility, the EB-L1060UNL offers a total of eleven lenses, including middle, wide, long, short and ultra-short throw that allow users to choose the lens most suited for their environment. A quick-release lever allows for a fast, easy lens exchange.

Ceiling Mounts Both standard and low profile ceiling mounts are available to give you even more installation flexibility across the L Series. Both mounts are now grey in colour to easily integrate into any colour scheme.
