Epson EB-L200F LCD High Brightness Full HD Laser Projector

Epson EB-L200F
Delivery

DISCONTINUED

For the new model Click Here:
Epson EB-L260F

3 year warranty
australian stock
laser projector
1080P Resolution

Specifications

  • 1080p 1920x1080 16:9
  • 4500 ANSI Lumens
  • 2,500,000:1 Contrast
  • 4.1kg Weight
  • 36 / 27db(eco) Fan Noise
  • 3 Years / 20,000 hours Warranty
  • 3 Years / 20,000 hr Laser Warranty
  • Laser Life up to 20,000hrs

Key Features

  • Horizontal & Vertical Keystone
  • Powerful 16W Speaker
  • 1.6x Zoom
  • 360° Installation
  • Portrait Installation
  • 2x HDMI Connections
  • LAN, RS-232, Audio Out, Mic In
  • USB to laptop Connection
  • USB reader (JPEG, GIF, BMP, AVI)
  • Instant Off
  • Presentation Wireless - Included
  • Miracast Compatible

Epson EB-L200F Throw Distance Chart

Throw Ratio: 1.33-2.16:1
Examples of installation distance for some popular screen sizes.
Image Size Installation Distance
92" (16:9) 2030x1140mm From 2.7m to 4.3m
100" (16:9) 2130x1200mm From 2.9m to 4.5m
110" (16:9) 2435x1370mm From 3.3m to 5.2m
120" (16:9) 2657x1494mm From 3.5m to 5.7m
135" (16:9) 2990x1681mm From 4.0m to 6.3m
150" (16:9) 3320x1867mm From 4.4m to 7.1m

Epson EB-L200F Large venue laser Projector

The Epson EB-L200F is a new laser projector perfect for installation or portable use. While most laser projectors are quite large and bulky the EB-L200F brings the reliability and low maintenance features of a laser down to a smaller size. The EB-L200F weighs in at 4.1 kg and has an optional carry case. The full HD image on the EB-L200F gives you great detail and with a 4500 lumen brightness it can easily handle a lights on environment. With a 1.6x optical zoom and both vertical and horizontal keystone the EB-L200F is quite flexible and can easily be installed on a ceiling mount.

Key Features

  • Up to 3 x Brighter Colours and Reliable Performance1 – 3LCD, 3-chip technology. Look for both high colour brightness and high white brightness
  • Break through laser technology – provides up to 20,000 hours of virtually maintenance free operation, with the added benefits of higher image contrast and instant ON/OFF
  • Full HD2 resolution – for Full HD presentations, videos, images, digital signage and more
  • Amazing Colour Brightness – up to 4,500 lumens colour brightness and 4,500 lumens white brightness
  • Miracast support – project your smartphone or tablet screens without a cable connection
  • Split screen – project from two different image sources for flexible options in the workplace
  • Compact size – weighing in at only 4kg for easy travel from room to room
  • Captivating sound – enjoy a built-in stereo speaker up to 16W for life-like sound
  • Simple set-up – Auto Vertical correction and Easy-Slide Horizontal image correction to help get up and running in no time
  • Easy to use – a new simple welcome guide and easy-to-use remote puts all the most used functions right at your fingertips
  • Auto power on – simply plug-in a HDMI, USB or VGA cable to turn the projector on
  • Up to 3-year Projector Warranty – enjoy peace of mind
* Colour brightness(colour light output)_in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions. Top-selling Epson 3LCD projectors versus top-selling 1-chip DLP projectors_based on NPD sales_data for May 2017- April 2018. 2Pixel shifting technology achieves Full HD resolution on screen
EB-L200F Laser

Laser Light Source

Experience astonishing quality and reliability with Epson’s laser light source technology. The newly designed laser light source and advanced electrostatic filter offers fit and forget reliability to keep maintenance to a minimum. Additionally, the laser light source is highly reliable, eliminating worry of the interruptions during important presentations.

Brightness for Any Environment

Powered by 3LCD technology and a laser light source, the EB-L200F is capable of producing 4,500 lumens in both colour and white brightness, making it easy to deliver brilliant content in any setting, even well-lit rooms.

EB-L200F Brightness
EB-L200F Laser Life

Zero Lamp Replacement

Powered by laser light source, the EB-L200F doesn’t require any lamp replacement. Requiring virtually no maintenance for up to 20,000 hours*, the EB-L200F helps to save money and time.

*No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 – 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.

EB-L200F Resolution

Full High Definition Content

Enjoy images in Full HD2 resolution and crisp, sharp text without any distortion. Images can be projected on a large screen with no information left out. This applies to video output devices such as PCs and smart devices with their ever- increasing image quality and higher definition.
2Pixel shifting technology achieves Full HD resolution on screen

EB-L200F Resolution

Big Screen for Big Displays

While conventional panels are limited to a pre-determined height and width, projectors have no such constraints. With the image size expanding up to 500”, your audience can easily read and understand the information you’re sharing, especially in a large meeting room or lecture hall. The EB-L200F also enables presenters to stand close to the board without glare in their eyes and shadows covering the screen.

EB-L200F Big Screen

Detail Enhancement

Get a crisper and sharper image with EB-L200F by turning on detail enhancement. With advanced digital processing, visibility of image displays such as small letters and patterns improves and the sharp edges create crisper images for a more immersive experience.

EB-L200F Detail enhancement

Detail Enhancement

Split Screen allows inputs from two separate sources to be displayed side by side on the same screen. With different layout options you can display video and presentation materials and run video on both screens. This function allows the projector to perform a dual role, eliminating the need for a second screen, perfect for meeting rooms with limited spaces. Additionally, classroom lessons can be made more engaging by connecting a projector with a document camera and a PC or tablet.

EB-L200F Split Screen
EB-2265U Home Screen

EASY WIRELESS CONNECTION

Epson iProjection

Wirelessly display content from your iOS or Android mobile devices as well as PCs, including Chromebook with the Epson iProjection App. Easily share information on the big image from up to four connected devices simultaneously. Just turn on the projector, use the Epson iProjection app to scan the on-screen QR code, and share content on the big screen. This application allows you to travel light and present from your tablet or mobile device.

EB-L200F Moderator Function

Moderator Function

Use the moderator function in the Epson iProjection App* to select a single moderator out of the four connected devices. Only the moderator can control the projected content, and they can drag and drop participants into or out of the four quadrants and control which device screens to display. Encourage and control collaboration; it’s perfect for comparing ideas and content side by side. *All the devices need to be wirelessly connected to the projector with Epson iProjection App. Moderator control is only available on Windows, macOS, iOS and Android devices.

EB-L200F enterprise Security

Wireless LAN Enterprise security

WPA2/WPA3-Enterprise Network provides a safe method of wireless connectivity so the projector can connect to an integrated environment over a secure network.

EB-L200F Miracast

Miracast

Sharing information has been made easier with Miracast*. Users can project their smartphone or tablet screens without a cable connection and ensure high resolution content can be viewed effortlessly. *Laptops or mobile devices must support Miracast.

EB-L200F Flexibility

FLEXIBLE USE

Flexibility in Image Size

Have the flexibility to move from large rooms to small spaces with the EB-L200F projector. The display size can reduce down to 40", allowing for collaboration and information sharing even in meeting rooms with restricted space.

Flexible Positioning

Position your projector almost anywhere in the room and still get a correctly proportioned image with auto vertical correction and easy-slide horizontal image correction. Additionally, optical zoom up to 1 - 1.6x enables you to adjust the image easily and quickly, even in a limited space.

EB-L200F Keystone
EB-L200F Quick Start

Quick Start-up

No need to wait longer for setting up a projector. The EB-L200F displays an image in a few seconds the moment the projector is powered on, unlike traditional lamp projectors. By saving time, you can quickly engage and spend more time collaborating with people.

Convenient Control

Enjoy fast set-up with the Auto Power On function, as the projector start-up is activated via USB, HDMI, or VGA cable insertion. Slide the lens shutter closed at any time and the projector will go into A/V mute (sleep mode) so you can stop and start your presentations when needed. This also means the whiteboard can be used separately when the projector is not in use. With Instant Off, simply remove the power cord of the projector, pack up and go.

EB-L200F Mute

Powerful 16W Speaker

A powerful 16W speaker delivers clear sound to every corner of the classroom or meeting room, saving money by eliminating the need for additional speakers.

EB-L200F New Home Screen

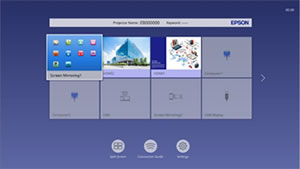

New Home Screen

A new, easy-to-use home screen offers quick access to a variety of useful functions. Also, all source information, no matter what the source input is, can be seen at a glance. Wireless connections can be made effortlessly because all the information you need is right there on the screen.

Specifications
PRODUCT NAME EB-L200F
PRODUCT CODE V11H990053
WHAT'S IN THE BOX
  EB-L200F, 1.8m HDMI cable, 1.8m power cable, Remote control, AA battery x 2
TECHNOLOGY
Projection System Epson 3LCD, 3-chip technology
LCD Panel 0.62-inch
OPTICAL
Zoom 1 - 1.62 (Optical Zoom)
Screen Size 40" to 500"
Projection Distance 60" screen 1.72 m
Throw Ratio 1.33 (Zoom: Wide), 2.16 (Zoom: Tele)
Projection Lens F Number 1.49 - 1.77
Projection Lens Focal Length 18.2 mm - 29.2 mm
Focus Method Manual Focus
Offset 10:0
Colour Light Output 4,500 Lumens
White Light Output 4,500 Lumens
Resolution FHD*
Aspect Ratio 16:9
Contrast Ratio 2,500,000:1
Hours 20,000 Hours
Auto Keystone Correction Vertical: -30 to +30 degrees
Horizontal Keystone Manual -30 to +30 degrees
CONNECTIVITY
Input: Video 1 x RCA Yellow
Input: Computer 2 x Monitor in (D-sub 15pin), 1 x USB-B
Input: USB Memory Device 1 x USB-A
Input: Digital 2 x HDMI
Input: Audio 1 x RCA (Red/White), 2 x Stereo mini jack
Input: Control 1 x RS232C
Input: Epson USB Document Camera 1 x USB-A
Network I/O: 1 x RJ45
Wireless Connectivity Included1
Output: Video D-sub 15 pin (black molding)
Output: Audio Stereo mini jack x 1
Speaker Output 16W
ADVANCED FEATURES
Projector Management Software Yes
iProjection Yes
Instant Off Yes
Direct Power On/Off Yes
Security Kensington®-style lock provision, Padlock & Security Cable Hole, Wireless LAN Unit Lock
Colour Modes Dynamic
Presentation
Cinema
sRGB
Blackboard
GENERAL
Dimensions D x W x H (excluding feet) 299 x 325 x 90 mm
Weight 4.1kg
Projector Warranty 3 years or 20,000 hours (whichever comes first)
Power Consumption Normal/Eco 254W/193W
Power Consumption: Standby 2.0W
Noise Level 36dB/27dB

What's in the Box
EB-L200F remote control
Remote Control
power cord
Power Cord

Rear Panel

EB-L200F rear panel
