Epson EB-L510U LCD High Brightness Full HD Laser Projector



EB-L510U




LAser



DISCONTINUED
FOR CURRENT EPSON PROJECTORS CLICK HERE

Quick Facts:
Epson EB-L510U Throw Distance Chart (Examples for common Sizes)
T/R 1.35-2.20:1
Image Size Installation Distance
(Approx. To Lens)
94" (16:10) 2025x1265mm From 2.8m to 4.4m
110" (16:10) 2370x1480mm From 3.2m to 5.2m
120" (16:10) 2585x1615mm From 3.5m to 5.6m
130" (16:10) 2800x1750mm From 3.8m to 6.1m
140" (16:10) 3015x1885mm From 4.1m to 6.6m
150" (16:10) 3230x2020mm From 4.4m to 7.1m
SPECIFICATIONS
Native Resolution: WUXGA 1920 x 1200 16:10
Brightness: 5000 ANSI Lumens
Maximum Contrast: 2,500,000:1
Weight: 8.5kg
Fan Noise: 38 / 27db (eco)
Warranty: 5 Years / 20,000 hours
Laser Warranty: 5 Years / 20,000 hours
Laser Life Up To: 20
,000hrs
FEATURES
- Vertical & Horizontal Keystone

- 1.6x Zoom
- 2x HDMI Connection
- 360° Projection
- Portrait Projection

- HDBaseT Compatible
- USB to laptop Connection
- Instant Off
- Presentation Wireless - Included
- WiDi and Miracast Compatible

Epson EB-L510U Large venue laser Projector

The EB-510U is the perfect upgrade to change a current conference room projector into a long lasting Laser projector. With the Full HD resolution it provides a crisp perfect for high detail video and even fine lines or small text. With a 5000 lumen brightness the EB-L510U can handle a brightly lit room and with a massive 20,000 hour laser light source means you save on technician, spare lamps, and down time. All backed up with a 5 year warranty the EB-L510U is the workhorse to take you into the future.

KEY FEATURES & BENEFITS

  • Laser Light Source – Experience astonishing quality and reliability
  • Up to 3x Brighter Colours, and reliable performance* – 3LCD, 3-chip technology
  • Amazing Colour Brightness – Up to 5,000 Lumens colour brightness and 5,000 Lumens white brightness
  • Amazing WUXGA High Definition Resolution – Enjoy clear and sharp image quality without any distortion perfect for presentations, videos, digital signage and more
  • Extraordinary sharpness and detail – up to 2,500,000:1 dynamic contrast ratio
  • Virtually maintenance-free operation – Featuring breakthrough laser technology, it delivers a laser light source of up to 20,000 hours†
  • Bright and compact – The flat, simplified design makes the EB-L510U an ideal fit for a wide range of environments, including modern offices and luxury interiors
  • 360° Installation – Install on any plane, from horizontal to vertical and everything in between
  • Wireless LAN Enterprise Security – Connect projectors in a secure wireless network environment
  • HDBaseT – Transmit Full HD video and audio, Ethernet and Serial communication through a single CAT 5/6 cable that can be extended up to 100m
  • Content playback – Save videos and photos to USB flash memory and project them instantly without the need for a PC
    Manual Lens Shift, Zoom and Focus– Up to ±50 percent vertical and ±20 percent horizontal manual lens shift
  • Digital Split Screen – Display content from two inputs simultaneously
  • 5 Year Projector Warranty – A class leading 5 year warranty**

* Colour brightness (colour light output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions. Top-selling Epson 3LCD projectors versus top-selling 1-chip DLP projectors based on PMA Research sales data for Dec.2015 through Nov.2016.

† 20,000 hours is the estimated laser light source life when used in Normal Mode. Actual hours may vary depending on mode and usage environment. The projector has a standard limited warranty of 5 years.

** Warranted for 5 years, see www.epson.com.au for full warranty terms and conditions

PT-L610U Laser

Laser Light Source

Experience astonishing quality and reliability with Epson's new laser light source and advanced filter. A newly designed laser light source and advanced electrostatic filter deliver 20,000 hours of maintenance-free use and consistent performance for total peace of mind during important presentations. Additionally, the laser light source is highly reliable, eliminating worry of the light burning out during important presentations.

Inorganic Components

Epson's newly developed phosphor wheel is made of inorganic material with superior light and heat-resistance to deliver excellent reliability. We've also developed inorganic LCD panels – a key component of imaging devices. Combining an inorganic phosphor wheel with inorganic LCD panels in a laser projector, results in bright and vibrant images for long periods.

EB-L510U Inorganic Panel

6,000 lumens

Powered by 3LCD technology and Epson's laser optical engine, the EB-L510U is capable of producing White Light and Colour Light Output of 6,000 lumens in WUXGA resolution, delivering captivating images in virtually any venue.

EB-L510U 6,000 lumens

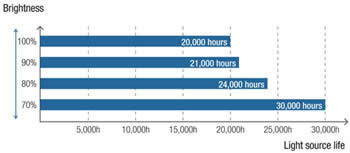

Custom brightness adjustment

The laser light source also lets you take control of brightness with precise adjustment in increments of 1% and a constant brightness mode that maintains brightness at a specified level. This makes it easy to adjust the brightness to fit to your viewing environment, and can prolong projector life.

PT-L610U Brightness

Manual Lens Shift, Zoom and Focus

The manual lens shift covers a wide range, offering a great deal of flexibility when installing the projector.

EB-L510U Zoom Lens Shift

High Resolution

The Epson EB-L510U features native resolution up to WUXGA (1920 x 1200), delivering high quality images and crisp, sharp text without any distortion.

WUXGA resolution is ideal for any application requiring Full HD, including BluRay content, graphic intensive programs, film slides, and any application requiring exceptional detail.

PT-L610U Resolution

5 Year Warranty**

Experience complete peace of mind with the 5 year warranty. This ensures reliable long-term performance and gives you the freedom to concentrate on your presentations.

**Warranted for 5 years, see www.epson.com.au for full warranty terms and conditions.

EB-L510U HDBaseT

ADVANCED INSTALLATION FEATURES

Incredible HDBaseT and Diverse Connectivity

Cutting-edge HDBaseT technology means just one single CAT-5/6 cable carries Full HD video, audio, network and control commands up to 100 metres to accommodate large venues. No need for additional cables, signal repeaters or added labour.

360 Degree Projection

The Epson EB-L510U can be rotated 360° in any direction for off-axis positioning flexibility. As a result, they can be used for a wide range of applications, such as projecting on the ceiling or floor, or as part of a rear-projection system. Epson technology keeps the projector running without compromising performance or causing overheating.

EB-L510U 360 degree projection

Digital Split Screen

Split Screen allows users to display content from two inputs simultaneously, side by side, on a single screen with the option of three different layouts. This makes it possible to display video and presentation materials simultaneously, or run video on both screens.

Content Management

Epson Projector Content Manager Software enables users to quickly and easily sort and distribute content without any additional costs. Key features of the software include:

Creating playlists
Adding visual effects
Setting up remote shortcuts
Applying custom filters
Scheduling playlists

Content Playback

Save videos and photos to USB flash memory with our dedicated application, and project them instantly without the need for a PC.

DICOM Simulation Mode

DICOM (Digital Imaging and Communication in Medicine) is a standard for handling, storing, printing and transmitting medical imaging information. The projector's DICOM Simulation Mode enables users to reproduce images with an advanced grayscale level that simulates DICOM Part 14. This mode is ideal for viewing grayscale medical images, such as X-rays, for training and educational purposes.

Collaborative Presenting

Multiple users can connect simultaneously to one projector using Epson iProjection software which allows you to display four individual PC screens simultaneously over the network (wired or wireless), with up to 50 users connected to the same projector. You can drag and drop participants into or out of one of the four quadrants. This feature is a great tool for meetings or classroom projects where multiple users want to present and compare their screens. You can also connect up to four remote projectors at the same time and show the same multi-screen image; another great tool for remote meeting setups.

Simple Control

Use features such as Epson Projector Management software to monitor and control projectors, with fleet control across a network or on a web browser to keep track of up to 2,000 projectors. The latest models feature a newly designed OSD Control Pad function that shows a representation of lens conditions on a smart device.

Universal Ceiling Mounts

EB-L510U is compatible with ceiling mount ELPMB22. If you are already using ELMB23, simply attach the lower parts of ELMB22 to EB-L510U. This eliminates the need for additional cable work or other construction.

EB-L510U ceiling mount







Specifications
PRODUCT NAME Epson EB-L510U
PRODUCT CODE V11H903053
WHAT'S IN THE BOX
  EB-L510U Projector, 3m Power cable, 1.8m Computer cable, Remote control, 2 x AA Batteries, Cable cover, Manual. ELPAP10 Wireless lan with cover
TECHNOLOGY
Projection System RGB liquid crystal shutter projection system
LCD Panel 0.67-inch
OPTICAL
Zoom 1 - 1.6 (Optical)
Screen Size (Standard Lens) 50" to 500" [1.44m to 14.76m] (Zoom: Wide)
50" to 500" [2.35m to 23.84m] (Zoom: Tele)
Projection Distance (Standard Lens) 80" screen 2.33 m - 3.78 m
Throw Ratio 1.35 (Zoom:Wide), 2.20 (Zoom:Tele)
Projection Lens F Number 1.5 - 1.7
Projection Lens Focal Length 20.0mm - 31.8mm
Focus Method Manual
Colour Light Output 5,000 Lumens
White Light Output 5,000 Lumens
Resolution WUXGA
Native Aspect Ratio 16:10
Contrast Ratio 2,500,000:1
Light Source Laser Diode
LD Input Power 205W
Keystone Correction (Standard Lens) Vertical: ±30°
Horizontal ±30°
Lens Shift (Standard Lens) Vertical: ±50% (Manual)
Horizontal: ±20% (Manual)
CONNECTIVITY
Input: Computer 2 x D-sub 15-Pin (RGB), 1 x USB-A, 1 x USB-B (Service)
Input: Digital 2 x HDMI
Input: Audio 2 x Audio
Input: Control 1 x RS-232C
Input: Network I/O 1 x RJ45, 1 x USB Type A (for optional Wireless LAN unit)
Input: HDBaseT 1 x HDBaseT
Output: Computer 1 x D-sub 15-Pin (RGB)
Output: Audio 1 x Stereo mini
Wireless Connectivity Optional
Miracast -
ADVANCED FEATURES
EPSON Projector Management (Network & Control) Yes
EPSON iProjection (Multi-PC Projection) Yes
Wireless LAN Enterprise Security Yes
Split Screen Yes
360 Degress Projection Yes
Instant Off Yes
Direct Power On/Off Yes
Security Kensington®-style lock provision
Wireless LAN Unit Lock
Security cable hole
Colour Modes Dynamic
Presentation
Cinema
sRGB
DICOM SIM
Multi-Projection
GENERAL
Dimensions D x W x H (Including feet and back cover) 339 x 440 x 136 mm
Dimensions D x W x H (Excluding feet and back cover) 304 x 440 x 120 mm
Weight Approx. 8.5Kg
Projector Warranty 5 Years
Power Consumption: LD On 353W
Power Consumption: Standby 2.0W
Noise Level Normal/Quiet: 38/27 dB



Rear Panel


EB-L510U Rear
