Epson EB-U42 LCD Multimedia Full HD Projector


EB-U42






DISCONTINUED
FOR CURRENT EPSON PROJECTORS CLICK HERE

Quick Facts:
Epson EB-U42 Throw Distance Chart (Examples for common Sizes) T/R 1.38-1.68:1
Image Size Installation Distance
(Approx. To Lens)
83" (16:10) 1790x1120mm From 2.5m to 3.0m
98" (16:10) 2110x1320mm From 2.9m to 3.5m
118" (16:10) 2540x1590mm From 3.5m to 4.2m
SPECIFICATIONS
Native Resolution: WUXGA 1920 x 1200 16:10
Brightness: 3600 ANSI Lumens
Maximum Contrast: 15,000:1
Weight: 2.8kg
Fan Noise: 37 / 28db (eco)
Warranty: 2 Years (+1 Year $85)
Lamp Warranty: 12 months / 750 hours
Lamp Life Up To: 10
,000hrs
FEATURES
- Vertical Keystone
- Horizontal Keystone
- MHL Compatible
- Instant Off
- 2x HDMI Connection
- USB to laptop Connection
- USB stick reader (jpeg only)
- Presentation Wireless - Included
- Miracast Compatible

Epson EB-U42 Projector

The Epson EB-U42 features a Full HD high detail resolution perfect for presentations that feature small text or large spread sheets or even HD video. The EB-U42 can handle it all and with a compact size can also be used as a portable projector and enough brightness at 3600 lumens to handle a well lit area. The EB-U42 also comes with VGA, HDMI, and USB connectivity plus an inbuilt wireless connection which also is Miracast compatible so can even project wirelessly from the newest devices.

KEY FEATURES & BENEFITS

  • Bright Images – Up to 3,600 lumens colour and 3,600 lumens white brightness.
  • Brilliant Full High Definition Resolution – Enjoy clear and sharp image quality of full high definition contents without any distortion with WUXGA (1920 x 1200) resolution, which is suitable for presentations, videos, digital signage and more.
  • Wireless – Project from your laptop, tablet, or smartphone without plugging into the projector, so you can move freely about the room. *Not for Full Motion Video
  • Fast, easy image adjustments – Auto horizontal and manual vertical keystone correction to quickly adjust the image to fit the screen, even if the projector is placed off centre.
  • Versatile connectivity – Compatible with the latest laptops and media players - supports HDMI and MHL-enabled devices.
  • Travel Friendly – Weighs only 2.8kg and comes with a carry case for convenient travel between home and business.
  • Epson iProjection – Wirelessly display and control from your iPhone®, iPad® or iPod Touch®, Android™, and Chromebook devices.
  • Easy Maintenance – Both lamp and filter cycle for 6,000/10,000hrs (normal/ECO).
  • Built in Speaker – Presenting is easy with a built in speaker.
Epson True Colour

True Colours

White brightness alone cannot bring the true colours you see every day. While other manufacturers of 1-chip DLP technology believe they can improve image quality by just increasing the brightness of their projectors' white light output, Epson ensures that its projectors combine brightness and True Colour to create vibrant and realistic images with 3LCD technology across every projector model.

High brightness

Although the Epson EB-U42 has been designed to be compact and easy enough to carry around and move from room to room it also packs a punch. With a high brightness of 3600 lumens and a superior contrast ratio of 15,000:1 the EB-U42 is perfect for lights on presentations. You no longer have to worry about dimming room lights providing you with hassle free presentations.

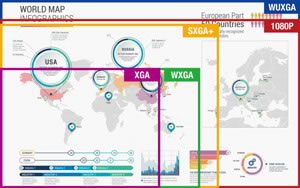

resolution

Brilliant high definition image

The Epson EB-U42 features a WUXGA Full HD resolution of 1920 x 1200 guaranteeing a sharp clear picture for even fine lines or small text.
This ensures you can project onto a large image size without worrying about the information becoming blurry or illegible. The Full HD resolution also means the EB-U42 is the best fit for the newest laptops and tablets which will be easier to setup with the widescreen format.

Miracast certified

The EB-U42 is also Miracast compatible which is the newer type of wireless designed to help you connect your compatible smartphone or tablet for screen mirroring. It is designed for connectivity without the complicated setup and no need to buy extra dongles or modules.

EB-U42 Miracast


Epson iProjection App

Display and control content on he EB-U42 from your iPhone®, iPad® or iPod touch®, Android™ and Chrome devices with the Epson iProjection App. This free application allows you to travel light and present from your mobile device. Just turn on the projector, use Epson iProjection to scan the on-screen QR code, and share content on the big screen.

MHL

HDMI connectivity and MHL

With the new HDMI connection you can easily project audio and HD video from modern laptops, Bluray players and even games consoles with the one cable. The HDMI is also MHL compatible which allows for easy connection for the latest MHL-enabled tablets and smartphones while the projector charges the MHL enabled device.



USB Plug 'n Play

Epson’s EB-U42 features an advanced 3 in 1 USB connectivity enables instant Plug 'n Play setup for Video, Audio and Control. Forget about complicated computer key sequences and non-intuitive controls. Instead, just plug in a standard USB cable and let your presentation impress the audience.

Low Cost of Ownership

With a super long life to both the filter and lamp of up to 10,000 hours the Epson EB-U42 ensures less cost and less down time. On top of that the new lamp design brings down the replacement lamp price to just $79rrp.

Epson Lamp
home Screen

New home screen

New home screen on the EB-U42 offers quick and easy access to a variety of useful functions. Also, all source information, no matter what the source input is, can be seen at a glance. Wireless connections are also easier to setup with all the connection information up on the home screen.

Quick, convenient control

The EB-U42 is easier to control than ever through its Auto Power On feature. There is no need to turn on the power using the remote control or the power button on the projector itself because start-up is activated with cable insertion.

With Sleep Mode (A/V Mute) you can pause your presentation or movie without turning the projector off. The projector also enables you to quickly power down, pack up and go with its Instant Off® feature, allowing you to control your projector with the flip of a switch.

Convenient control

Split Screen

Split screen allows you to display content from two inputs simultaneously, side by side, on a single screen. With three layout options you can display video and presentation materials, and run video on both screens.

EB-U42 Split Screen

EB-U42 Keystone

Easy image adjustments with auto vertical correction

Position your projector almost anywhere in the room and still get a correctly proportioned image with auto vertical correction and horizontal slide image correction. Being able to adjust the image easily and quickly, even in a limited space, makes the EB-U42 perfect for narrow spaces, such as on a desk.

Shorter throw distance

With a shorter throw distance the EB-U42 is also perfect for more intimate meeting rooms where you might not have a long setup distance to work with.

EB-U42 Throw Distance

Carry Case

The EB-U42 also comes with a carry case so you don't need to rush out to buy a seprate bag. This means that you are mobile as soon as the box is opened.

EB-U42 Carry Case

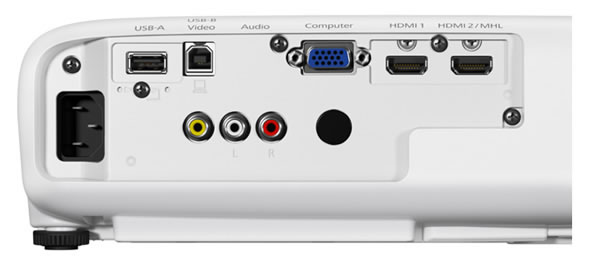

Connectivity Panel

EB-U42 Rear



Specifications
PRODUCT NAME Epson EB-U42
PRODUCT CODE V11H846053
WHAT'S IN THE BOX
  Projector, 1.8m power cable, 1.8m computer cable, remote control, 2 x AA batteries, soft carrying case
TECHNOLOGY
Projection System Epson 3LCD, 3-chip technology
LCD Panel 0.67-inch (D10)
OPTICAL
Zoom 1 - 1.2 (Optical Zoom)
Screen Size 30" to 300" [0.87 to 9.02 m] (Zoom: Wide)
30" to 300" [1.07 to 10.98 m] (Zoom: Tele)
Projection Distance 60" screen 1.8 - 2.17 m
Throw Ratio 1.38 (Zoom: Wide), 1.68 (Zoom: Tele)
Projection Lens F Number 1.50-1.71
Projection Lens Focal Length 20.42 mm-24.50 mm
Focus Method Manual Focus
Offset 10:1
Colour Light Output 3,600 Lumens
White Light Output 3,600 Lumens
Resolution WUXGA
Native Aspect Ratio 16:10
Contrast Ratio 15,000:1
Maintenance Cycle Normal/Eco: 6,000/10,000 Hours
Lamp Type 215 W UHE
Keystone Correction Vertical: -30 to +30 degrees
Horizontal: -30 to +30 degrees
CONNECTIVITY
Input: Video 1 x RCA (Yellow)
Input: Computer 1 x D-sub 15-Pin (RGB), 1 x USB 2.0 type B
Input: USB Memory Device 1 x USB Type A
Input: Three-In-One USB Display 1 x USB 2.0 Type B
Input: Digital 2 x HDMI (1 x MHL)
Input: Audio 2 x RCA (1 x White, 1 x Red)
Input: Control 1 x USB 2.0 type B
Input: Epson USB Document Camera 1 x USB 2.0 type A
Wireless LAN Included
WiDI/Miracast Included
Speaker Output 2W
ADVANCED FEATURES
Epson Projector Management Yes
Epson iProjection Yes
PC Free Presentations Yes
USB Plug 'n Play Yes
AV Mute Slide Yes
Split Screen Yes
Instant Off Yes
Auto Power On Yes
Direct Power On/Off Yes
Security Kensington®-style lock provision, Password protect function, Padlock & Security Cable Hole.
Colour Modes Dynamic, Presentation, Cinema, sRGB, Blackboard
GENERAL
Dimensions D x W x H (Including Feet) 302 x 87 x 249 mm
Weight 2.8 kg (approximate)
Compatible lamp model ELPLP96
Lamp Warranty 12 Months or 750 hours*
Projector Warranty 2 Years
Power Consumption: Lamp on Normal/Eco: 291W/214W
Noise Level Normal/Eco: 37/28dB
*Which ever comes first

Manual Download Epson EB-U42 User Manual
Supplied Accessories
Carry Bag
Remote
EB-U42 Carry Case bag
EB-U42 Remote
Rear Panel

EB-U42 Rear
