Epson EH-LS500B Laser 4Ke Ultra short Throw Home Theatre Projector




Australian 3 Year Warranty

Your Price: $5399
$100 dollars off
$100 OFF WAS $5499
Must end 15th August

Flat Rate Freight!
$22 Insured Australia Wide.
Pick up Available

Quick Facts:
Epson EH-LS500B Throw Distance Chart (Examples for common Sizes)
T/R 0.27-0.37:1 *LS500B cannot be ceiling mounted
Image Size Installation Distance
(Approx. To Lens)
92" (16:9) 2030x1140mm From 0.55m to 0.75m
100" (16:9) 2130x1200mm From 0.57m to 0.78m
110" (16:9) 2435x1370mm From 0.66m to 0.90m
120" (16:9) 2580x1450mm From 0.70m to 0.95m
130" (16:9) 2880x1615mm From 0.78m to 1.05m

Native Resolution: 1920x1080x2 (4Ke) 16:9
Brightness: 4000 ANSI Lumens
Maximum Contrast: 2,500,000:1
Weight: 9.3kg
Fan Noise: 26db
Warranty: 3 Years/20,000 Hrs (+1 Year $159)
Lamp Warranty: 3 Years/20,000 Hrs
Lamp Life Up To: 30,0

- 3x HDMI Connection
- HDR Compatible
- HLG Compatible

- Chromecast Inbuilt
- Streaming Media Player (wireless)

- 20W Poweful Speaker Inbuilt

Epson EH-LS500B 4Ke Ultra short throw Laser Home theatre projector

The EH-LS500B 4K enhanced “laser TV” projector is the perfect solution for a massive projected picture with the power and convenience to both handle light in the room, and save on complicated installation costs. No roof mounting or cabling is required just pop it on a TV unit and project onto a wall. The EH-LS500B is equipped with inbuilt Chromecast and Streaming media player so it can operate as a standalone device not requiring any extra media players. With a long life Laser light source it can operate as a TV running for hours on end without the hassle of replacement lamps and down time. There are even optional Light rejecting fixed frame screens in 100” or 120” sizes for extra bright environments to get an even punchier image.

Epson EH-LS500B Distance

A complete solution (Optional)

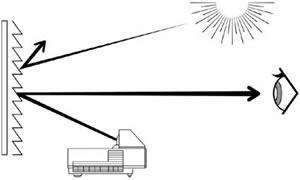

The ambient light rejection (ALR) screen enhances the image quality in bright environments by maximising projection light and cutting out any other type of light.
For a complete solution, bundle options of EH-LS500B with ALR 100-inch or 120-inch screen are available.

EH-LS500B ALR Screen

EH-LS500B ambient Light Rejecting projector screen


  • 4K PRO-UHD1 - a new type of 4K home theatre projection technology only from Epson
  • Up to 3x brighter colours and reliable performance2 - 3LCD, 3-chip technology
  • Break through laser technology - provides up to 20,000 hours of virtually maintenance free operation, with the added benefits of higher image contrast and instant ON/OFF
  • Bright Images - 4,000 lumens colour brightness and 4,000 lumens white brightness
  • Dedicated 4K Pixel-Shift Processor1 - Epson’s advanced pixel-shifting resolution-enhancement technology results in an exceptional 4K visual experience
  • Dedicated HDR Processor - full 10-bit HDR colour processing uses 100% of the HDR source information
  • Dedicated Digital Imaging Processor - real time full 12-bit analogue-to-digital video processing for smooth tonal transitions
  • Deep black contrast ratio - features an extraordinary contrast ratio up to 2,500,000:1, for exceptionally deep blacks and brilliant, vivid colours
  • Detail enhancement - sharpen and refine images for lifelike clarity
  • Transcendent viewing experience - place a full life-sized high definition display just a half meter from the wall for 130 inch display without detracting design of home interior
  • Smart TV – a Smart Media Player (SMP) is included so you can watch your favourite content from apps with a simple-to-use remote that features voice search
  • Versatile connectivity - HDMI ports allow you to display 4K HDR content at a full 60Hz with the latest 18 Gbps HDMI 2.0 with ARC supporting specification, and it is compatible with the latest streaming devices and gaming consoles
  • Built in speaker - getting started is easy with built in 2 x 10W speakers
  • 3 Year projector warranty - enjoy peace of mind with 3 year warranty

1 4K Enhancement Technology (4Ke) shifts each pixel diagonally to double Full HD (1920x1080) resolution. Resolution is Full HD in 3D Mode.
2 Colour brightness(colour light output)_in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions. Top-selling Epson 3LCD projectors versus top-selling 1-chip DLP projectors_based on NPD sales_data for May 2017- April 2018.

Experience a new type of 4K home theatre projection technology from Epson with proprietary dedicated processors for resolution enhancement1, HDR, and image processing. 4K PRO-UHD home theatre projectors faithfully display all your favourite content from the classics to the latest blockbusters. This isn’t just a new way to watch movies — it’s the best way.
14K Enhancement Technology (4Ke) shifts each pixel diagonally to double Full HD (1920x1080) resolution. Resolution is Full HD in 3D Mode.

EH-LS500B 4K

3LCD technology
All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCD’s 3-chip architecture dedicates an entire chip to process each primary colour – red, green and blue, continuously. Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant, realistic images and video all delivered with 3LCD’s true-to-life colour.

EH-LS500B 3LCD Laser

4,000 lumens
Powered by 3LCD technology and Epson’s laser optical engine, the EH-LS500B is capable of producing White Light and Colour Light Output of 4,000 lumens in native 1080p high definition resolution, delivering bright images perfect for every day entertainment and beyond.

EH-LS500B 3LCD Laser

Laser light source
Experience astonishing quality and reliability with Epson’s new laser light source. The newly designed laser light source and advanced electrostatic filter deliver 20,000 hours of maintenance-free use, and consistent performance for total peace of mind.
EH-LS500B Laser

Inorganic components
Epson’s newly developed phosphor wheel is made of inorganic material with superior light and heat-resistance to deliver excellent reliability. We’ve also developed inorganic LCD panels – a key component of imaging devices. Combining an inorganic phosphor wheel with inorganic LCD panels in a laser projector, results in bright, vibrant images for long periods.

EH-LS500B Inorganic Panel

Dedicated 4K Enhancement Processor
Advanced 4K enhancement hardware precisely controls three-individual high-definition LCD chips to parallel process up to 12 million pixels of information. This new type of resolution enhancement technology results in a 4K visual experience – surpassing other forms of 4K home theatre projection.

Dedicated HDR Processor
A High Dynamic Range expands the range of colour and contrast that can be reached, resulting in a more realistic and natural image. Epson’s full 10-bit HDR colour processing accepts 100% of the HDR source information to faithfully reproduce HDR content for an exceptional visual performance.

EH-LS500B Dedicated processor


Dedicated Digital Imaging Processor
Real-time 12 bit analogue to digital video processing ensures smooth tonal transition, while eliminating banding, blocking and other compression artefacts from the final visual performance. The powerful processor in the EH-LS500B faithfully reproduces the source material the way it was intended to be shown.

EH-LS500B Digital Image Processor

Deep black contrast ratio
Enjoy bright, vibrant pictures and excellent shadow detail of your favourite movies with 2,500,000:1 deep black contrast ratio on EH-LS500B. Bring out mesmerising dark scenes of full high definition images to brilliant viewing experience.

EH-LS500B Contrast

Detail enhancement
Fine tune high definition images by turning on the detail enhancement feature which sharpens and refines images for lifelike clarity.

EH-LS500B Detail enhancement

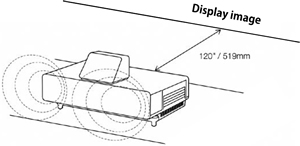

Easy installation
With Epson EH-LS500B’s unique ultra short-throw lens, up to 130 inch bright and vivid display image will appear by simply putting the projector on your TV board. Built-in speaker, streaming capability realise simple installation without any complicate cable management.
EH-LS500B Distance

Transcendent viewing experience
Combine Epson Laser Projection TV‡ with an Ultra High-Definition Ambient Light Rejecting Screen to produce vivid colours and deep blacks in virtually any viewing environment. Become fully immersed in the entertainment with exceptionally bright, sharp and colourful content at any time, day or night.
This Immersive Display up to 120 inches is the perfect alternative to traditional LCD and OLED TVs. The Epson LS500B Laser Projection TV‡ represents a new generation of digital projection that redefines the everyday television experience by offering a stunning picture available in both 100-inch or 120-inch screen sizes.

EH-LS500B Light Rejecting projector screen

Streaming Media Player for Smart Entertainment
Select from over 4,000 content apps including pre-installed apps so you can stream your favourite series, live sporting events, or simply watch the latest blockbuster movie with the EH-LS500B Epson Laser projection TV‡.
‡TV tuner is not included, purchase of separate TV tuner and antenna are required to watch free over-the-air local channels.

EH-LS500B Streaming Media Player inbuilt

Voice control
Access your favourite shows or content on the EH-LS500B, operating with one remote that includes voice control.

EH-LS500B Voice control

EH-LS500B Chromecast built in Chromecast built-in
Cast your favourite entertainment apps — movies, TV shows, music, games, sports and more — from your Android or iOS device, Mac or Windows computer for flexible viewing with simple set-up.

Advanced connectivity
Supporting the latest 18 Gbps HDMI 2.0 specification, the LS500B Laser TV‡ displays 4K HDR content at a full 60Hz and is compatible with the latest streaming devices and gaming consoles.

EH-LS500B HDMI 2.0 4K gaming consoles PS5 Xbox Series X

Wide viewing angle
Clear images can be seen from any angle with no limitations of reflective glare. Projected images also allow you to get closer to the image without straining your eyes. Host a large number of guests to watch games or sports without repositioning furniture around to clear the viewing range.

EH-LS500B viewsing angles sport

Screen-Less experience
Transform your wall with life-size images instantly with the EH-LS500B. Place the projector just a half meter from the wall and get sharp, Full HD resolution up to 130 inches — with no long cables, no shadows, and no glare — for a modern entertainment solution that won’t detract from your decoration.

EH-LS500B no screen wall projector

Stylish design
EH-LS500B is designed to easily harmonise and fit your living space and modern interior.
With the design inspired by a minimalist shape, charcoal black colour and carefully chosen fabric pattern, the trendy look and feel of the EH-LS500B blends naturally into a variety of living spaces.

EH-LS500B styling design

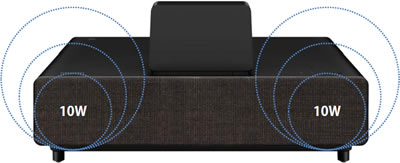

Built-in Speaker
A built-in 2 x 10W speakers makes watching movie on the go hassle free.
EH-LS500B Speakers


  EH-LS500 Projector, 1.8m Power Cable, Remote Control, HDMI Extension Cable, USB Power Cable, Feet, Lens cap, SMP Dongle with Remote Control, Batteries, Registration Sheet
Projection System 3LCD
LCD Panel 0.61-inch panel
Light source Laser diodes
Colour Light Output 4,000 Lumens, 2800 Lumens (Economy)
White Light Output 4,000 Lumens, 2800 Lumens (Economy)
Laser Light source
20,000 Hours Durability High, 30,000 Hours Durability Eco
Resolution 4K Enhancement* 1920 x 1080 x 2
Native Aspect Ratio 16:9
Contrast Ratio 2,500,000:1
Colour Reproduction Up to 1.07 billion colours
Colour Processing 10bit (12 bit image processing)
Keystone Correction V / H: -3 to +3 degrees
Zoom Ratio 1 - 1.35 (Digital)
Screen Size 65" to 130" (16:9) [16cm to 57cm]
Projection Distance example 100” screen (16:9) - 39.1 cm
Throw Ratio 0.28 (Zoom:Wide), 0.38 (Zoom:Tele)
Lens F Number 1.5
Lens Focal Length 3.9mm
Focus Method Manual
Input: Video 1 x USB A, 1 x RS-232 control, 1 x RJ45, 1 x USB B mini (service)
Input: Digital 3 x HDMI (HDCP2.2)
Input: Audio N/A
Output: Audio 1 x HDMI (via HDMI2 only), 1 x Audio out (via Stereo mini)
Output: Computer N/A
Speaker Output 2 x 10W
Detail Enhancement Yes
Streaming Media Player Yes
Chromecast inbuilt Yes
AV Mute Yes
4K Enhancement* Yes
High Dynamic Range – HDR10 Yes
Hybrid Log Gamma - HLG Yes
Advanced Image processing Yes
Direct Power On No
Security Kensington Lock
Colour Modes Dynamic, Bright Cinema, Cinema, Game
Dimensions D x W x H (Inc Feet) 60.1 x 50.1 x 25.5 cm
Weight Approx. 14kg
Projector Warranty 3 Yrs or 20,000 Hrs (whichever comes first)
Power Consumption: Normal 423W
Power Consumption: Standby 0.5W
Noise Level Normal/Quiet: 36/26dB

*4K Enhancement Technology (4Ke) shifts each pixel diagonally to double Full HD (1920x1080) resolution. Resolution is Full HD in 3D Mode.

Rear Panel
EH-LS500B Connections


Optional Accessories


HDMI Cable

Premium HDMI Digital AV Cable - For 4K, 1080P & 3D Projectors

1 Metres
2 Metres
3 Metres
5 Metres
10 Metres
15 Metres
20 Metres

  • High Speed HDMI CAT2 cable
  • Type A to Type A Male-to-Male High Speed cable with Ethernet Channel
  • Designed to support the features of HDMI V2.0 and previous versions
  • Features include 4K (50/60Hz) Video, 3D, Deep Colour, Audio Return Channel
  • High Speed HDMI performance with a dedicated Ethernet channel.
  • Shieled cable construction for optimum RF & EMI Protection
  • Gold Plated terminals
  • 12 Month Warranty
    *We recommend keeping the length short for 4K under 10m - especially for 60hz
