Maxell MPAW4001 LCD HD Laser Ultra Short Throw Projector - Optional Wall Mount




Australian 5 Year Warranty

maxell Projector logo

Your Price: $2799

Flat Rate Freight!
$22 Insured Australia Wide.
Pick up Available

Wall Mount $199

Quick Facts:
Maxell MPAW4001 Throw Distance Chart (Examples for common Sizes) T/R: 0.3:1
Image Size Installation Distance
(Approx. To Lens)
83" (16:10) 1790x1120mm From 0.54m to 0.54m
98" (16:10) 2110x1320mm From 0.63m to 0.63m
Native Resolution: WXGA 1280 x 800 16:10
Brightness: 4200 ANSI Lumens
Maximum Contrast: 500,000:1
Weight: 7.4kg
Fan Noise: 34 / 28db (eco)
Warranty: 5 Years / 20,000hrs
Laser Warranty: 5 Years / 20,000hrs
Laser Life Up To: 20,000hrs
- Vertical Keystone Correction
- Horizontal Keystone Correction

- 2x HDMI Connection
- Powerful 16W Speaker
- USB stick reader (Jpeg / Video)

- Optional Wireless
- Optional Wall Mount

Maxell MPAW4001 LCD Laser HD Ultra Short Throw Projector

The Maxell MPAW4001 is revolutionary bringing together a very strong 4200 lumen brightness with a long life laser light source. This HD projector produces a clear strong image even in a well lit environment. But does away with the old fashioned lamps bringing in a solid state laser which has a 20,000 hour life. This eliminates the cost of replacement lamps, technicians and down time and is backed up with a 5 year 20,000 hour warranty. The short throw lens allows you to have the projector at the front of the room making for a simpler installation and there is an optional wall mount to truly get it out of the way.

These ultra short throw LCD laser projectors from Maxell are specifically designed to enhance the visual experience – beit audience or presenter. Vivid colours, bold graphics and crisp text. Our projectors do it all, no matter what the environment. With up to 4,200 ANSI lumens of brightness and WXGA 1280 x 800 resolution, our ultra short throw projectors provide the perfect compatible solution. They also feature a high contrast ratio, cloning function enabling you to copy settings data from one projector to others of the same model, and are wireless presentation ready. Plus, embedded networking gives you the ability to manage and control multiple projectors over your LAN (scheduling of events, centralised reporting, image transfer, and email alerts). Most importantly, the high performance of our projectors is exceptionally reliable and offers a very low cost of ownership.


  • WXGA Resolution, 4,200 Lumens
  • 500,000:1 Contrast Ratio
  • Laser Phosphor Light Source
  • 20,000 hours expected light source
  • New & improved wall mount supports up to 110” (Optional)
  • Achieve up to 130” image size (for example, by tabletop)
  • Wireless Network Option
  • 3LCD
  • 16 Watt Internal Speakers
  • HDMI x 2 (HDCP compliant, HDMI 1 shared with MHL)
  • 5 Year On Site Warranty
Maxell original technology makes pictures look more real by enhancing sharpness, gloss and shade to make pictures as clear as pictures on a flat-panel device. You can also adjust the effects by three levels according to your surroundings so that the colors of projected images are the actual colors of the objects they represent.
MPAW4001 Accentualizer

Aspect Zoom
Aspect Zoom makes the maximum image size on the screen while keeping the aspect of the imag
MPAW4001 Aspect zoom

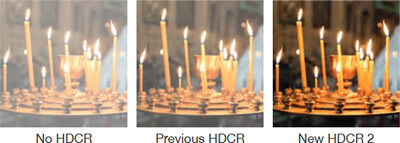

HDCR2 (High Dynamic Contrast Range)
When average projectors are used in bright rooms, the darker colors of an image deteriorate and images become unclear. Using this function, blurred images caused by room lighting or outside light sources are corrected, and an effect similar to increasing contrast occurs. The recent enhancement to HDCR2 achieves not only auto tone enhancement but also auto color enhancement. This results in clear and vivid images even in bright rooms.
CPAW3001 Cloning function Cloning Function
Copy setting data from one projector to others of the same model via USB memory. Cloning not only saves almost all PJ settings such as gamma and keystone via USB memory, it saves countless hours in setup and installation
MHL (Mobile High-Definition) allows users to mirror their phone/ tablet screen with the projector display. It is compatible with any and all apps.
CPAW3001 Perfect Fit 2 Perfect Fit 2
Enables the user to adjust individual corners and sides independent of one another. Perfect Fit 2 provides vertical and horizontal digital correction of either barrel or pin cushion distortions. This feature helps correct geometric and complicated distortions. Perfect Fit 2 allows the projected image to fit correctly to the screen quickly and easily.
CPAW3001 Cloning function Projector Quick Connection App For Mobile Devices
Our iOS and Android applications offers projector control and also provides the capability to display photos, document files and web site contents. Available for iPad®, iPhone® and Android devices. Works over your LAN via your RJ-45 port or via an optional USBWL5G wireless adapter.
CPAW3001 Cloning function Input Source Naming
Users can name input sources in simple language instead of factory default names.
CPAW3001 Cloning function Microphone Input
A microphone can be used via the jack located on the input panel. Allows for more dynamic presentations even in standby mode.
CPAW3001 Cloning function Network Control, Maintenance and Security
Embedded networking gives you the ability to manage and control multiple projectors over your LAN. Features include scheduling of events, centralized reporting, image transfer and e-mail alerts for reactive and routine maintenance.
CPAW3001 Cloning function PC-Less Presentation
By using a USB memory stick or other storage device, you can use the projector without a computer for Jpeg or video presentations. Menus are easy to see with a thumbnail display. Additionally there is also a slideshow and video function.
CPAW3001 Cloning function PIN Lock / MyScreen / MyText
PIN lock protection can limit projector users. MyScreen PIN lock keeps captured images on the startup screen. Users can set any name logo to MyScreen, clearly identifying ownership. MyText provides the ability to write text on the startup screen such as model. name, serial number or location.
CPAW3001 Cloning function PJMessenger
PJMessenger function allows you to send and display text messages and audio alerts on your networked projectors. It is an easy and efficient way to send announcements out to multiple units.
CPAW3001 Cloning function Present Content via LAN
Maxell’s suite of networking software allows you to easily send content directly from your PC to the projector via your LAN connection.
CPAW3001 Cloning function Template Function
Line templates in the projector menu can help when writing on a whiteboard. There are four types of line templates to choose from.
CPAW3001 Cloning function Wireless Presentation Compatible
Connect the projector to a computer or your network using the
optional USB wireless adapter (part number USBWL5G). The adapter supports IEEE802.11.
CPAW3001 Cloning function 5 Year / 20,000* Hours Light Source Warranty
The new laser phosphor light source offers approximately 20,000 hours (normal mode) of operation time and is virtually maintenance free. There is no lamp to replace providing a dramatic reduction in total cost of ownership.
*5 Years or 20,000hrs. Whichever comes first
  Built-in Scheduler
Allows easy management of the unit.
  Crestron, Extron, AMX certified
Allows ease of use with their products.


Panel Size 3 LCD 15mm (0.59" )
Panel Structure 3LCD
Resolution WXGA (1280 x 800)
Light Output (Brightness) ANSI Lumens 4200 (Normal)
Contrast Ratio 500,000:1
System (Hours) 20,000
Lens Built-in
Lens Zoom Digital zoom x 1.35
Lens Focus Powered focus
Projection Lens F Number 1.6
Throw Distance 0.413m - 0.903m (centre of glass to screen)
Throw Ratio (:1)
Diagonal Display Size
60 - 130" (110" Max on the Maxell Wall Mount)
Installation Ceiling, Tabletop, Rear
Speakers 16W mono
Digital Keystone Correction (Degrees) Horizontal: ± 5º / Vertical: ± 5º
Picture Modes Normal, Cinema, Dynamic, Whiteboard, DICOM SIM, User-1, User-2, User-3
Picture Adjustments ASPECT selection (Normal/4:3/16:9/16:10/14:9/Zoom/Native),
Perfect Fit (4 corners and 4 sides), Frame Lock (Data signal with
vertical frequency of 49 to 51 Hz, 59 to 61 Hz), HDCR, Image
blank by RS232C/Remote control, Image Optimizer, Magnify,
Mirror Reverse Image, Up-side Down Image
Operating Features Keystone V/H, PerfectFit, Standby Audio, Audio pass through, Cloning function, Easy schedule setting
Network Features
Wireless Capability(Option), Multi Projector, Moderator
Control Mode, Projector Quick Connection (iOS / Android
app), Projector Monitoring and Control from a Remote
Location, E-mail Alerts
Security Features Password/Myscreen Password, Pin Lock, Key Lock
Supported Languages 34 Languages (English, French, German, Spanish, Italian,
Norwegian, Dutch, Japanese, Portuguese, Simplified Chinese,
Traditional Chinese, Korean, Swedish, Russian, Finnish, Polish,
Turkish, Arabian, Persian, Czech, Danish, Hungarian, Romanian,
Slovenian, Croatian, Greek, Lithuanian, Estonian, Latvian, Thai,
Portuguese(Brazil), Indonesian, Vietnamese, Hebrew)
Digital Input HDMI x 2 (HDCP compliant, HDMI 2 shared with MHL)
Analogue Input 15-pin Mini-D-Sub x 2, RCA Jack x 1
Video Output 15 pin Mini D-Sub x 1 (shared with analog computer input)
Audio Input 3.5mm Stereo Mini Jack x 2, RCA Jack (L/R) x 1
Audio Output 3.5mm Stereo Mini Jack x 1
RS-232C Control 1 x 9-pin D-Sub
Wireless LAN USB-WL-5G (IEEE802.11 a/b/g/n/ac: 2.4GHz/5GHz) (optional)
Wired LAN RJ45 connector x 1
USB Type-A USB Type A x 2 (PC less Presentation or Wireless adapter)
USB Type B USB Type B x 1 (USB display or USB mouse control)
Power Supply AC 100V – 120V / AC 220V – 240V (50/60Hz)
Operating Power Consumption LP-TW4001: 350W / LP-TW3001: 280W
Standby Power Consumption Less than 0.5W
Weight LP-AW4001: 7.6Kg
Dimensions (W x H x D) 512 x 424 x 155mm
Noise (Normal) 34dB (Normal), 28dB (Eco)
Filter Life (Hours) 20,000
Certification CE Marking, EN61000-3-2, EN61000-3-3, EN55032 (class A), EN55024(EMC directive), EN60950-1 (Low voltage directive), WEEE/RoHS compliant
Computer IBM Compatible VGA, SVGA, XGA,WXGA, WXGA+/SXGA/
SXGA+/UXGA (compressed)
Video 525i (480i), 525p (480p), 625i (576i), 625p (576p)
1125i (1080i@50/60), 1125p (1080p@50/60)
Supplied Accessories Power Cable (1.8m) x1, Computer Cable (2m) x1, Remote Control Unit x1, Concise User Manual x1,
LP-AW4001 Optional Accessories USB wireless adaptor USB-WL-5G, Wall mount unit: HAS-WM06
Filter UX43251
Remote Control HL03037
Projector/ Light source Warranty 20,000 hours / 5 years (whichever comes first)


Rear Panel
MPAW4001 Rear


Optional Accessories

Kensington 2.4Ghz Wireless Presentation Remote - With Red Laser Pointer
Your Price:

Normally $99.95

Projector Remote


  • Wireless range up 50 meters
  • Red Laser Pointer
  • Low battery indicator
  • Backlit buttons
  • Two modes—switch from presenter to cursor control mode
  • On/off switch
  • USB receiver stores inside
  • Carry pouch included
  • Controls Keynote and PowerPoint

- Windows Compatible
- Mac Compatible
[More Information]

Universal Flush Projector Ceiling Mount FB-1 *Recommended*
White - $149
Black - $149

Projector Mount

Available in BLACK (FB-1B) and WHITE (FB-1W)
• Swivel: 360°, Adjustable roll, pitch and yaw.
• Rigid Steel construction.
• Durable powder-coated finish (Black or White).
• Supports up to 10kgs.
• Mounting hardware included.
• User manual included.
• All bracket models come standard with 4 x mounting arms.

- Direct to ceiling mount (150mm)
- Suits most projectors with 3 or 4 holes


HDMI Cable

Premium HDMI Digital AV Cable - For 4K, 1080P & 3D Projectors

1 Metres
2 Metres
3 Metres
5 Metres
10 Metres
15 Metres
20 Metres

  • High Speed HDMI CAT2 cable
  • Type A to Type A Male-to-Male High Speed cable with Ethernet Channel
  • Designed to support the features of HDMI V2.0 and previous versions
  • Features include 4K (50/60Hz) Video, 3D, Deep Colour, Audio Return Channel
  • High Speed HDMI performance with a dedicated Ethernet channel.
  • Shieled cable construction for optimum RF & EMI Protection
  • Gold Plated terminals
  • 12 Month Warranty
    *We recommend keeping the length short for 4K under 10m - especially for 60hz
