Maxell MPWU5503 LCD Large Venue Laser Projector

Maxell MPWU5503 High Brightness Large Venue Laser Projector

Introducing Maxell model MPWU5503, this new laser light source 3LCD projector offers 6,000 ANSI lumens, approximately 20,000 hours (normal mode) of operation time and is virtually maintenance free, there is no lamp to replace providing a dramatic reduction in total cost of ownership. Perfect for digital signage applications, auditoriums, lecture halls, large classrooms, conference rooms and museums. Plus, 5,000 ANSI lumens brightness and 1,500,000:1 contrast ratio results in super bright display with outstanding image clarity and uniformity. Additionally, this projector comes with lens shift for easy installation and a suite of advanced features including High Dynamic Contrast Range (HDCR2), 2 HDMI ports, and Maxell’s original technology Accentualizer.

As with all Maxell projectors, you can expect vibrant image quality, cost-efficient operation, and long-lasting reliability. For added piece of mind, Maxell’s MPWU5503 is also backed by a generous 5-year warranty and our world-class service and support programs.

Maxell MPWU5503 Reviews:
	"As of April 1, 2019 (no joke), Hitachi projectors will henceforth be known as Maxell brand. If you bought a Hitachi projector within the last few weeks or months, the Maxell projectors are the same, just under a different name. You can expect the same support and distribution. Hitachi (and now Maxell) has had a focus on the education market The Maxell MP-WU5503 is a WUXGA (1920 x 1200) resolution projector that claims 5,000 lumens. It almost hit its claim when measured at full wide angle, coming in just 163 lumens below at 4,837 lumens! As most projectors measure up to 25% below claim, this is something to celebrate. The MP-WU5503 is most suitable for those larger higher education classrooms, lecture halls, auditoriums, and museums, but could also find its home in large conference rooms, board rooms, meeting rooms, houses of worship, and entertainment venues."

Key Features

• WUXGA Resolutions, 6,000 Lumens
• 3LCD Laser Projector
• 1,500,000:1 contrast ratio
• 20,000 hours expected light source life (normal mode)
• HDMI 2 Inputs (1 shared with MHL)
• Perfect Fit 2
• High Dynamic Range (HDCR2)
• 360° Installation
• 16 Watt Internal Speaker
• 5 Years Warranty

Features at a glance

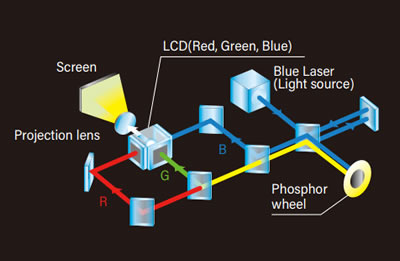

• Long Life 20,000 Hours Laser Light Source: Light source combines blue laser diodes and phosphor which can achieve over 5,000 lumens. The projection image is bright and clear, with vivid colours. Since lamp replacement is unnecessary, maintenance cost is reduced and by not using mercury lamps, the projectors are eco-friendly. Plus, Hitachi’s unique cooling system can achieve a low noise level of 34dB. The life of the light source is approximately 20,000 hours at normal mode but by using other modes which reduce the brightness or operation period, its life can be extended up to 50,000 hours. These mode settings can be used for different purposes depending on the application of the projector.
• Accentualizer: Hitachi original technology makes pictures look more real by enhancing sharpness, gloss and shade to make pictures as clear as pictures on a flat-panel device. You can also adjust the effects by three levels according to your surroundings so that the colours of projected images are the actual colours of the objects they represent.
• Aspect Zoom: Aspect Zoom makes the maximum image size on the screen while keeping the aspect of the image.
• HDCR2 (High Dynamic Contrast Range): When average projectors are used in bright rooms, the darker colours of an image deteriorate and images become unclear. Using this function, blurred images caused by room lighting or outside light sources are corrected, and an effect similar to increasing contrast occurs. The recent enhancement to HDCR2 achieves not only auto tone enhancement but also auto colour enhancement. This results in clear and vivid images even in bright rooms.
• Cloning Function: Copy setting data from one projector to others of the same model via USB memory. Cloning not only saves almost all PJ settings such as gamma and keystone via USB memory, it saves countless hours in setup and installation.
• Perfect Fit 2: Enables the user to adjust individual corners and sides independent of one another. Perfect Fit 2 provides vertical and horizontal digital correction of either barrel or pin cushion distortions. This feature helps correct geometric and complicated distortions. Perfect Fit 2 allows the projected image to fit correctly to the screen quickly and easily.
• Projector Quick Connection App For Mobile Devices: Our iOS and Android applications offers projector control and also provides the capability to display photos, document files and web site contents. Available for iPad®, iPhone® and Android devices. Works over your LAN via your RJ-45 port or via an optional USBWL5G wireless adapter.
• Input Source Naming: Users can name input sources in simple language instead of factory default names.
• Network Control, Maintenance and Security: Embedded networking gives you the ability to manage and control multiple projectors over your LAN. Features include scheduling of events, centralized reporting, image transfer and e-mail alerts for reactive and routine maintenance.
• PC-Less Presentation: By using a USB memory stick or other storage device, you can use the projector without a computer. Menus are easy to see with a thumbnail display. Additionally, there is also a slideshow and video function.
• PIN Lock / MyScreen / MyText: PIN lock protection can limit projector users. MyScreen PIN lock keeps captured images on the startup screen. Users can set any name logo to MyScreen, clearly identifying ownership. MyText provides the ability to write text on the startup screen such as model name, serial number or location.
• DICOM® Simulation Mode: Images in DICOM (Digital Imaging and Communications in Medicine) Mode are reproduced with an advanced grayscale level. This mode is ideal for viewing grayscale medical images such as X-rays, and for training and educational purposes. These projectors are not approved medical devices. They should not be used for actual medical diagnosis.
• Wireless Presentation Compatible: Connect the projector to a a computer or your network using the optional USB wireless adapter (part number USBWL5G). The adapter supports IEEE802.11 a/b/g/n/ac.
• 360° Rotation/Portrait Projection: Display rotation of 360° and portrait projection for creative applications and greater installation flexibility.

High Reliability and Stability

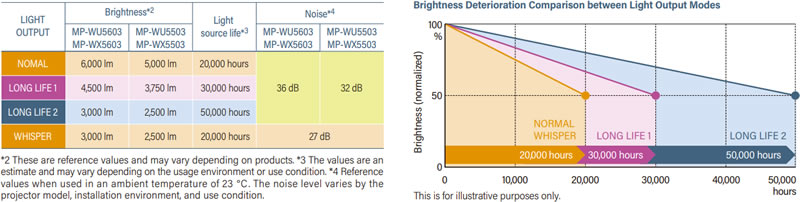

Long Life 20,000 hour Laser Light Source Maxell’ s laser light source projectors have 20,000 hours*1 of light source life. Use for 50,000 hours*1 can be achieved in LONG LIFE 2 mode. Also, users may select their desired operation mode. Furthermore, in addition to the light source, the phosphor wheel is also dust resistant, suppressing brightness level reduction by preventing dust from coming into contact with the optical parts. Users can enjoy using the projector for long periods of time while maintaining its brightness. Additionally, though the device is a 5,000 lm projector, it has achieved a low noise of 32 dB. This is an optimal feature for presentations and seminars. *1 For laser light source. The value is an estimate and may vary depending on the use environment or use condition.

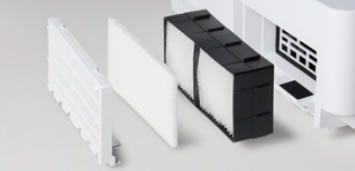

Hybrid Filter Hybrid Filter requires less frequent maintenance and cleaning , making 20,000hours of operation possible*5 *5 This is an estimate of the acceleration test performed under the condition of 50mg/m3 suspension dust concentration using JIS (Japanese Industrial Standards) standard powder. Cleaning intervals vary depending on the use environment.

High Image Quality

ACCENTUALIZER and HDCR ACCENTUALIZER makes pictures look more real by enhancing shade, sharpness, and gloss to make pictures clearer. The HDCR function corrects blurred images caused by room lighting or outside light sources, and creates an eect similar to increasing contrast resulting in clear images even in bright rooms.

Installability

Lens shift and zoom lens

MP-WU5503 and MP-WU5503 projectors feature a powerful 1.7× manual zoom lens*6, the projectors allow for a greater range of installation possibilities. Manually shift the lens horizontally and vertically to position the image on the screen without causing keystone distortion

*6 MP-WX5603 and MP-WX5503 projectors have a 1.6x manual zoom lens
*The figures are not drawn to scale

360° Projection The projector provides great installation flexibility as it can be installed at various angle. By rotating the projector 90 degrees, you can project vertically long images (Portrait Projection).

Convenient Functions

Digital Connectivity

Equipped the HDBaseTTM and 2 HDMI® input terminals. HDBaseTTM input, capable of transmitting signals switch no image degradation using a standard LAN cable (Cat5e or higher, shielded type) of up to approx. 100 m.

PbyP and PinP

You can simultaneously display 2 dierent picture signals in both the main area and sub area. In PbyP, displayed in the display size ratio. In PinP, the sub area position can be changed. This can be used when comparing documents and for discussions.

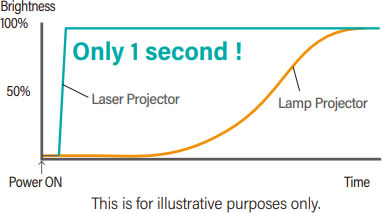

Quick Start When STAND BY MODE is set to QUICK START, projection starts within 1 second*10 of turning on. You can use to start presentation and class quickly. *9 The standby power consumption of the mode is higher than the other modes. *10 It may take approx. 8 seconds depending on duration time of standby and an input signal.

Auto Power ON

The projector can turn the power on to display the input image automatically when the input signal comes from connected devices.

*11 Supported input terminals are COMPUTER IN 1, HDMI® 2 and VIDEO. This function is unavailable when STANDBY MODE is set to NETWORK (WOL) or SAVING. This function may work unintentionally by connected external device.

Other Functions

・Easy Schedule Setting
・DICOM® Simulation Mode*12
・16W Internal Speaker
・Smart Device Control & Monitoring*13
・Moderator Control Mode*14
・PIN lock
・Key lock
・Projector cloning setup application*15

*12 This projector is not a medical device and is not compliant to the DICOM standard, and neither the projector nor this function should be used for medical diagnosis. *13 To use Smart Device Control, an
exclusive application, "PJ Quick Connection" is required. Visit to the maxell projector web site. http://biz.maxell.com/en *14 To use Smart Device Control, an exclusive application, "LiveViewer" is required.
Visit to the maxell projector web site. http://biz.maxell.com/en This function is for Windows users only. *15 To use ,an exclusive application, "Projector Data Cloning Application" is required. Visit to the
maxell projector web site. http://biz.maxell.com/en

Specifications

Projection Technology 3LCD, 3 chip technology Resolution WUXGA 1920 x 1200 Brightness 5,000 ANSI lumens Colors 1.07 billion colors Aspect Ratio Native 16:10, 4:3, 16:9, 14:9 and zoom compatible Contrast Ratio 1,500,000 : 1 (Dynamic Black on) Throw Ratio (distance : width) 1.4 - 2.4 : 1 Focus Distance 31" - 619" Display Size 30" - 300" Lens f = 19.8 - 33.9 mm, x 1.7 manual zoom, focus and lens shift Lens Shift Manual (V: 0 ~ 56.5%, H: +/- 4.6%) Expected Light Source Life* Approx. 20,000 hours (Normal and Whisper mode), 30,000 hours (Long life 1 mode), 50,000 hours (Long life 2 mode) Expected Filter Life** Approx. 20,000 hours Speaker Output 16W Keystone H and V: +/- 30° Computer VGA/SVGA/XGA/WXGA/SXGA/WXGA/WXGA+/WXGA++/ WSXGA+/HD/UXGA/Mac 16 H-Sync 15 kHz - 106 kHz V-Sync 50 Hz - 120 Hz Composite Video NTSC, NTSC4.43, PAL, PAL-M, -N, SECAM Component Video 480i, 480p, 576i, 576p, 720p, 1080i, 1080p HDMI 480i, 480p, 576i, 576p, 720p, 1080i, 1080p Computer signal TMDS clock 25 MHz - 162 MHz 4K (3840 x 2160p@24/25/30, 4096 x 2160p@24/25/30)* *HDMI1 and HDBaseT only Digital Input HDBaseT x 1, HDMI x 2 (HDCP Compliant) Computer Input 1 15-pin mini D-sub x 1 Computer Input 2 15-pin mini D-sub x 1 Computer Monitor Output 15-pin mini D-sub x 1 (shared with computer in 2) Composite Video Input RCA jack x 1 Component Video Input 15-pin mini D-sub x 2 (shared with computer in 1/2) Audio Input 3.5mm stereo mini jack x 2, RCA jack (L/R) x 1 Audio Output 3.5mm stereo mini jack x 1 Network (LAN) Wired RJ-45 port (10 base-T / 100 base-TX) Network (LAN) Wireless USB-A, IEEE802.11 a/b/g/n/ac - optional wireless adapter required HDBaseT RJ-45 port x 1 USB Type A x 1 (Wireless adapter), Type B x 1 (Service) Control Terminals 9-pin D-sub x 1 (RS-232 control) Power Supply AC100-120V / AC220-240V, 50/60Hz Power Consumption 370W/360W Operating Temperature 32° - 104° (0°C - 40°C) under 5,250 ft. 32° - 95° (0°C - 35°C) 5,250 ft. - 10,000 ft. Dimensions (W x D x H) 50.55 x 42.42 x 13.47cm (excluding protrusions) Weight Approximately 8.2kg Approvals UL 60950-1 / cUL, FCC Part 15 subpart B class A
