NEC PE455ULG LCD Large Venue Full HD Laser Projector



PE455ULG



Laser




Your Price: $2399
Special
WAS $2999 SAVE $600

Extended Till 30th June

Flat Rate Freight!
$22 Insured Australia Wide.
Pick up Available



Quick Facts:
NEC PE455ULG Throw Distance Chart (Examples for common Sizes) T/R: 1.2-2.0:1
Image Size Installation Distance
(Approx. To Lens)
94" (16:10) 2025x1265mm From 2.5m to 4.0m
110" (16:10) 2370x1480mm From 3.0m to 4.7m
120" (16:10) 2585x1615mm From 3.2m to 5.1m
130" (16:10) 2800x1750mm From 3.5m to 5.6m
140" (16:10) 3015x1885mm From 3.8m to 6.0m
150" (16:10) 3230x2020mm From 4.0m to 6.4m
SPECIFICATIONS
Native Resolution: WUXGA 1920 x 1200 16:10
Brightness: 4500 ANSI Lumens
Maximum Contrast: 450,000:1
Weight: 9.4kg
Fan Noise: 27 / 22db (eco)
Warranty: 5 Years
Optical Block Warranty: 5 Years/20,000Hrs
Laser Warranty: 5 Years/20,000Hrs

Laser Life Up To: 20,000hrs
FEATURES
- 2x HDMI Connection
- Powerful 16W Speaker
- Vertical & Horizontal Keystone
- Vertical Lens Shift (+60%)
- Horizontal Lens Shift (+/- 29%)

- 1.6x Zoom
- 360° Projection
- Portrait Projection

- HDBaseT Compatible

P605ulg office

Professional Installation Projectors ideal for corporate, higher education and museum applications

Powerful installation projectors equipped to take on the most demanding integration projects

NEC PE455ULG Laser Projector

The NEC PE455ULG is perfect for replacing an older lamp based projector with a no maintenance no fuss laser projector. The PE455ULG comes with a massive zoom so is a perfect candidate to match up the same installation position. It also has lens shift for off centre installations and keystone correction if it is far of centre to square up the image. With a 4500 lumen brightness the PE455ULG can operate in brightly lit rooms and with a Full HD WUXGA resolution offers a crisp sharp picture. Backed up with a 5 year or 20,000 hour warranty the NEC is a great all rounder perfect for a heavy use environment.

  • Sealed optics provide a maintenance free projection solution while LCD technology delivers an impressive and accurate image
  • Horizontal & Vertical lens shift enables flexible projector placement
  • Built-in HDBaseT provides simplified installations with a single cable for video, audio, and control signals
  • Extremely quiet operation for minimal distraction
  • Powerful 16W speakers provide volume needed for most large classrooms and conference rooms
  • 4K Ready - Display stunning 4K 30Hz content using NEC’s proprietary high performance video processing/scaling chip
  • Eco-friendly features, minimal maintenance and a cost saving design mean these projectors are great for demanding applications in higher education and corporate
  • MultiPresenter for audio and video transmission from up to 16 sources simultaneously to the projector over the network
  • NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations

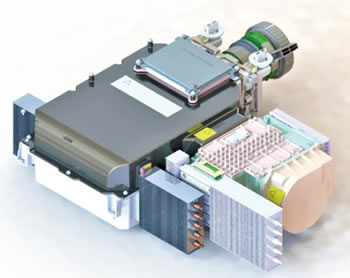

Filter-free Structure with NEC's Original Cooling System

High dustproof performance is achieved by NEC's proprietary sealed jet impingement cooling structure. Due to its excellent dustproof performance, this projector does not have the cumbersome filters that ordinary LCD projectors require. the new laser-based LCD projector offers better TCO (total Cost of Ownership) with less maintenance.

PE455ULG Dust Resistant

Lens Shift
Lens Shift provides greater flexibility when determining the installation location.
Tilt-free
The projector can be freely (360) to orient the image depending on the installation requirements.
Portait mode
Allows the projector to be rotated (and screen is necessary) to a vertical alignment so that portrait content can be viewed without black bars on the side when landscape mode is used.
PE455ULG Lens Shift PE455ULG Lens Shift PE455ULG Lens Shift

Remote Diagnostics
Enables the user to monitor and make adjustments to the projector from a remote location.

Crestron Roomview
Provides unified management, including the ability to switch the power on and off for multiple projectors connected to a network.

Advanced AccuBlend™
Ensures detailed images when non-native resolution sources are connected to the projector.

Tilt-Free Installation
Allows the projector to be rotated freely (360°) in order to point up or down depending on the installation requirements.

Carbon Savings Meter
Calculates the positive effects of operating the projector in ECO Mode, which is encouraged by an optional message at startup. A green ECO Mode button on the remote control makes the switch easy.

Dual HDMI inputs (with HDCP)
Ensure quick switching between presentations and allows for simultaneous digital connections of high-definition sources, such as Blu-ray players, cable boxes, satellite receivers and computers

Simultaneous Dual Image Display (PIP)
With this projector, it is possible to project two images with a single projector by displaying a small sub-display within the main display. Furthermore, the sub-display display position can be changed and the main display and sub-display images can be swapped.

PE455ULG Picture in Picture

Auto Power On
Powers on the projector as soon as it is plugged into a power outlet.

16W Audio
Powerful 16-watt speaker provides volume needed for large rooms

Landscape/Portrait Capable
Allows for distortion-free display of content in various orientations, creating new application opportunities.

Portrait Mode
Ability to install a projector in its side to create a 10:16 portrait image

AutoSense™
Intuitively syncs the projector with most computer signals and features one-touch image optimization.

Lens Shift
Vertical and horizontal lens shift enables flexible projector placement.

PE455ULG Lens Shift

Dust-Resistant Design
Sealed optical block minimizes the effects of dust, helping to ensure the delivery of crisp, distortion-free images.

ECO Mode™
Extends lamp life, lowers audible noise and reduces total cost of ownership.

Wireless LAN (Optional)
Allows you to transmit images from a PC wirelessly to the projector, eliminating the need for traditional cumbersome cables.

Wired Network Connection
Integrated RJ45 connection for quick connection to the LAN (10/100 base-T capability).

MultiPresenter
This projector is compatible with the NEC MultiPresenter application, so multi-screen projection is possible via the network (wired LAN / wireless LAN).

Multi-screen Projection Function *1
The multi-screen projection function allows for the sharing of screens of multiple devices on various split-screen displays via a wireless or wired LAN. Display information from up to 50*2 PCs, tablet PCs, smart phones, and other network connected devices on a multi-screen display of up to 16 screens. Easily share screens and information regardless of device or operating system.

PE455ULG Lens Shift


Specifications
Model NP-PE455UL
Method Three primary colour liquid crystal shutter projection
Specifications of main parts
  Liquid crystal panel Size 0.64 inch LCD with MLA × 3
Pixels *1 2,304,000
(1,920 dots× 1200 lines)
Projection lenses Zoom Manual
Focus Manual
Zoom ratio 1.6
Throw ratio 1.2 to 2.0
F-number/
focal length
F= 1.5 to 2.1
f= 17.2 mm to 27.6 mm
Lens shifting Manual
( H = +/ −29% / V= 0% to +60%)
Light source Blue Laser diode
Light source (laser diode) life *2 20,000H
Optical unit Integrator, dichroic mirror, XDP
  Light output *3*4 ECO MODE [OFF] 4,500 lm
ECO MODE [ECO] Approx. 60%
ECO MODE
[LONG LIFE]
Approx. 50%
Contrast ratio*4(all white/all black) 450,000 : 1 with Light Adjust
Image size 25 to 300 inches
Colour reproduction 10-bit signal processing, 1.07 billion colours
(Viewer, Network, 16.7 million colours)
Quietness
(ECO MODE [ECO] / ECO MODE [OFF])
22 dB / 24 dB to 27 dB (high bright)
Synchronisation range Horizontal 15 to 100 kHz (RGB: 24 kHz or over)
Vertical 50 to 120 Hz
Max. display resolution
(horizontal× vertical)
Up to 4K@30 Hz (3,840 x 2,160) with Advanced AccuBlend,
Pixel clock frequency: less than 300 MHz
Keystone
correction
Horizontal Manual, approx. ± 30 degrees max.
Vertical Manual, approx. ± 30 degrees max.
Input/output connectors
  Computer/ component Video input Mini D-Sub 15-pin × 1
Audio input Stereo mini jack × 1
Audio output Stereo mini jack× 1 (Selected from: Computer / HDMI / LAN)
HDMI Video input Type A HDMI connector × 2
Audio input Yes
PC control connector D-Sub 9-pin× 1 (4800 / 9600 / 19200 / 38400 bps)
USB port USB type A× 1 for USB (5.0 V/ 2.0 A power supply)
Ethernet/LAN RJ-45 × 1
Wireless LAN Port (Optional) USB × 1
Built-in speaker 16 W × 1
Usage environment Operating temperature: 5 to 40°C *5,
Operating humidity: 20 to 80% (with no condensation)
Storage temperature: −10 to 50°C,
Storage humidity: 20 to 80% (with no condensation)
Operating altitude: 0 to 2,600 m
(1,600 to 2,600 m: Set [FAN MODE] to [HIGH ALUTITUDE])
Power supply 100 − 240 V AC, 50/60 Hz
Power consumption ECO MODE [OFF] 316 W (100 to 130 V)
308 W (200 to 240 V)
ECO MODE [ECO] 226 W (100 to 130 V)
222 W (200 to 240 V)
ECO MODE [LONG LIFE] 203 W (100 to 130 V)
201 W (200 to 240 V)
NETWORK STANDBY
STANDBY *6
1.6 W (100 to 130 V) / 1.8 W (200 to 240 V)
0.13 W (100 to 130 V) / 0.19 W (200 to 240 V)
Rated input current 4.9 A to 2.0 A
Dimensions (W× H× D) 480 × 122 × 407 mm (Net dimensions, not including protruding parts),
591 × 259 × 491 mm (Gross dimensions)
Weight (Net weight / gross weight) 9.4 kg / 12.5 kg


Supplied Accessories
Remote
PE455ULG Remote
Rear Panel

PE455ULG Rear Connections
