Optoma HD36UST DLP Full HD Ultra Short Throw Projector


HD36UST


Business
Home Theatre
2 Year Warranty


Your Price: $1999
In Stock Now!

Flat Rate Freight!
$22 Insured Australia Wide.
Pick up Available


Quick Facts:
Optoma HD36UST Throw Distance Chart (Examples for common Sizes)
T/R: 0.25:1
Image Size Distance To Lens
(Approx. To Lens)
92" (16:9) 2030x1140mm From 0.51m to 0.51m
100" (16:9) 2130x1200mm From 0.53m to 0.53m
SPECIFICATIONS
Native Resolution: WUXGA 1920 x 1080 16:9
Brightness: 4000 ANSI Lumens
Maximum Contrast: 22,000:1
Weight: 3.9kg
Fan Noise: 25db (eco)
Warranty: 2 Years (+1 Year $129)
Lamp Warranty: 12months/1000hrs
Lamp Life Up To: 15,000hrs

FEATURES
- 2x HDMI Connection
- USB Reader Jpeg, PDF,
- USB Reader Word, Excel, Powerpoint

- Wireless - Optional
- iPad, iPhone Wireless Projection - Opt.

- Powerful 15W Speaker
- 3D Capable(3D glasses required)


Ultra Short Throw 1080p Multimedia Projector HD36UST

The Optoma HD36UST delivers a powerful 4000 lumen image together with a detailed 1080P resolution making it the perfect choice for a demanding bright environment. It offers a wide ranging USB media ready capable of presenting from a USB memory stick for Jpeg or BMP images as well as PDF documents, word, PowerPoint and excel spread sheets. It features quiet operation and a small light weight design. All this with a super close 0.25:1 throw ratio making it capable of projecting a massive 100” image from a mere 53cm distance.

HD36UST Features

  • Lights on viewing – bright 4000 lumens
  • Super-sized 100-inch images – placed 26cm away from a flat surface or screen
  • Long Lamp Life – Maximum 15000 hours lamp life by using Dynamic mode
  • Lightweight Design – less than 4kg, makes you much easier to install and set up at home
  • Multiple present functions – includes Split Screen, Sketch Function, and Blackboard Mode.
HD36UST Distance

With extremely short throw distance, this projector can be mounted close to the wall and eliminate the shadows, specially designed for education and business applications. At over 4000 lumens of brightness, it offers auto keystone and 4 corner adjustment functions to fit restricted environments. Essential capabilities such as USB Reader, USB Display and network connectivity for more flexible operations are included.

The added benefit of the split screen feature and blackboard mode enables more effective interactions and productivity. This projector offers best performance and the best value over comparable products.

Ultra Short Throw Lens Design
With an ultra-short throw lens, you can project an impressive 100” image from just less than 45 cm away from a flat surface or screen. Ultra short throw projectors can be mounted close to the wall and eliminate the shadows, are the best solution for presentation scenarios.

HD36UST Ultra short throw

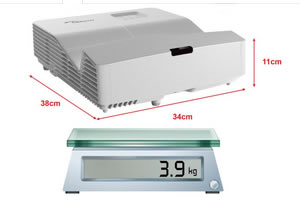

Lightweight Design
This projector has a even lighter design that weight less than 4 kg. This makes you much easier to install and set up at home.
HD36UST Light weight
Bright, detailed rich in color images
4000 lumens, Full HD 1080p, 22,000:1 contrast ratio. Wide coverage of Rec. 709 color gamut.
HD36UST 1080P
Long Lamp Life : Low TCO
Maximum 15000 hours lamp life by using Dynamic mode.
HD36UST Cost Price

Auto Vertical Keystone
Adjust the vertical image angle to project a perfect square image automatically. Auto keystone correction makes it easy to set the screen configurations from a variety of locations.

HD36UST Keystone

2D Keystone Correction
Digital horizontal & vertical keystone lets you adjust the form of an image to get a proper rectangular shape on both sides.

4-Corner Adjustment
By individually adjusting each corner of the image, our 4-Corner Adjustment eliminates any crooked or distorted images in off-angle or restricted space installations for that perfect picture.

HD36UST 4 Corner Correction

USB Display
Mirror your iOS or Android screen by connecting the device to the projector with your USB charging cable. Conveniently and easily to share your content to the big screen. (Android, IOS only)

HD36UST USB Connection

USB Reader (Photo and document viewer)
With the built-in USB reader, simply by plugging in a USB storage device, you can directly view and enjoy photos, even documents including PowerPoint, Word, Excel and PDF file formats.

HD36UST USB Media Player

Wireless display (*optional)
With an optional WiFi dongle and using Optoma’s free EZCast Pro mobile APP, you can wirelessly connect to your laptop, tablet or mobile device and project your content to the big screen. With WiFi display, you can eliminate cable clutter and increase connection versatility.

HD36UST Wireless

Quiet operation
Noise level only at 25dB.

HD36UST Noise Level

Split Screen
Through our free app, the EZCast Pro App, projecting up to 4 images simultaneously from different images sources can greatly improve the efficiency of the meeting.

HD36UST split screen function

Sketch Function
Through our free app, the EZCast Pro App, marking your shared content at your fingertips for effective interaction.

HD36UST Sketch

Blackboard Mode
Blackboard mode is perfect for interactive teaching. It enables projection on dark-surfaced screen by adjusting the color gamut of the display.

HD36UST Blackboard

24/7 Operation
HD36UST is designed to operate 24 hours a day in standard orientation. Perfect for applications where prolonged periods of use is required.

HD36UST 24/7 operation

Integrated Speaker
Complete your home entertainment experience with the convenience of a powerful built-in speakers, and provide exceptional sound quality and are easy to set up without the need for costly external speakers.
HD36UST speaker

LAN display
Via LAN connection, you can mirror your PC or laptop display to the big screen. Specially designed for business and education environments.

LAN Control
The RJ45 port provides additional network control ability. Crestron RoomView, Extron’s IP Link, AMX dynamic device discovery and PJ-Link protocols are fully supported




Specifications
Display Technology

DLP

Native Resolution

1080p 1920 x 1080

Brightness

4000 ANSI Lumens

Contrast

22,000:1

Light Source

Lamp

Lamp Life

4000/10000/15000 hrs (Normal/ ECO/ Dynamic mode)

Lamp Type

240W

Throw Ratio

0.25:1

Zoom Type

Fixed

I/O Connectors

HDMI v1.4a x 1 , HDMI/MHL x 1 , VGA-in x1, VGA-out x1, Composite x1, Audio-in x1, Audio out x 1 , USB-A x1(USB Display/USB Reader), USB-A x1(Wifi), RS232x1, RJ45x1

Speaker (Watts)

15W

Keystone Correction

±5° Vertical, ±4° Horizontal

Weight (Kg)

3.9

Dimensions (W x D x H) (mm)

343 x 383 x 96.5

Aspect Ratio

16:9 Native, 4:3 Compatible

Projection Screen Size

80” – 100”

Projection Distance

0.446 – 0.558 m

Computer Compatibility

UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac

Video Compatibility

HDTV (720p, 1080i/p), SDTV (480i/p, 576i/p)

Horizontal Scan Rate

15.375~91.146 KHz

Vertical Scan Rate

24 – 85Hz

Displayable Colors

1073.4 million colors (10 bit)

Noise Level

25dB (Eco mode)

Power Supply

100-240V, 50-60Hz

RoHS

Compliant

Supplied Accessories
Remote
HD36UST Remote
Rear Panel

HD36UST Rear



Optional Accessories

Projector Warranty Upgrades

Extended Warranty For Projectors
All Programs come with:
- GM Multimedia Extended Warranty ID Number (must be retained)
- GM Multimedia claim instructions and terms & conditions
- Does not cover consumable items or accessories such as projector globes or remotes
[More Information]
1 Year Warranty

$129

Kensington 2.4Ghz Wireless Presentation Remote - With Brighter Green Laser Pointer
Your Price:
$99.95
Special
Normally $119.95


Flat Rate Freight!
$16 Insured Australia Wide.
Pick up Available

Presentation remote

FEATURES

  • Wireless range up to 50 meters
  • Green laser pointer is 10X brighter than standard red
  • Low battery indicator
  • Backlit buttons
  • Two modes—switch from presenter to cursor control mode
  • On/off switch
  • USB receiver stores inside
  • Carry pouch included
  • Controls Keynote and PowerPoint

- Windows Compatible
- Mac Compatible
[More Information]


Universal Flush Projector Ceiling Mount FB-1 *Recommended*
White - $149
Black - $149

Projector Mount

SPECIFICATIONS
Available in BLACK (FB-1B) and WHITE (FB-1W)
• Swivel: 360°, Adjustable roll, pitch and yaw.
• Rigid Steel construction.
• Durable powder-coated finish (Black or White).
• Supports up to 10kgs.
• Mounting hardware included.
• User manual included.
• All bracket models come standard with 4 x mounting arms.

FEATURES
- Direct to ceiling mount (150mm)
- Suits most projectors with 3 or 4 holes


Optoma Projector Wall Mount OWM3000 For Ultra short throw Projectors
Your Price:
$299







OWM3000 Projector Mount

Designed exclusively for use with Optoma ultra-short throw projectors, this wall mount offers an easy solution for integration with a variety of ultra short throw projectors.

Specifications:

Arm: Compact telescopic arm
Roll: ±5°fine adjustment
Pitch: ±5° fine adjustment
Yaw: ±5° fine adjustment
Vertical: ± 40mm
Horizontal: ± 30mm
Weight: 5kg
Max projector weight 15kg


HDMI Logo

HDMI Cable

Premium HDMI Digital AV Cable - For 4K, 1080P & 3D Projectors

1 Metres
$19.95
2 Metres
$29.95
3 Metres
$39.95
5 Metres
$49.95
10 Metres
$79.95
15 Metres
$99.95
20 Metres
$149.95

  • High Speed HDMI CAT2 cable
  • Type A to Type A Male-to-Male High Speed cable with Ethernet Channel
  • Designed to support the features of HDMI V2.0 and previous versions
  • Features include 4K (50/60Hz) Video, 3D, Deep Colour, Audio Return Channel
  • High Speed HDMI performance with a dedicated Ethernet channel.
  • Shieled cable construction for optimum RF & EMI Protection
  • Gold Plated terminals
  • 12 Month Warranty
    *We recommend keeping the length short for 4K under 10m - especially for 60hz
HDMI Features
