Panasonic PT-VMZ40 LCD High Brightness Full HD Laser Projector


PT-VMZ40





Solid State


Your Price: $3299

Flat Rate Freight!
$22 Insured Australia Wide.
Pick up Available


Quick Facts:
Panasonic PT-VMZ40 Throw Distance Chart (Examples for common Sizes)
T/R: 1.09–1.77:1
Image Size Installation Distance (Approx. To Lens)
83" (16:10) 1790x1120mm From 2.0m to 3.1m
98" (16:10) 2110x1320mm From 2.3m to 3.7m
118" (16:10) 2540x1590mm From 2.8m to 4.5m
SPECIFICATIONS
Native Resolution: WUXGA 1920 x 1200 16:10
Brightness: 4500 ANSI Lumens
Maximum Contrast: 3,000,000:1
Weight: 7.2kg
Fan Noise: 37 / 27db (eco)
Warranty: 5 Years / 10,000 hours
Laser Warranty: 5 Years / 10,000 hours
Laser Life Up To: 20,000hrs
FEATURES
- 1.6x Optical Zoom
- 2x HDMI Connection
- Vertical Lens Shift (+ 44%)
- Horizontal Lens Shift (+/- 20%)
t

- Horizontal & Vertical Keystone

- 360° Installation (v&h axis)
- Portrait Projection

- Optional Wireless
- 10W Speaker Inbuilt

Panasonic PT-VMZ40 Laser Projector

The Panasonic PT-VMZ40 offers a Full HD WUXGA resolution perfect for high detail presentations. Combined with a bright 4500 lumen brightness it can project in a well lit environment perfect for larger board rooms and classrooms. With a 1.6x optical zoom it also offers flexible installation distances making it a great candidate for replacing an older projector. The PT-VMZ40 offers the new laser light source with a massive 20,000 hour life which cuts down on the downtime and replacement cost faced with replacing lamps.

Superb Performance and High Picture Quality

Work as a Team

Meet the World’s Smallest and Lightest 4,500–6,000 lumens Laser Projector Series*1
Flexibility defines the PT-VMZ40 Series, the world’s lightest LCD laser projectors*1 developing up to 6,000 lm from a 7.2 kg (15.87 lbs) body. Carry it easily from room to room and let 1.6x zoom and Vertical/Horizontal Lens-Shift perfectly align large-format pictures on screen in spaces big or small. Easy setup is invaluable for permanent installation, where DIGITAL LINK*2 and 4K signal input*3 simplify integration. As a SOLID SHINE Laser projector, light-source operation extends to 20,000 hours*4 with bright color maintained for longer. Designed for tomorrow to work hard today, the PT-VMZ40 Series is the smarter investment.

Bright, Color-Rich Images with High Contrast

Vivid Images in Bright Environments
SOLID SHINE Laser phosphor drive with advanced LCD optical engine projects bright, vivid, and detailed images regardless of artificial light levels in the room. Text is finely resolved, while graphics and video retain high color saturation and contrast for immersive viewing.

High Brightness from a Compact Body
Deploy up to 6,000 lm*5 of brightness from a projector weighing just 7.2 kg (15.87 lbs), currently the smallest and lightest LCD laser projector series in the world*1. High brilliance makes pictures pop even under the glare of interior lights, making projection more engaging than ever.

High 3,000,000:1*6 Contrast
High-precision digital laser light output modulation achieves 3,000,000:1*6 dynamic contrast while minimizing power consumption. High-contrast performance adds depth, dimensionality, and realism to video, defining details in shadows even when bright and dark scenes frequently interchange.

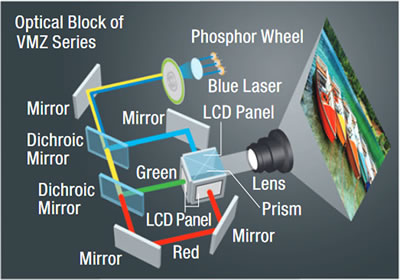

PT-VMZ40 Laser projection system

A Clearer View with Daylight View Basic
Daylight View Basic enhances sharpness by optimizing detail reproduction in dark areas of the image, which can be difficult to see in bright light. A sensor measures ambient light, allowing halftone color and brightness to be optimized to best suit the surrounding level of illumination.

No Light-Source Replacement for 20,000 Hours*4
Laser light-source operation extends up to 20,000 hours*4, lowering maintenance cost, labor, and waste when compared to lamp-based alternatives. Organizations can slim down spare-part inventories and minimize downtime.

Reusable Air Filter Extends Maintenance
In areas with average levels of dust, such as classrooms and offices, the projector’s air filter doesn’t require maintenance for up to 20,000 hours*7. The eco-friendly filter can be washed and reused up to two times, saving on replacement costs.

PT-VMZ40 Air Filter

Easy Installation, Simple Setup

1.6x Zoom Lens and Lens Shift Function
The 1.6x zoom lens with flexible 1.09 –1.77:1 throw-ratio enables large-format projection from close up or far away from the screen: ideal for permanent installation in large or small rooms. Wide-range Vertical/Horizontal Lens-Shift aligns the image to fit the projection surface in moments. This is handy when the projection position is too high, too low, or off-center.

PT-VMZ40 Zoom

Supports 4K signal input*3
The PT-VMZ40 Series supports 4K/30p signal input*3 via HDMI®or DIGITAL LINK*2 terminals, enabling seamless integration into existing or planned 4K-ready system infrastructure.
PT-VMZ40 4K

Horizontal, Vertical, and Corner Keystone Correction
Manual keystone adjustment fits the image to the screen when projecting from an unusual angle. Curved Screen Correction removes barrel or pincushion distortion for natural projection onto curved surfaces.

Convenient Shutter Function
A button on top of the unit or the remote blocks light output temporarily. It’s useful at break-time or whenever you don’t require image display, but want the projector powered on, cued up, and ready to go again instantly.
PT-VMZ40 Image shutter

Functions That Smoothly Facilitate Communication

Quick Start and Quick Off
The projector’s laser light-source doesn’t need time to warm up, so images appear almost instantaneously in Quick Start/Quick Off Standby Mode*11. There’s no cool-down required—it’s safe to switch the unit off at any time

Wireless Projection Function with Optional Module
Project wirelessly via PC using Presenter Light for Windows® or Panasonic Wireless Projector app*12 for iOS and Android™ devices by connecting the optional AJ-WM50 Wireless Module*13 to the projector’s USB input.

Presenter Light for Windows® PCs
• Supports images, video, and documents such as PDF and PowerPoint®
• Mirrors PC screen on the big screen
• Project media from up to four PCs simultaneously in Split Screen Mode
Note: Audio playback may be disrupted or become noisy while images and sound are being transmitted. Should this occur, navigate to [Audio settings] and check [No] against the [Allow audio capture] option.

Wireless Projector for iOS/Android™
Dedicated apps for iOS and Android devices feature simple 3-step initial connection and support the transmission of still images and PDF data.

PT-VMZ40 Wireless

Memory Viewer Light Function
You don't need to connect a computer to start presenting—just insert a USB memory stick containing your media and start projecting straight away.

Multi Monitoring & Control Software
Manage up to 2,048 devices via network with system map visualization and auto-search of unregistered devices. The free software is available with Early Warning functions (free 90-day trial*14). These enable real-time monitoring, abnormality detection, and much more.

PT-VMZ40 Monitoring Software



Other Features
• Direct Power Off
• Low 0.4 W Power-Consumption on Standby
• Auto Input Signal Search
• Color-Board and Blackboard Modes
• Easy Remote Monitoring and Control Over LAN
• Compatible with Crestron Connected™, AMX DD, and PJLink™
• Built-in 10 W Speaker



Projector Screen Bundle

Specifications
Projector type LCD Projectors
LCD panel
Panel size 16.3 mm (0.64 in) diagonal (16:10 aspect ratio)
Display method Transparent LCD panel (x 3, R/G/B)
Drive method Active matrix method
Pixels 2,304,000 (1920 x 1200) x 3, total of 6,912,000 pixels
Light source Laser diodes
Light output*1 4,500 lm
Time until light output declines to 50 %*2 20,000 hours (NORMAL)
Resolution 1920 x 1200 pixels
(Input signals that exceed this resolution will be converted to 1920 x 1200 pixels.)
Contrast ratio*1 3,000,000:1 (all white/all black)
(PICTURE MODE: DYNAMIC, DYNAMIC CONTRAST: [1])
Screen size (diagonal) 0.76–7.62 m (30–300 in), 16:10 aspect ratio
Center-to-corner zone ratio*1 85 %
Lens 1.6 x Manual zoom (Throw ratio: 1.09–1.77:1)
Manual focus lens, F = 1.60–2.12, f = 15.30–24.64 mm
Lens shift
Vertical
(from center of screen)
+44 %, 0 % (Manual)
Horizontal
(from center of screen)
+20 %, -20 % (Manual)
Keystone correction range Vertical: ±25 °, Horizontal: ±35 °
Installation Horizontal/vertical, free 360-degree installation
Terminals
HDMI 1/2 IN HDMI 19-pin x 2 (Compatible with HDCP, Deep Color, 4K/30p signal input), Audio Signal: Linear PCM (Sampling frequency: 48 kHz/44.1 kHz/32 kHz)
COMPUTER 1 IN D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
COMPUTER 2 IN/OUT D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) (Input/output switching)
VIDEO IN Pin jack x 1
AUDIO 1/2 IN M3 stereo mini-jack x 2
AUDIO 3 IN Pin jack (L/R) x 1
VARIABLE AUDIO OUT M3 stereo mini-jack x 1
SERIAL IN D-sub 9-pin (female) x 1 for computer control (RS-232C compliant)
LAN RJ-45 x 1 for network control, 10Base-T, 100Base-TX, compatible with PJLink™ (Class 2)
DIGITAL LINK/LAN
USB (VIEWER/WIRELESS/DC OUT) USB connector (Type A) x 1 for Memory Viewer function, optional Wireless Module AJ-WM50, power supply (DC 5 V, maximum 2 A*3)
Power supply AC 100 V–240 V, 50/60 Hz
Power consumption 365 W
Built-in speaker 10 W monaural
Cabinet materials Molded plastic
Filter*4 Included [Filter cleaning cycle: 20,000 hours (under dust conditions of 0.08 mg/m3), 10,000 hours (under dust conditions of 0.15 mg/m3)]
Operation noise*1 NORMAL: 37 dB, QUIET: 27 dB
Dimensions (W x H x D) 399 mm x 115 mm x 348 mm (15 23/32˝ x 4 17/32˝ x 13 11/16˝ ) (Not including protruding parts)
399 mm x 133 mm x 348 mm (15 23/32˝ x 5 1/4˝ x 13 11/16˝ ) (With feet at shortest position)
Weight*5 Approx. 7.2 kg (15.87 lbs)
Operating environment Operating temperature: 0–45 °C (32–113 °F)*6
Operating humidity: 20–80 % (No condensation)
Applicable software Multi Monitoring & Control Software, Logo Transfer Software, Presenter Light Software for Windows®,
Wireless Projector App for iOS/Android™
Supplied Accessories
Remote
PT-VMZ40 Remote
Rear Panel
PT-VMZ40 Rear
