Sony VPLCH350 High Brightness Full HD Projector

VPLCH350






Sony Logo


DISCONTINUED

For the current Sony Range Click here

Quick Facts:
Sony VPLCH350 Throw Distance Chart (Examples for common Sizes)
Image Size Installation Distance
(Approx. To Lens)
83" (16:10) 1790x1120mm From 2.7m to 3.9m
98" (16:10) 2110x1320mm From 3.2m to 4.7m
118" (16:10) 2540x1590mm From 3.9m to 5.6m
SPECIFICATIONS
Native Resolution: WUXGA 1920 x 1200 16:10
Brightness: 4000 ANSI Lumens
Maximum Contrast: 2500:1
Weight: 5.7kg
Fan Noise: 35 / 30db (eco)
Warranty: 3 Years (+1 Year $129)
Lamp Warranty: 1500 hours
Lamp Life Up To: 5
,000hrs
FEATURES
- 2x HDMI Inputs
- Vertical Keystone
- Horizontal Keystone
- 1.5x Zoom
- Powerful 12W Speaker

- USB to laptop Connection
- Optional Wireless

VPLCH370 enviro

A great fit for demanding middle and large classrooms and meeting rooms where cost is critical

The VPL-CH350 delivers an outstanding brightness of 4000 lumens and ultra high-quality images with WUXGA resolution. Sony 3LCD BrightEra™ panel technology provides higher picture quality, substantially brighter images, higher efficiency, consistent colour stability and longer durability. It also delivers installation flexibility, environment-friendly features, and a low total cost of ownership, in a stylish design that blends into any decor. The lens shift/zoom capability and the image correction features easily allow users to fit any image onto the screen, even from an offset projection angle.

Additionally, the projector is economically designed for optimum energy efficiency, thanks to its energy saving features and has all the features and functionality that you would expect from Sony, particularly in terms of installation, projection, usability and maintenance.

High resolution WUXGA image
The VPL-CH350 delivers an amazing resolution of WUXGA (1920 x 1200). Extremely clear and detailed high-quality images are projected, even on a large screen. The VPL-CH350 is the ultimate tool for projecting images in a range of applications requiring exceptional detail.

VPLCH370 enviro

High image quality 3LCD BrightEra™ natural and vivid colour images with high brightness of 4000 lumens
Thanks to the optical system projecting three basic colours constantly, the projector offers excellent light efficiency, which ensures colourful and bright images. Sony's BrightEra™ panels deliver improved panel light resistance, higher resolution, high brightness and increased panel reliability. High colour reproducibility is important especially when using colourful content, such as materials used in classrooms.
Brightera

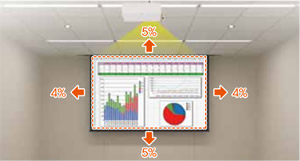

Fine lens shift: +/- 5%, Horizontal: +/- 4%
The VPL-CH370’s lens shift range adjustment means that the projector can be positioned picture-perfect and horizontally offset to avoid any minor ceiling obstacles.

1.5:1 to 2.2:1 throw ratio
The VPL-CH350 offers a 1.5:1 to 2.2:1 throw ratio that can accommodate most large classrooms or large meeting room’s current replacement installation.

VPLCH370 Lens Shift

Blend-in design
The VPL-CH350 has a low-profile chassis, so it appears to blend into the ceiling or wall on which it is mounted.

USB Display (USB to Laptop Connection)
These projectors allow users to display pictures and audio* with just one USB cable. There’s no need to install any driver for this function. This is a convenient and very easy way to connect to the projector.

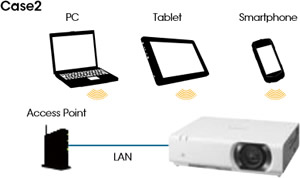

Network Presentation (LAN)
When one of these projectors is installed on a LAN, presentations can be projected from any PC and Mac on the network. A tablet or smart phone can also be connected at the same time. Users can project jpg, pdf, and other supported formats. Up to four users can project PC / Mac images simultaneously, while up to eight*1 users can connect to one projector.
VPLCH370 Wireless

Wireless Presentation Software
For MS Windows / Mac OS: Projector Station for Network
Presentation
For iOS / Android OS: VueMagic*
2
*1 Up to seven users for wireless.
*2 The application for tablets and smartphones is provided by Pixelworks.
For details, please visit the following website:
http://PWPresenter.pixelworks.com

VPLCH370 Wireless

Advanced energy-saving features
Advanced lamp technology enables robust energy-saving features. For example, greater brightness control in Auto Light Dimming mode saves considerable energy when the projector is left on without being used. During projection, Auto Picture Mode automatically adjusts light output to suit the projected scene. When you need to mute the picture temporarily, light output can be completely deactivated to minimise energy consumption.


Specifications

Display system

Display system 3 LCD system

Display device

Size of effective display area 0.64” (16.3 mm) × 3, Aspect ratio: 16:10
Number of pixels 6,912,000 (1920 × 1200 × 3) pixels
Aspect ratio 16: 10

Projection lens

Zoom Manual (Ratio: Approx. x 1.45)
Focus Manual
Lens shift Manual (Vertical: +/- 5%, Horizontal: +/- 4%)
Throw Ratio 1.5:1 to 2.2:1

Light source

Light source Ultra high pressure mercury lamp 250 W type

Recommended lamp replacement time

Recommended lamp replacement time 3000 H / 4000 H / 5000 H (Lamp mode: High / Standard / Low)

Screen size

Screen size 40” to 300” (1.02 m to 7.62 m)(measured diagonally)

Light output (Mode: High / Standard / Low)

Light output (Mode: High / Standard / Low) 4000 lm / 3200 lm / 2600 lm

Color light output (Mode: High / Standard / Low)

Color light output (Mode: High / Standard / Low) 4000 lm / 3200 lm / 2600 lm

Contrast ratio (full white / full black)

Contrast ratio (full white / full black) 2500: 1

Displayable scanning frequency

Horizontal 19 kHz to 92 kHz
Vertical 48 Hz to 92 Hz

Display resolution

Computer signal input Maximum display resolution: 1920 × 1200 dots *1 / Panel display resolution: 1920 × 1200 dots
Video signal input 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i
The following items are available for digital signal only; 1080/60p, 1080/50p, 1080/24p

Colour system

Colour system NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N

Keystone correction

Keystone correction Vertical: Max. +/- 30 degrees, Horizontal: Max. +/- 20 degrees

OSD language

OSD language 24-language (English, French, German, Italian, Spanish, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Dutch, Norwegian, Swedish, Thai, Arabic ,Turkish, Polish, Vietnamese, Farsi, Indonesian, Finnish, Hungarian, Greek)

INPUT OUTPUT (Computer/Video/Control)

INPUT A RGB / YPbPr input connector: Mini D-sub 15 pin female, Audio input connector: Stereo mini jack
INPUT B / INPUT C HDMI input connector: HDMI 19-pin, HDCP support
S-VIDEO IN S-video input connector: Mini DIN 4-pin
VIDEO IN Video input connector: Phono jack
OUTPUT Monitor output connector*2: Mini D-sub 15-pin (female), Audio output connector*2: Stereo mini jack
REMOTE D-sub 9-pin (male)
LAN RJ45,10BASE-T/100BASE-TX
USB Type-A, Type-B
MICROPHONE IN Mini jack

Speaker

Speaker 12W × 1 (monaural)

Operating temperature (Operating humidity)

Operating temperature (Operating humidity) 0°C to 40°C / 32°F to 104°F (20% to 80%; no condensation)

Storage temperature (Storage humidity)

Storage temperature (Storage humidity) -20°C to +60°C / -4°F to +140°F (20% to 80%; no condensation)

Power requirements

Power requirements AC 100 V to 240 V, 3.6 A to 1.6 A, 50/60 Hz

Power consumption (Lamp mode: High / Standard / Low)

AC 100 V to 120 V 353 W / 285 W / 265 W
AC 220 V to 240 V 334 W / 272 W / 254 W

Standby mode power consumption (Standby mode: Standard / Low)

AC 100 V to 120 V 4.7 W / 0.3 W
AC 220 V to 240 V 4.9 W / 0.5 W

Heat dissipation

AC 100 V to 120 V 1204 BTU
AC 220 V to 240 V 1139 BTU

Outside dimensions (W × H × D)

Outside dimensions (W × H × D) Approx. 406 × 113 × D 330.5 mm (15 31/32 × 4 7/16 × 13 in) (without protrusions)

Mass

Mass Approx. 5.7 kg / 12 lb

Supplied accessories

Supplied accessories RM-PJ8 Remote Commander (1), Lithium battery: CR2025 (1), AC Power Cord (1), Lens cap (1), Quick Reference Manual (1), Operating Instructions (CD-ROM) (1), Presentation Station for Network Presentation application (CDROM) (1)

Notes

Notes *1 Available for VESA Reduced Blanking signal.
*2 From INPUT A.



Rear Panel
VPLCH350 Rear
