BenQ MW826ST DLP Short Throw Multi Purpose Projector
Specifications
- WXGA 1280 x 800 16:10
- 3400 ANSI Lumens
- 20,000:1 Contrast
- 2.6kg Weight
- 33 / 29db(eco) Fan Noise
- 2 Year Warranty
- 12months/1000hrs Lamp Warranty
- Est. Lamp Life up to 15,000hrs
Key Features
- 2x HDMI Connections
- Vertical Keystone Correction
- Powerful 10W Speaker
- 3D Capable(3D glasses required)
BenQ MW826ST Throw Distance Chart
Throw Ratio: (fixed) 0.49:1| Image Size | Installation Distance |
|---|---|
| 94" (16:10) 2025x1265mm | 0.99m |
| 110" (16:10) 2370x1480mm | 1.16m |
| 120" (16:10) 2585x1615mm | 1.26m |
BenQ MW826ST Short Throw projector
The BenQ MW826ST features a short throw distance making it the ideal choice for everything from boardrooms to classroom use where the short distance avoids glare in the presenters’ eyes and shadowing over the projected image. The MW826ST is quite bright at 3400 lumens so can handle a lit room and with a HD WXGA resolution provides a clear detailed picture perfect for fine presentations. On top of all this it has a long lamp life of up to 15,000 hours keeping the running costs low.
key features
- SmartEco Power Saving technology
- 0.49 Short Throw Ratio
- Designed for Education & IWB
- Blu-ray Full HD 3D support
- PointWrite Interactive Solution Compatible

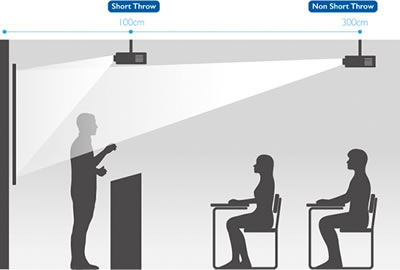

Expanding Classroom Possibilities with Short Throw Ratio
Unobstructed Instruction Without Space Constraints
Offering a big screen in short distance with a 0.49 short-throw ratio, MW826ST eliminates distracting shadows and glare for students and teachers to engage and collaborate freely in front of the board.
Creating Lasting Lessons with Striking Picture Quality

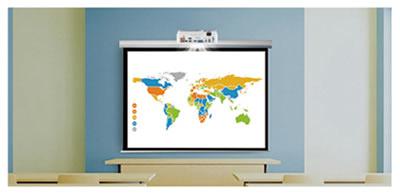

Uncompromised High Brightness
MW826ST produces 3,400 high ANSI lumen brightness and resolution for perfect projection performance with crisp images and sharp text even in bright lecture room. High brightness provides clear content under high ambient lighting, allowing lights to be kept on during classes for note taking and interactive collaboration.

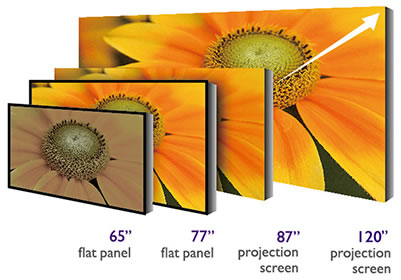

Bigger Images
BenQ education projectors offer a range of resolutions and projected image sizes to meet diverse classroom needs. Featuring crisp image quality up to 120 inches, our ultra-short throw education projectors deliver increased classroom versatility at reduced costs.
Enduring Picture Perfection from DLP Technology

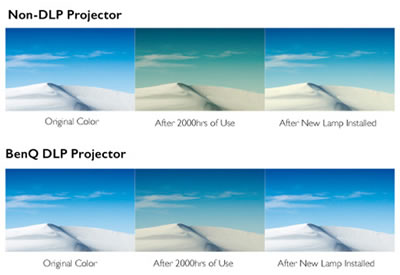

Long Lasting Picture Quality
With sealed design that protects the DLP chip from dust-induced image degradation and the industrial-grade durability of DLP projection technology, BenQ education projectors are capable of maintaining long-lasting picture quality by eliminating color decay. Unlike non-DLP projectors, BenQ education projectors deliver premium picture quality equivalent to the result from brand new projectors after lamp replacement.

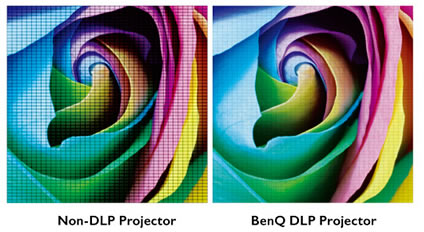

High DLP Pixel Fill Factor for Superb Viewing Experience
BenQ DLP projectors feature class-leading high fill factor, minimizing black borders around each pixel to eliminate the dreaded "screen door effect" commonly observed in non-DLP projectors. BenQ education projectors produce superior definition and clarity in small-size text and fine details for beautifully rendered images instead of pixelated graphics.
Crisp Readability via High Contrast Ratio
Ideal for text, numbers, and tables widely used in instruction, BenQ education projectors leverage the native DLP advantage of digitally controlled micromirrors on the DMD chip. By completely toggling off reflective micromirrors to generate deep true blacks, BenQ education projectors create high native contrast ratio for sharp readability and crisp resolution at every single sub-pixel.
Enabling Interactive Learning (OPTIONAL)
Interaction on Any Surface
PointWrite™ technology transforms BenQ education projectors into collaborative platforms that turn any surface into an interactive whiteboard. Seamless integration of PointWrite™ kit and QWrite software with BenQ projectors encourages a truly collaborative learning environment where students and teachers work together using intuitive templates along with annotation tools.
Multi-Touch & Multi- Screen Drawing
With enhanced multi-touch capability for pens or fingers, two PointWrite™ projectors can be used in conjunction to double the interactive projection surface, creating vast new opportunities for interactive learning in modern digital classrooms. In QWrite Whiteboard Mode, teachers can also run different applications or display, view, and annotate across two monitors.

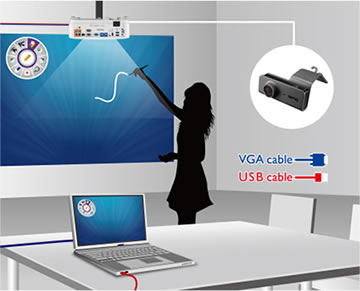

Intuitive Setup
Reliably accurate in any ambient lighting, PointWrite™ auto calibrates and saves its settings immediately when plugged into a computer’s USB port, remaining ready with no manual configuration or complicated training for teachers.

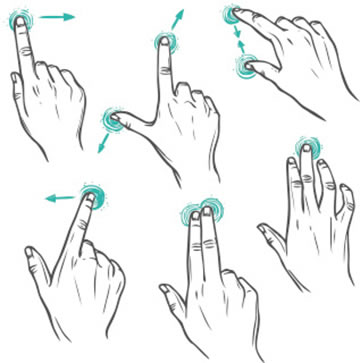

Windows Gesture Support
PointWrite™ projectors support intuitive Windows gestures such as zooming in and out or scrolling while browsing webpages, pictures or Google Maps. All multi-touch commands and gestures are supported for Windows 8 or above and future applications.
Optimizing Educational Investment

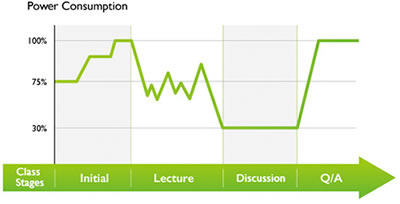

Extended Lamp Life up to 15,000 hours
The exclusive BenQ innovation SmartEcoTM technology intelligently modulates light output and perfects DLP's energy saving capabilities to increase lamp life with uncompromised brightness and exquisite picture quality. Reducing energy consumption, SmartEcoTM extends lamp life up to 15,000 hours, 3X* more than without SmartEcoTM technology. And Eco Blank mode further increases energy saving capability by dimming lamp power automatically to lower total power by 70% when blanking the projection.
*The lamp life is 5000 hours under Normal mode.
Sharp Details in Dark Scenes
BenQ's exclusive SmartEcoTM Technology ingeniously adjusts light output based on content, enhancing contrast to produce richer blacks and the best possible picture quality especially important for detailed and dynamic dark scenes such as astronomy courses.
Facilitating Smart, Efficient Projector Maintenance
LAN Control Compatibility
BenQ education projectors are compatible with Creston, AMX, and PJ Link control systems for convenient system integration with various third-party components and cost reduction via central maintenance of multiple projectors.
Centralized Multiple Display Management
Helping IT managers efficiently perform day-to-day maintenance, BenQ Multiple Display Administrator (MDA) software dashboard enables powerful centralized monitoring, control, and power scheduling across a school’s display network from a single computer, offering full access and control over every device directly.

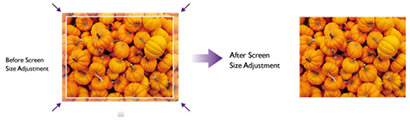

Screen Size Adjustment
BenQ education projectors allow convenient screen size fine tuning through OSD menu to significantly save setup time, without need to physically adjust projector installation in case the sensitive short-throw image is not precisely aligned on the desired frame.
Remote Control Hotkey
Press the "Quick Install" hotkey on the remote control to setup the projector. This is a great time saver for managers performing initial projector installation work.
| Projection System | DLP Single 0.65" WXGA |
| Native Resolution | 1280x800 pixels |
| Brightness (ANSI Lumens) | 3,400 ANSI Lumens |
| Contrast Ratio | 20,000:1 |
| Display Color | 1.07 Billion |
| Lens | F/#=2.6, f=6.9mm |
| Aspect Ratio | Native 16:10 (5 aspect ratio selectable) |
| Throw Ratio | 0.49 |
| Zoom Ratio | Fixed |
| Keystone Adjustment | 1D; Vertical ± 30 degrees |
| Projection Offset** | 105% |
| Resolution Support | VGA(640 x 480) to WUXGA_RB(1920 x 1200) * RB= Reduced blanking |
| Horizontal Frequency | 15K -102KHz |
| Vertical Scan Rate | 23-120Hz |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility | NTSC, PAL, SECAM |
| Image Size (Diagonal) | 60”-120” |
| Weight | 2.6 kg |
| Dimensions (W x H x D mm) | 296*120*239 mm |
| Interface | HDMI x 2 (HDMI-2 share with MHL) PC In (D-sub 15pin) x 2 (share with component video) Monitor Out (D-sub 15pin) x 1 Composite Video In (RCA) x 1 S-Video In x 1 Audio In (mini jack) x 2 Audio L/R In (RCA) x 1 Audio Out (mini jack) x 1 LAN RJ45 x 1 (LAN control) RS232 (DB-9pin) x 1 USB (type A) x1 (power only 5V/1.5A) USB (type mini B) x 1 IR Receiver x2 (front, top) |
| Power Consumption | Typical 260W Network Standby<2W, Standby<0.5W |
| Audible Noise (Normal/Economic Mode) | 33/29 dBA |
| Power Supply | AC100V to 240V, 50Hz to 60Hz |
| DMD type | DC3 DMD Chip |
| Light Source | Lamp (200W) |
| Light Source Life | 5000/10000/10000/15000 hours (Normal/Eco/SmartEco/Lampsave mode) |
| Build in Speaker | 10W x 1 |
| Operating Temperature | 0° ~ 40°C |
| Security | Kensington Lock, Security Bar |
| On-Screen Display Languages | Arabic/ Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian /Persian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/ Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese/ Vietnam (30 languages) |
| Accessories (Standard) | Remote Control w/ Battery RCE013 x 1 Power Cord (by region) Quick Start Guide User Manual CD x 1 Warranty Card (by region) |
