LENS OPTIONS

Lens type	Standard Zoom Lens	Rear Projection Wide Lens	Middle-Throw Zoom Lens 1	Middle-Throw Zoom Lens 2	Long-Throw Zoom Lens
Reference	ELPLS03 / V12H004S03	ELPLR03 / V12H004R03	ELPLM04 / V12H004M04	ELPLM05 / V12H004M05	ELPLL06 / V12H004L06
Option lens
Focus/Zoom type	Manual	Manual (No zoom)	Manual	Manual	Manual
Zoom ratio	1 - 1.8	-	1 - 1.5	1 - 1.5	1 - 1.35
Screen size range	30-300 inch	40-200 inch	40-300 inch	40-300 inch	40-300 inch
Throw Range	0.77-14.54m	0.45-3.2m	1.85-22.04m	2.86-33.12m	4.2-44.06m
Distance at 100"	2.67-4.82m	1.58m	4.78-7.28m	7.16-10.93m	10.76-14.57m
Price	$1399	$1899	$1899	$1899	$1899

Feature rich and offering a choice of five lenses ranging from Rear Projection through Long Throw, the Epson EB-5800 is perfect for custom installations. Producing an impressive 5,200 lumens Light Output and 5,200 lumens Colour Light Output in XGA resolution the EB-G5800 further enhances on Epson’s reputation for high performance projectors for high end installation environments.

KEY FEATURES:

C2Fine Technology – Featuring advanced vertical alignment technology, provides high contrast for deeper blacks and vivid images
DICOM Simulation Mode – Specialised imaging uses standardised greyscale to reproduce medical images such as x-rays for medical training and education
Multi-PC Projection – Allows up to four computers to simultaneously project via the network with a four way split screen
Crestron RoomView Compatibility – Extends ROI for users who have already invested in Crestron RoomView to control and manage Epson projectors over a network, as well as other compatible projectors
Monitor and Control – Network monitoring, maintenance scheduling and email alerts via LAN
Broad Connectivity – VGA , 5 BNC, Monitor out, RS-232 and optional wireless (model dependant)

FEATURES AND BENEFITS:

Amazing Image Quality
In the new G-Series, Epson’s engineers have built upon Epson’s World leading Home Cinema heritage to deliver unparalleled image quality. This is thanks to Epson’s famous C2Fine LCD panels. Featuring advanced vertical alignment technology, C2Fine panels provide high contrast for deeper blacks and vivid images. And because they’re 3LCD, you know that colour reproduction is second to none, and your image will be crisp and vibrant.

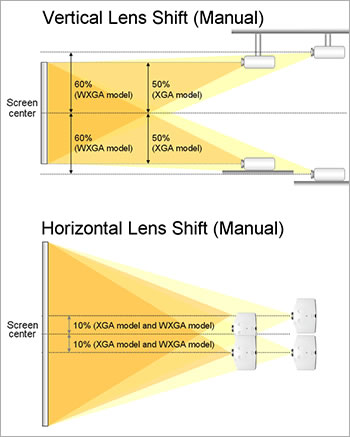

Installation Convenience The G series centre lens is positioned to provide ease of installation and positioning within a setup environment, while the vertical and horizontal lens shift helps broaden the limits of placement possibilities. The EB-G5800 allows for adjustment of image position without compromising the image quality. The vertical and horizontal lens allows for a 50% shift up or down and a 10% shift left or right. Design The G Series comes with a white external case that features a two-tier interface with a low profile cable cover to match the ceiling and room environment.

High Brightness Up to 5200 ANSI lumens for brilliant image projection With its 4000 ANSI lumens in high brightness mode, the EB-G5100 delivers brilliant presentation quality, even in the largest of conference rooms or concert halls. The EB-G5600 is designed with features to ensure a "best fit" for any situation.

Simple Maintenance Lamp replacement: Replacing the lamp, even in a ceiling mount installation, is an incredibly simple and no–fuss operation. Just remove the hatch on the projector, which requires no tools and the lamp can be replaced in a matter of seconds. Air–Filter replacement: Also requiring no tools, replacing the air–filter — even in a ceiling mount installation — is a simple matter of opening the air filter drawer at the side of the projector then removing the filter for cleaning or replacement.

Multiple Lens options There are five different Bayonet type lens options, including the standard lens. This provides the flexibility for the user to choose the most suitable lens for their installation requirements.

Monitor and Control via the Network
Monitoring and controlling a G-Series projector is possible over a network, enabling the network manager to obtain projector information, monitor projector status, and control functions such as power on and off, change sources and even update firmware from a remote location. The Epson G-Series is also compatible with Crestron RoomView, meaning complete integration is possible if you have already invested in this infrastructure.

DICOM Simulation Mode
DICOM (Digital Imaging and Communication in Medicine) is a standard for handling, storing, printing, and transmitting information in medical imaging, which includes a file format definition and a network communications protocol. The DICOM simulation mode in the G-Series can reproduce images with gray level very close to DICOM Part 14 (Grayscale Standard Display Function). This mode is ideal for viewing grayscale medical images such as X-ray pictures for training and education in the medical institutions.

New Test Patterns for Precise Installation
With the new G-Series range there is no need to connect an image source when setting up the image parameters thanks to the included test patterns.

Connectivity

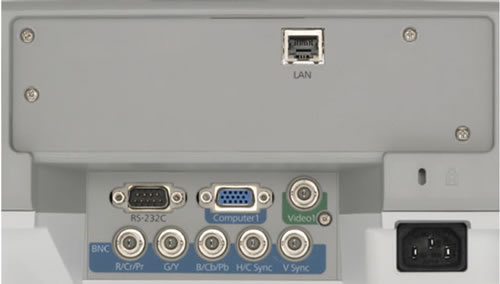

EB-G5800 Rear Panel
