HC3900 HIGH BRIGHTNESS HOME THEATRE PROJECTOR

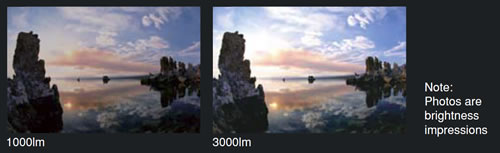

3000lm brightness, 2000:1 native contrast
A fixed iris has been utilised for both enhanced brightness and contrast
with images. Even in a relatively bright living room with the curtains closed,
movies, sports and other programs from high-definition broadcasts
and Blu-ray players can be enjoyed to the fullest.
The latest 0.65 DLPTM chip One of the key features of the HC3900 home theatre projector is its state-of-the-art DLP chip, which incorporates a new digital micromirror device (DMD) comprised of densely embedded micromirrors. A smaller mirror cavity diameter and narrower gaps between mirrors improves the aperture ratio of the chip for a smoother image. Reflective light diffusion is also greatly reduced, which translates to a higher contrast ratio for better overall blacks,whites and colour reproduction.
1.5x Short-throw HD Zoom Lens
A newly developed short-throw zoom lens
is on the HC3900. The 4-cluster, 13-piece
all-glass lens provides excellent focusing
performance with 1.5x magnification of
high-definition images. Improvements in
image depth and the lens aperture make
it possible for deep blacks to be expressed.
Five Segment Colour Wheel and Built-in Colour Management
The HC3900's five segment colour wheel ensures vivid and accurate image reproduction, while the built-in colour management function allows users to adjust individual colours to suit their tastes.
High-output, Long-life Lamp
The optimum design for temperature control of the new colour light source lamp, as well as Mitsubishi Electric's unique lighting timing, have extended the useful life of the lamp to a maximum of 5000 hours.
DDP3021 Full 10-bit Panel Driver
The built-in DDP3021 full 10-bit panel driver creates approximately
four times the gradation of 8-bit models, providing smooth expression
of dark gradation subtleties.
Blu-ray 24P direct output compatible
Capable of handling an output of 48p, twice the speed of cinema film
(24 frames per second), precise timing ensures true-to-life reproduction
with original, smooth movement in fast action scenes.
2-3 Pull-down
When converting 24 frames
per second into 60 frames
per second, and lining up
the second and third frames
in sequence, there is a
surplus third B frame, which
deteriorates movement
smoothness.
24P direct output
With 24p direct output,
24 frames per second is
converted to 48 frames
per second. This allows
sequential matching of two
frames at a time, thereby
enabling image reproduction
with original sequence
smoothness.
Color Management for Preferred Color Adjustment
Adjust images to your color preferences: R (red), G (green), B (blue),
C (cyan), M (magenta), and Y (yellow) can each be adjusted individually
with the built-in color management function.
BrilliantColorTM
A new color processing algorithm and improvements in system-level
color signal quality reproduces many mid-range colors in video and
natural scenery for rich, vivid images.
Adjustable Overscan
For images such as those from DVD sources, the overscan ratio can be
varied between 90 and 100% in 1% intervals when HDMI components
are connected.
One-touch projection
The projector power switch and electric screen (roll down/retract)
control are linked, providing a convenient one-touch operation trigger.
Screen Distortion Correction
Correct screen distortion using the shape distortion correction function
to adjust up to ±15 steps (1 step approximately 1°) for vertical
distortion correction.
Specifications
Model
HC3900
Display technology
0.65" 1-Chip DMD, 12deg.LVDS, DDP3021
Resolution
1920 x 1080 (Total 2,073,600 pixels)
Brightness (Maximum)
3000 ANSI lumens
Contrast
2000 : 1 (on/off)
Picture Size
50" ~ 300" (Wide)
Source lamp*
230W (Shut Off Time 3000Hrs) with Low Mode
(190W : Shut Off Time 5000Hrs)
Computer compatibility
Resolution ; 640 x480(Expand) - 1920 x 1080(Real) - 1600 x 1200 (Compressed);
Sync on Green available
Video compatibility
NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60
480i/p(525i/p), 576i/p(625i/p), 720p(750p 50/60Hz), 1080i(1125i 50/60Hz),
(1080i(1250i 50Hz) is not available), 1080P(50Hz,60Hz,24Hz)
PC input terminals
Mini D-Sub 15pin x 1
Video input terminals
HDMI x 1, RCA x 1, S-VIDEO x 1, RCA Component (Y,PB,PR) x 1
Communication terminals
RS232C; Mini DIN 8pin x 1
Fan noise
25 dB(A) (Lamp low mode)
Dimensions (W x H x D)
345(W) x 129(H) x 270(D)mm
Weight
3.5kg
Power supply
AC 100 - 240 V, 50/60Hz
Optional lamp
VLT-XD600LP
Included accessories
RGB PC Cable (15 pin D-sub) x 1; Power Cord x 1; Remote Control (with Batteries); Lens Cap; Lamp replacement attachment; User Manual Paper; User Manual CD; Safety Manual
